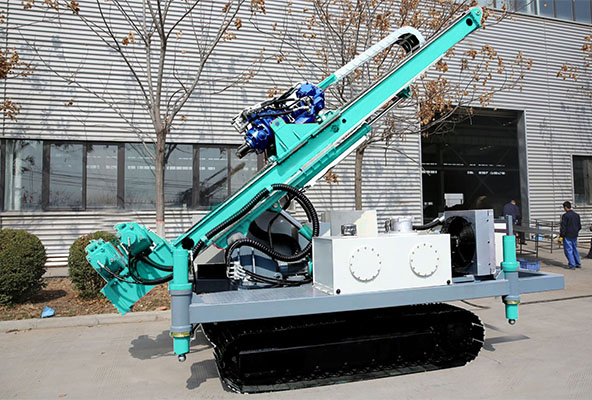

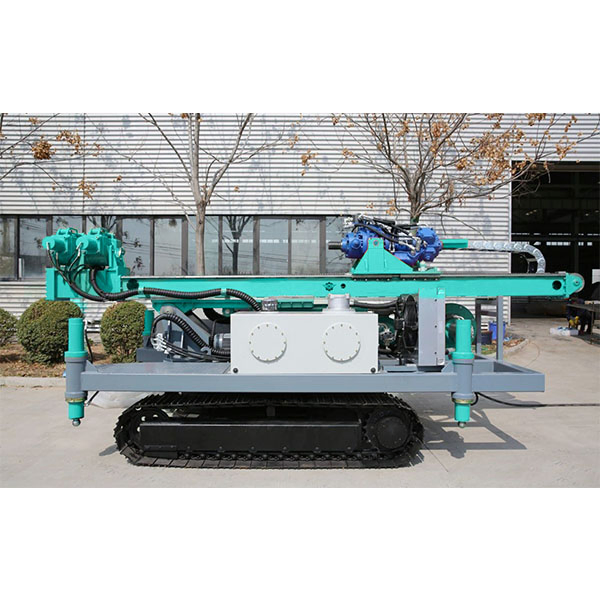

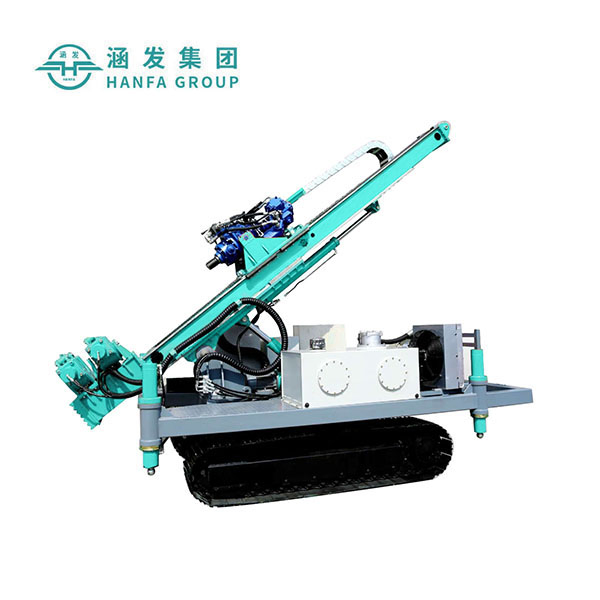

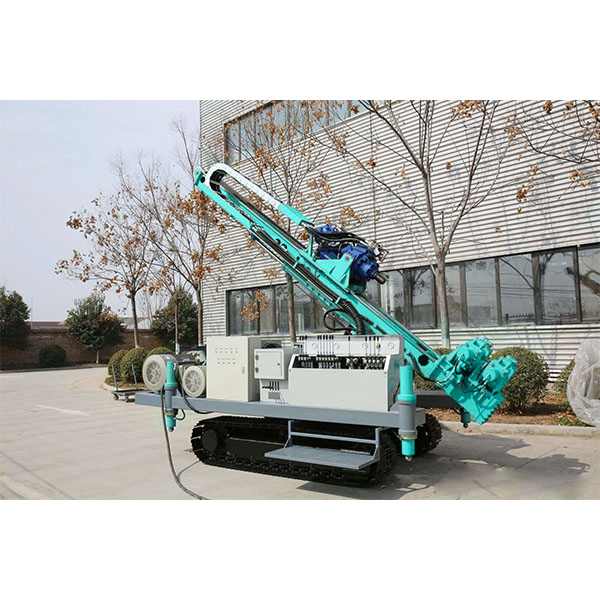

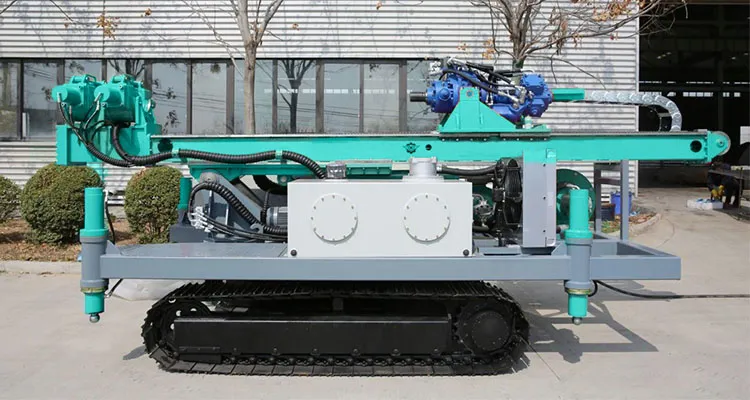

Hfxt-60/80 Jet Grouting Drilling Rig

Product Description

Application

It is mainly applicable to carbide rotary drilling, screw drilling, pneumatic drill hole hammer, pneumatic drill hole hammer with pipe drilling (optional with rotary jet, pendulum jet, fixed jet) and other drilling techniques. It can also be used in tunnel pipe shed support, rock and soil anchoring, blasting hole, embankment reinforcement, ground source heat pump hole, hydrologic well, foundation pile construction and geological disaster control and other engineering fields.

Note: Users can choose diesel engine power, motor power, or diesel engine/motor dual power.

Introduction

HFXT-60/80 crawler-type hydraulic dynamic impact engineering drill can be used for rotary drilling with common alloy bits and other drilling tools. Conventional ball tooth bits can be used for rotary percussion drilling and high-speed hole formation in rock layers. In unstable strata such as pebble beds, the following pipe drilling tool can be used to drill holes with casing. Supporting hydraulic impact can meet requirements for impact rock drilling operations, liquid discharge, underground micro piles, anchor cables, geological exploration, geothermal hole formation, foundation reinforcement, and slope support.

Key Features

Anchoring suitable for drilling pipe, casing, and combined drilling pipe and casing. Rotary jet grouting for single, double, and triple configurations.
Full hydraulic power transmission, stepless speed change, high drilling efficiency, low labor intensity.

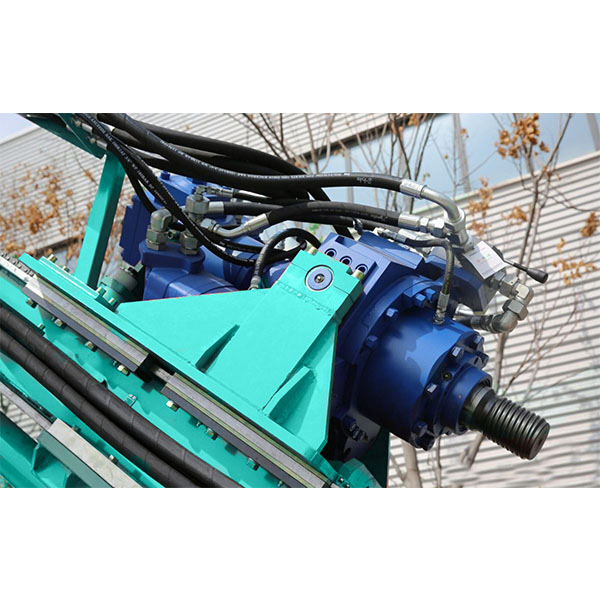

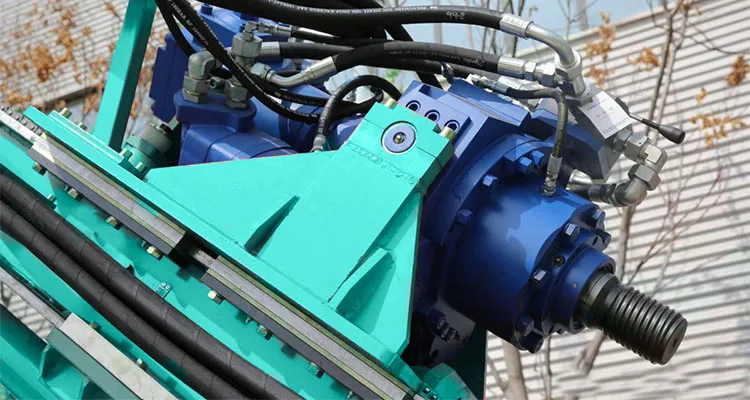

Power head features hydraulic variable speed with high/low gears, reducing fittings, increasing reliability, and simplifying maintenance.
Integrated backstroke device to quickly extract jammed drill pipes.
Manual frequency adjustment on the middle cylinder of the hydraulic impact drill for various geological conditions.
Direct-acting load feedback hydraulic system for energy efficiency.
High-quality hydraulic components for stability and long service life.
Self-walking crawler function for quick and easy maneuverability.

Technical Data

Model	HFXT-60	HFXT-80
Maximum torque (N.m)	11500	16680
Power head speed (rpm)	0-92	0-64
Impact frequency (bmp)	1500	2500
Single impact work (Nm)	800	1100
Maximum stroke of power head (mm)	3400
Drill pipe diameter (mm)	φ42, φ50, φ73
Weight (kg)	7900

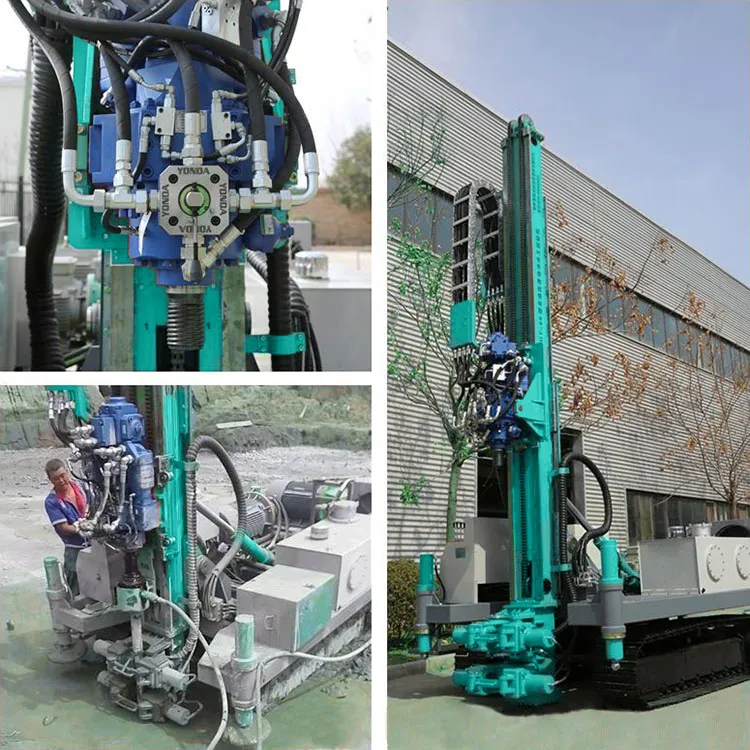

Working Site

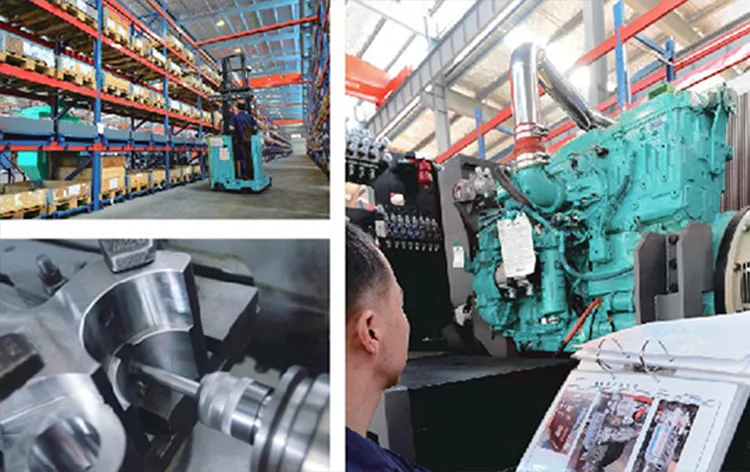

Company Introduction

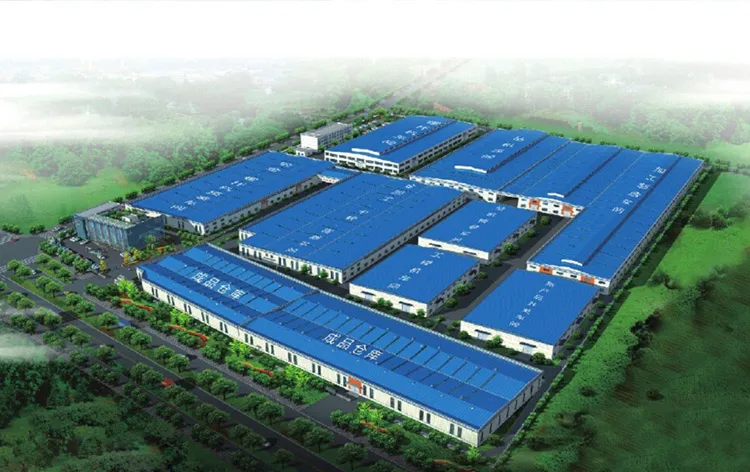

Hanfa Group, established in 1998, is a key enterprise in the industry of geological exploration and water well drilling. The Group focuses on high-standard manufacturing and qualified products. It offers more than 20 types of machinery, including water well drilling rigs, core drilling rigs, engineering drilling rigs, DTH drilling rigs, and horizontal directional drilling rigs.

Service Standards

Expert Team: We provide professional technical training for new machines.
24/7 Response: Dedicated service team to address quality problems or maintenance issues.
Custom Solutions: We recommend construction plans based on specific geological conditions.
Wearing Parts: We provide reminders for wearing parts to ensure you are fully prepared.

FAQ

Are you a trading company or manufacturer?

We are a professional manufacturer specializing in water well drilling rigs, core drilling rigs, DTH rigs, and piling rigs, with exports to over 50 countries.

Are your products qualified?

Yes, all products hold ISO certification, and we maintain a specialized quality inspection department to check every machine before leaving the factory.

How is your machine quality assured?

All machines hold ISO, QC, and TUV certificates. Each unit passes rigorous testing to ensure optimal quality for our customers.

Do you provide after-sales service?

Yes, we have a dedicated service team offering professional guidance. We can send engineers to your worksite for staff training.

What is the quality warranty period?

We offer a one-year quality warranty for the main body of our machines.

What is the typical delivery time?

Generally, we can deliver the machine within 7 days.
