Hydraulic Concrete Pump for High Building Construction Beton Pump

Customization:	Available
After-sales Service:	24 Hous Online
Warranty:	1 Year

Send Inquiry

Product Description

Basic Specifications

Model NO. D/HBT Series

Type Concrete Pump

Shotcrete Type Wet

Machining Process Welded Molding Machine

Structure Cylinder Type

Productivity 20, 25, 30, 40, 50, 60, 80cbm/H

Feeding Height 1370mm

Vibrating Amplitude Trailer Concrete Pump with Electric or Diesel Power

Certification ISO9001: 2000, CE, BV

Condition New

Color As Your Option

Main Electric Parts LS Electrical Devices

The Seal Fittings American Parker

Pipe Joints American Eaton

Type of Distribution Valve S Tube Valve

Main Oil Pumps German Hawe, Rexroth Series and Japanese Kawasaki

Lubricating System Fully Automatic Multi-Points Lubricating

After-Sales Service Provided Engineers Available to Service Machinery Overseas

Key Word Concrete Pump

Power Electric, Diesel, or Generator

Transport Package Standard Export Package

Specification CE, ISO

HS Code 84134000

Production Capacity 80 Sets / Month

Product Description

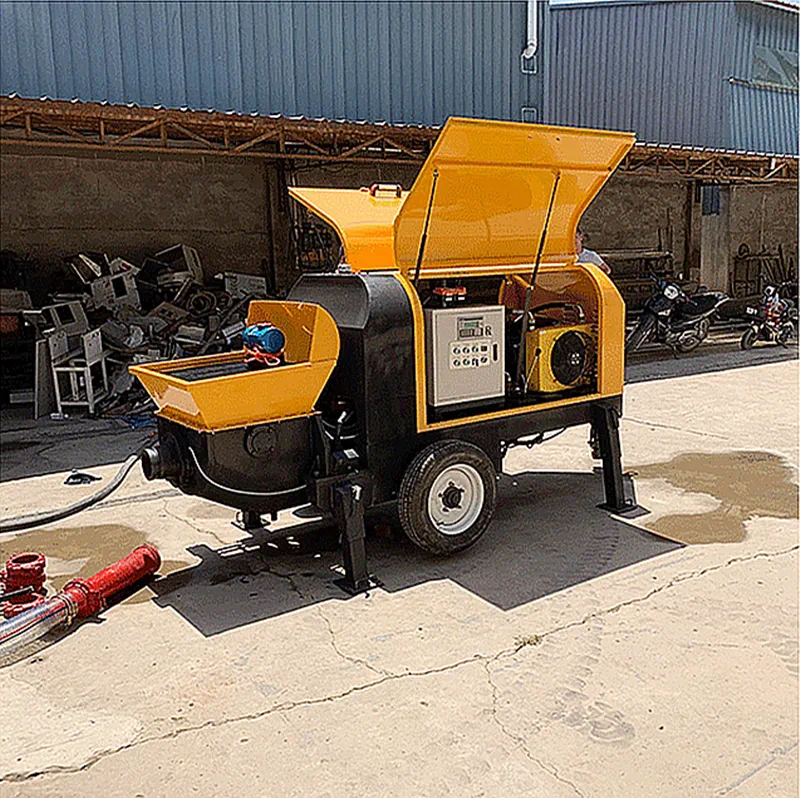

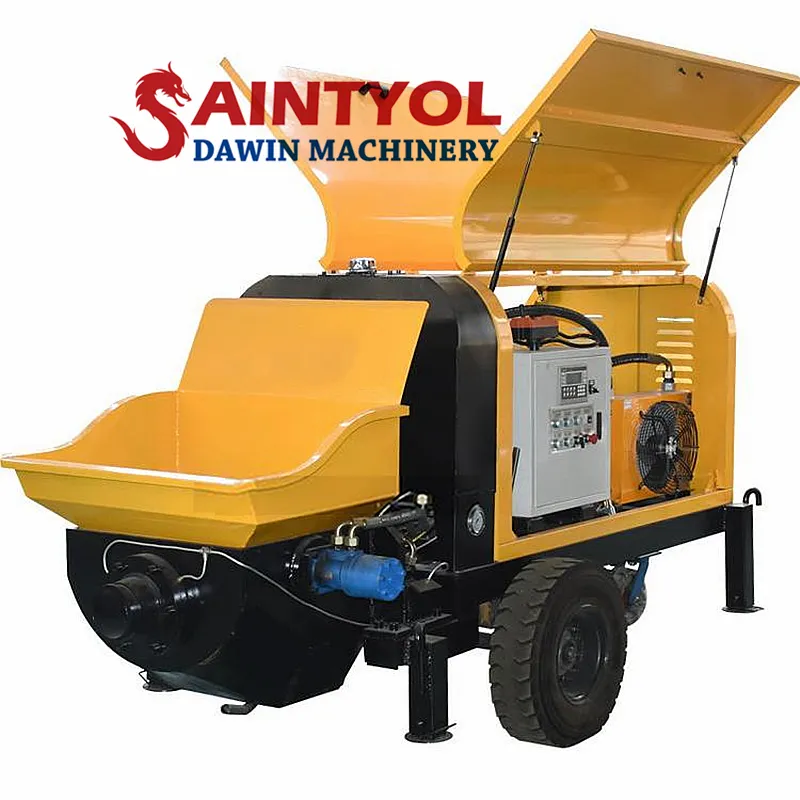

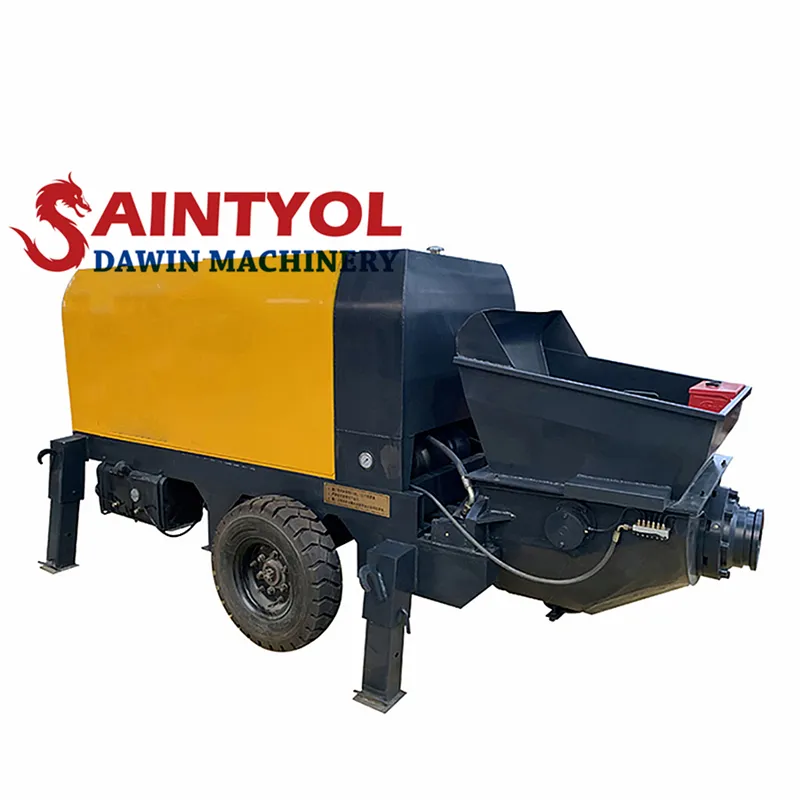

Hydraulic Pump for High Building Construction

Based on the mature electric control reversing concrete pump, we have developed a full hydraulic control concrete pump with excellent performance. This advanced hydraulic system deletes the four most vulnerable components of traditional pumps: the PLC, constant pressure pump, accumulator, and proximity switches. This design innovation greatly improves the overall reliability of the machine, reduces later-stage maintenance costs, and ensures safe operation under extremely harsh conditions. The main product line features both motor and diesel concrete pumps with throughput capacities ranging from 30 to 120m³/h and concrete delivery pressure from 5 to 20MPa.

Core Component Features

Radiator

Adopts an air-cooled plate-fin radiator to ensure the system consistently operates within maximum allowed temperatures.

Main Oil Pump

Equipped with reliable German Hawe, Rexroth, or Japanese Kawasaki series components.

Lubrication System

Utilizes automatic multi-point lubrication technology featuring high-efficiency targeted delivery, extending the service life of wear parts.

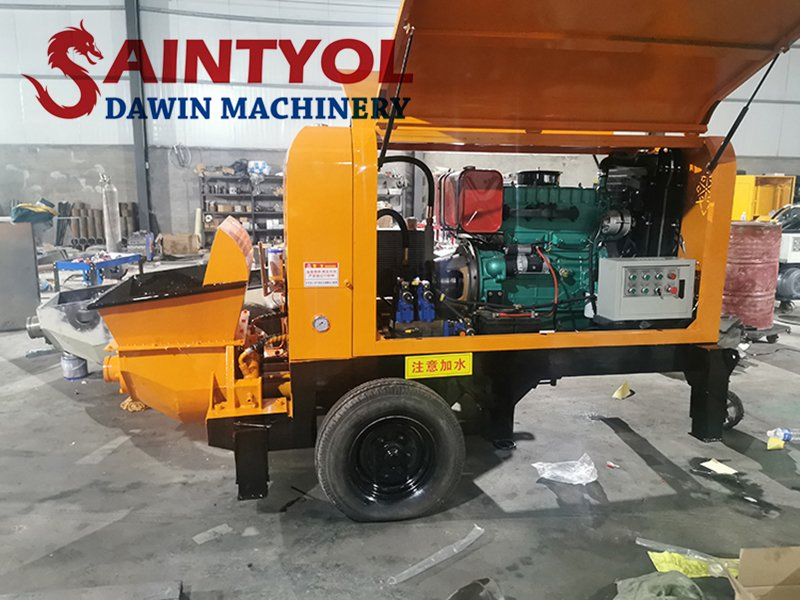

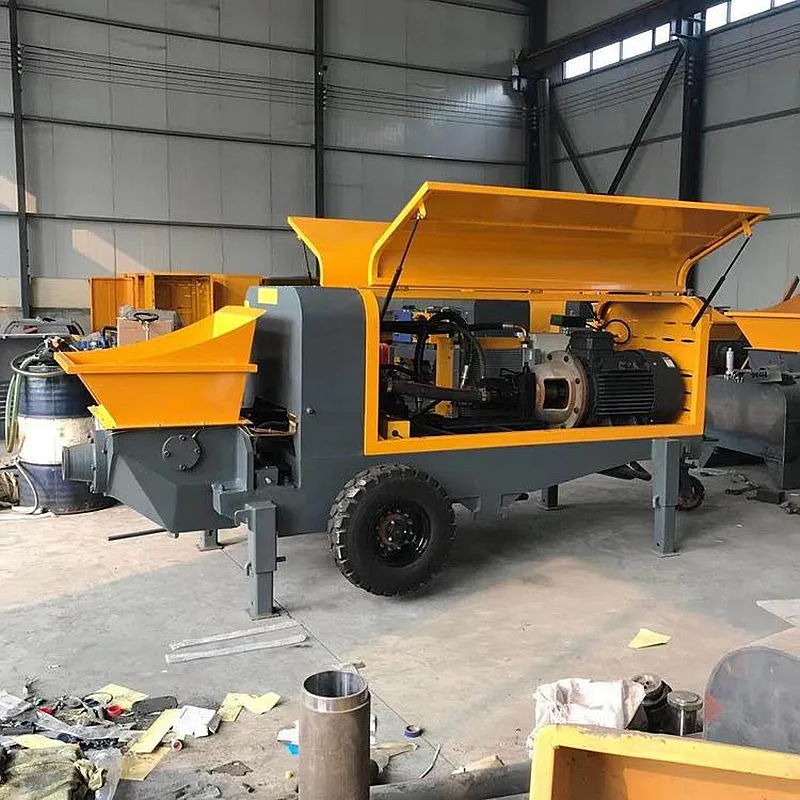

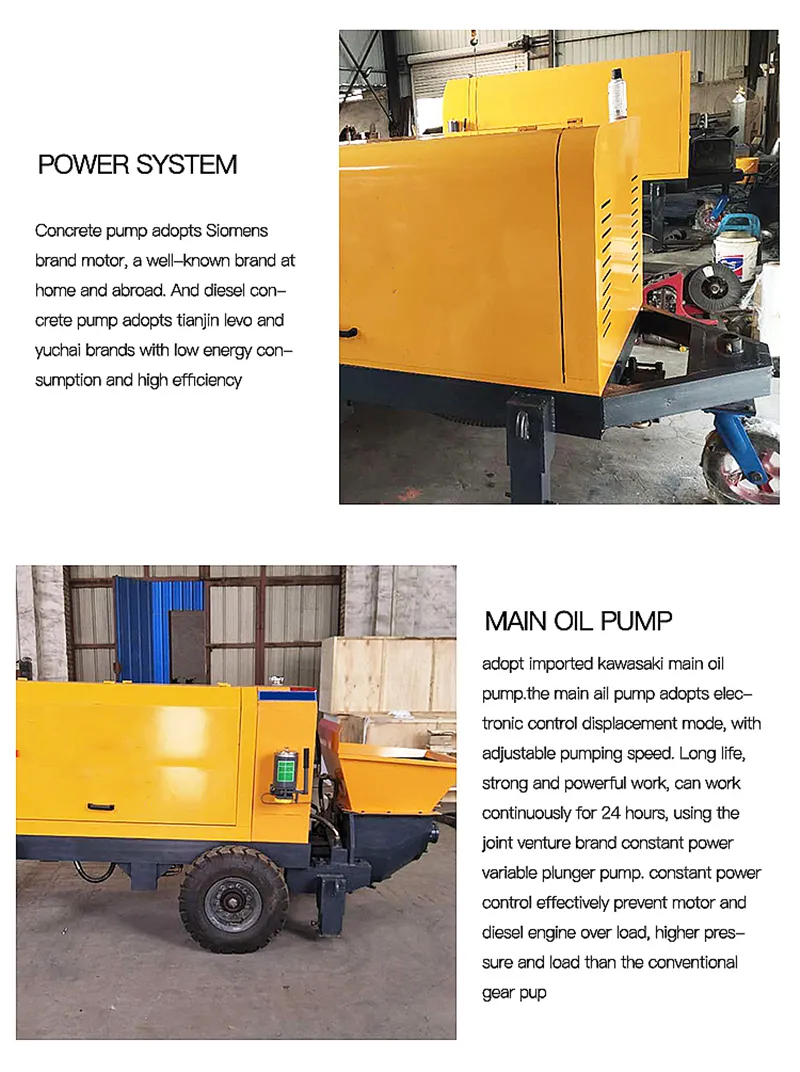

Power System

Standard configurations include globally renowned motors such as Siemens Beide motors, alongside high-performance Lovol diesel options.

Electrical & Hydraulic Fittings

Major electrical components leverage reliable LS systems. Hydraulic hose connectors and fittings are premium Eaton and Parker products, ensuring a zero-leakage system.

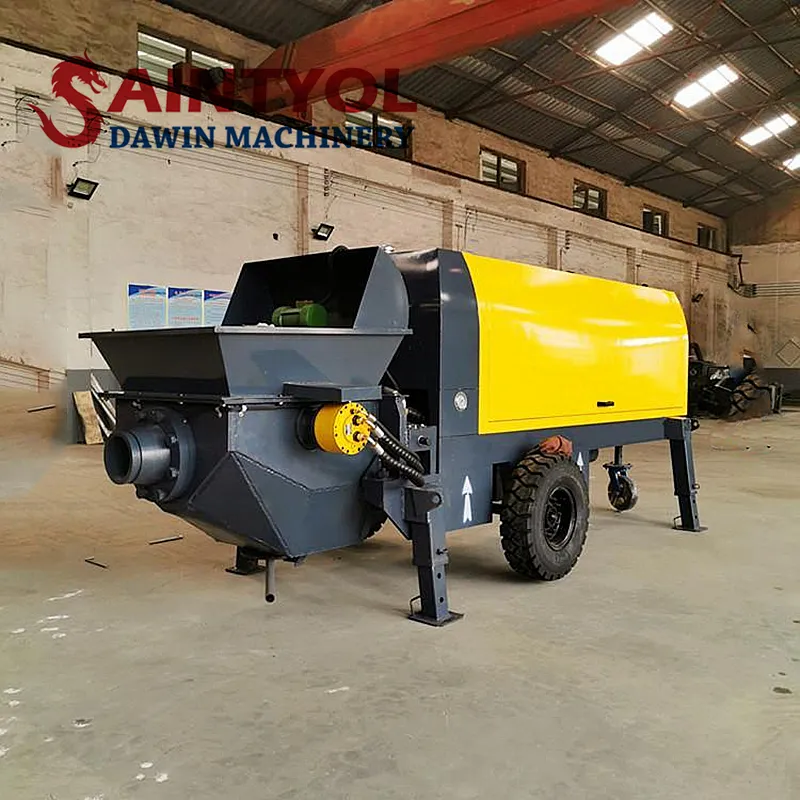

S-Valve & Cut Plates

Constructed from robust manganese steel castings. Glasses plates and cutting rings are inlaid with premium cemented carbide for superior pressure and abrasion resistance.

XBS & DXBS Series Mortar Pumps

The XBS and DXBS series of products are mortar transportation systems specifically optimized for modern floor heating constructions. They are engineered perfectly for conveying fine aggregate concrete fills or mortar mixtures with absolute efficiency. Beyond standard floor work, they are highly capable in tunnel lining, foundation pile pressure grouting, and environmental green soil spraying applications. These updated pumps feature a transition to larger delivery tubes, allowing for hassle-free aggregate passage up to 3cm.

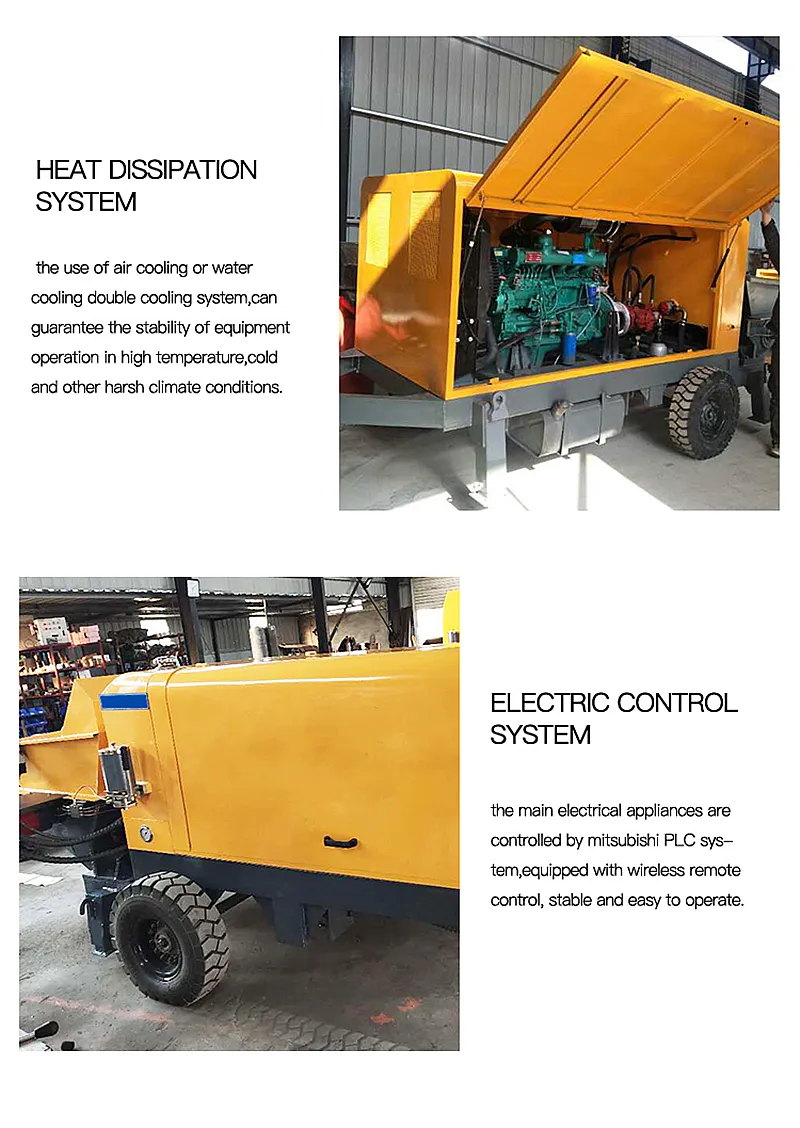

Dual Cooling Systems

Incorporates integrated air-cooled and water-cooled systems, maintaining excellent oil temperature management under variable climates.

Enlarged Hopper

Features an increased capacity design, complete with protective fences and a powerful vibration motor to facilitate consistent fluid feed.

Liquid Control Reversing

A low-fault technology providing smooth direction switching and minimal reverse impact, extending overall component life.

Technical Parameters

Performance Category	Item	Unit	Value (A)	Value (B)	Value (C)
Whole Machine	Theoretical Max. Discharging Volume	m³/h	25	40	30
	Theoretical Max. Delivery Pressure	MPa	12	13	13
	Max. Delivery Frequency	Times/min	24	30	30
	Distribution Valve Type	-	S Tube Valve	S Tube Valve	S Tube Valve
	Delivery Cylinder Spec	mm	Φ140 × 800	Φ140 × 800	Φ140 × 800
	Main Oil Cylinder Spec	mm	Φ80 × Φ50 × 800	Φ80 / Φ50 × 800	Φ80 / Φ50 × 800
	Outlet Opening Diameter	mm	Φ125	Φ125	Φ125
	Hopper Capacity	L	300	300	300
Power System	Rated Voltage	V	~380	~380	~380
	Main Motor Power	kW	30	45	37
	Rated Speed	r/min	1470	1470	1470
	Assistant Motor Power	kW	3	3	3
	Rated Speed (Aux)	r/min	1430	1430	1430
Hydraulics	Hydraulic Oil Circuit Type	-	Open Circuit	Open Circuit	Open Circuit
	Max. Oil Pressure (Pumping)	MPa	25	25	25
	Max. Oil Pressure (Mixing)	MPa	9	9	9
	Max. Mixing Speed	r/min	24	24	24
	Oil Tank Capacity	L	200	200	200
Other Dimensions	Max. Diameter of Aggregates	mm	≤25	25	25
	Inner Diameter of Delivery Pipe	mm	Φ80	Φ80	Φ80
	Overall Dimension (L×W×H)	mm	4100×1500×1500	4300×1500×1500	4300×1500×1500
	Overall Weight	kg	2000	2100	2100
	Pulling Speed	km/h	≤8	≤8	≤8

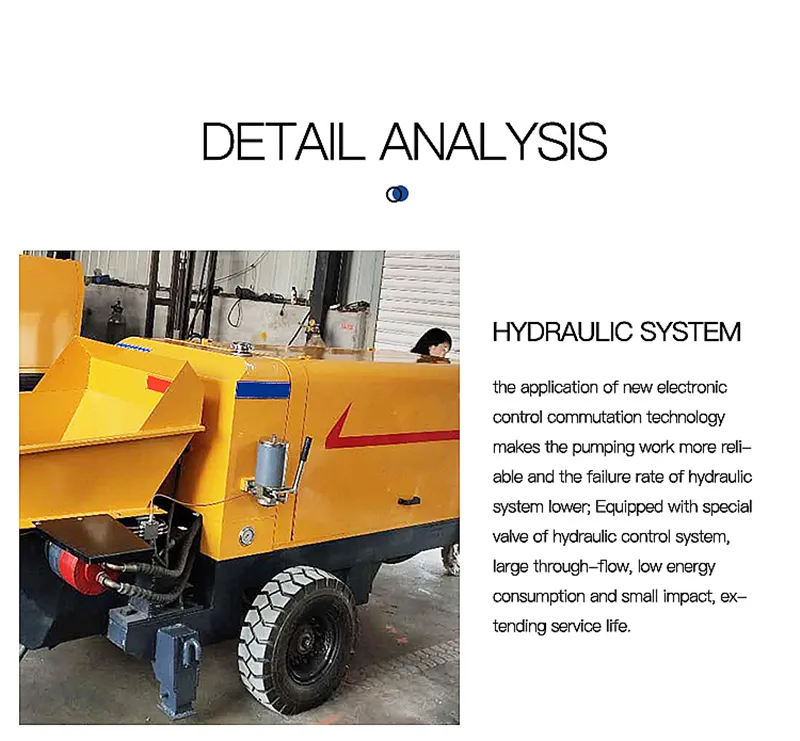

Full Hydraulic Control System Advantages

Extended Component Life

Uses a complete hydraulic control reversing system. S-tube distribution works seamlessly without electrical signaling, significantly lowering noise and reversing impact.

Increased System Reliability

Eliminates intermediate electrical signal stages, directly bypassing standard sensor faults and upgrading the system robustness under tough operating environments.

Reduced Leakage & Failure Rates

Puts the main hydraulic control mechanism inside a highly compact centralized valve plate, minimizing chaotic pipe crossing and leak risks.

Broad Areas of Application

High-efficiency fine stone concrete conveying for floor heating.
Tunnels, bridges, railways, and standard civil underground constructions.
Refractory material, mortar conveying, and green soil ecological environment sprays.
Hydraulic power, mining, and specialized national defense engineering.

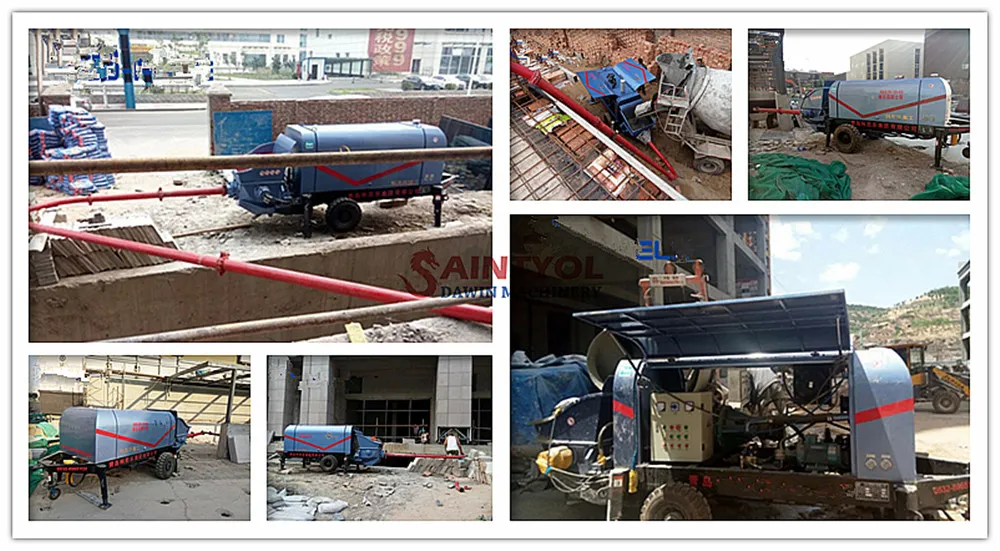

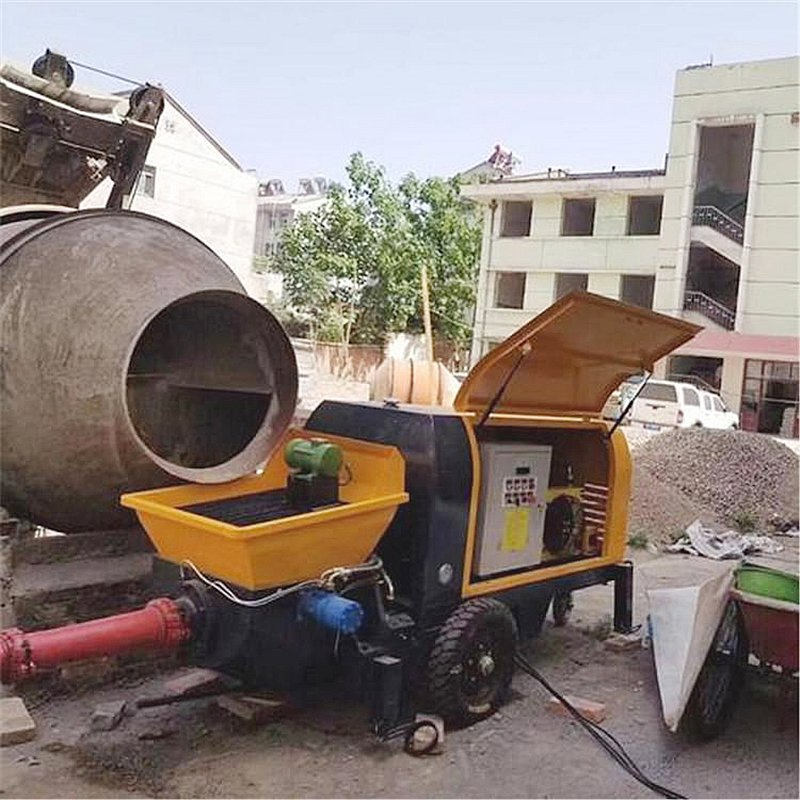

Global Working Site & Services

Designed for economical and highly effective operations, these concrete and mortar pumps provide stable support to international construction projects, offering easy operation alongside responsive service networks.

Dedicated After-Sale Support

Enjoy lifetime service support for purchased pump products.
Complimentary training sessions for machine operators.
Onsite setup, trial operation support, and engineering consultancy.
Quick-response assistance and direct component shipments.
Half-year warranty for non-human induced faults (excluding wear parts).

Frequently Asked Questions

How many models of trailer concrete pumps are available?

We offer various capacities to fit all needs: small models (20, 25, 30, 40 m³/h), medium models (40, 50 m³/h), and large models (60, 80 m³/h) powered by high-performance electric motors or diesel engines.

Are there concrete placing booms compatible with these pumps?

Yes, we provide matching placing booms: manual mechanical spider booms (13m/15m/17m), mobile hydraulic spider booms, and floor or elevator well shaft-climbing options ranging up to 32m.

What are the brand configurations of the key components?

Our exporting configurations employ top global brands including Siemens, Rexroth, Kawasaki, Omron, LS, Eaton, and Parker. Custom configurations can also be engineered to match local requirements.

Do you offer on-site international installation and training services?

Yes, our professional engineering team is fully prepared for overseas service. We assist with initial setup, operational management, and operator training directly at your project location.

How does the full hydraulic system optimize concrete delivery?

By bypassing PLCs, sensors, and constant pressure pumps, the system relies on physical hydraulic logic. This cuts mechanical failure points, decreases system noise, and handles higher load capacities effortlessly.

What is the advantage of the modern S-Valve design in this pump?

Constructed from robust cast manganese steel with cemented carbide wear plates, our S-Valve features advanced sealing. This guarantees stable switching, blocks leakage, and manages high pressure reliably over years of service.
