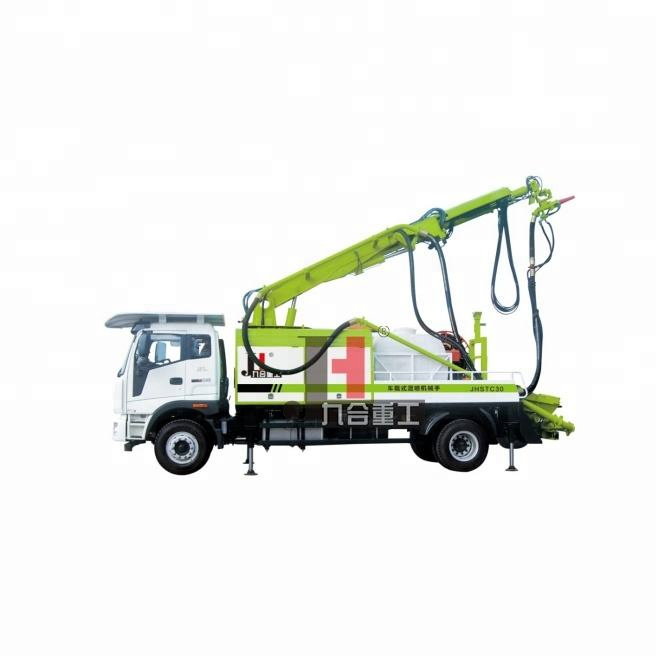

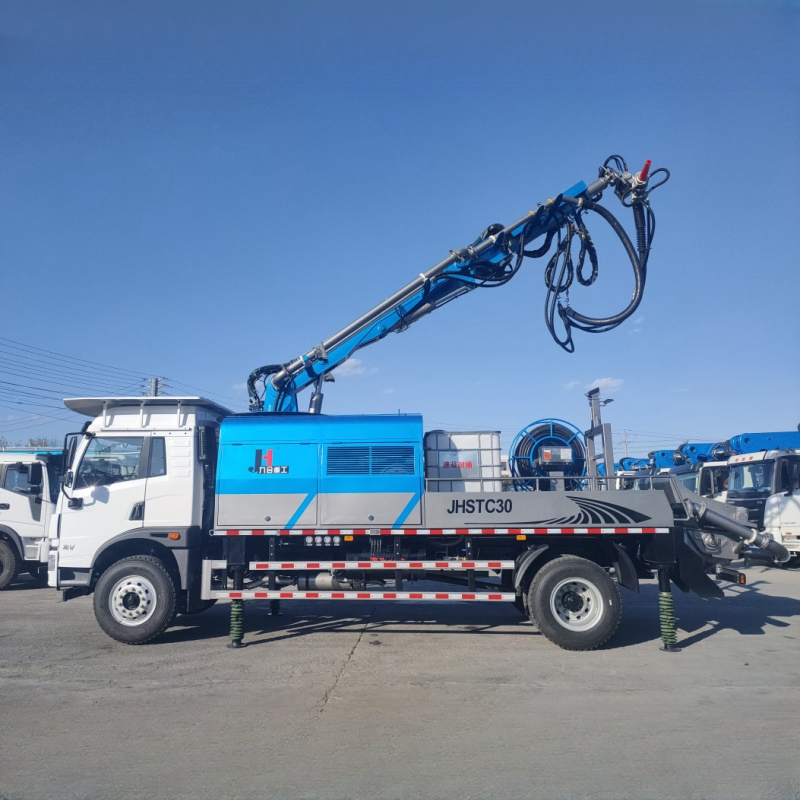

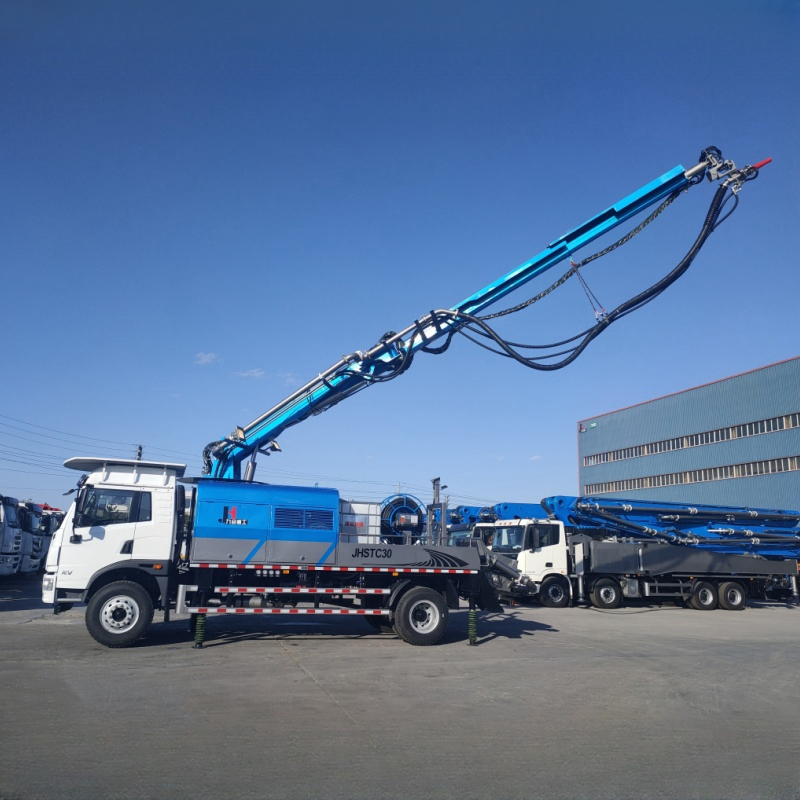

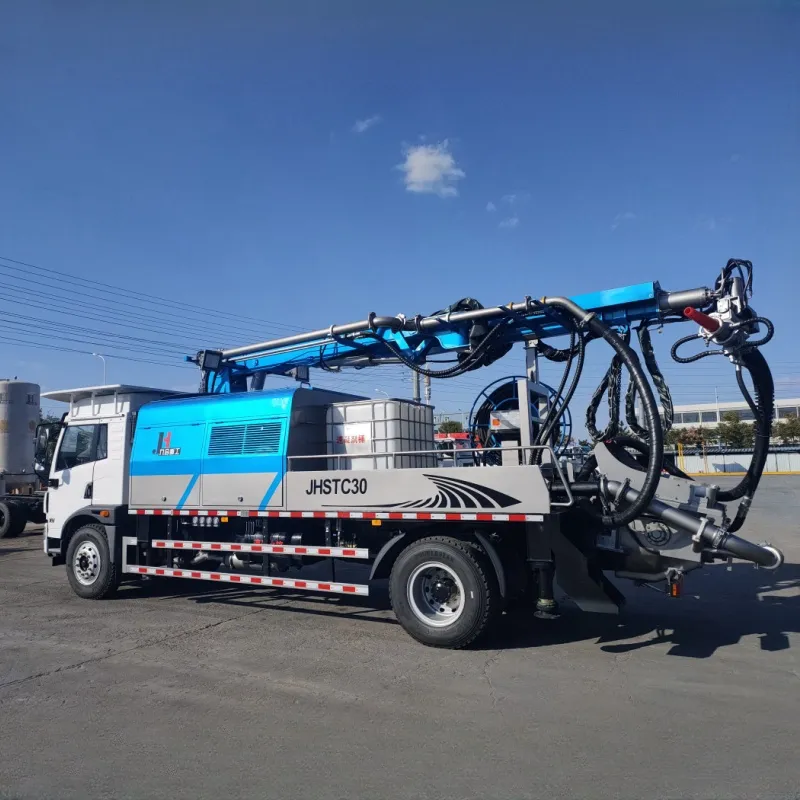

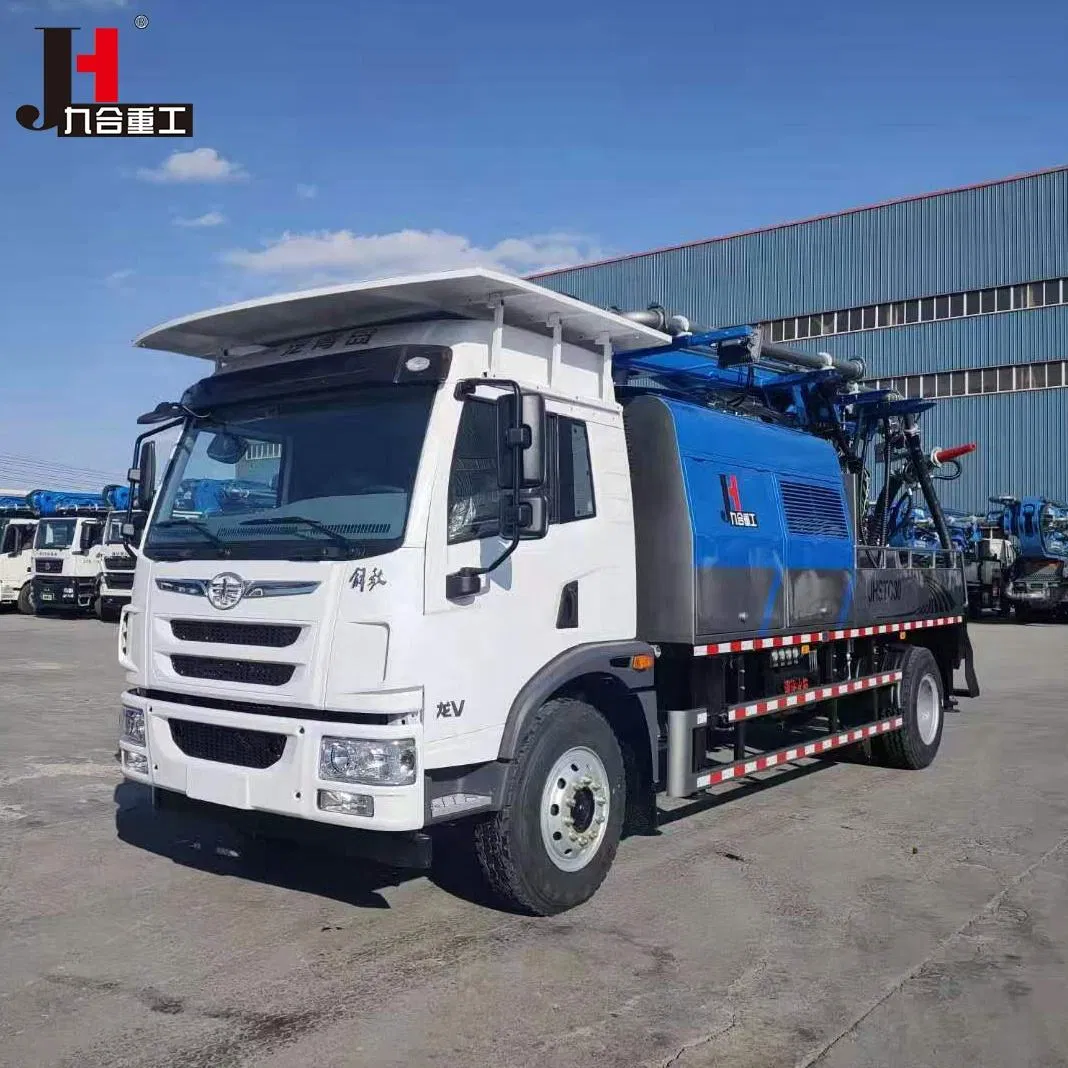

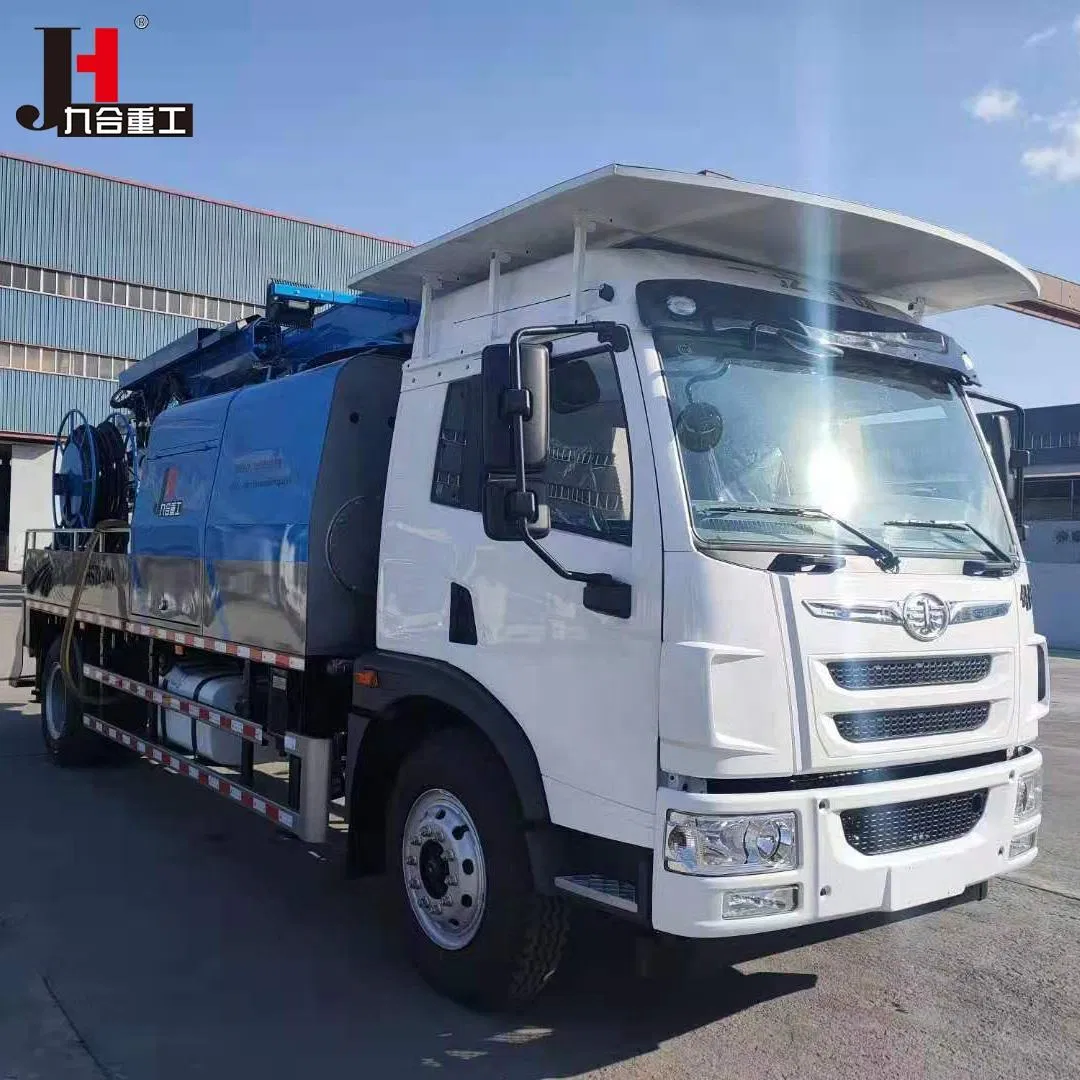

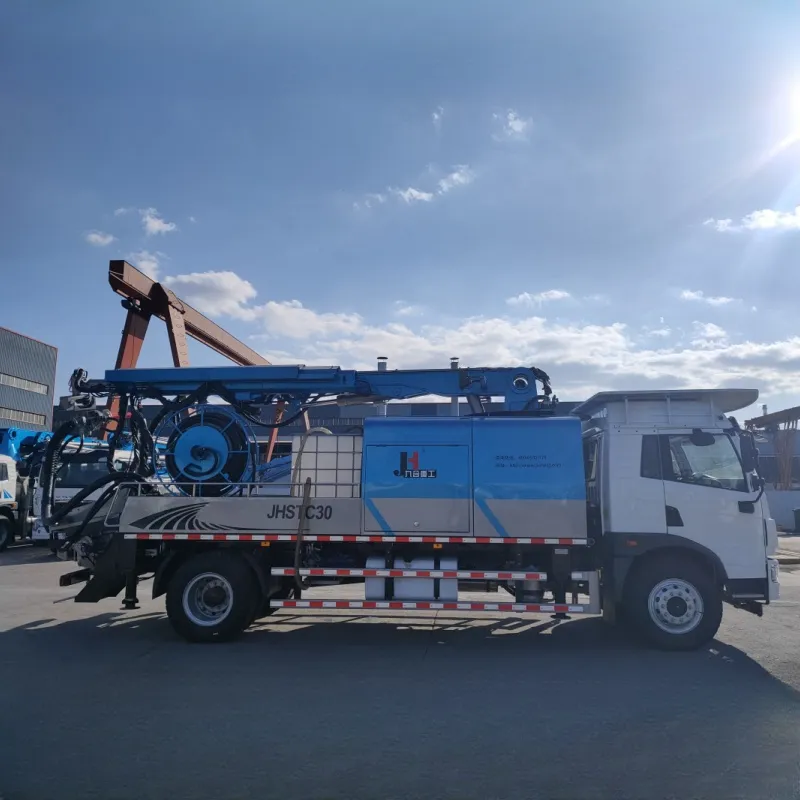

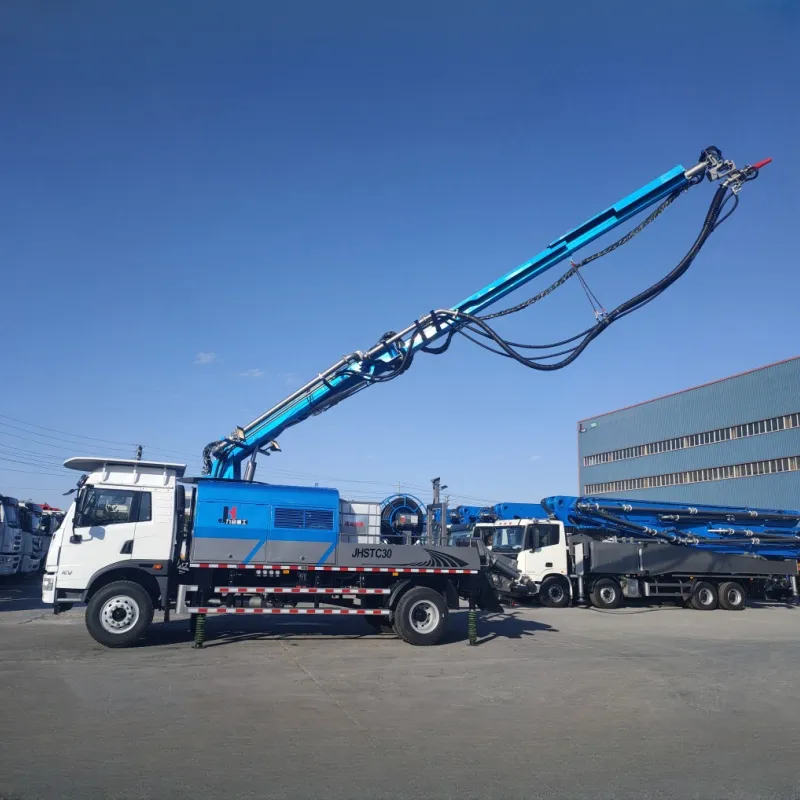

Concrete Distributor Truck-mounted wet shotcrete machine, wet concrete shotcrete pump truck
Shotcrete Machine Brief Introduction:
As a new generation truck mounted shotcrete machine, this equipment is researched and developed after synthesizing wet shotcrete machine technology, solving spraying deficiency that traditional small shotcrete machines cannot meet in long and big tunnels. It vastly improves the working environment, increases efficiency, reduces concrete consumption, and ensures working quality with a double power working system and lower carbon emissions. It is the best choice for tunnel construction like water conservancy, hydropower, railway, and highway projects.
Main Advantages:
| Machine Specification Data | |
|---|---|
| Model | JHSTC30 |
| Total Length / Width / Height | 9956mm / 2500mm / 3268mm |
| Rated Weight | 16.2T |
| Boom & Support Legs Data | |
| Spraying Height / Width | 16m / 24m |
| Boom Rotation Angle | 360° |
| Spray-head Swing Angle | 360° |
| Pumping System Data | |
| Driving Mode | Motor (55kw / 380V) |
| Concrete Delivery Capacity | 30m³/h |
| Hydraulic System | Open |
| Delivery Pipe / Spray Nozzle Dia. | Φ125~φ80mm / Φ50mm |
