MG 1-5 T/H Ceramic Tile Adhesive Dry Mortar Production Line
MG series Wall Putty Ceramic Tile Adhesive Mixing Machine is designed according to the traditional single mixer machine, adding a material transportation system, finished product storage silo and automatic packing machine. It forms one whole simple dry mortar production line, significantly improving working efficiency. It handles feeding, mixing, conveying, and packing automatically.
The whole production line requires only 2-3 workers to operate. Available capacities include 3-4 t/h, 4-6 t/h, and 7-8 t/h. It is an ideal choice for beginners in the dry mortar industry due to its low investment requirements, minimal land occupation, and ease of installation.

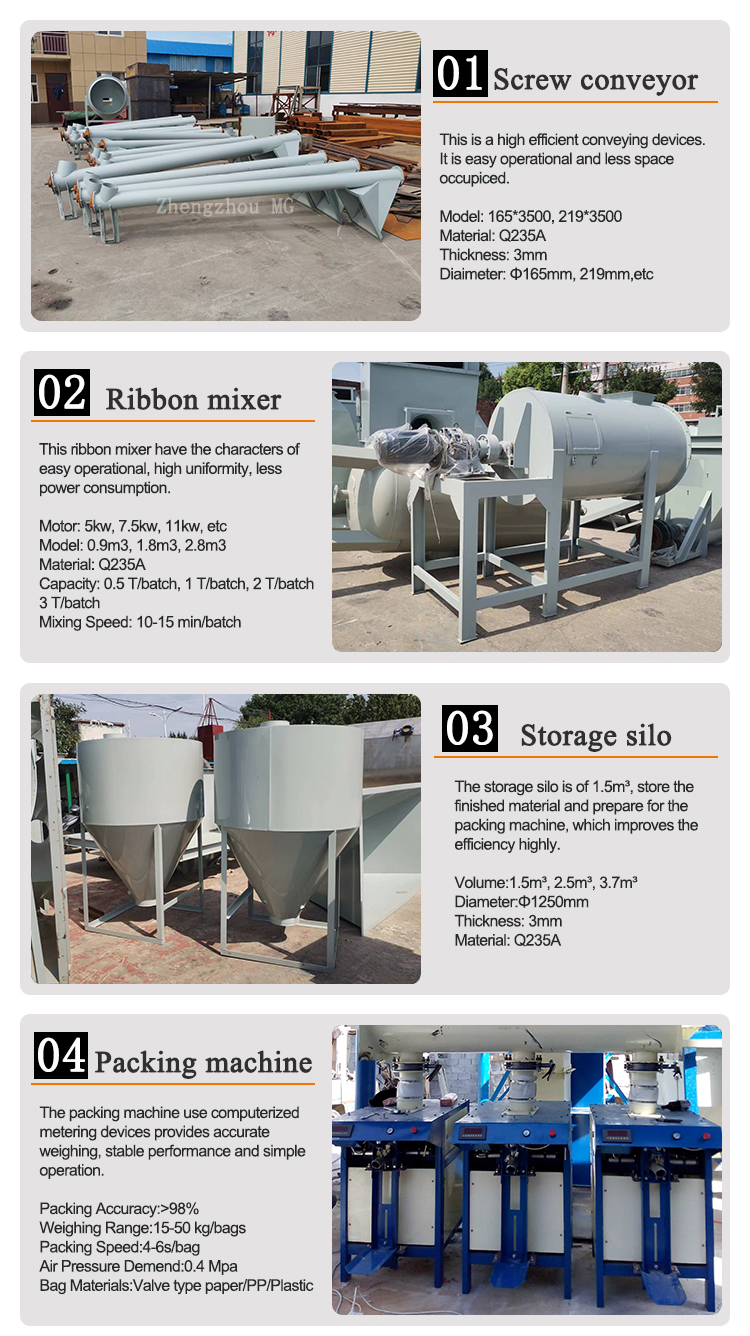

| No. | Name | Model | Specification |
|---|---|---|---|
| 1 | Screw conveyor 1 | Φ165*3500mm / Φ219*3500mm | 3KW-10T/H / 4KW-15T/H |
| 2 | Ribbon mixer | MG1000 / MG2000 / MG3000 | 1.6m³ - 3.7m³, 7.5KW - 15KW |
| 3 | Screw conveyor 2 | Φ165*3500mm / Φ219*3500mm | 3KW-10T/H / 4KW-15T/H |
| 4 | Finished product silo | 1.5m³, 2.5m³, 3.5m³ | Standard |
| 5 | Packing machine | Valve type | 3KW, 10-50kg/bag, 4-6s/bag |

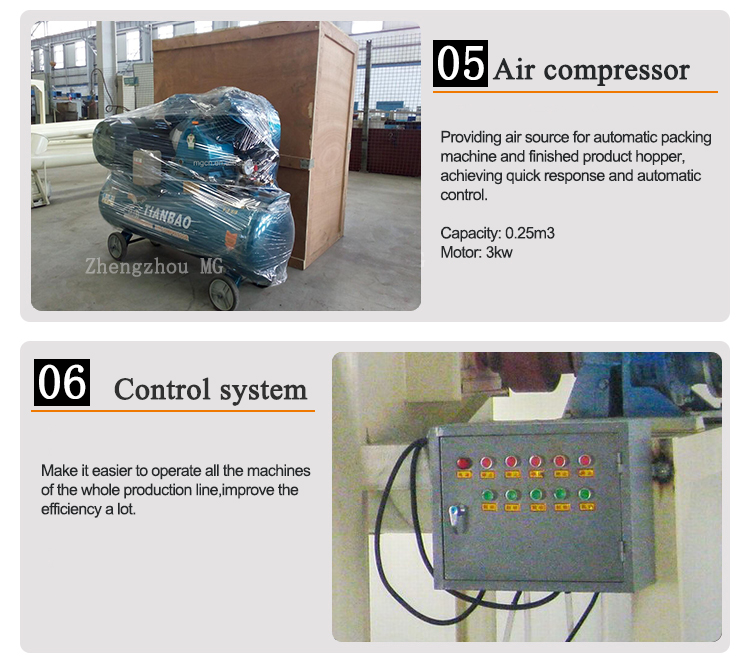

| 6 | Air compressor | 0.25m³ | 2.2kw |
| 7 | Control cabinet | Standard | Standard |

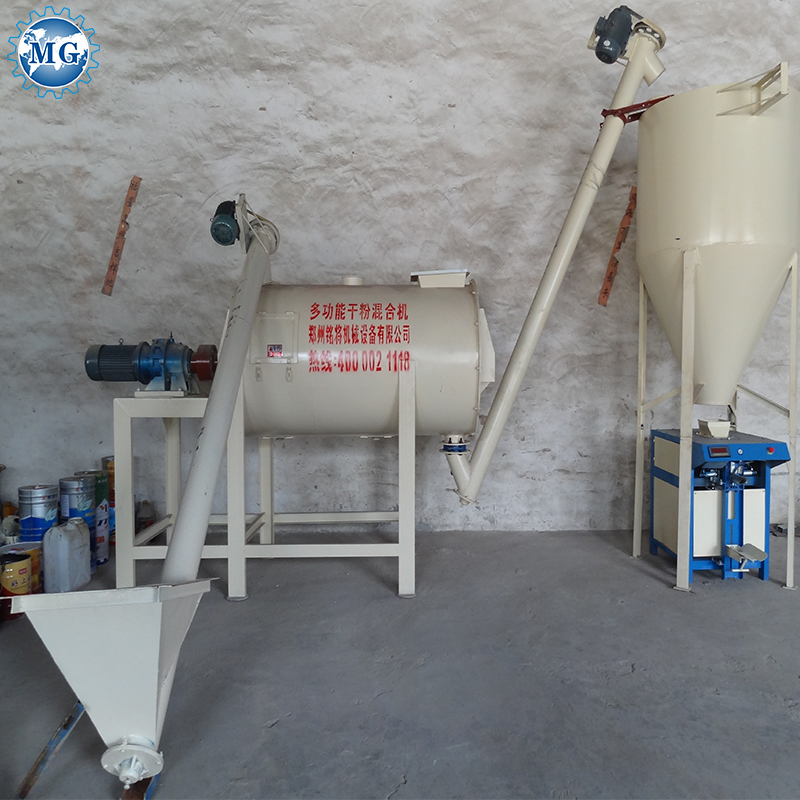

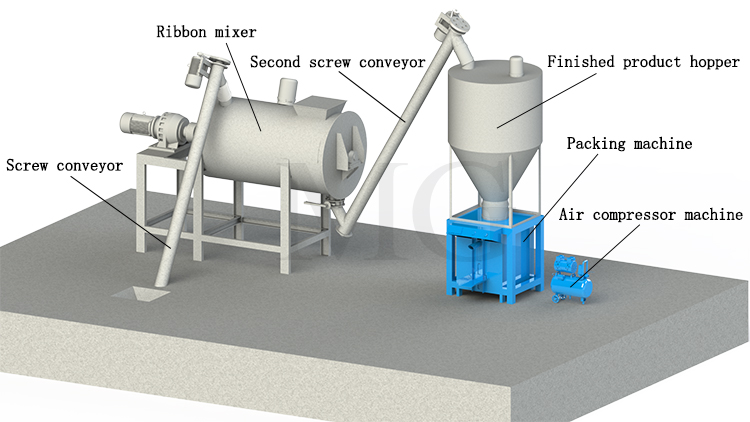

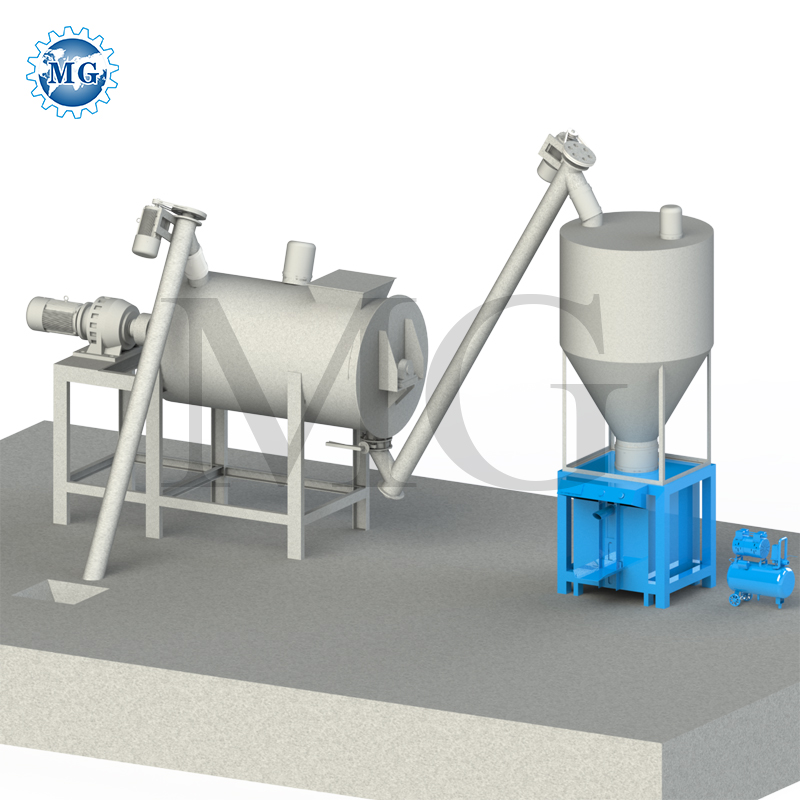

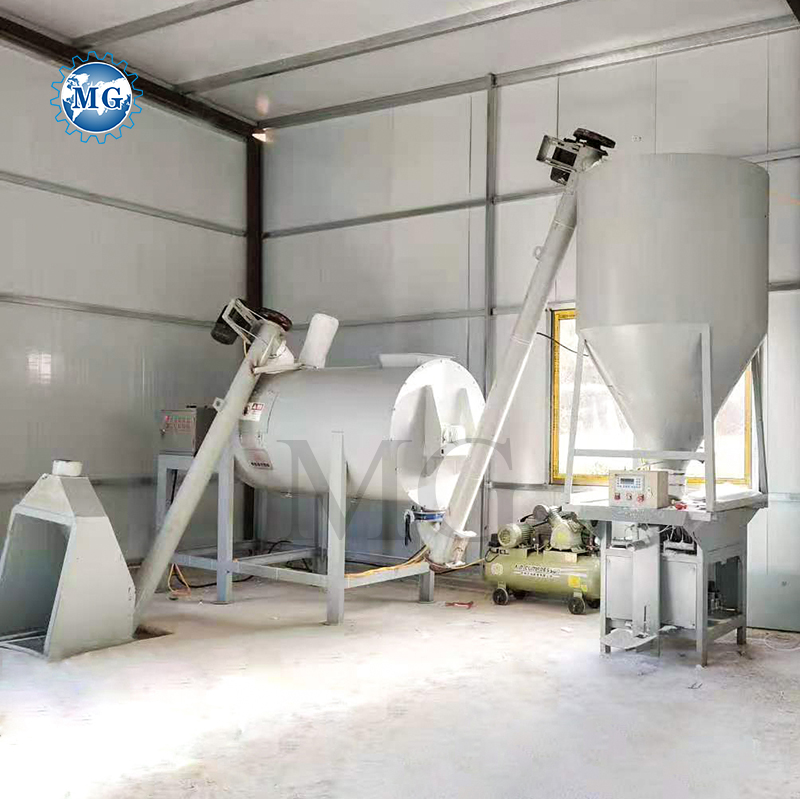

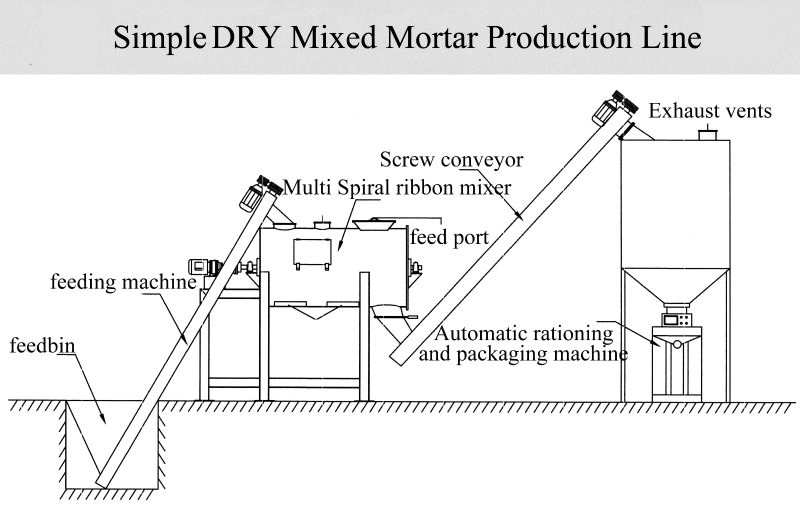

The production line includes a loading screw conveyor, ribbon mixer, second screw conveyor, finished product hopper, valve type packing machine, and control cabinet.
| Model Type | Capacity | Height | Power | Workers | Area |
|---|---|---|---|---|---|
| Simple Dry Mortar Plant | 1-4 T/H | 3-4 m | 20 KW | 2-3 person | 20 m² |
| Improved Dry Mortar Plant | 4-5 T/H | 3-5 m | 40 KW | 2-3 person | 20 m² |
| Semi-automatic Plant | 6-8 T/H | 6-8 m | 50 KW | 3-4 person | 25-35 m² |
| Automatic Plant | 10-50 T/H | 8-13 m | 80-120 KW | 3-4 person | 80-100 m² |
