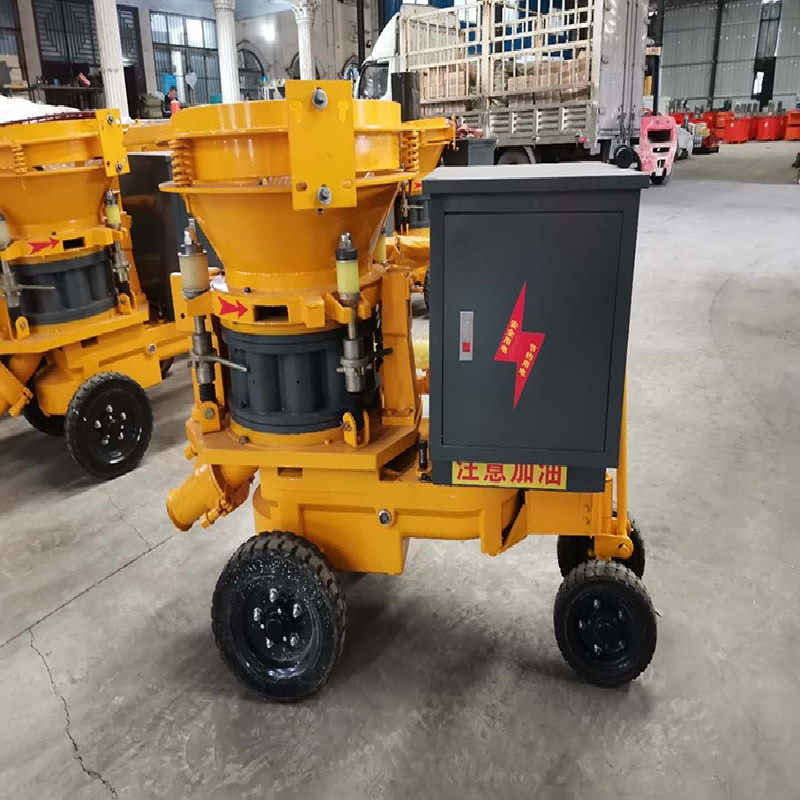

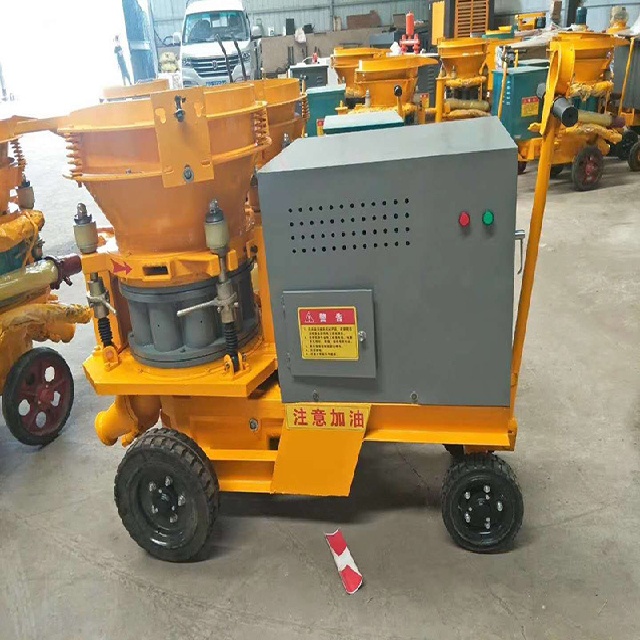

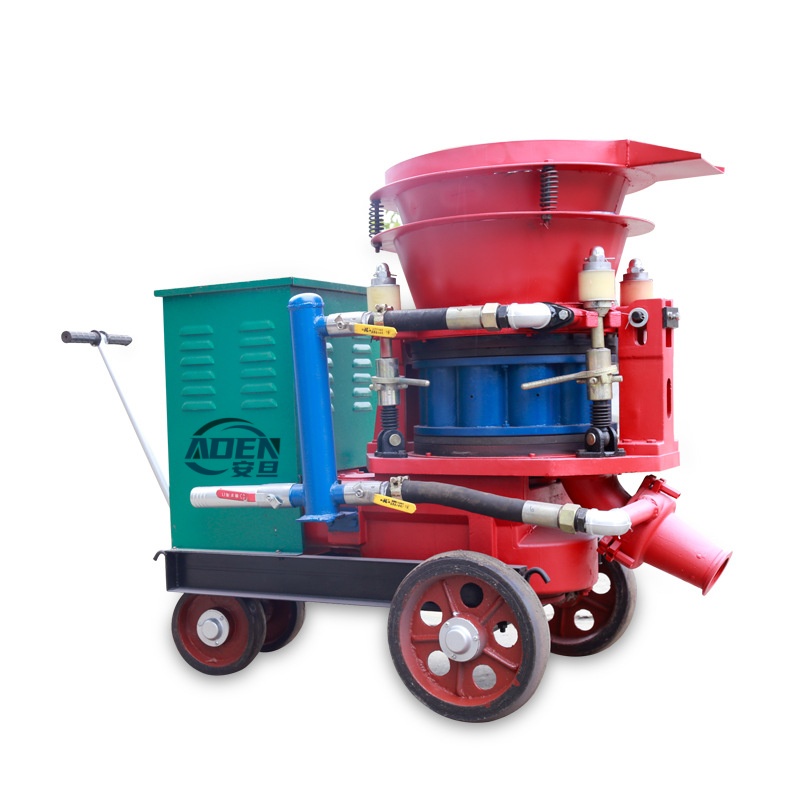

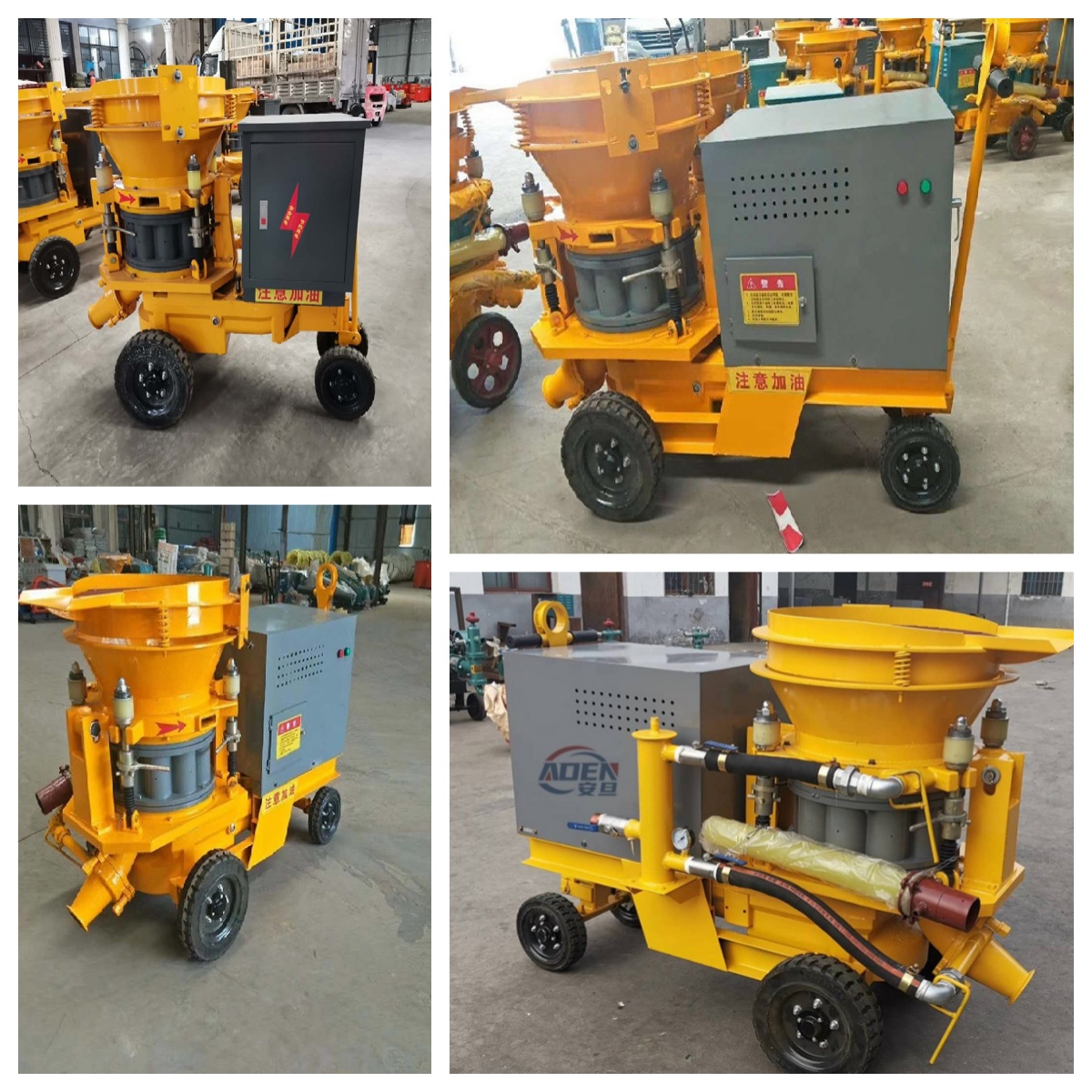

High-efficiency Dry Mix Concrete Spraying System Dry Shotcrete Sprayer for Interiors

Product Description

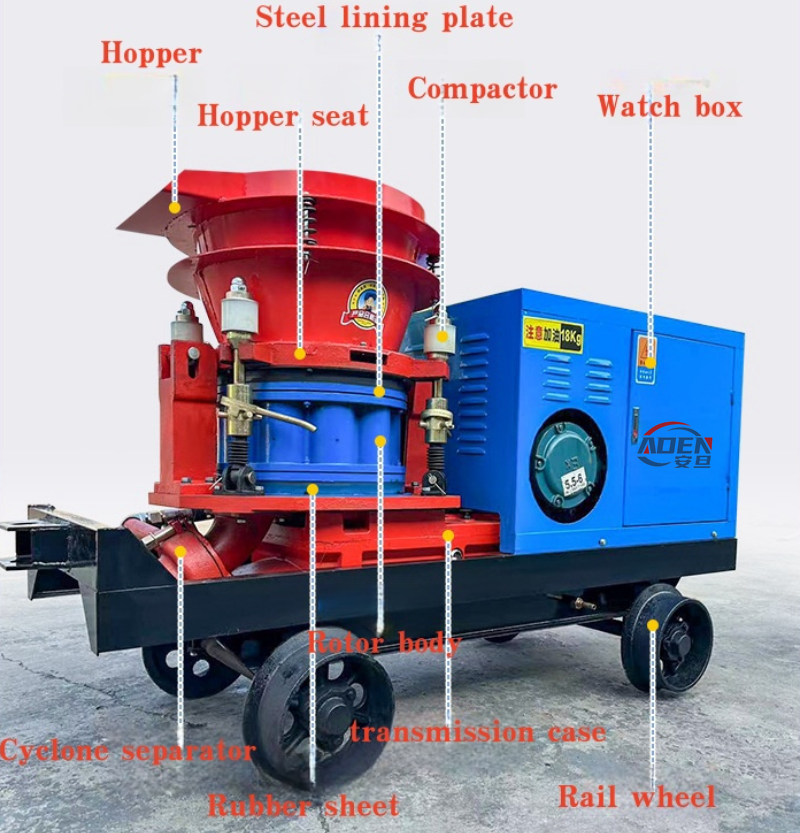

Product Overview
Dry and Wet Concrete Spray Shotcrete Gunite Machine for Mining

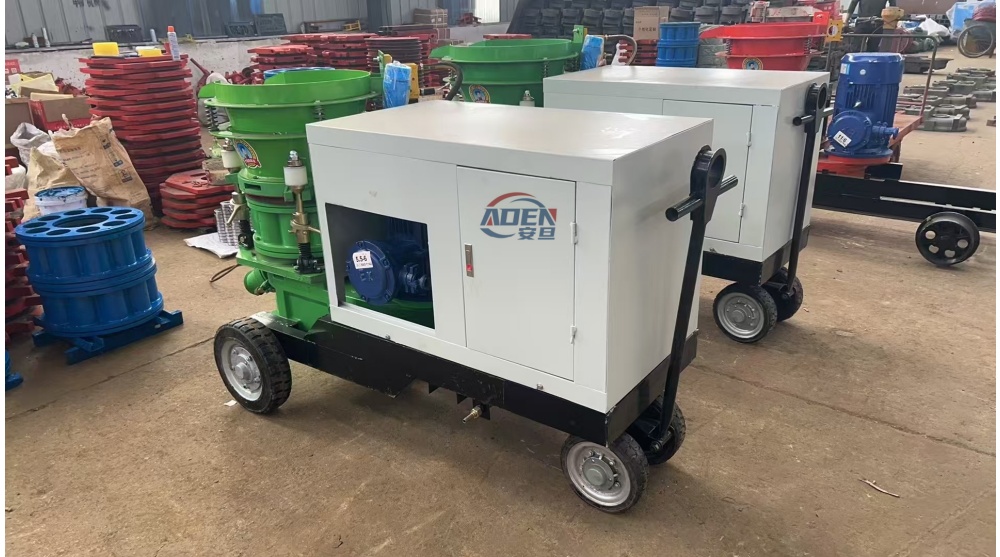

Dry mix shotcrete machine use air pressure to convey dry material from the machine through the hose to the nozzle where water is added. PZ Series dry mix shotcrete machine is a low to high production, continuous-feed material placement unit for dry-mix gunite or refractory materials. It is equally at home underground in a mining environment as it is on a construction jobsite. This kind gunite machine has a rotor feed system, which stands up job-after-job to ensure a long service life with low maintenance. Several hose and nozzle options are available to meet the demands of every gunite / shotcrete spraying application.
FEATURES AT A GLANCE
⚙️
Compact Dimensions: Small size for easy maneuvering in tight spaces, ideal for urban or confined sites.
🛡️
Safety Frame: Enhanced operator protection against accidental tipping and hazards.
🕹️
Simple Control: User-friendly interface making machinery operation intuitive and easy.
🛠️
Easy Maintenance: Quick and accessible servicing design to reduce downtime and costs.
🔄
Versatility: Capable of performing various tasks and adapting to different applications.
PRODUCT SPECIFICATIONS
Item PZ-5 PZ-6 PZ-7
Capacity5-5.5m³6m³7m³
Max. transport distanceHorizontal 200m, Vertical 50MHorizontal 200m, Vertical 50MHorizontal 200m, Vertical 50M
Applicable material ratioCement/sand=1:3-5Cement/sand=1:3-5Cement/sand=1:3-5
Water-cement ratio≤0.4-0.45≤0.4-0.45≤0.4-0.45
Max. aggregate diameterΦ20mmΦ20mmΦ20mm
Inside Diameter pipeΦ51mmΦ51mmΦ51-57mm
Working Pressure0.2-0.4Mpa0.2-0.4Mpa0.6-0.8Mpa
Air consumption7-8m³/min7-8m³/min8-9m³/min
Motor5.5kw5.5kw7.5kw
Voltage380v380v380v
Vibration motor power0.37kw0.37kw0.37kw
Machine size1520*820*1280mm1350*740*11601700*900*1200mm
Weight700kg750kg900kg
Details Images

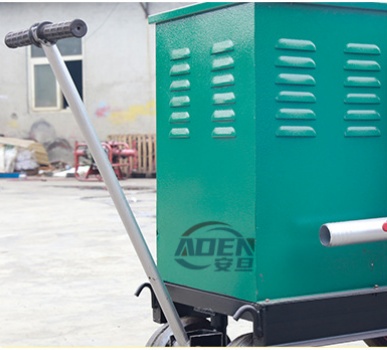

Convenient handle
Enhance work efficiency.

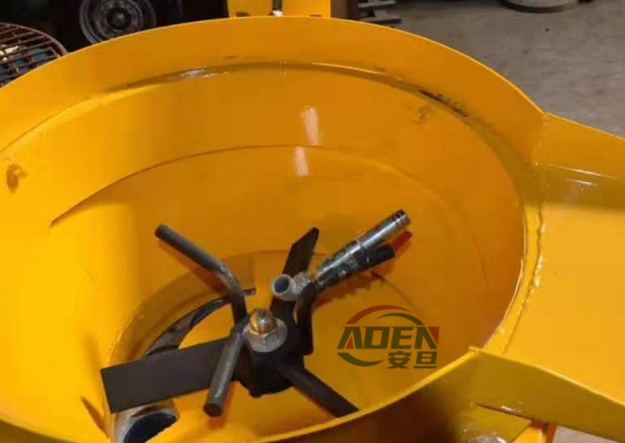

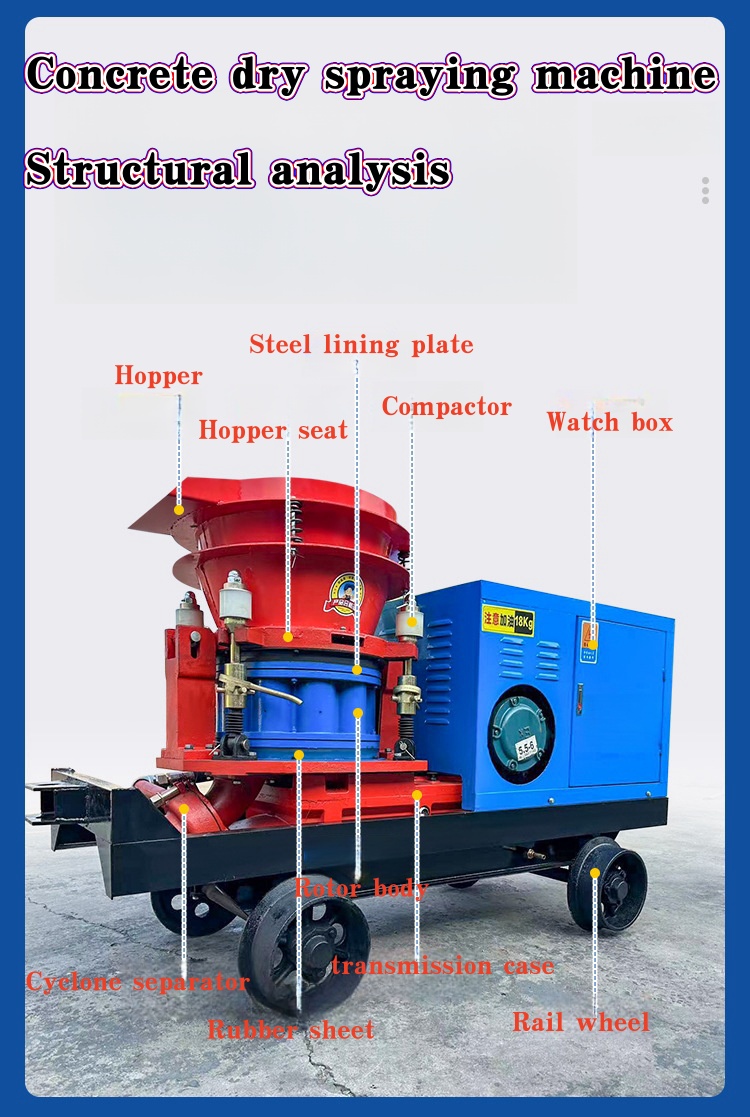

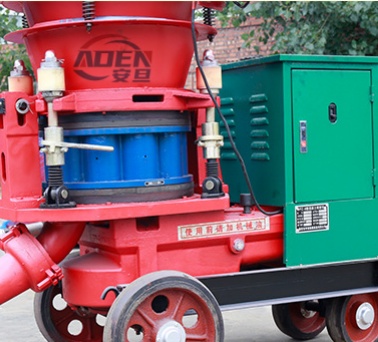

Direct rotor type material chamber
Smooth discharge, efficient and time-saving.

Sturdy body
Operational safety.

Spray evenly
Reduce dust and rebound rate.

Production Workshop & Customers
Company Profile
Our company has been established for 16 years, with a factory area of 7000 square meters and 110 employees, including over 20 senior engineers. It is a comprehensive production enterprise integrating production, research and development, sales, after-sales service, and maintenance.

Focusing on the production and sales of cranes (spider cranes, tower cranes, gantry cranes, etc.), generator sets, grouting machines (dry sprayers, wet sprayers, etc.), drilling rigs, mixing units, and conveying equipment required for construction and engineering industries such as tunnels, bridges, highways, and mines.

All products have passed ISO9001:2000 quality system certification and national inspection-free product standards. Our products are exported to over 60 countries including Southeast Asia, South America, Africa, and Eastern Europe. Excellent quality and comprehensive service have won unanimous praise from customers.
Certifications
Frequently Asked Questions
What materials can the PZ series shotcrete machine handle?
The PZ series is designed for dry-mix concrete, gunite, and refractory materials. It can handle a material ratio of cement to sand between 1:3 and 1:5.
What is the maximum conveying distance for these machines?
The machine can transport materials up to 200 meters horizontally and up to 50 meters vertically, making it ideal for deep mining and high-rise construction.
Is the machine easy to maintain?
Yes, the direct rotor-type material chamber is designed for smooth discharge and prevents blocking, which significantly simplifies cleaning and daily maintenance.
Does the machine support different power voltages?
The standard configuration is 380V. However, for specific project requirements, we recommend consulting our technical team regarding motor customization options.
What are the primary safety features?
The machine includes a reinforced safety frame and a sturdy body design to protect operators from accidental hazards and ensure stability during high-pressure operation.
How does the dry-mix shotcrete process work?
It uses air pressure to convey dry materials through a hose to the nozzle. Water is then added at the nozzle head just before the material is sprayed onto the surface.
