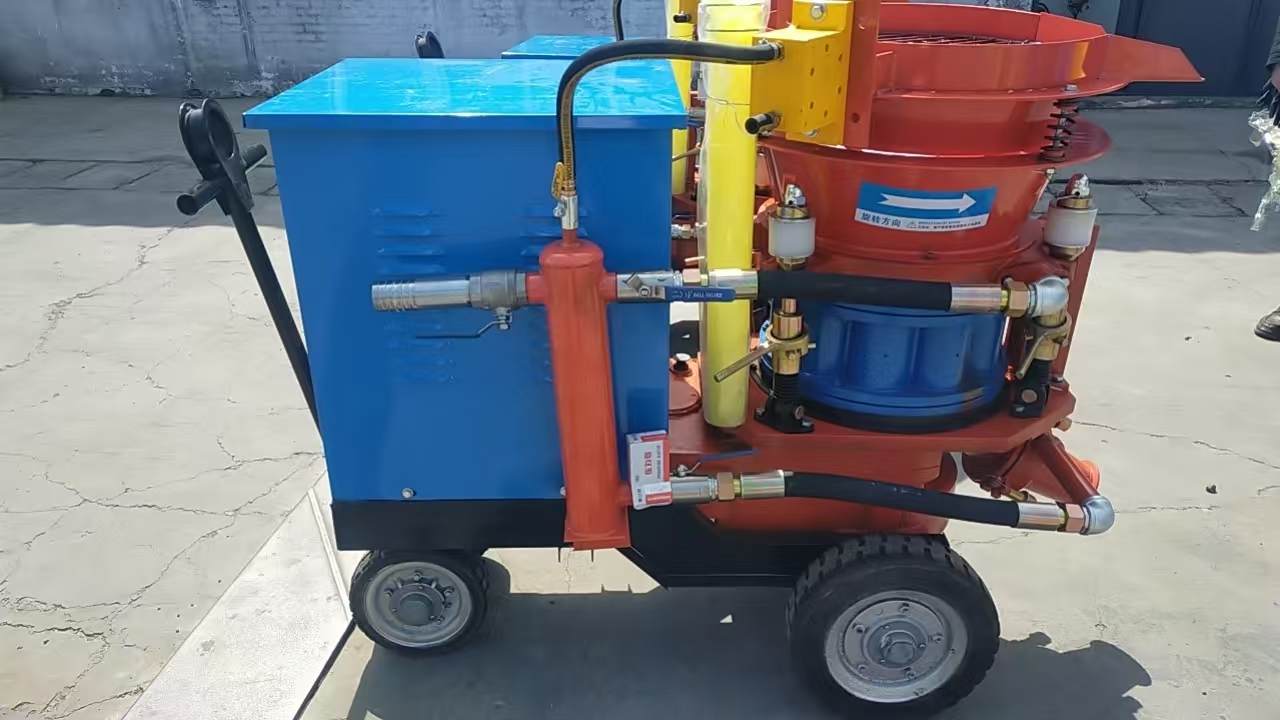

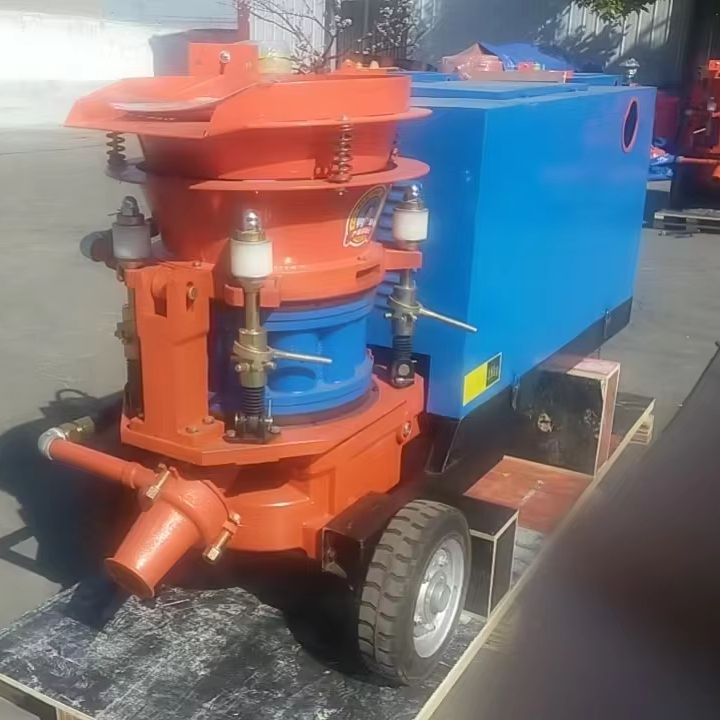

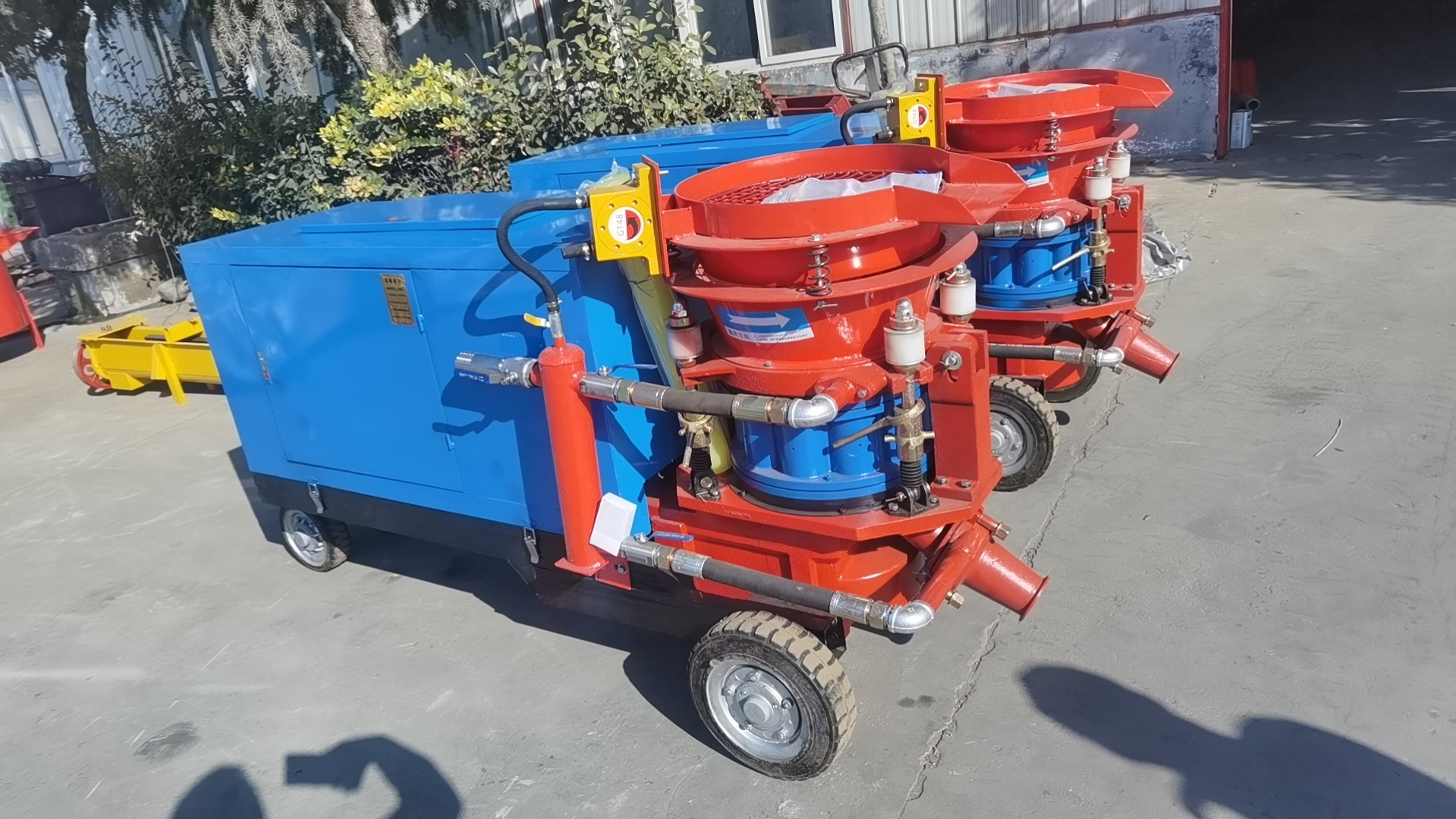

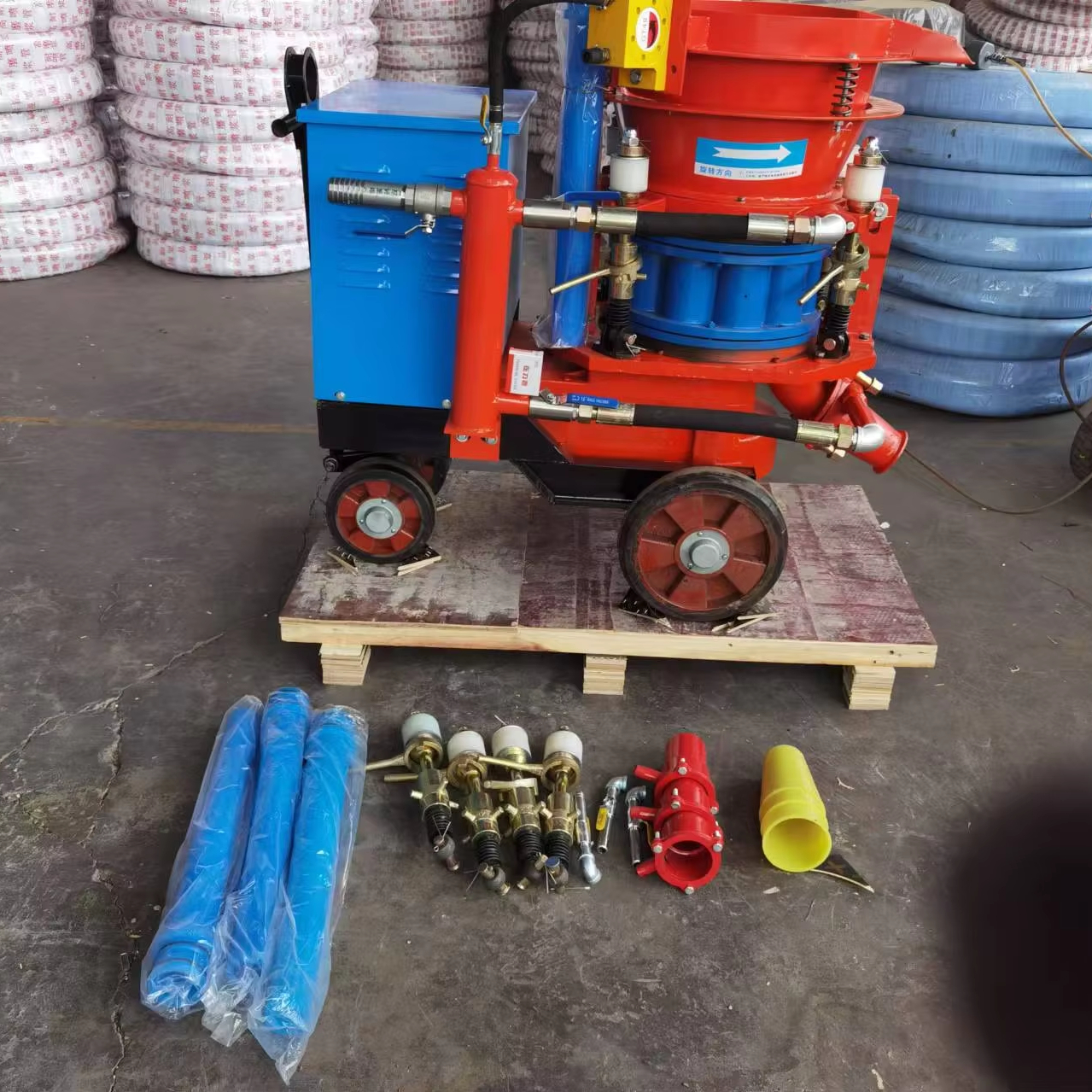

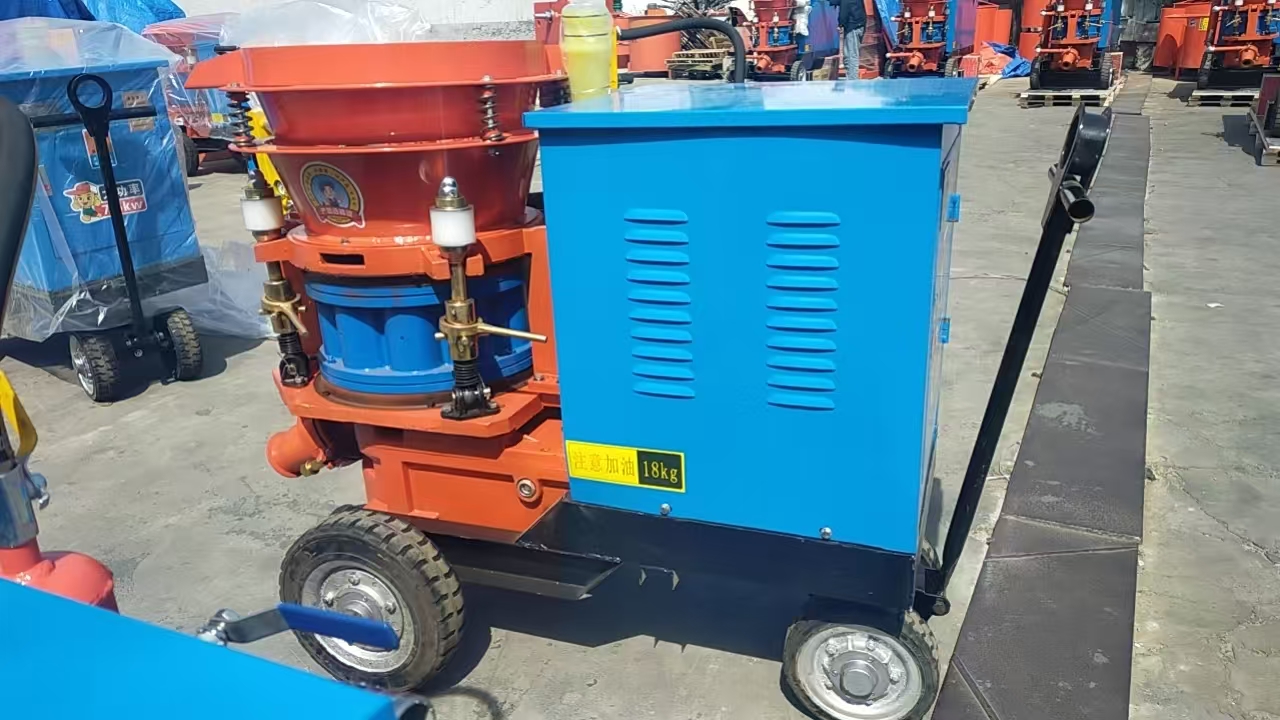

Pz-6 Dry Diesel Cement Dry Mix Shotcrete Spray Pump Machine High Quality Rotor Shotcrete Concrete Machine

Product Description

📋 Production Show

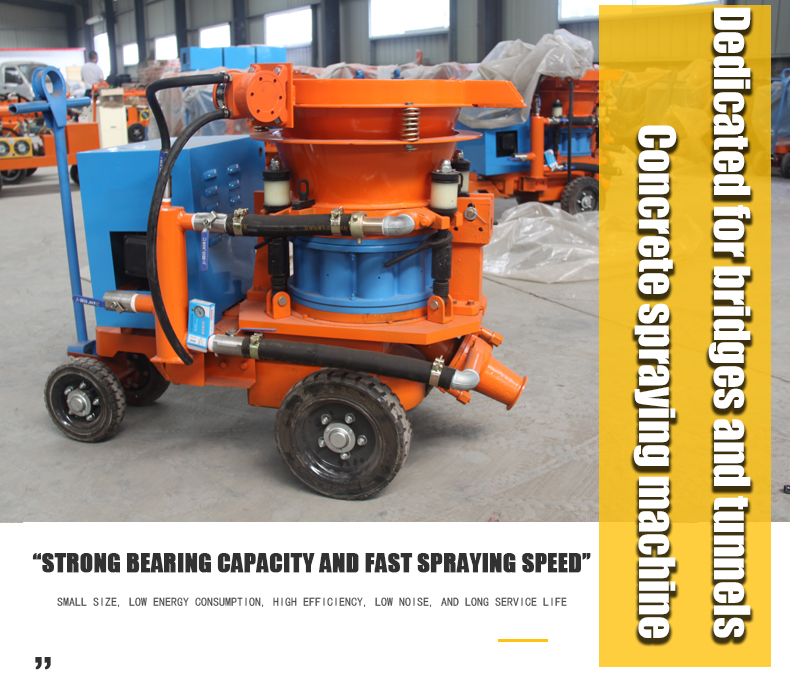

Production Show 1
Dry concrete spraying equipment is the most ideal equipment for concrete bolt spraying construction, wet spraying, and wet spraying. It is widely used in the construction of anchor and shotcrete support for tunnels, culverts, and underground projects. The uniquely manufactured rubber bushing block on the hydrocyclone facilitates the delivery of the mixture. Stable performance, convenient maintenance, energy saving, long service life, environmental protection, and improved coating quality.

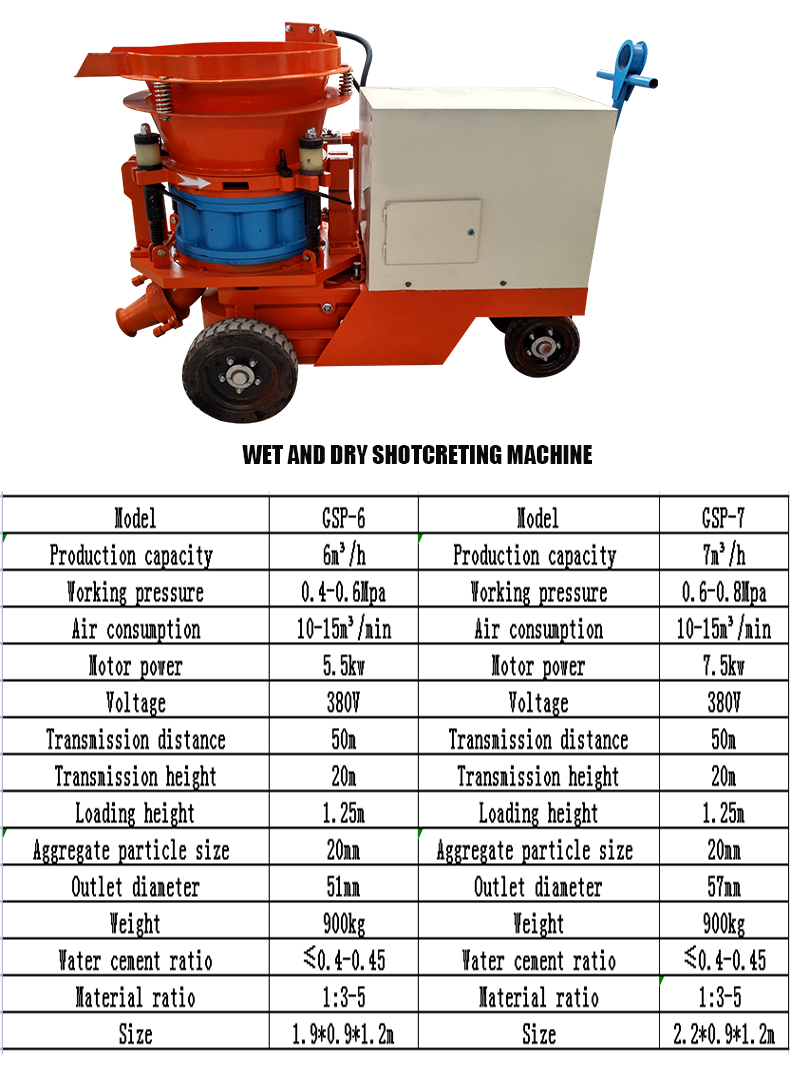

Production Show 2
Technical Parameters (GSP Series)
Model GSP-6 GSP-7
Production capacity 6m3/h 7m3/h
Working pressure 0.4-0.6Mpa 0.6-0.8Mpa
Air consumption 10-15m3/min 10-15m³/min
Motor power 5.5KW 7.5KW
Voltage 380V 380V
Transmission distance 50m 50m
Transmission height 20M 20M
Loading height 1.25m 1.25m
Aggregate particle size 20mm 20mm
Outlet diameter 51mm 57mm
Weight 900kg 900kg
Water cement ratio ≤ 0.4-0.45 ≤ 0.4-0.45
Material ratio 1:3-5 1:3-5
Size 1.9 * 0.9 * 1.2m 2.2 * 0.9 * 1.2m
Product Display

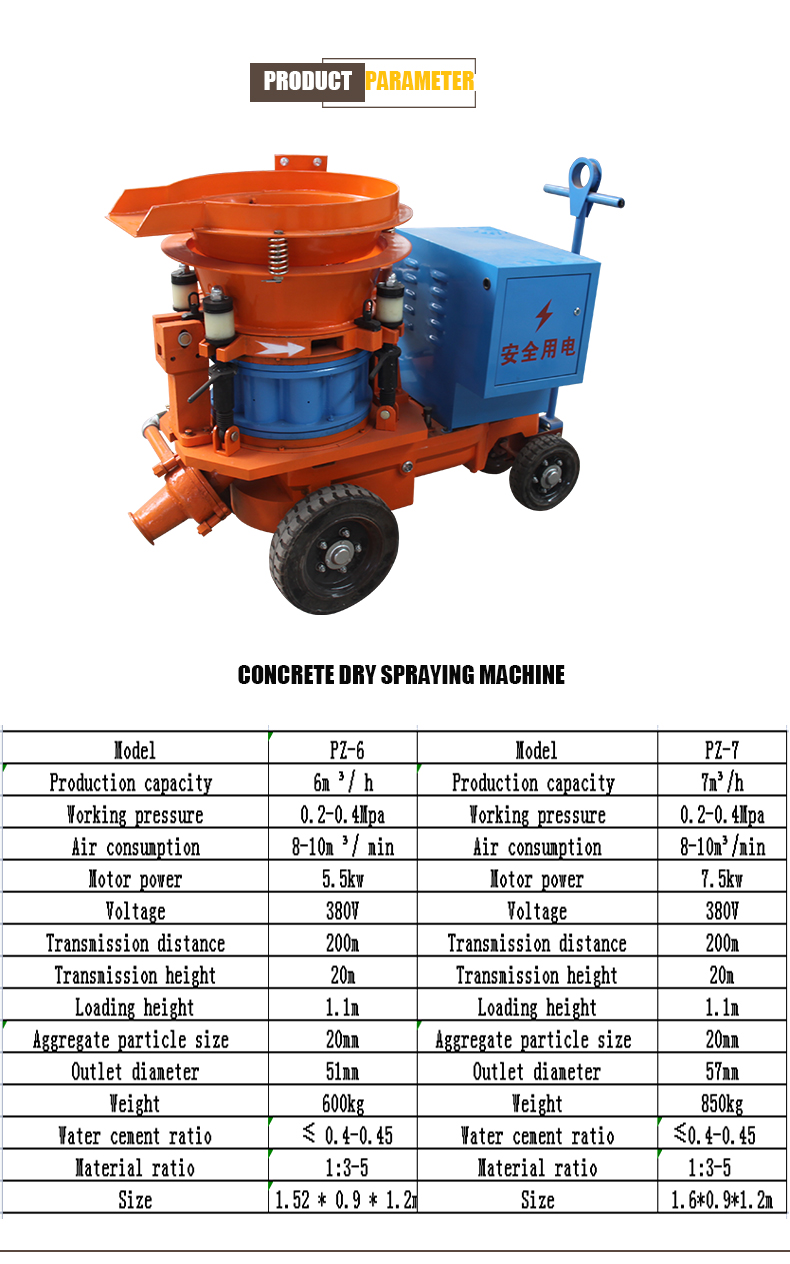

Technical Parameters (PZ Series)
Model PZ-6 PZ-7
Throughput 6m3/h 7m3/h
Working pressure 0.2Mpa-0.4Mpa 0.2Mpa-0.4Mpa
Air consumption 8-10m3/min 8-10m3/min
Motor power 5.5KW 7.5KW
Voltage 380V 380V
Transmission distance 200M 200M
Transmission height 20M 20M
Maximum aggregate size 20mm 20mm
Outlet diameter 51mm 57mm
Weight 600KG 850KG
Size 1520*900*1200mm 1600*900*1200mm

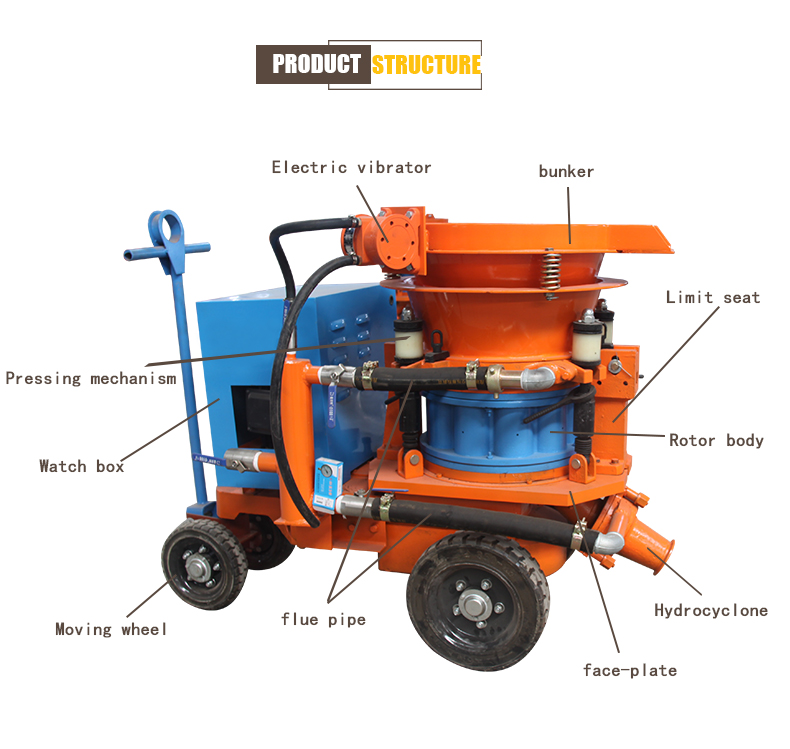

Machine Detail 1
Machine Detail 2

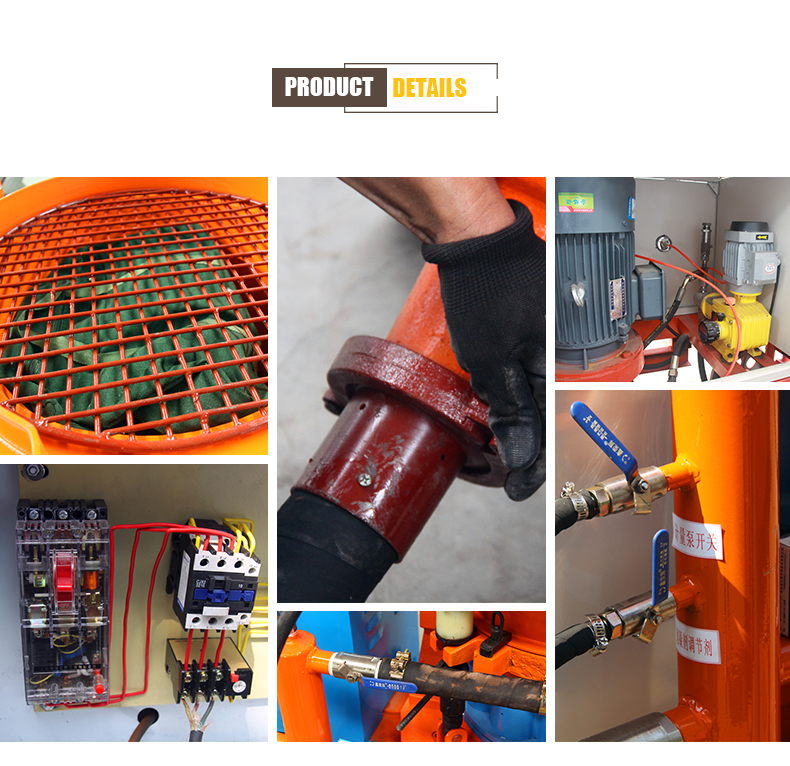

🔍 Product Details

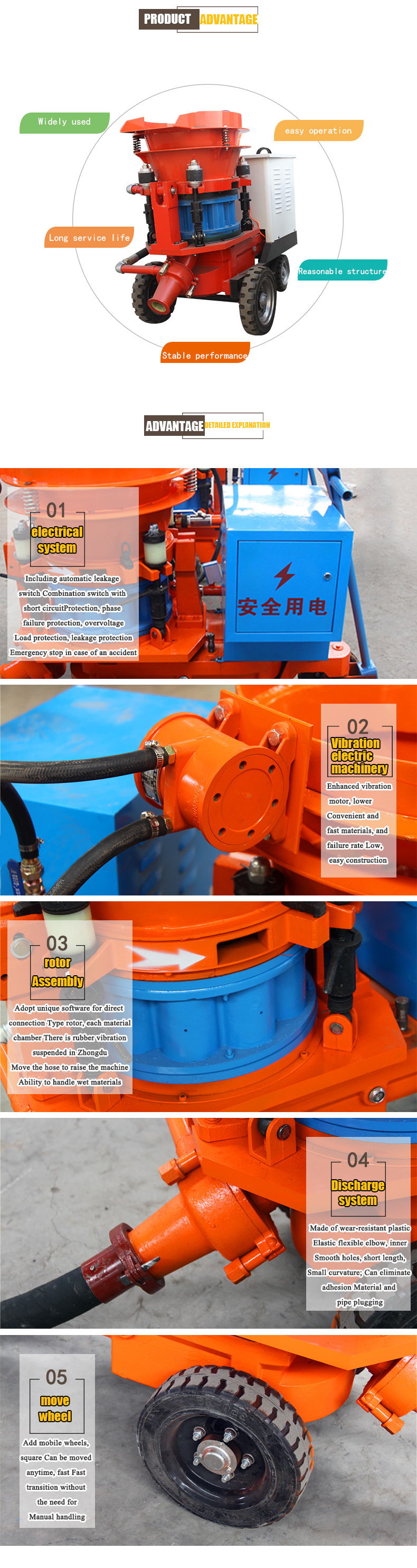

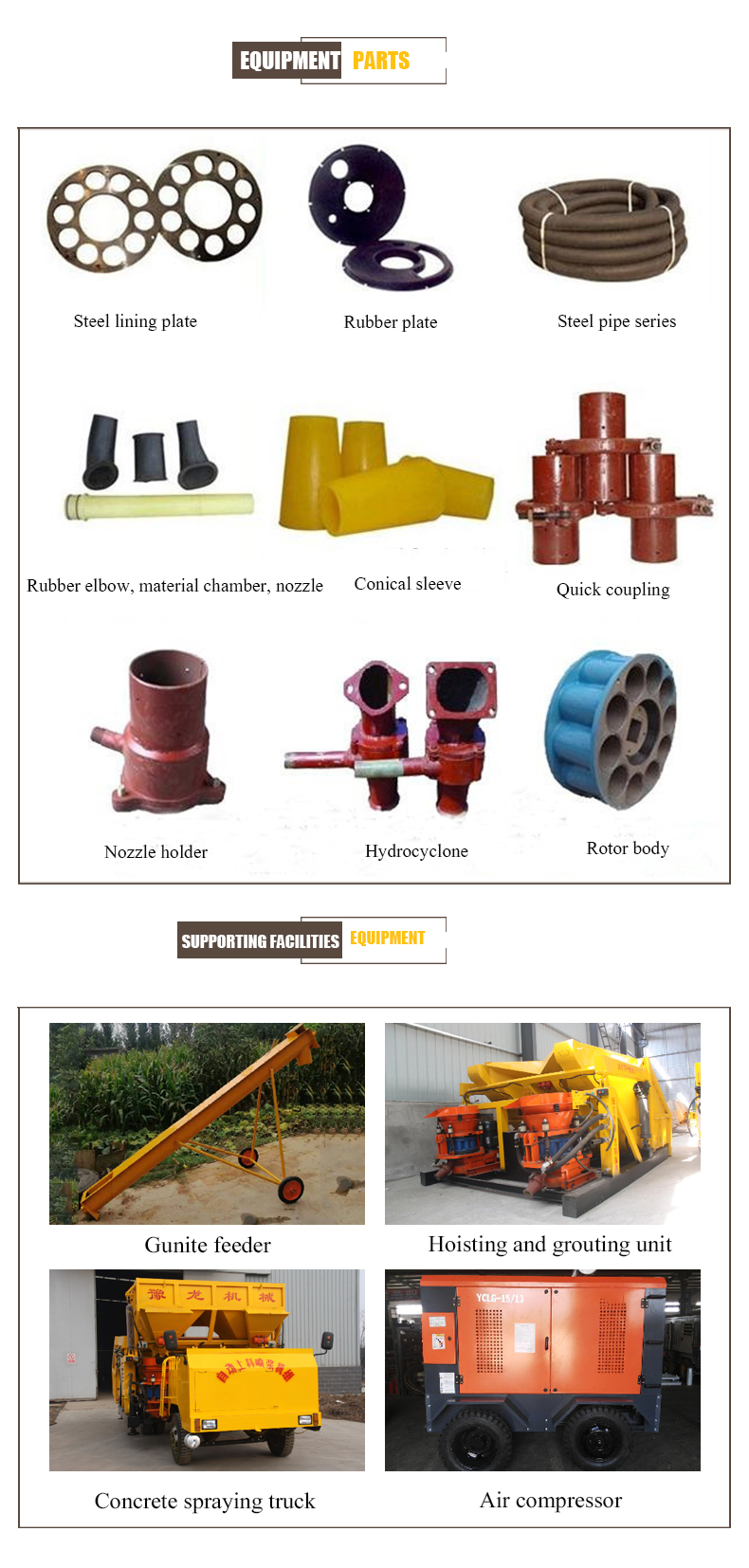

Detail 1

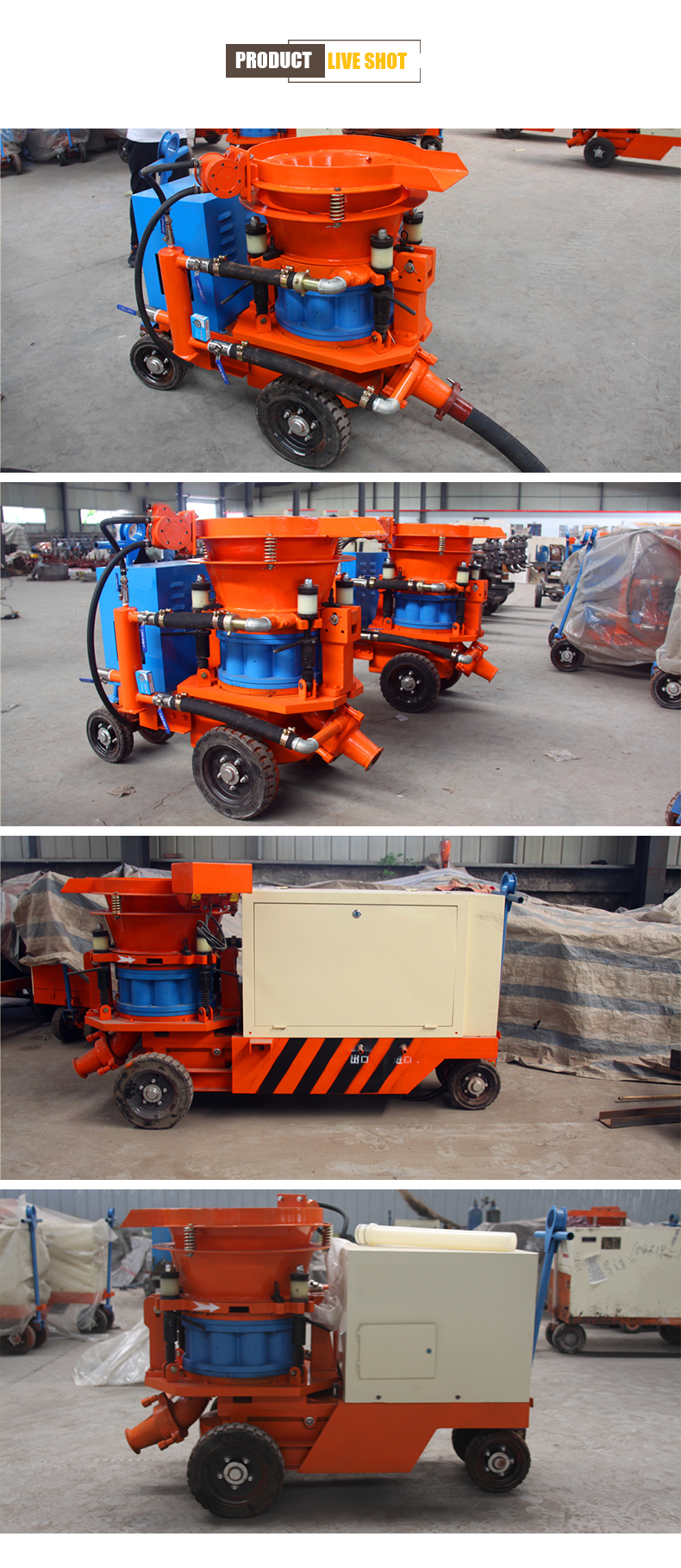

Detail 2
Detail 3
Detail 4
📦 Product Packaging
Packaging
🏭 Manufacturing Excellence

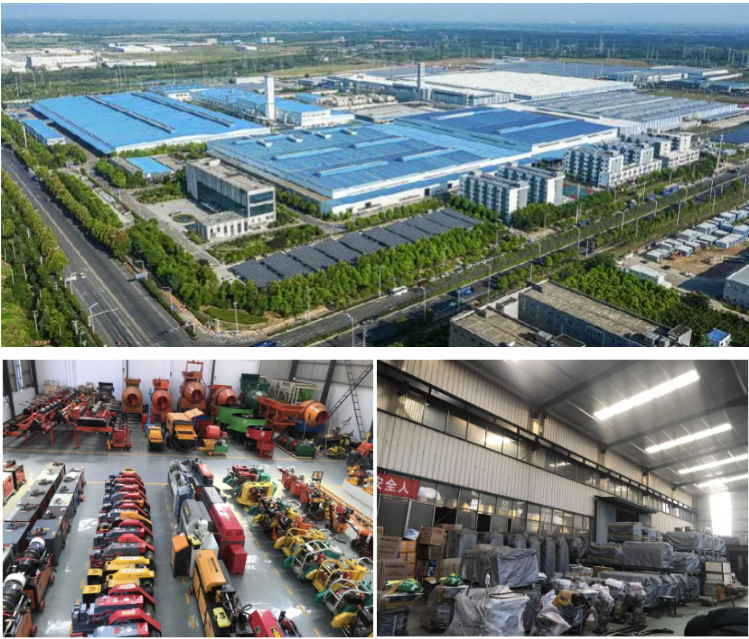

Facility 1
We are a professional production and processing company for steel machinery, concrete mixers, road machinery, batching machines, etc. We have a complete and scientific quality management system. Our facility was established in the nineties of the twentieth century and is one of the earliest professional manufacturers in the field of construction machinery. In the spirit of professionalism and excellence, we have gradually developed into a large factory with a history of 30 years. The equipment we provide includes steel bar bending machines, steel bar cutting machines, steel bar straightening machines, concrete laser screeds, concrete cutting machines, power plastering machines, roller concrete screeds, concrete mixers, and more. With over 100 staff members of engineering and technical experience, we can meet various orders for construction machinery. Our professional R&D team provides the most convenient service from the moment of your order.
Facility 2
Frequently Asked Questions
Q1: Are you a trading company or a manufacturer?
A: We are an original equipment manufacturer with decades of experience.
Q2: How long is your delivery time?
A: It depends on the model and quantity. Generally, it is 3-5 days if the machines are in stock. For customized machines, it typically takes 15-30 days.
Q3: Do you provide samples?
A: Yes, we can offer the sample machine. However, it is not free, and the buyer is responsible for the sample cost and freight.
Q4: What are your terms of payment?
A: We accept T/T, secure escrow payments, and other standard commercial payment methods.

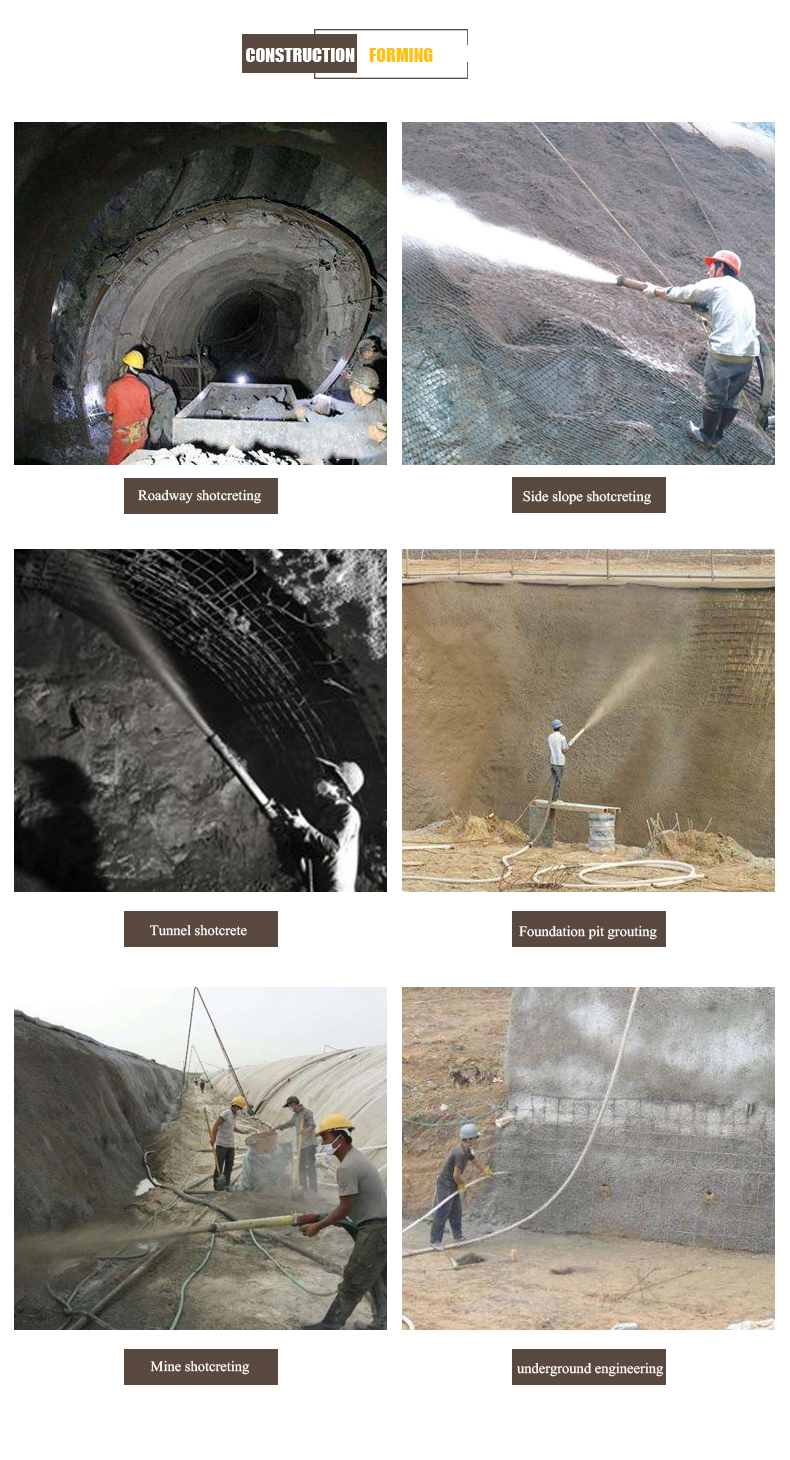

Q5: What are the primary applications for this spraying equipment?
A: It is ideal for concrete bolt spraying in tunnels, culverts, underground projects, and slope protection construction.
Q6: Do you offer technical support for the machines?
A: Yes, our professional R&D and engineering teams provide comprehensive technical support and guidance for all our products.
