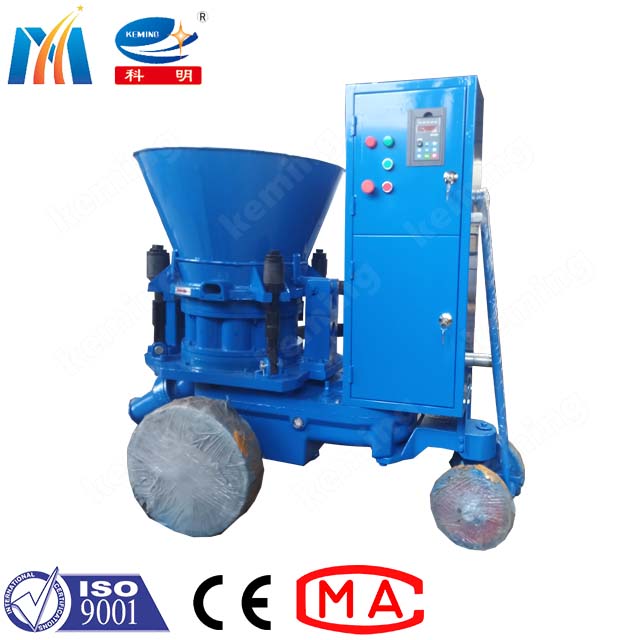

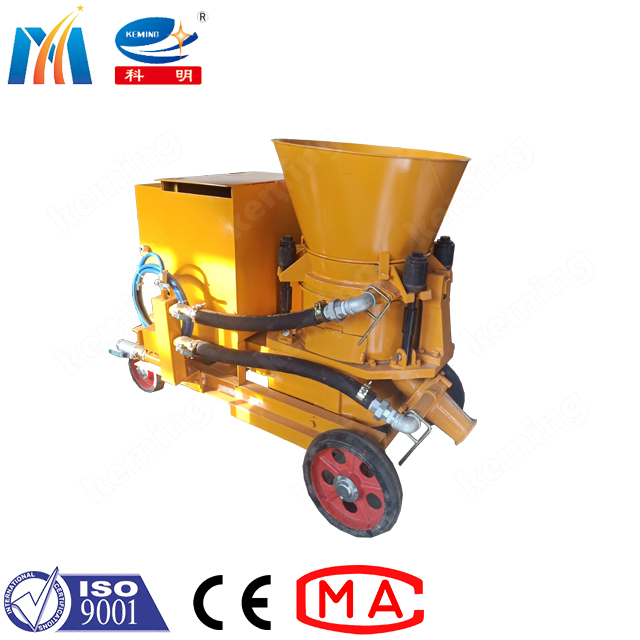

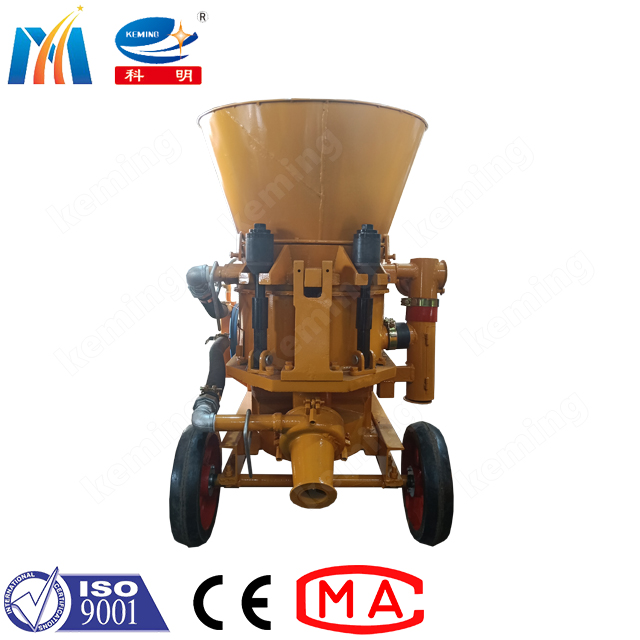

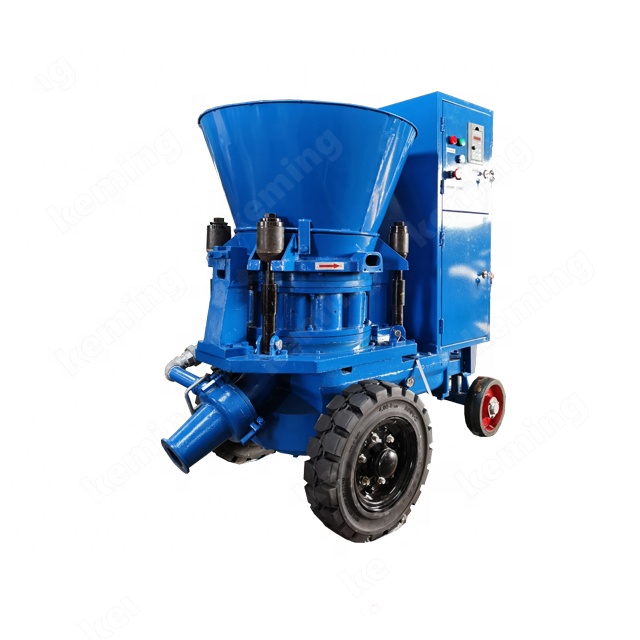

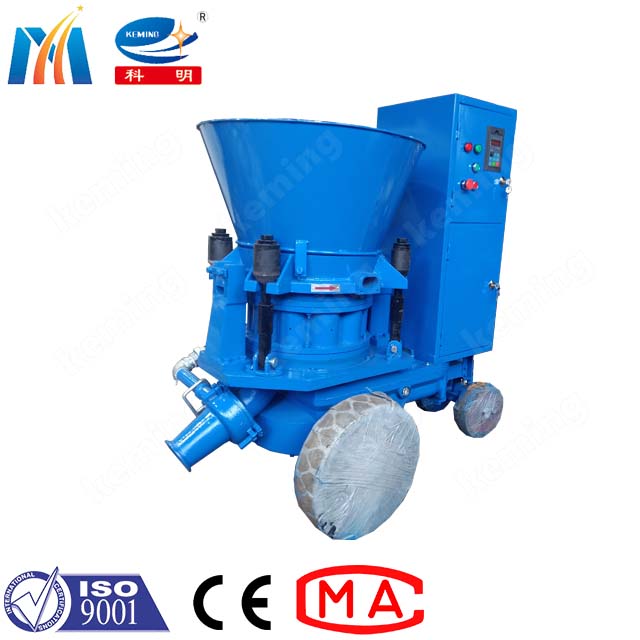

KPZ Dry Refractory Gunite Dry Mix Shotcrete Machine Refractory Spraying Machine in Coal Mine Spraying
KPZ Dry Refractory Gunite Dry Mix Shotcrete Machine Refractory Spraying Machine in Coal Mine Spraying
KPZ Dry Refractory Gunite Dry Mix Shotcrete Machine Refractory Spraying Machine in Coal Mine Spraying
KPZ Dry Refractory Gunite Dry Mix Shotcrete Machine Refractory Spraying Machine in Coal Mine Spraying
KPZ Dry Refractory Gunite Dry Mix Shotcrete Machine Refractory Spraying Machine in Coal Mine Spraying
1 / 5
KPZ Dry Refractory Gunite Dry Mix Shotcrete Machine Refractory Spraying Machine in Coal Mine Spraying
KPZ Dry Refractory Gunite Dry Mix Shotcrete Machine Refractory Spraying Machine in Coal Mine Spraying
KPZ Dry Refractory Gunite Dry Mix Shotcrete Machine Refractory Spraying Machine in Coal Mine Spraying
KPZ Dry Refractory Gunite Dry Mix Shotcrete Machine Refractory Spraying Machine in Coal Mine Spraying
KPZ Dry Refractory Gunite Dry Mix Shotcrete Machine Refractory Spraying Machine in Coal Mine Spraying

KPZ Dry Refractory Gunite Dry Mix Shotcrete Machine Refractory Spraying Machine in Coal Mine Spraying

Send Inquiry

Product Description

Product Description
Shotcrete machine can be divided into dry shotcrete machine, wet shotcrete machine and half wet shotcrete machine. Customers can choose the types according to their own requirements. Each type of shotcrete machine has advantages and disadvantages.
Dry Refractory Gunite Machine: Mainly for refractory spraying projects. It features a reasonable structure, humanized design, reliable performance, and convenient operation. It ensures long service life with no dust, low noise, and low rebound rate during operation.

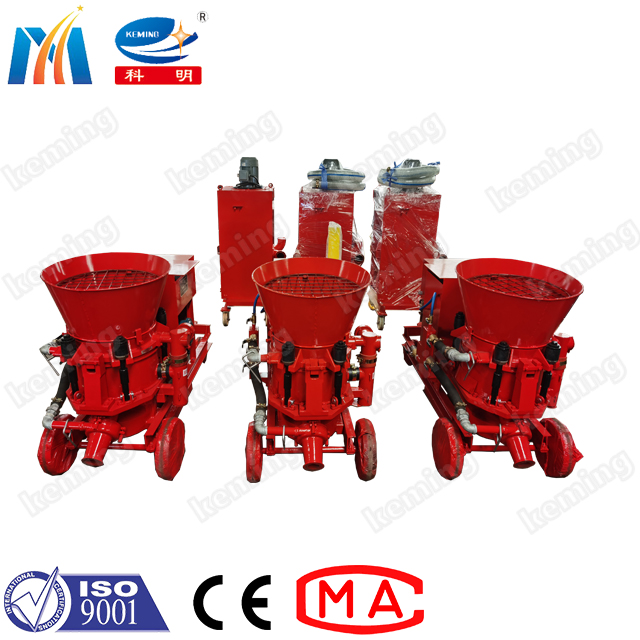

Dry Mix Shotcrete Machine
Key Advantages:
● Greatly reduce dust concentration inside the machine and at the nozzle, protecting workers' health.
● High productivity for demanding projects.
● Low resilience: Wet spraying technology can reduce the resilience rate to less than 10%, compared to 15%-50% in dry spraying.
● Improved quality: Wet spraying allows for easier water-cement ratio control and high hydration degree, enhancing concrete homogeneity.
Technical Specifications
Model KPZ-4 KPZ-6
Production capacity3.5~4.5m3/h5.5~6.5m3/h
Max. Conveying distance(tide spray)≤200/40m≤150/30m
Max. Aggregate sizeφ20mmφ20mm
Inner diameter of conveying hoseΦ42/50mmφ50/57mm
Working pressure0.2~0.4MPa0.2~0.4MPa
Air consumption7-8m3/min8-10m3/min
Feeding height1.1m1.1m
Rotation speed of rotor11r/min11r/min
Motor power5.5kW7.5kW
Dimension (LxWxH)1500×820×1250mm1580×850×1250mm
Weight500Kg600Kg
Certifications & Achievements

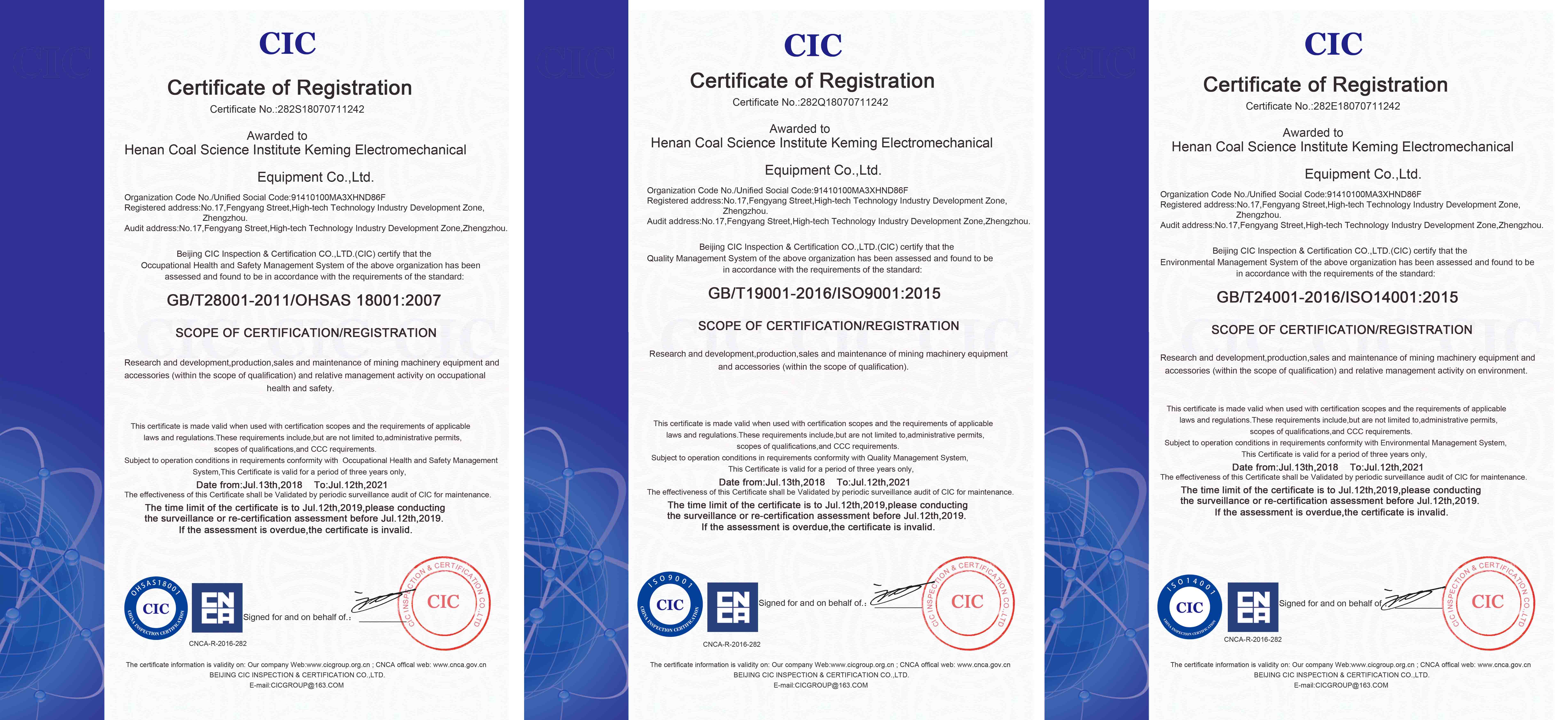

✓ISO9001:2008 Quality Management System Certification.
✓Provincial High-tech Enterprise Title.
✓Provincial S&T Progress Award for Wet Shotcrete Technology.

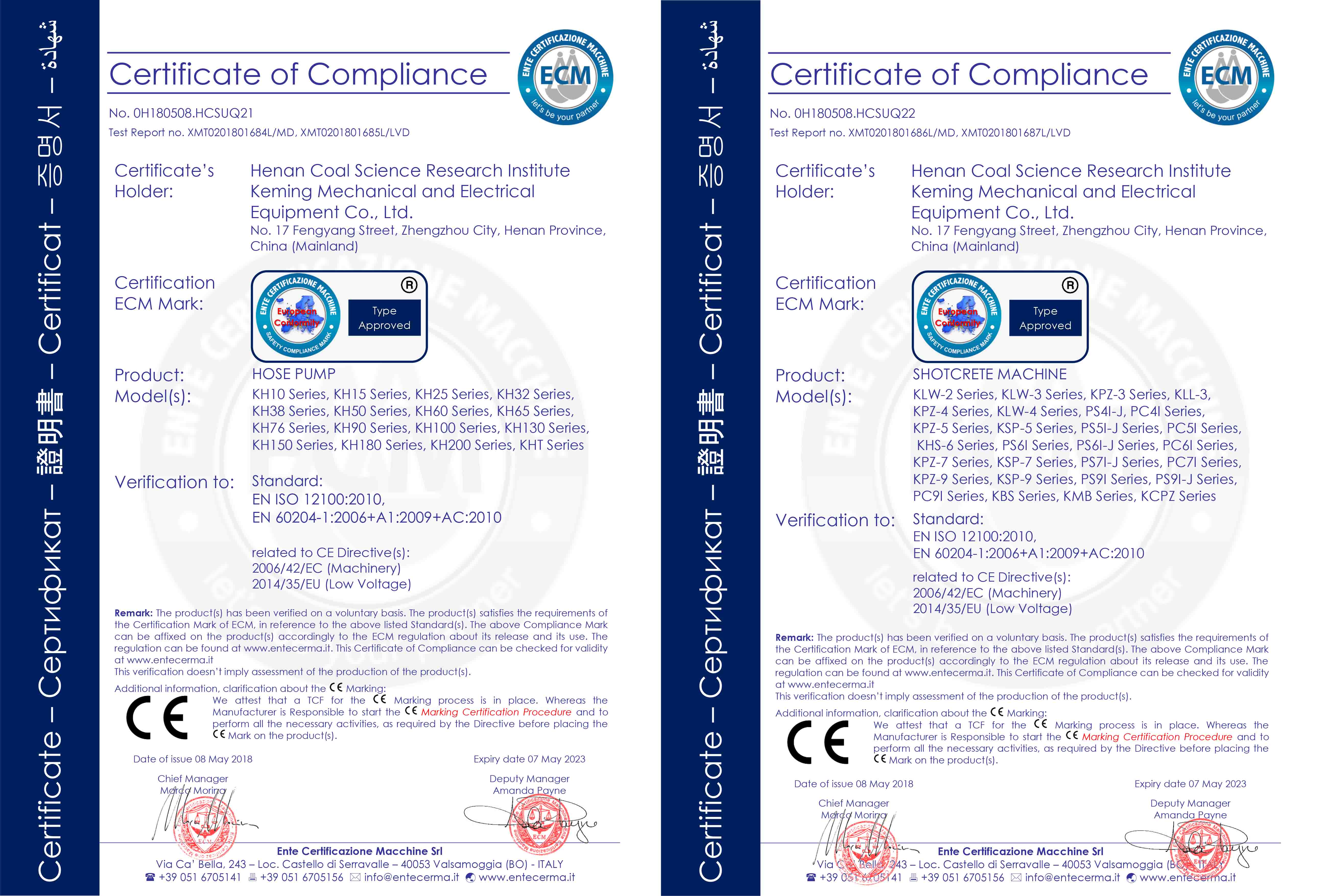

✓CE Certification for product series.

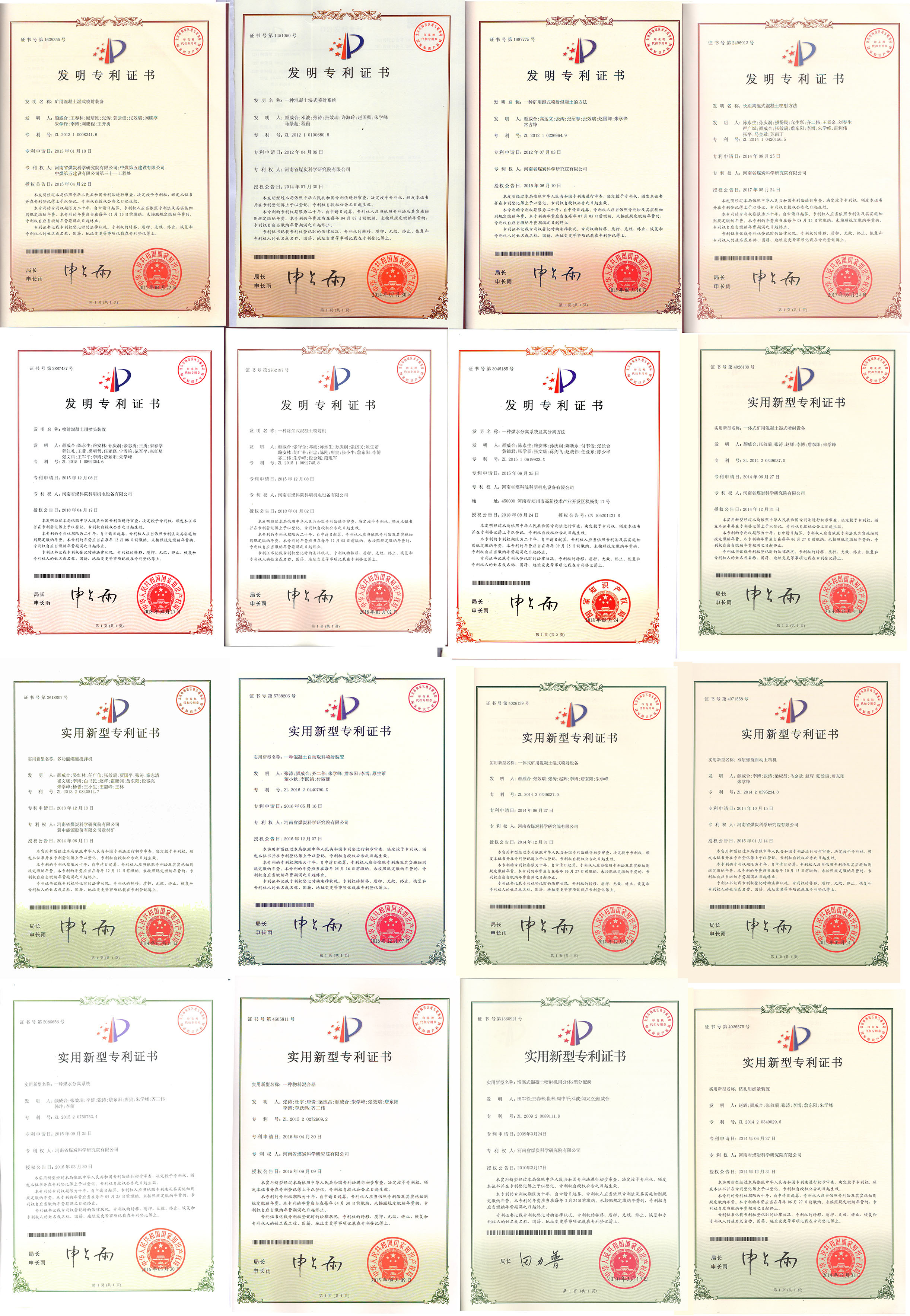

✓Over 20 national invention and utility model patents.
Product & Factory Display
Machine detail 1
Machine detail 2
Machine detail 3
Facility view

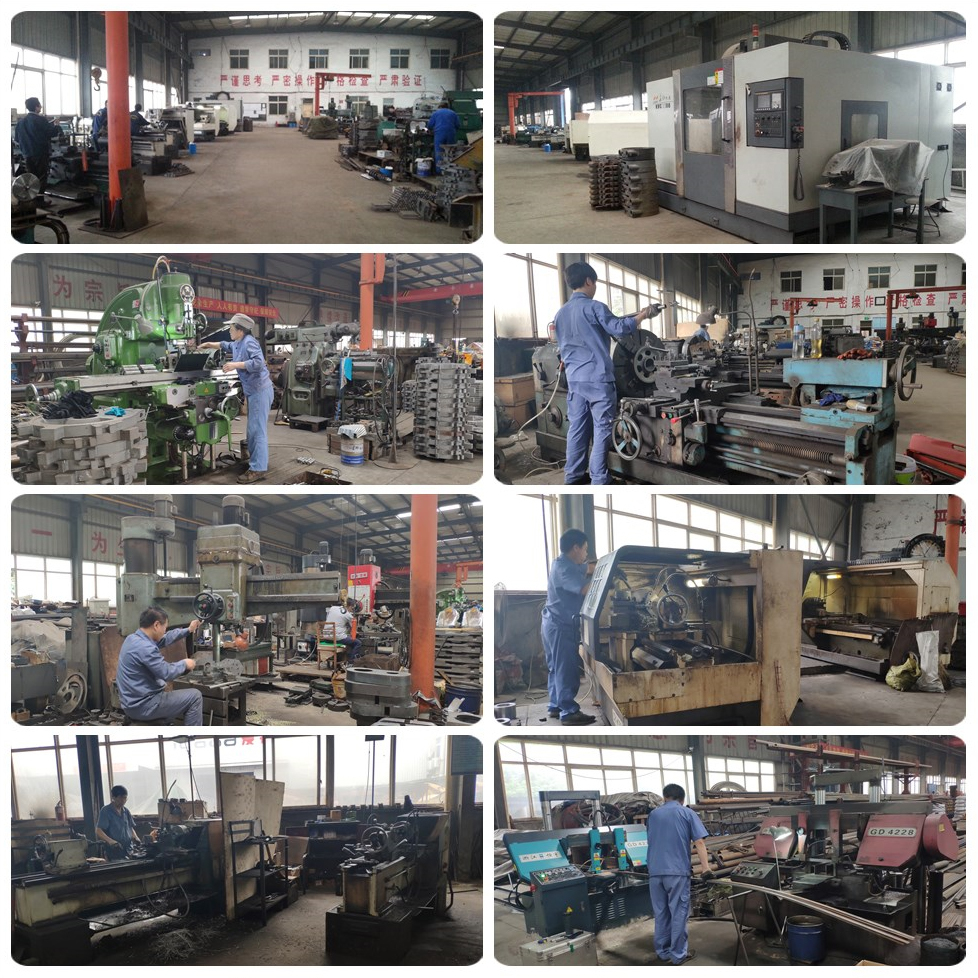

Component 1
Component 2
Scope of Business & Applications
With more than 50 kinds of products, our equipment covers shotcrete, grouting, mixing, plastering, and hose pumps. These products are widely applied in:
• Water conservancy & hydropower engineering
• Subway & construction of air-raid shelters
• Tunnel and bridge maintenance
• Mining concrete spraying operations
• Blast-furnace refractories spraying

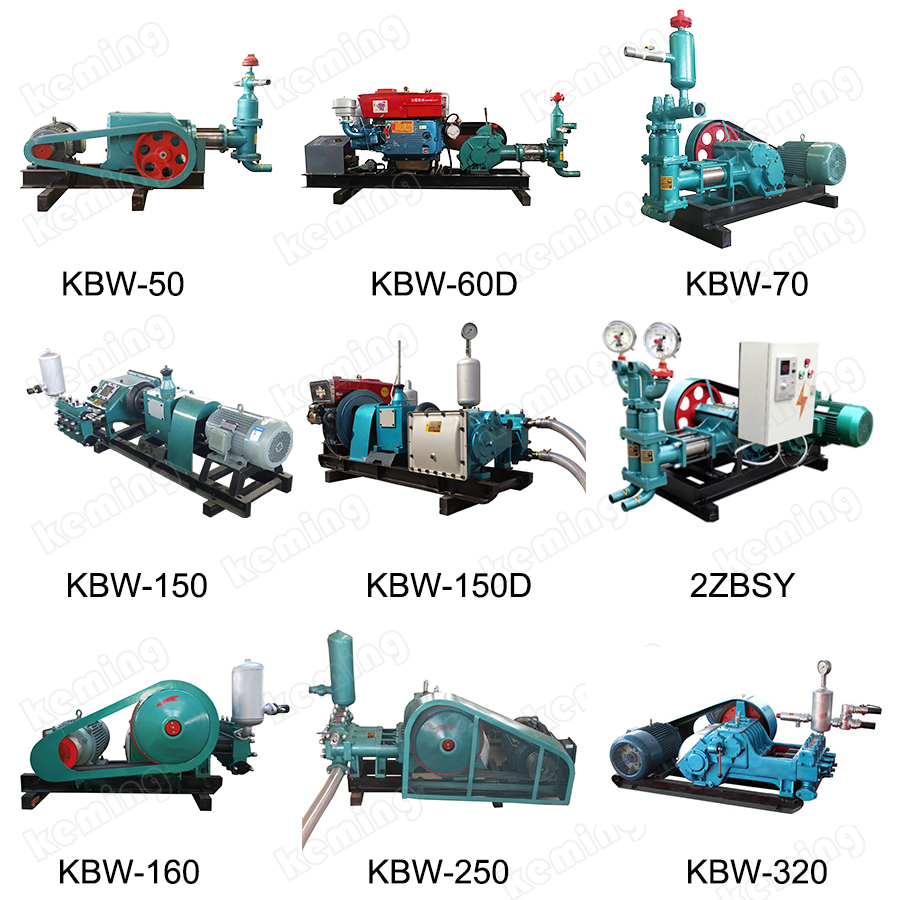

Related Machine 1

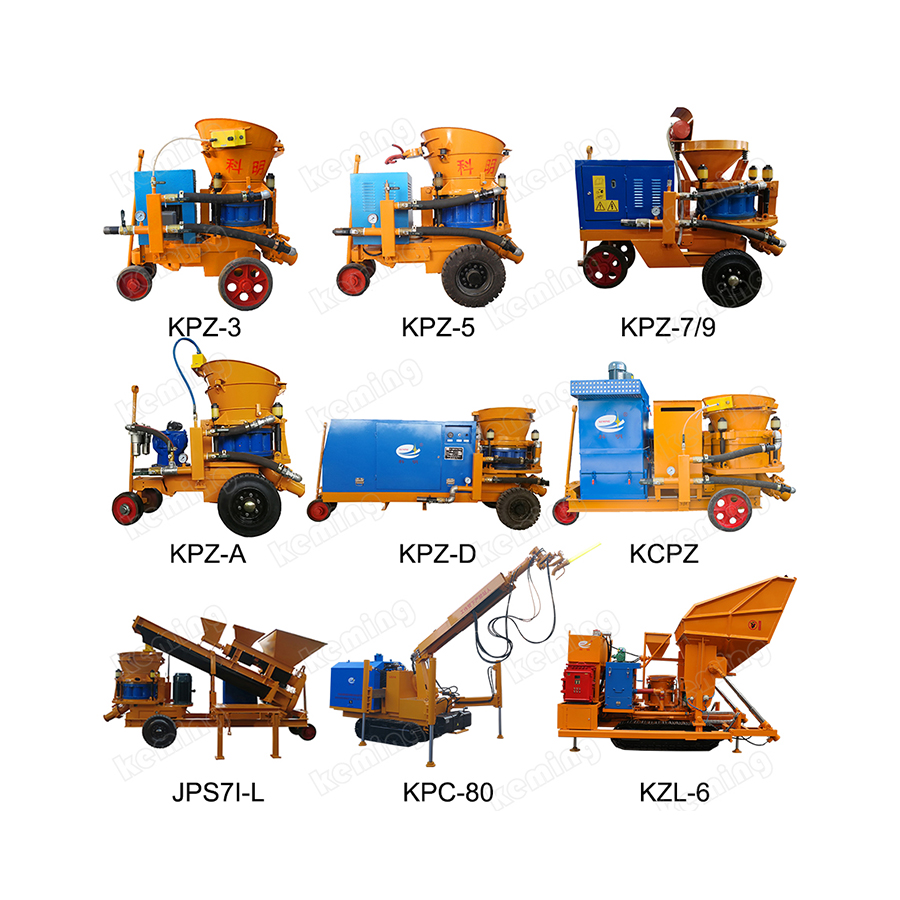

Related Machine 2

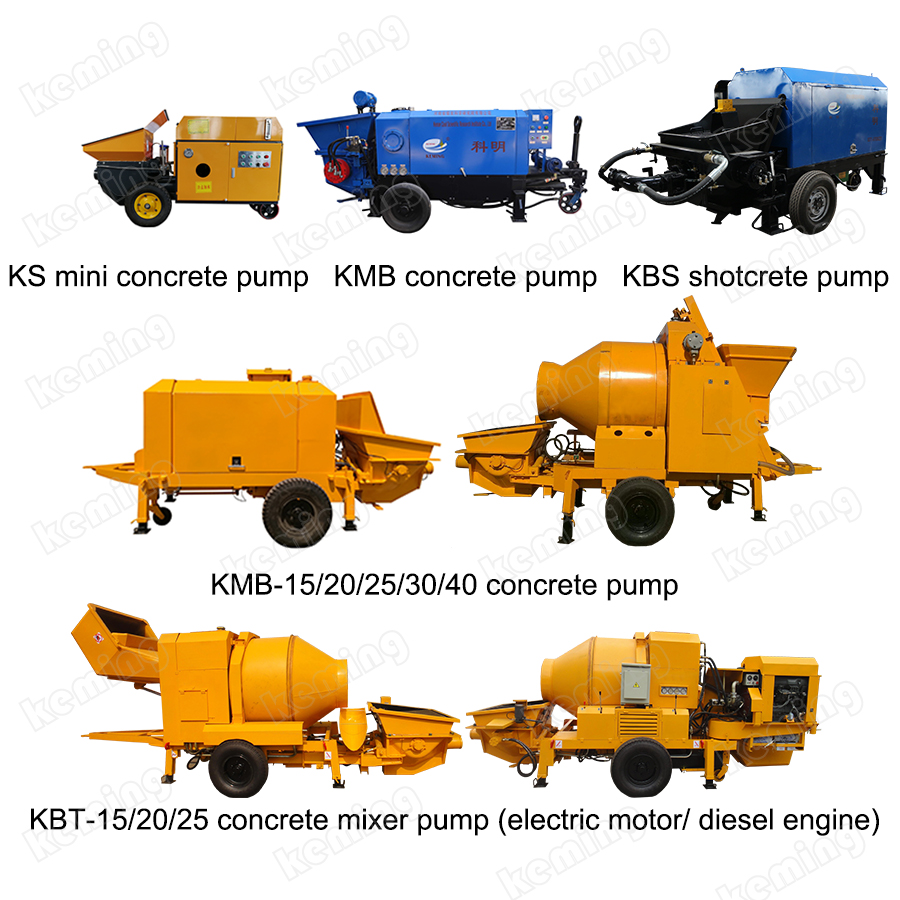

Related Machine 3
Exhibition History

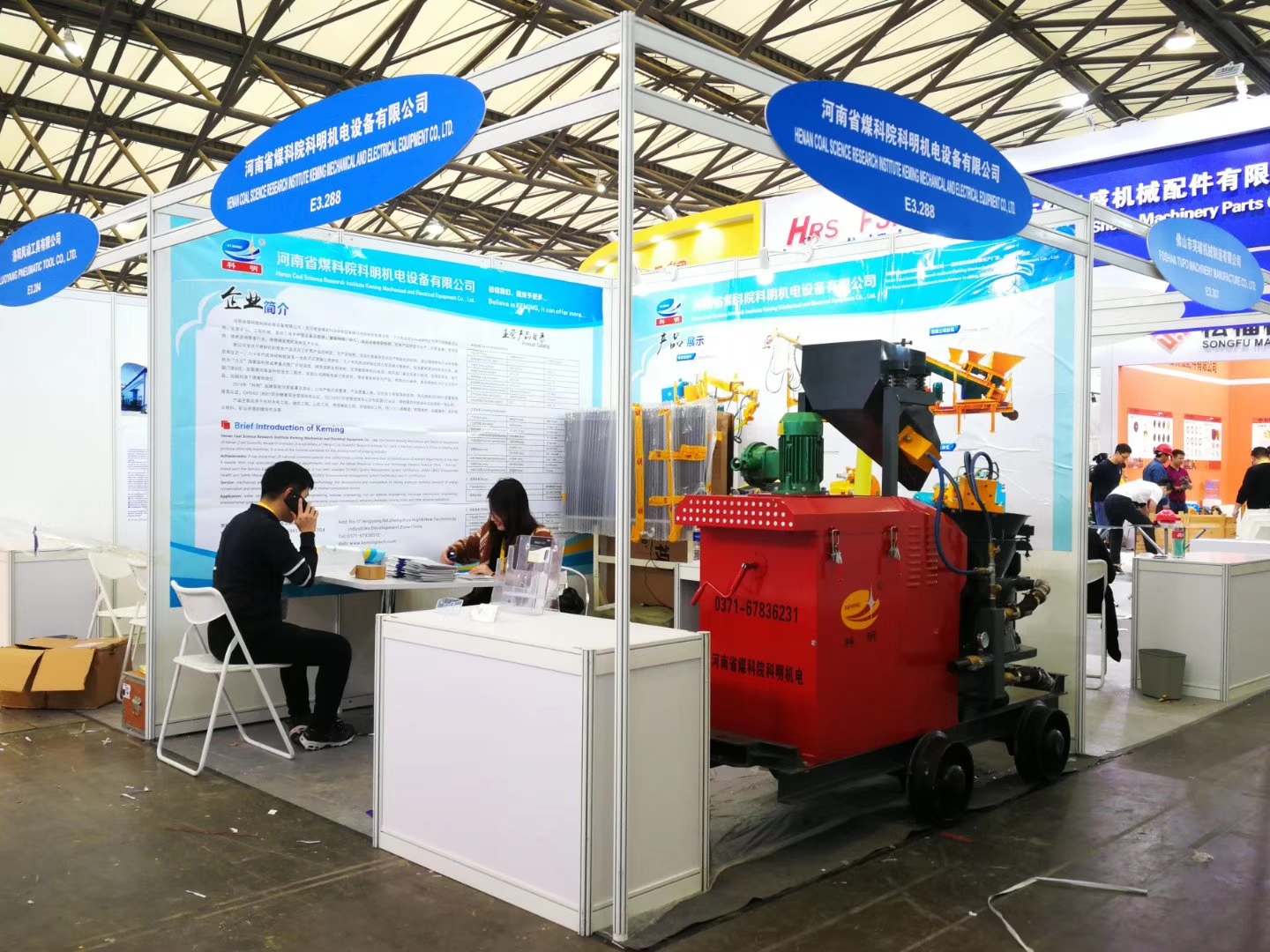

Participation in major industry events such as Bauma Shanghai.
Exhibition 1
Exhibition 2
Frequently Asked Questions
1. How to pay for the order?
Generally, TT is preferred: 30% deposit and 70% before shipment. L/C at sight is acceptable but not suggested due to high bank charges. 100% TT in advance is recommended for small amounts or spare parts.
2. How to place an order?
Both online and offline orders are acceptable. We suggest placing online orders with Trade Assurance to ensure full protection for your transaction.
3. What kind of packaging is used?

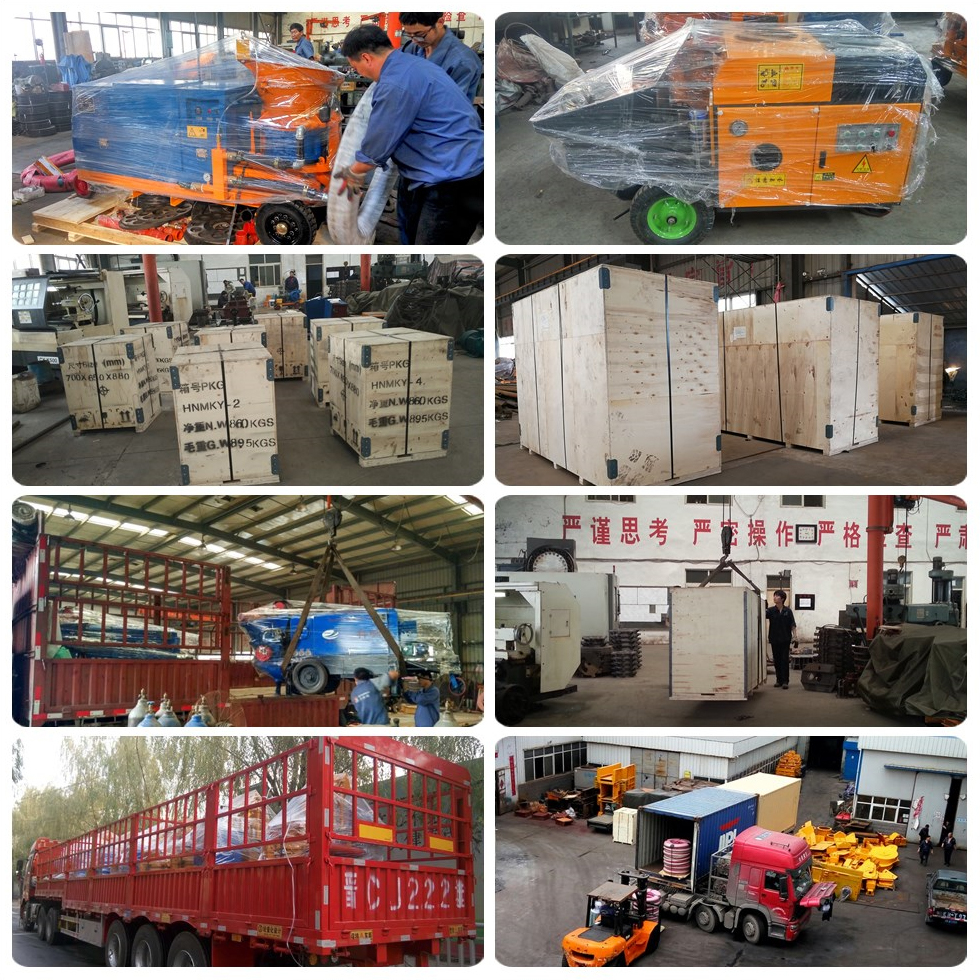

We use fumigation-free wooden cases to protect the machines from any potential damage during long-distance delivery.
4. What is the standard lead time?
Lead time is approximately 1 week for sample models and 2~3 weeks for customized models. Mass production timing depends on the order volume.
5. What should we do if there are technical problems?
You can refer to the Operation Instructions or contact our 24-hour service hotline. Our engineers are also available for overseas service if necessary.
6. Do I need special technical skills to operate the machine?
Basic technical skills are required. We strongly recommend reading the Operation Instruction carefully. We also provide online and onsite technical training when needed.
