Products Description

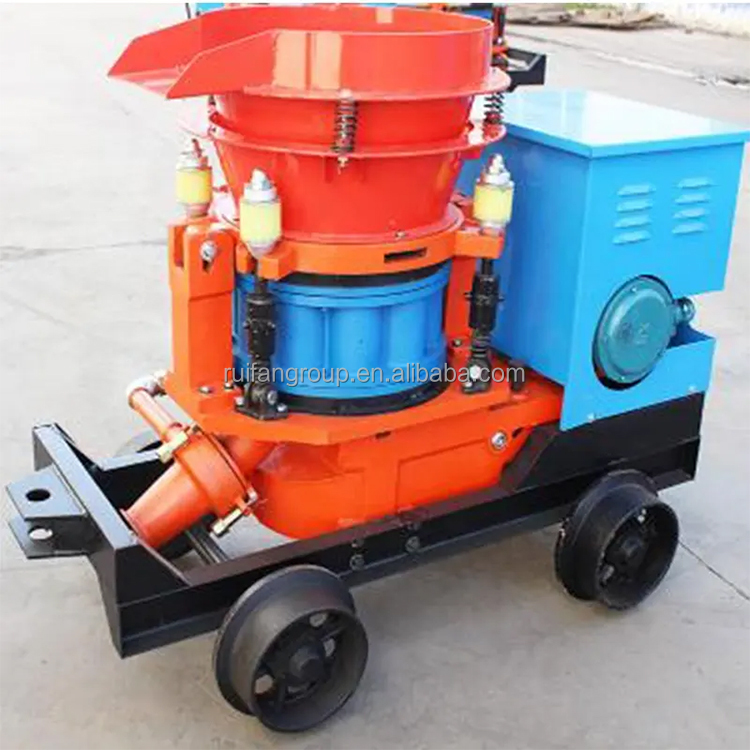

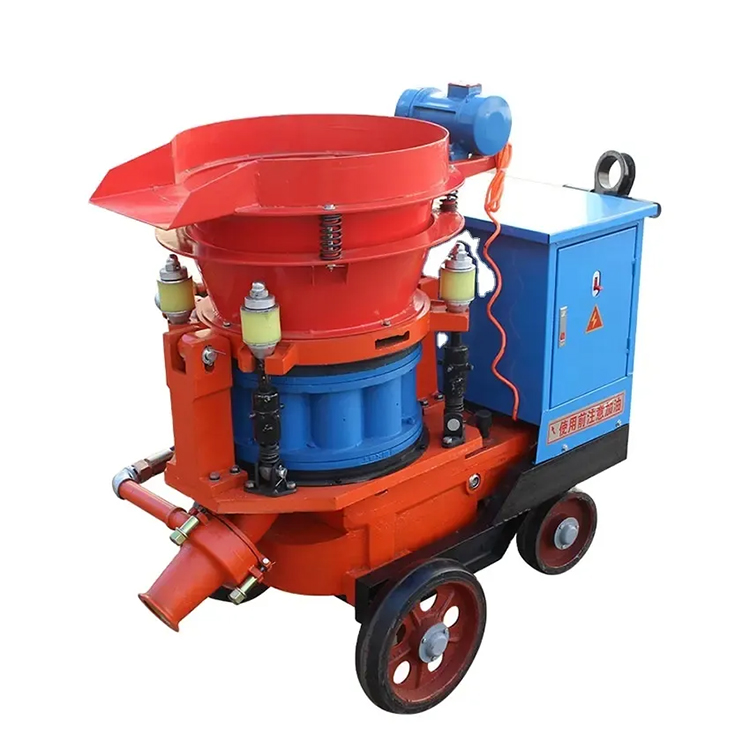

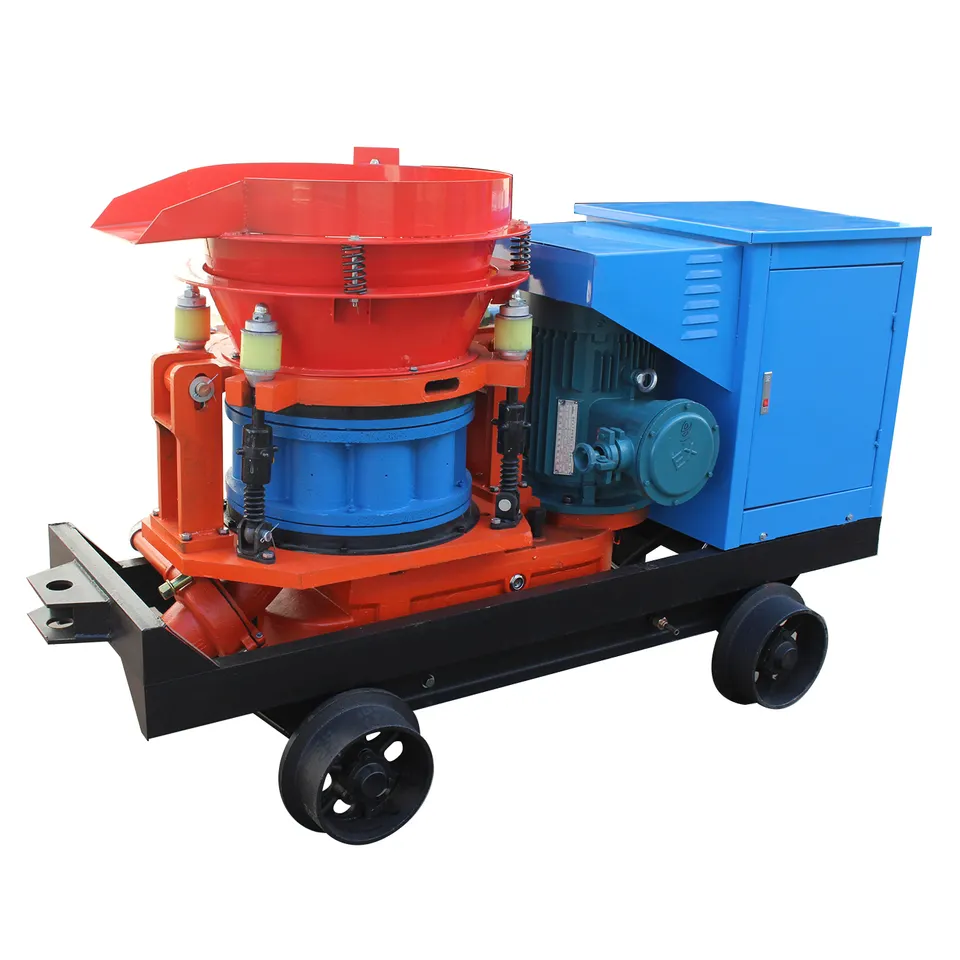

Shotcrete machine is a small size slope protection concrete refractory shotcrete machine is the use of air pressure in the machine to the dry/wet material through the hose to the water nozzle. PZ series electric dry powder shotcrete machine is a high yield, continuous feed dry powder shotcrete or refractory casting device. It is as comfortable in an underground mining environment as it is on a construction site. The sandblasting machine adopts rotor feeding system, which enables continuous operation, long service life and low maintenance cost. A variety of hoses and nozzles are available to meet various shotcrete requirements.

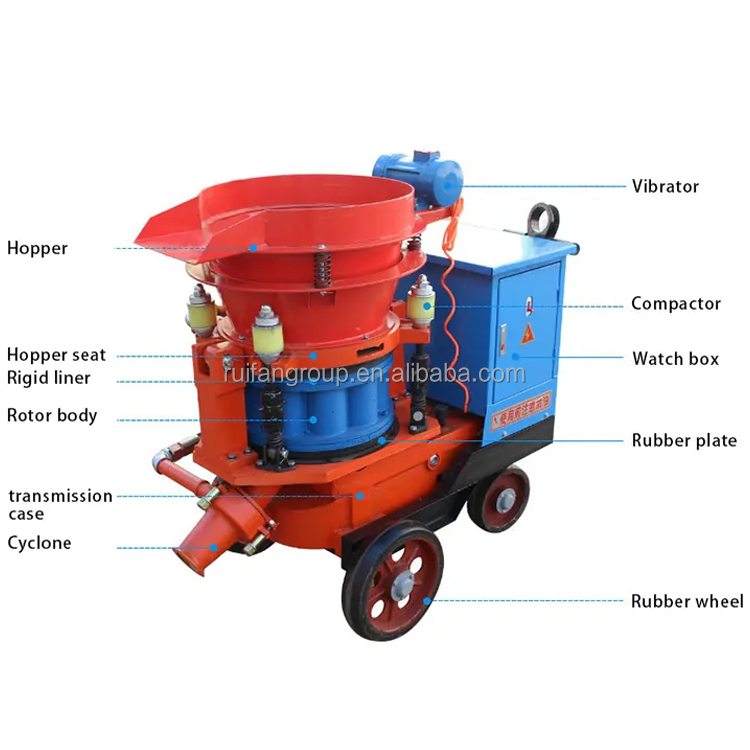

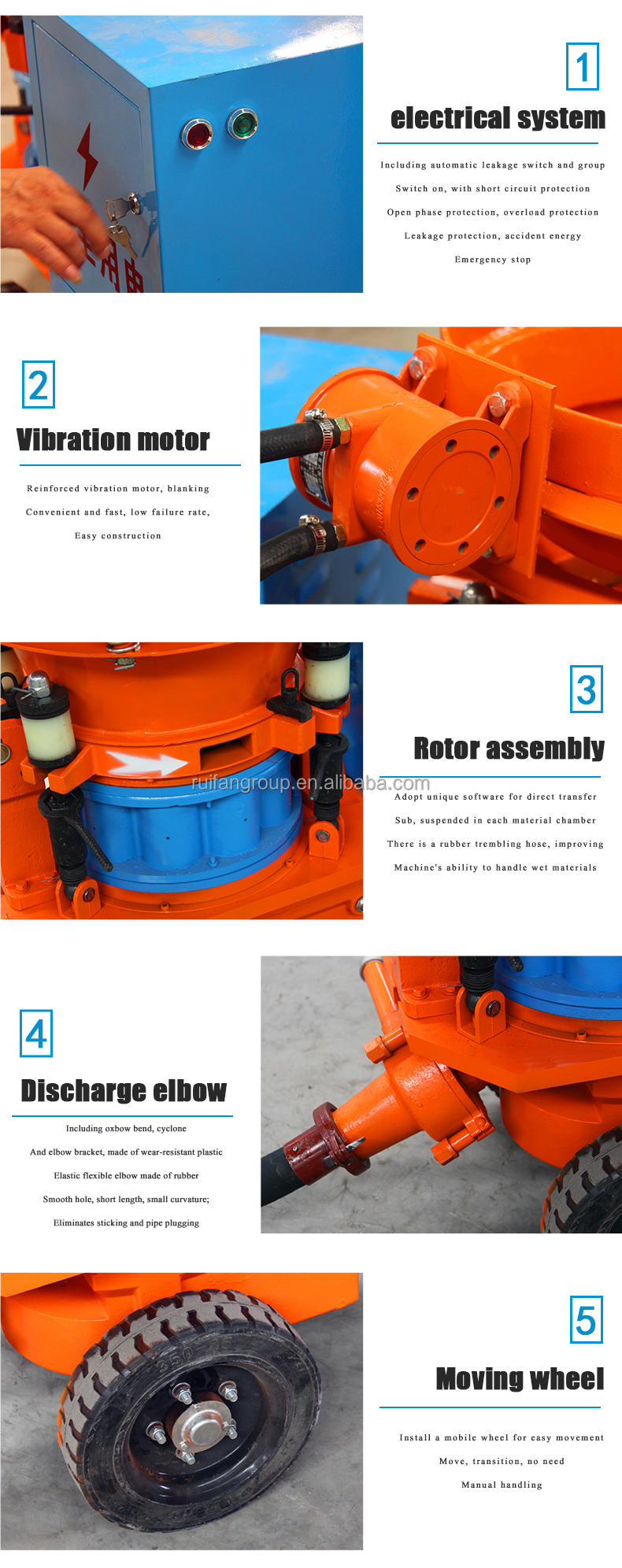

Features of small shotcrete machine
1
Environmental Protection: Reduces dust concentration around the machine and spraying gun, protecting workers' health.
2
High Efficiency: Lower rebound to effectively strengthen the sprayed concrete layer.
3
Quality Control: Improved spray quality and uniformity as water-cement ratio is easily controlled.
4
Smooth Feeding: Unique vibrating hopper ensures concrete feeds into the dosing system smoothly.
5
Precision: Standardized dosing pump adds the exact required amount of concrete accelerator.
6
Customization: Voltage and colors can be customized based on specific country requirements.
Product Parameter
| Model |
PZ-3 |
PZ-5 |
PZ-6 |
PZ-7 |
| Production capacity |
3m³/h |
5m³/h |
6m³/h |
7m³/h |
| Max transmission distance |
200m |
200m |
200m |
200m |
| Cement/Sand Proportioning |
1:3-5 |
1:3-5 |
1:3-5 |
1:3-5 |
| Water-cement ratio |
<0.4 |
<0.4 |
<0.4 |
<0.4 |
| Max bone size |
10mm |
15mm |
15mm |
20mm |
| Transport pipe ID |
42 |
51 |
51 |
51/64 |
| Rotor block diameter |
350mm |
438mm |
438mm |
480mm |
| Working pressure |
0.2-0.6MPa |
0.2-0.6MPa |
0.2-0.6MPa |
0.2-0.6MPa |
| Blast consumption |
5-6m³/h |
7-8m³/h |
7-8m³/h |
9-10m³/h |
| Motor power |
4KW |
5.5KW |
5.5KW |
7.5KW |
| Weight |
400kgs |
700kgs |
700kgs |
800kgs |

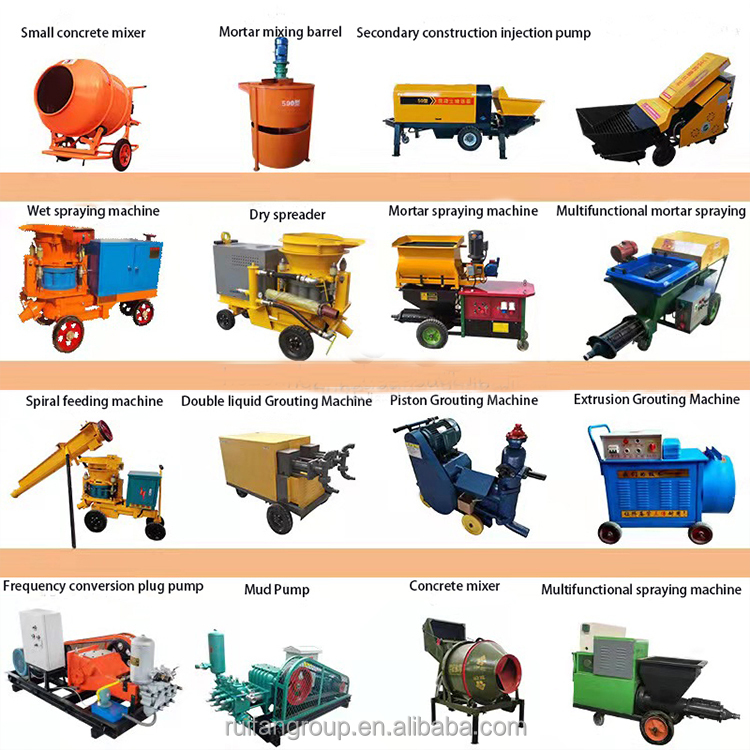

Different types of construction machinery

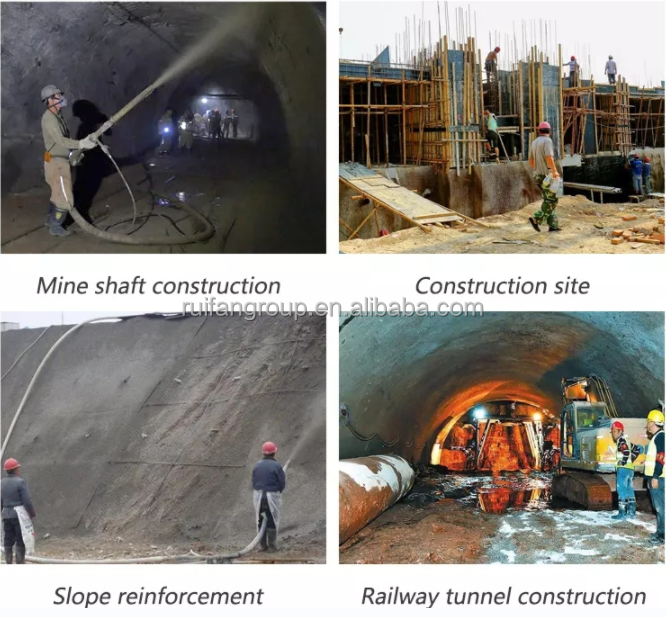

Application
The concrete shotcrete machine is widely used in road slope protection, civil underground foundation, spray swimming pool, tunnel, mining operations, hydropower engineering, slurry walls, retaining walls and so on.

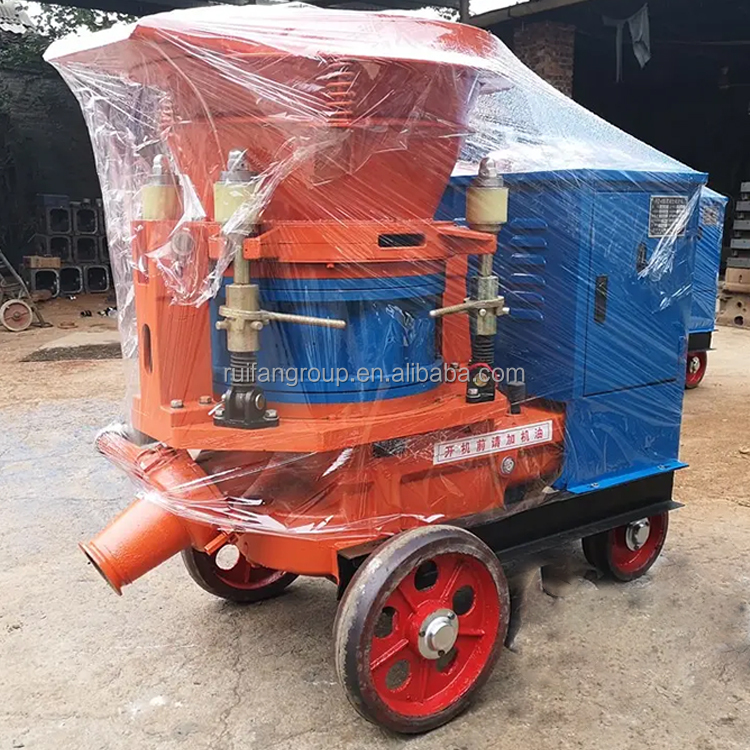

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Frequently Asked Questions
Q1: Are you a factory or a trading company?
A1: We are a factory with our own specialized trading company to serve international clients.
Q2: What are the warranty terms for your machines?
A2: We provide a one-year warranty for the machine along with ongoing technical support based on your needs.

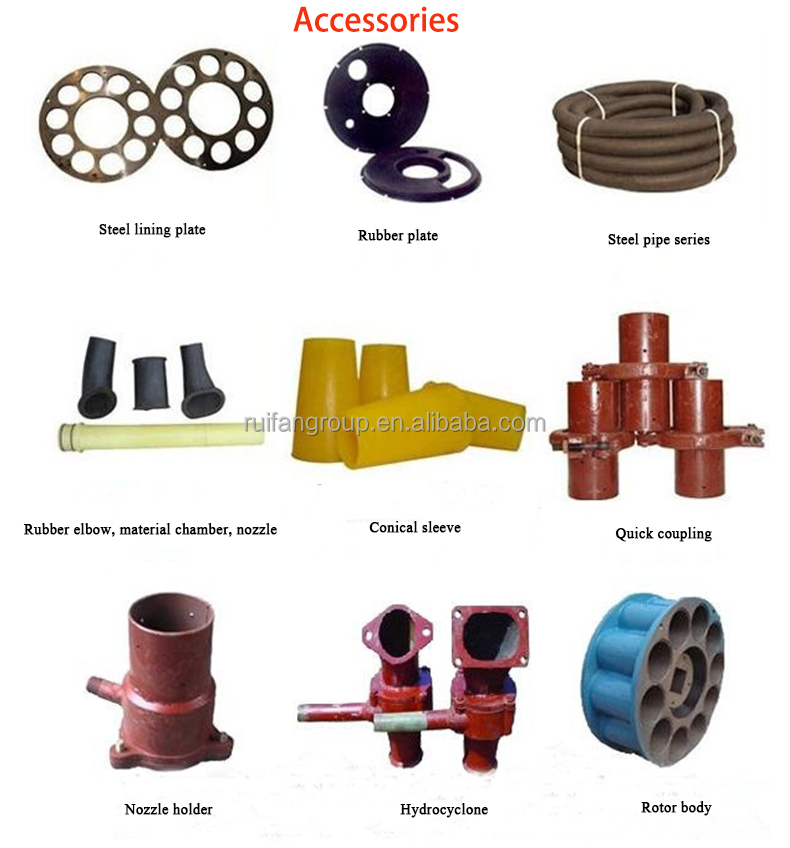

Q3: Do you provide spare parts for the machines?
A3: Yes, we provide all necessary spare parts to ensure continuous operation.
Q4: Can the voltage of the products be customized?
A4: Yes, the voltage can be customized according to your local power requirements (e.g., 380V, 440V, 660V).
Q5: How long does it take to arrange production and delivery?
A5: For standard 380V 50HZ models, delivery is within 7-15 days. Custom electricity or colors take approximately 20-30 days.
Q6: Can you accept OEM orders?
A6: Yes, we have a professional design team and highly welcome OEM orders.
