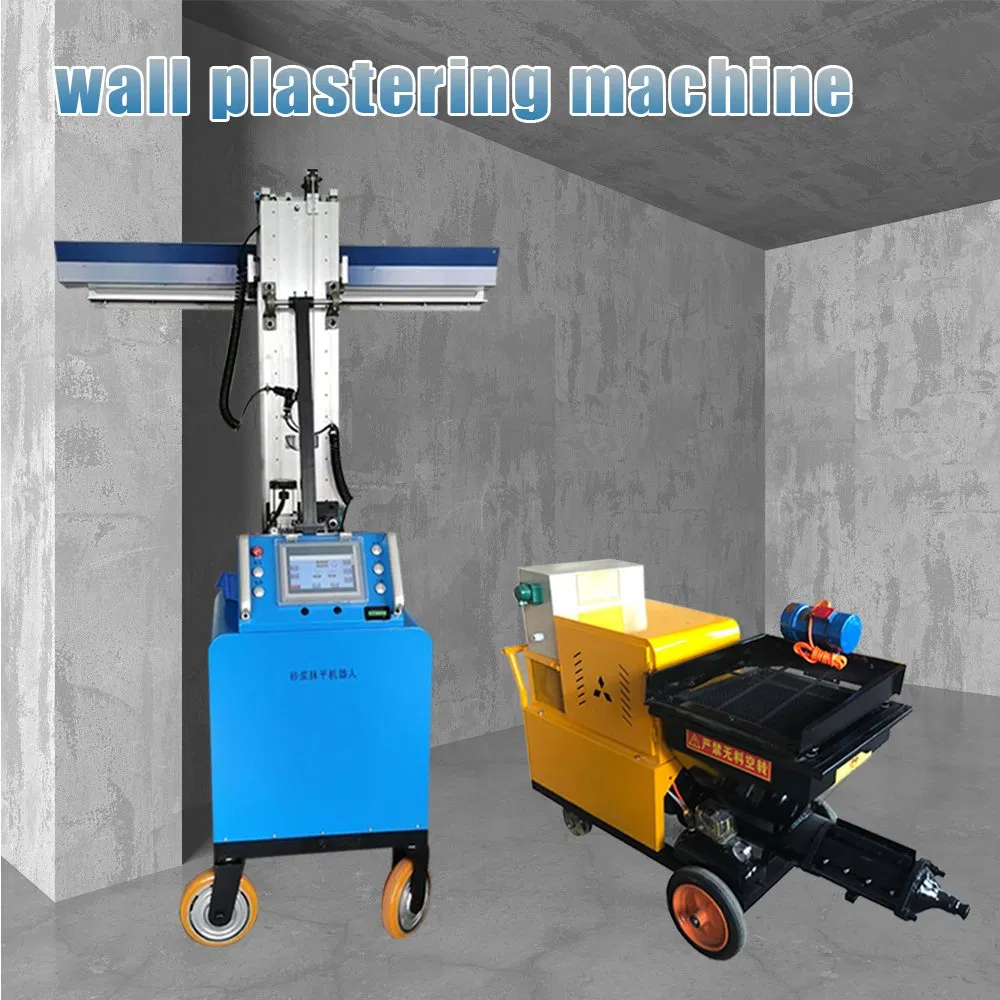

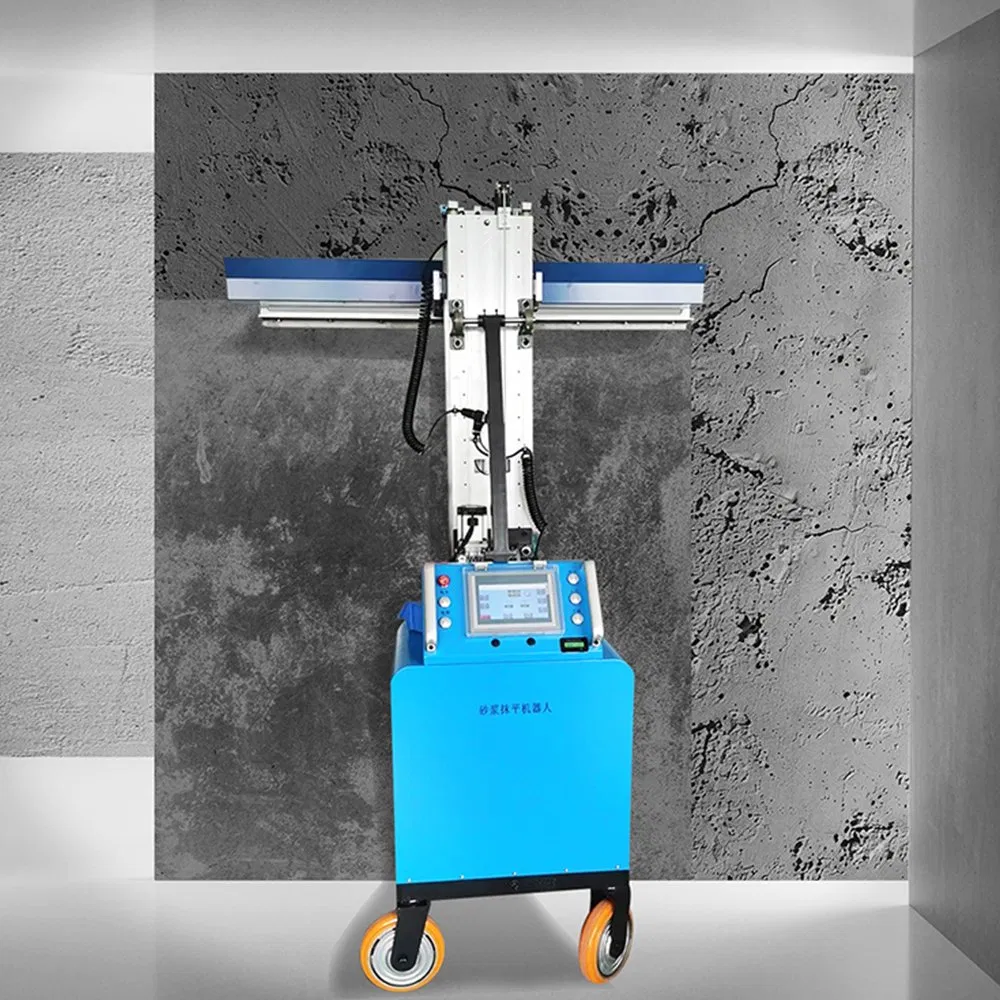

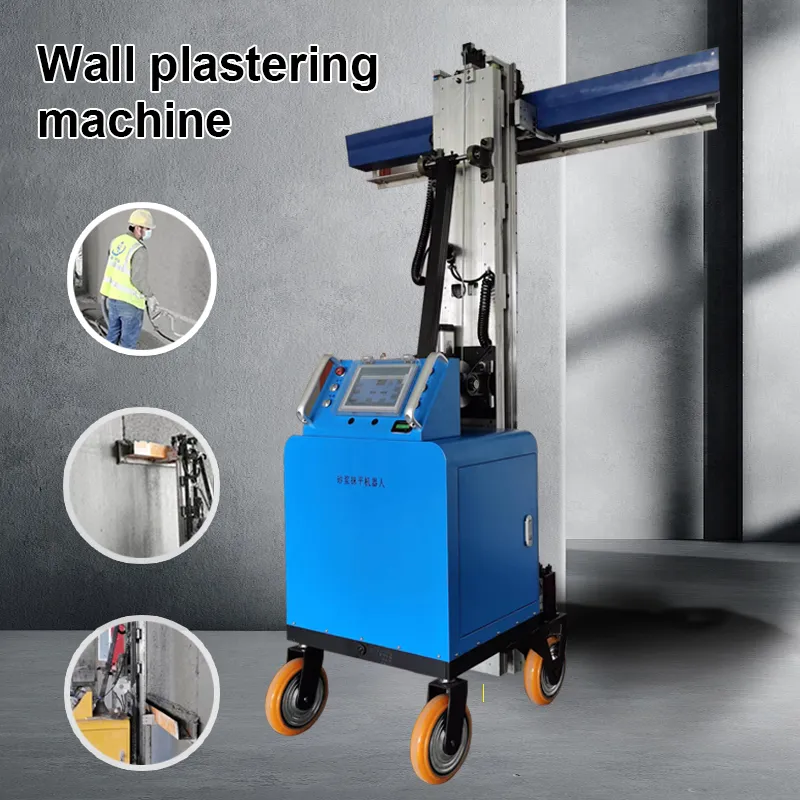

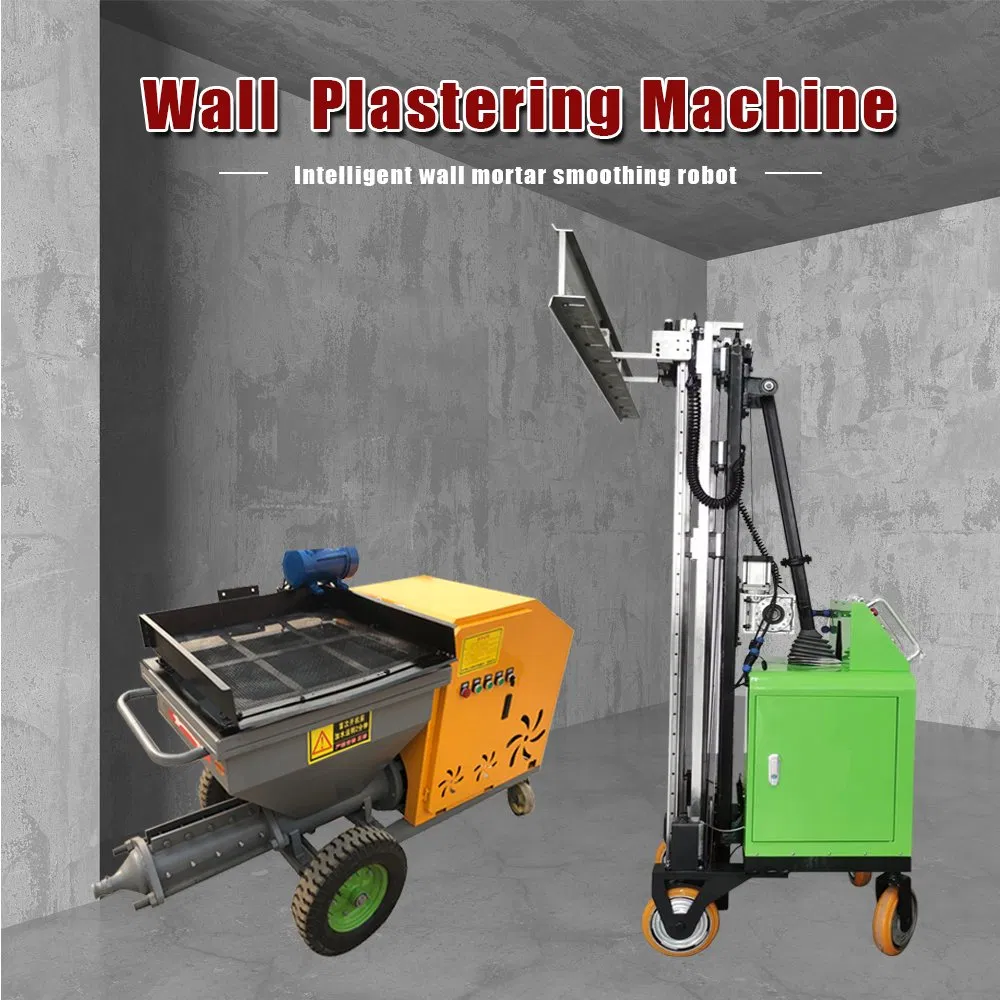

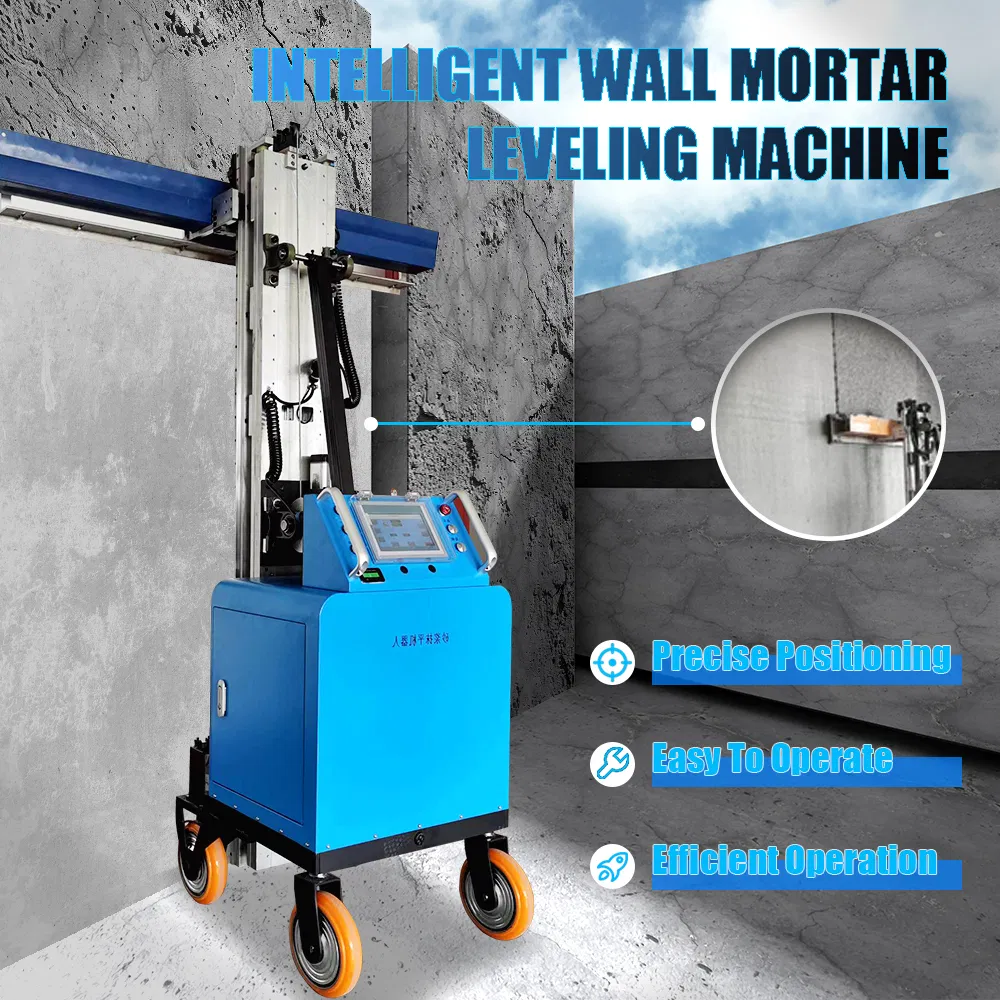

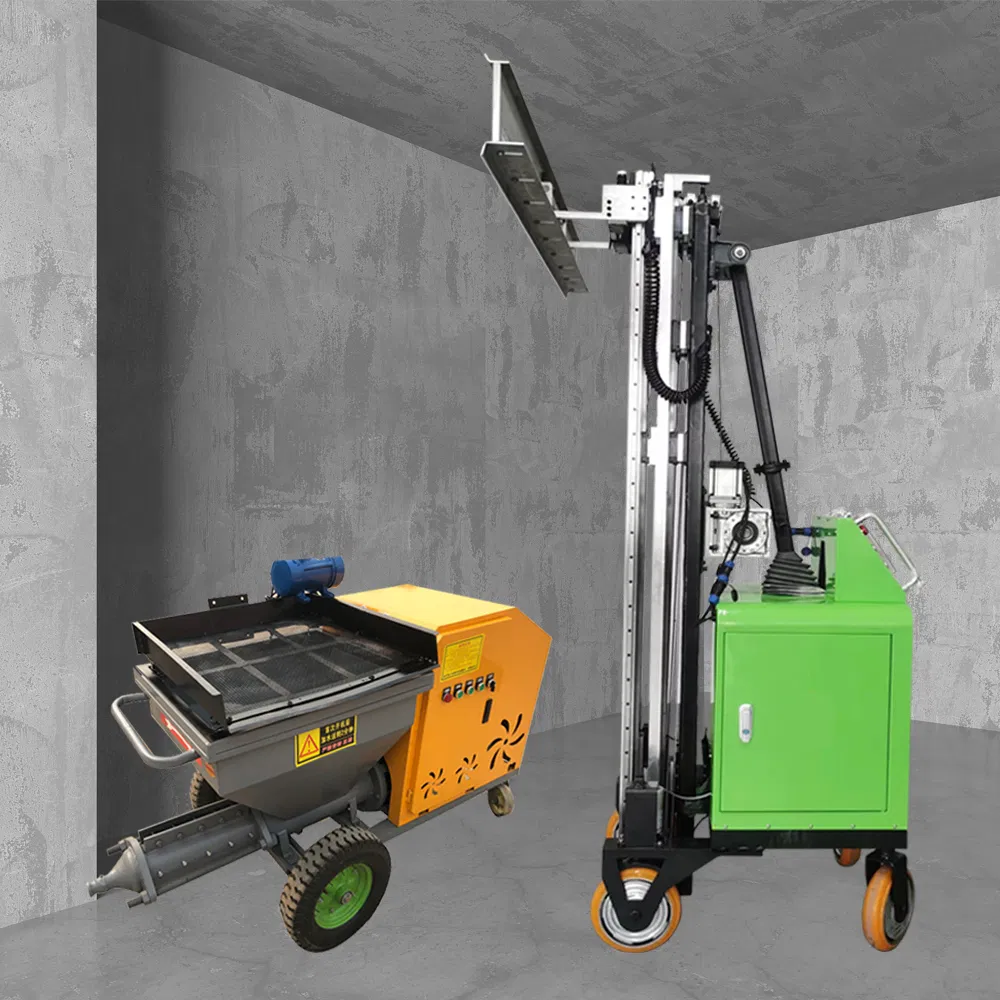

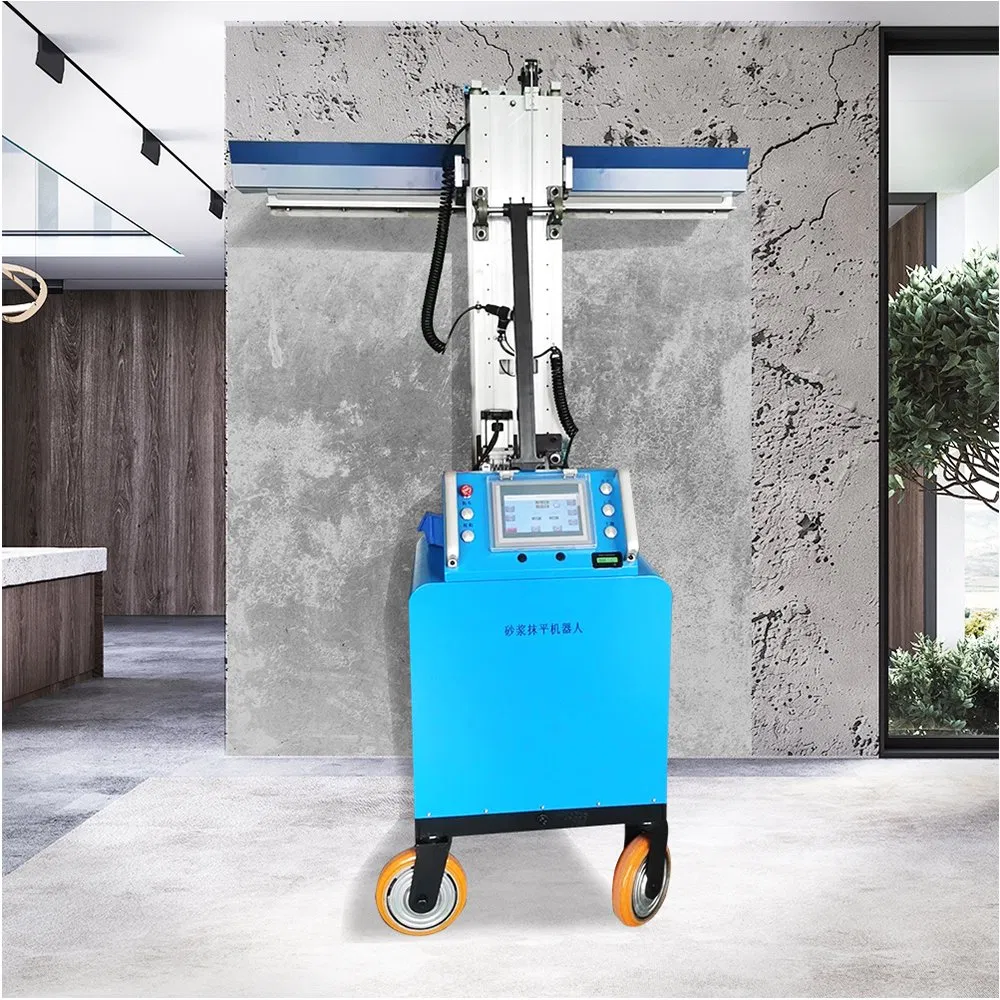

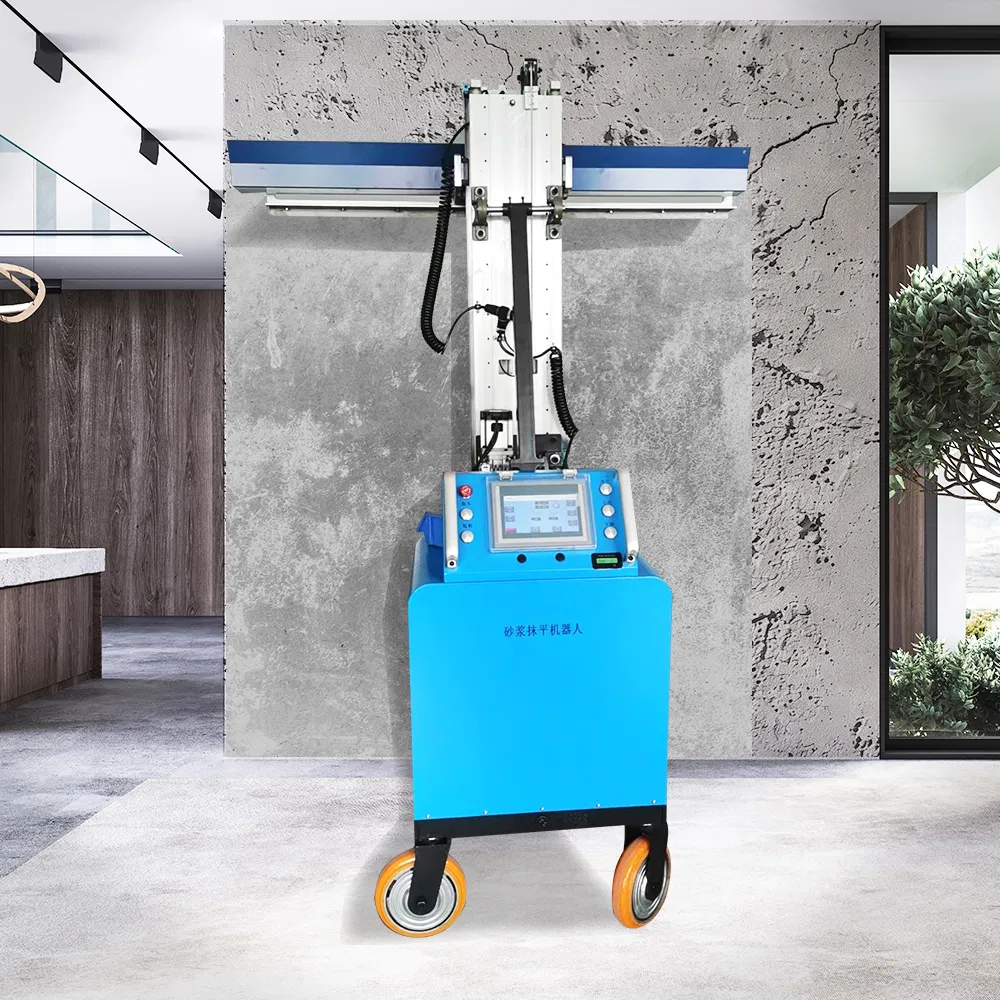

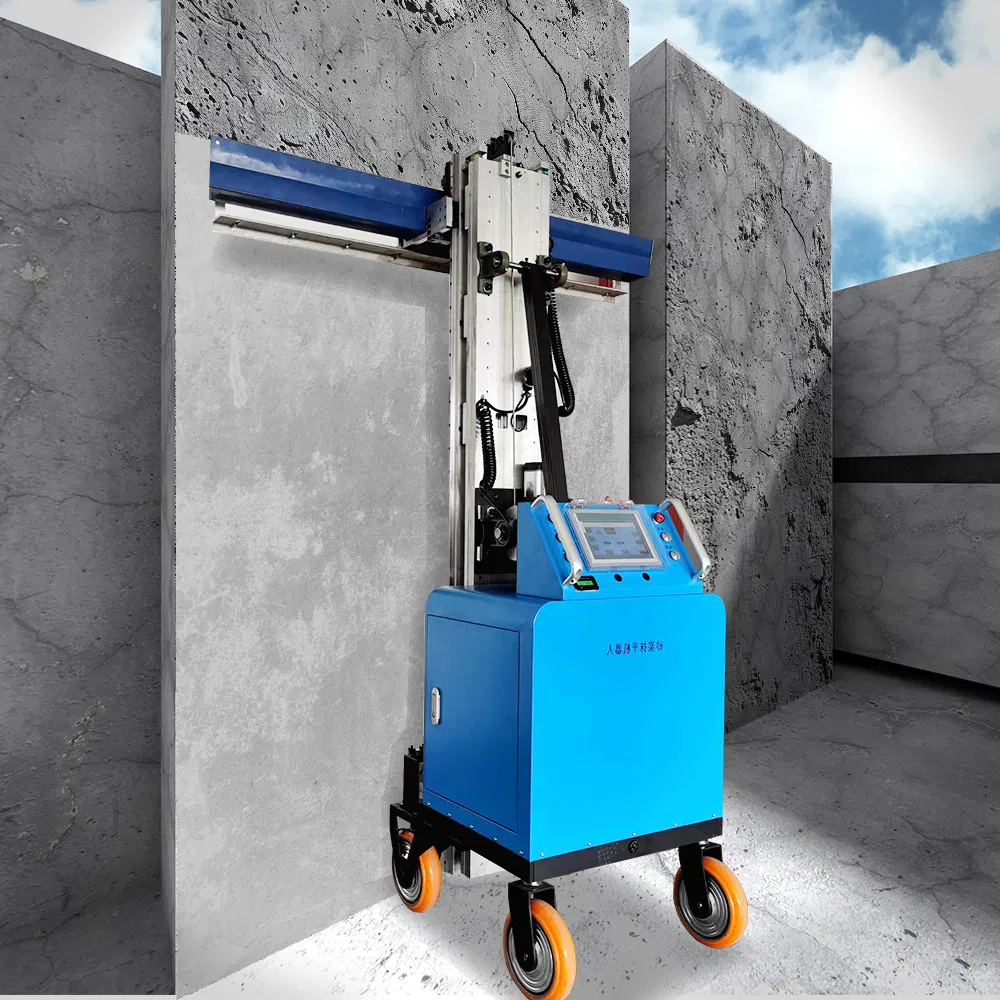

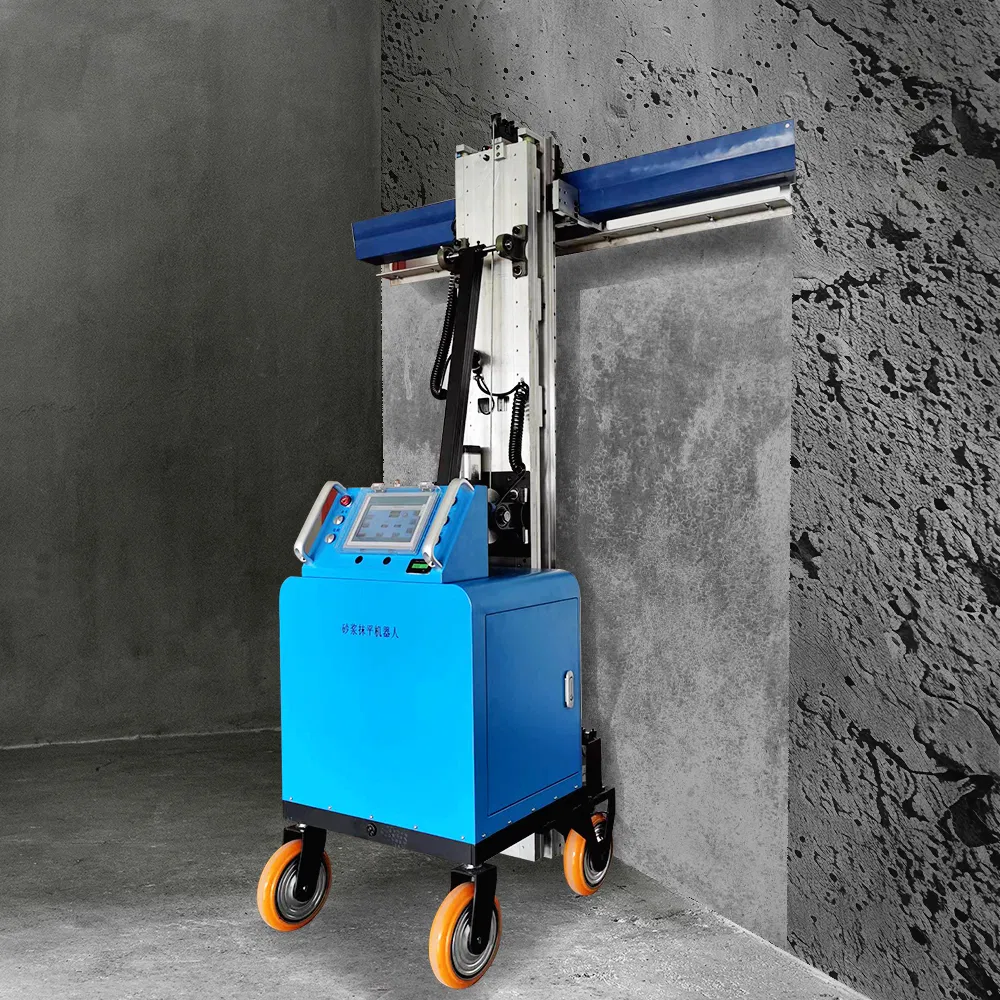

The wall mortar intelligent scraping robot is built with advanced components including sensors, a logic programmer, servo system, attitude adjustment mechanism, plastering robot arm, and spatula. Powered by a reliable 48V battery and equipped with wheeled mobility, it features automatic vertical and leveling correction. The machine operates with a 1.3-meter knife width and supports smoothing heights of 3 meters and 4 meters. When integrated with a mortar sprayer, it delivers an easy-to-operate, highly efficient process for rapidly applying cement mortar to walls.
| Specification Name | Technical Parameters |
|---|---|
| Color | Yellow, green, blue, white |
| Voltage | DC48V |
| Power supply method | Lithium iron phosphate battery |
| Standard battery capacity | 35AH |
| Angle adjustment method | Sensor with electric cylinder |
| Parameter display and setting method | Touch Screen Monitor |
| Elevate the motor | DC48V 0.75kw brushless servo motor |
| Braking method | Electric brake |
| Robot arm dimensions | 242 * 120 * 18500 mm |
| Host dimensions (L*W*H) | 700 * 550 * 1050 mm |
| Overall dimensions (L*W*H) | 850 * 550 * 1920 / 895 * 550 * 1920 mm |
| Spatula length | 1.3 meters |
| Leveling height | 3m / 4m |
| Total weight | 187 / 210 Kg |
| Package size and weight (3m model) | 1050mm * 660mm * 2090mm / 236kg |
| Package size and weight (4m model) | 1100mm * 660mm * 2090mm / 266kg |
The growing need to reduce physical labor and costs in wall plastering projects has increased the demand for advanced automatic plastering machine models among modern contractors. Our wide range of automatic wall plastering systems automates the entire plastering process, helping you save operational costs and shorten overall project completion times.
Choose from multiple configurations including spray plastering systems, gypsum mixers, heavy-duty plasterers, and mortar spraying lines. Designed to support consistent high-capacity outputs, these machines are constructed using robust materials coated with corrosion-resistant finishes. These high-performing options are ideally suited for residential complexes, commercial towers, schools, industrial facilities, and self-built rural housing projects.
With strong compatibility, builders can comfortably utilize these multi-purpose plastering machines to work with foam mortar, white sand plaster, cement plaster, and other typical building compounds, ensuring complete materials-saving reliability and top-quality, smooth surfaces.

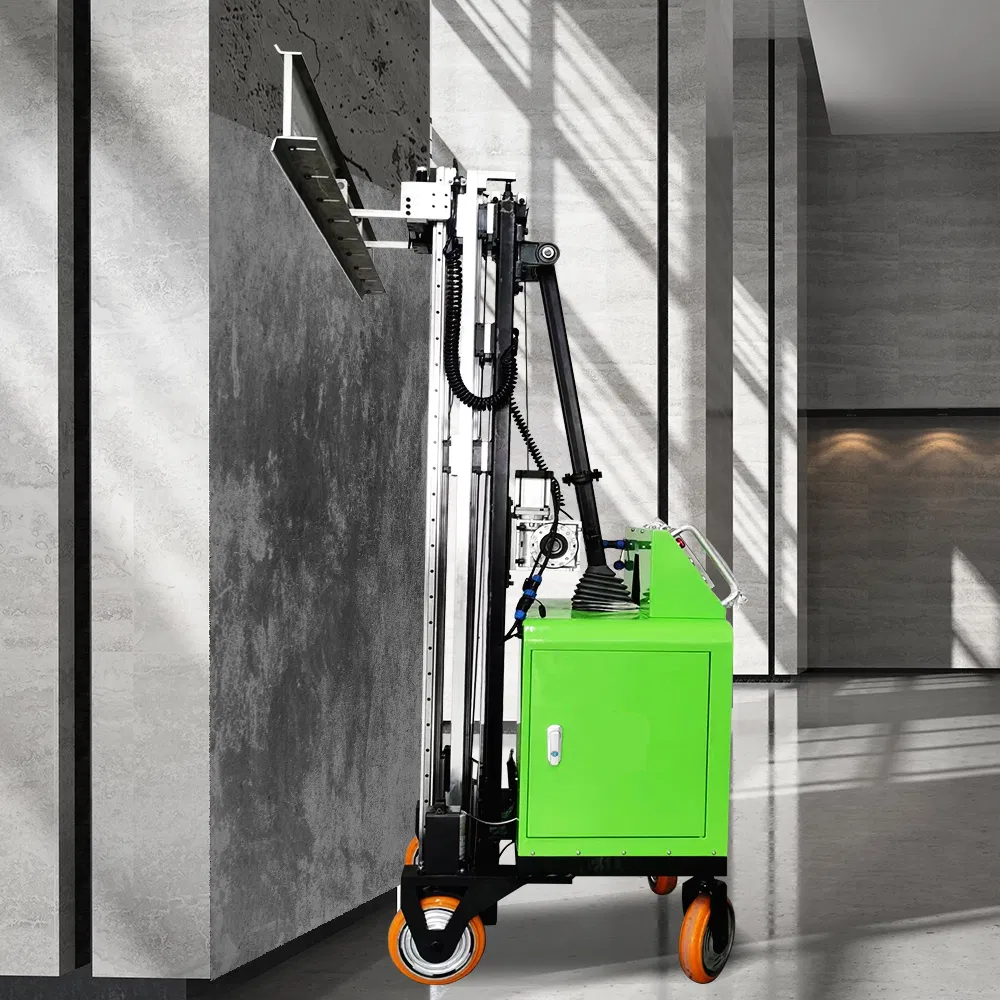

The machine features highly integrated parts, including intelligent sensors, a logic programmer, a high-precision servo system, an attitude adjustment mechanism, a robotic plastering arm, and a 1.3-meter leveling spatula.
It utilizes a DC48V Lithium Iron Phosphate (LiFePO4) battery system with a standard capacity rating of 35AH, offering a stable and mobile power source on site without needing restrictive power cords.
The machine features a standard spatula length of 1.3 meters. It supports an adjustable automatic leveling vertical height of up to 3 meters or 4 meters depending on your chosen structural configuration.
This highly versatile system operates effectively with multiple common building mixtures, including traditional cement plaster, foam mortar, white sand plaster, and other specialized rendering compounds.
Yes. Its integrated logic system combines smart sensors with electric cylinders to deliver complete automatic vertical correction and accurate leveling throughout the entire rendering operation.
