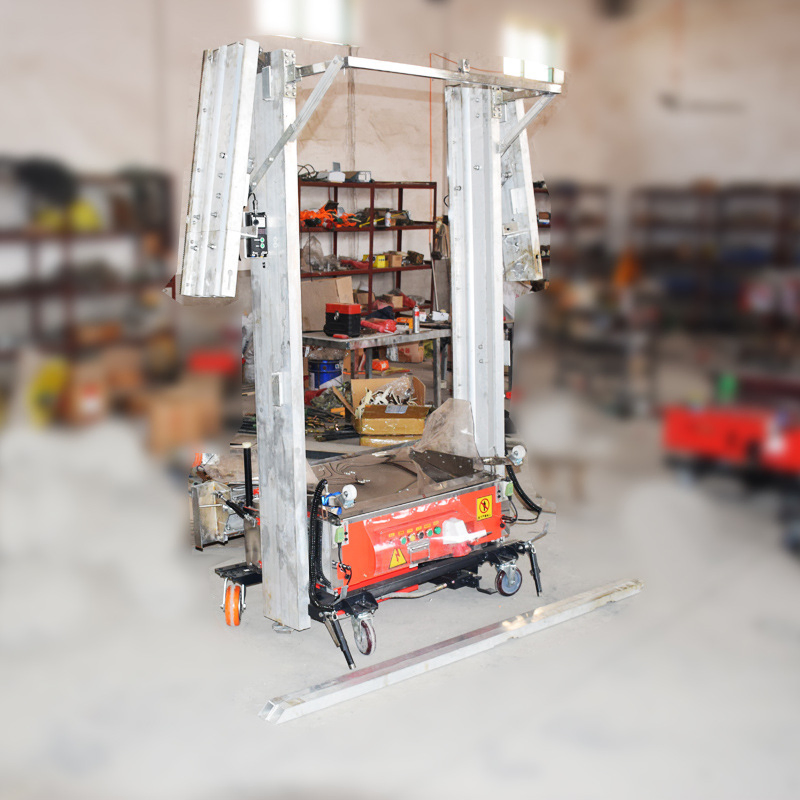

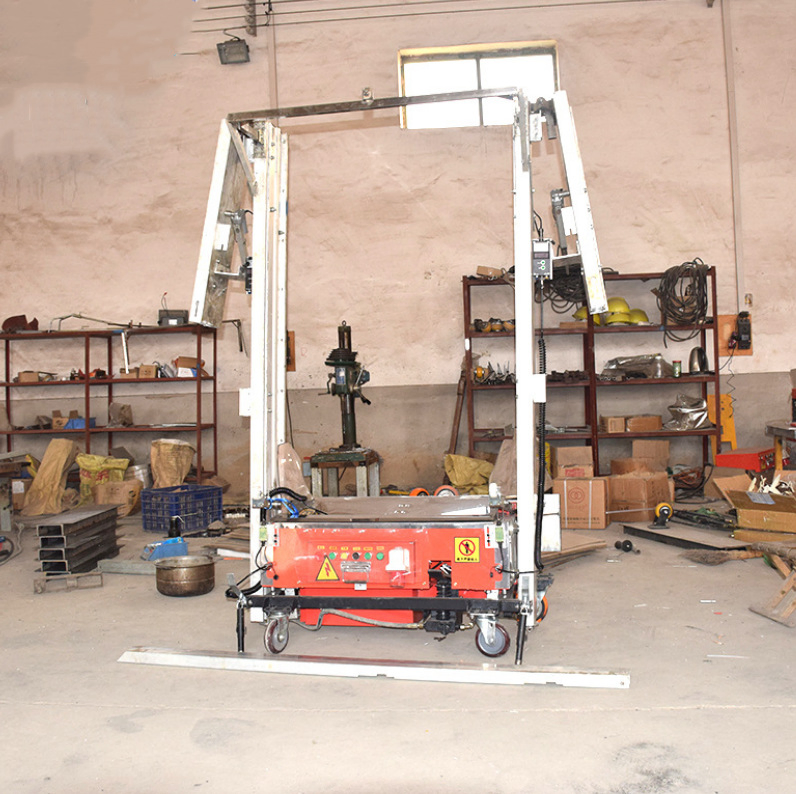

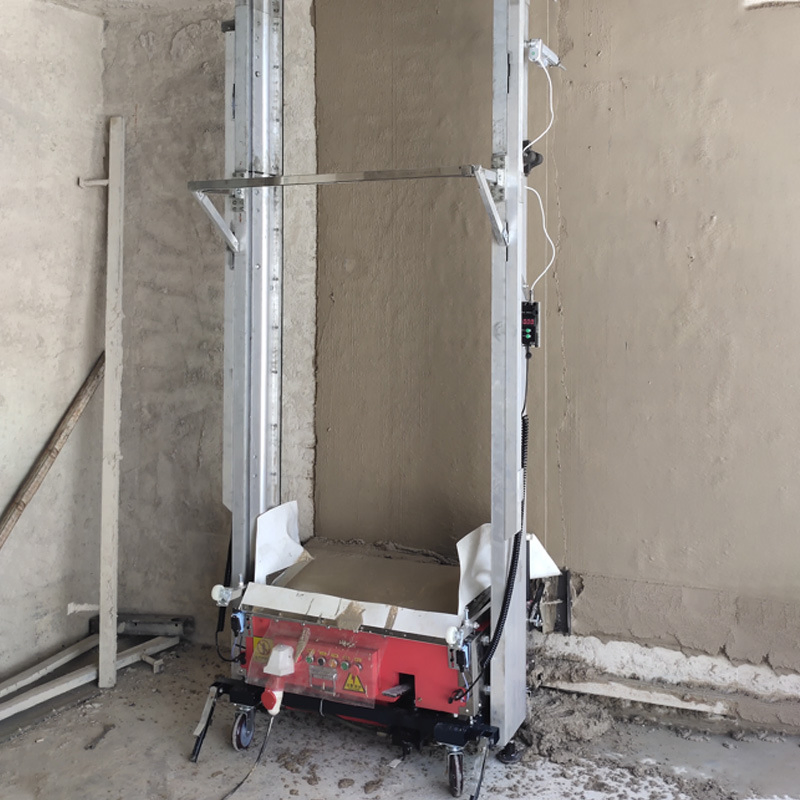

Automatic Wall Cement Spray Plaster Rendering Machine Wall Plastering Machine China Factory Directly Sale

Customization: Available
After-sales Service: Provided
Warranty: 1 Year

Product Description

Basic Information
Render Width
800mm
Quantity of Vibrator
2
Automatic Grade
Automatic
Alignment Device
Manual Leveling
Fixed Device
Hydraulic Machinery
Rendering Height
2.6 - 3.5m
Rate of Plastering
400m²/8h
Climb Mode
Gear Wheel
Voltage
220V/380V
Motor Power
1.5kw
Pole Package Size
2.45 * 0.32 * 0.2m
Cement-Sand Ratio
1:3
Transport Package
Export Wooden Box Packaging
Specification
800 * 850 * 500mm
HS Code
8474310000
Production Capacity
50 Units / Month
Packaging & Delivery
Package Size
820.00cm * 870.00cm * 520.00cm
Package Gross Weight
260.000kg
Product Description

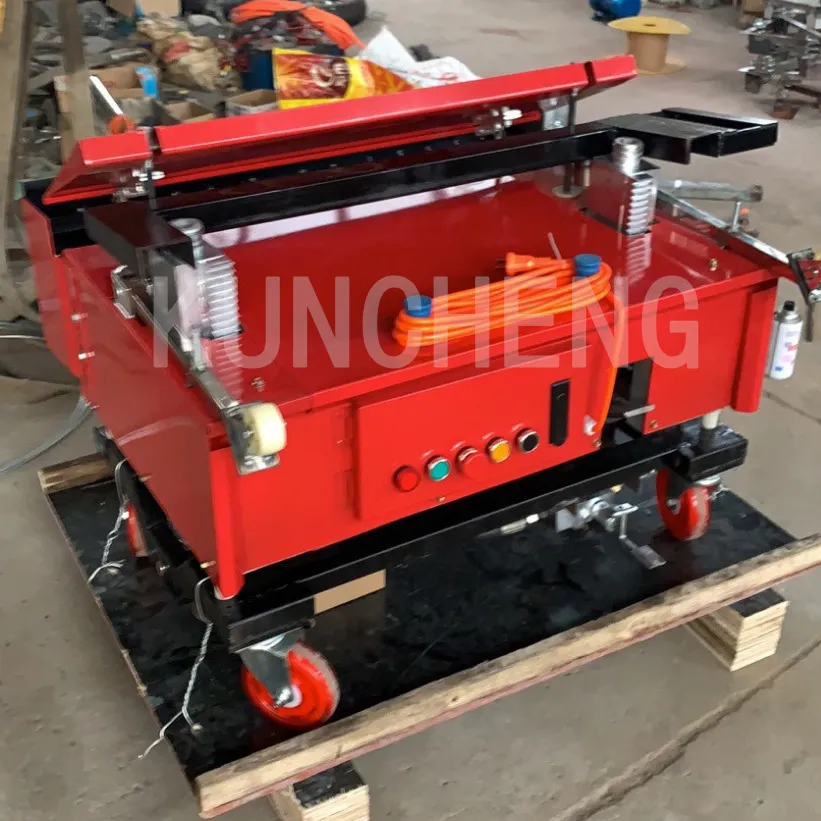

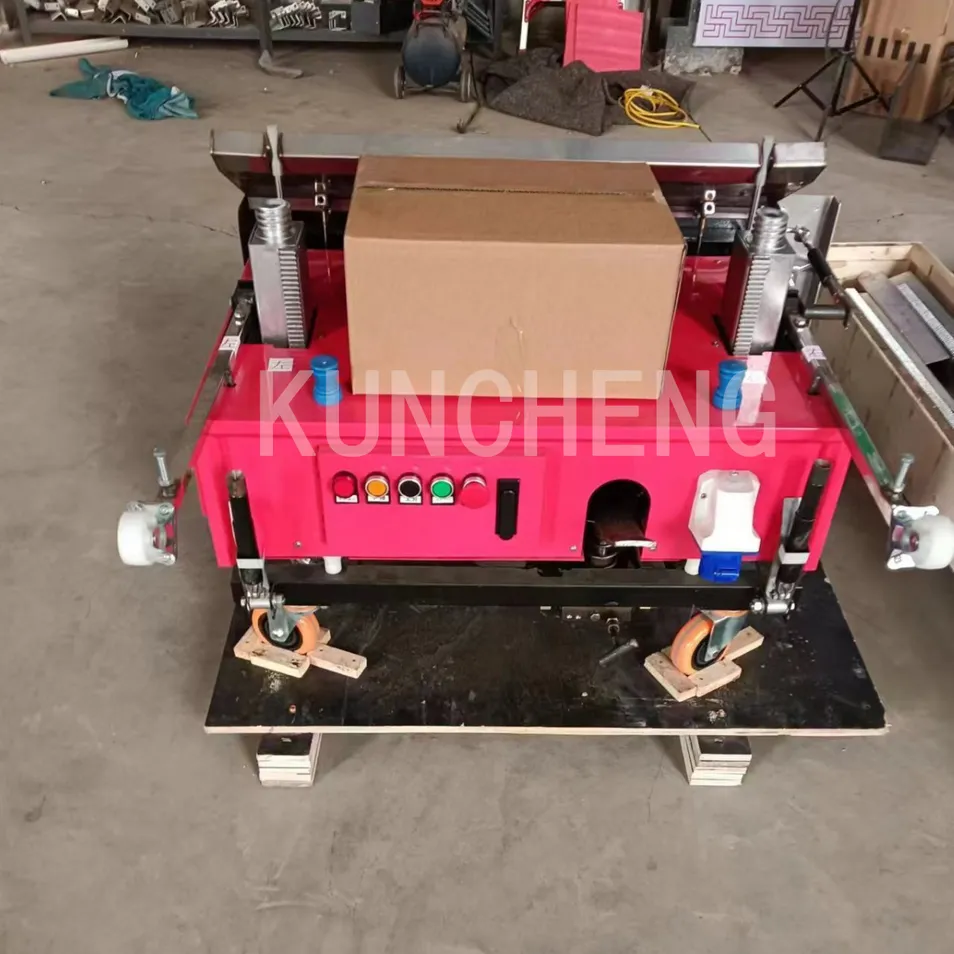

Automatic Mortar Wall Plastering Machine

  • The wall plastering machine has solved the defect that previous machines cannot render the top of the wall. It takes only several seconds to fix the machine vertically and flatly and less than one minute from the bottom to the top of the wall.
  • Wall Plastering Machine renders on bricks and blocks with cement mortar, ready mix mortar, lime mortar, or gypsum mortar.
  • Wall Plastering Machine is mainly used for residential buildings, office buildings, as well as domestic indoor tilt wall plastering. With high efficiency, it replaces manual work, leaving the wall space smooth and glossy.
  • Wall plastering machine can plaster including cement wall, brick and concrete wall, light body brick wall, baking-free brick wall, and more.
  • The thickness of the ash can be adjusted. Easy to operate with one or two people.
  • The quality is up to the international standard. High-sensitivity leakage protection device offers excellent safety and reliability.
Model TP5-800 TP5-1000
Plaster width800mm1000mm
Rendering height2.6-3.5m2.6-3.5m
Rendering thickness5-30mm5-30mm
Rate of plastering400 Square meter / 8H400 Square meter / 8H
Alignment deviceManual levelingManual leveling
Fixed deviceHydraulic machineryHydraulic machinery
Vibrator23
Climb modeGear wheelGear wheel
Host package size1.05*0.8*0.8m1.25*0.8*0.8m
Pole package size2.45*0.32*0.2m2.45*0.32*0.2m
Gross weight260kg280kg
Voltage220V / 380V220V / 380V
Motor Power1.5KW1.5KW
Cement-sand ratio1:31:3

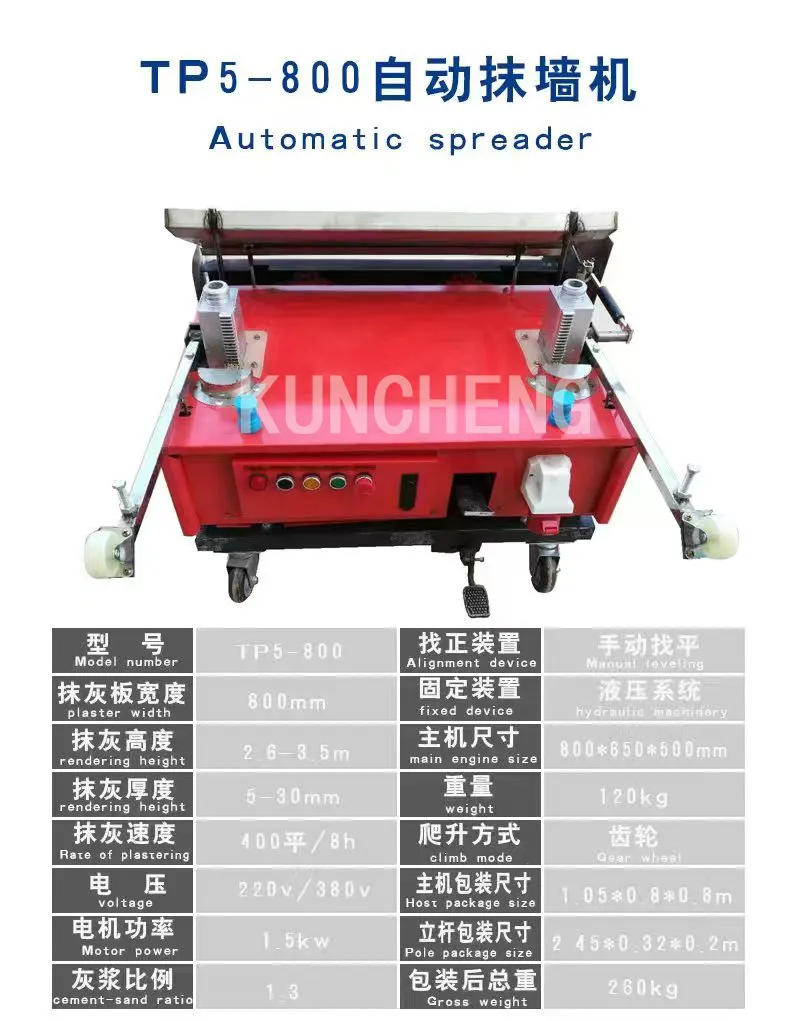

Automatic Wall Plastering Machine Schema

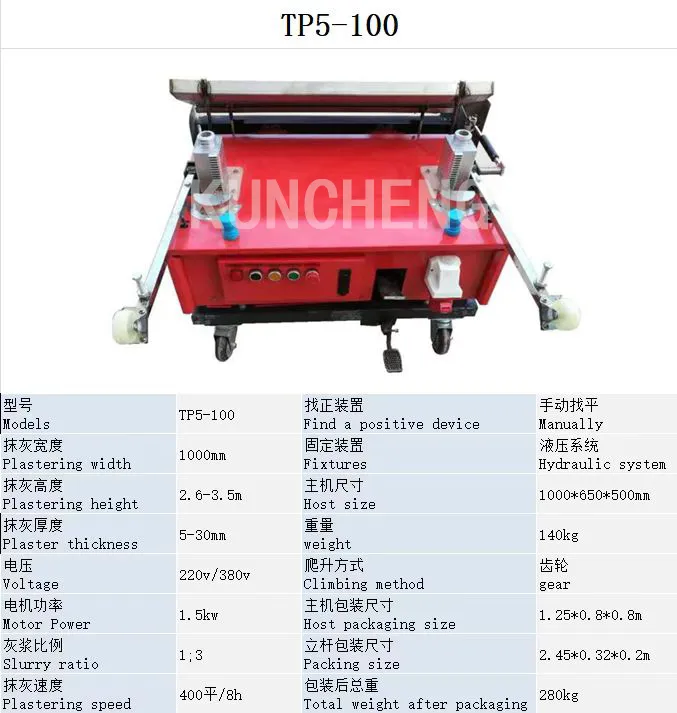

Automatic Wall Plastering Machine Dimension Details
Manufacturing Profile & Core Strengths
Modernized Production Workshop

We are a professional enterprise integrating industry and trade. Our facility covers an area of about 5,000 square meters, featuring a standardized office building and a modernized production workshop of 3,000 square meters. We have been committed to the manufacturing, research, and development of CNC lathes, packaging machinery, and specialized construction machinery. Our R&D department members possess 30 years of experience in product development and manufacturing, establishing a highly mature and standardized production system. The number of machines sold in the domestic market exceeds 1,500 per year, backed by durable equipment, a complete after-sales service system, and a vast customer base. Strict quality control guidelines are seamlessly followed from machine design through to production. Every single machine leaving the factory is thoroughly inspected to guarantee optimal performance. As a premium supplier of durable industrial equipment, we have developed more than 60 products across 10 series.

Why Choose Us?
1. Strict Selection of Raw Materials: We maintain long-term cooperation with well-known domestic and foreign suppliers. All raw materials are strictly tested to ensure product stability from the very source.

2. Refined Production: Utilizing advanced production equipment and technologies, equipped with senior technical personnel, our production process implements the "every process must be inspected" system. Unqualified products will never flow into the next production link.

3. Authoritative Certification Guarantee: Product quality meets rigorous international standards and can satisfy the import requirements of different countries and regions worldwide.
Customized Production Capacity
1. Bespoke Customization: Whether it is product specifications, materials, appearance design, or packaging style, we can customize and develop equipment according to your specific drawings or operational needs.

2. Fast R&D Response: With an agile and highly experienced R&D team, samples of conventional customized products can be produced within 10 days, and the production cycle of large quantities is 30% shorter than the industry average.

3. Cost-Efficient Operations: Large-scale production reduces unit costs. Through optimized supply chain management, purchasing and production costs are further compressed to benefit our global clients.

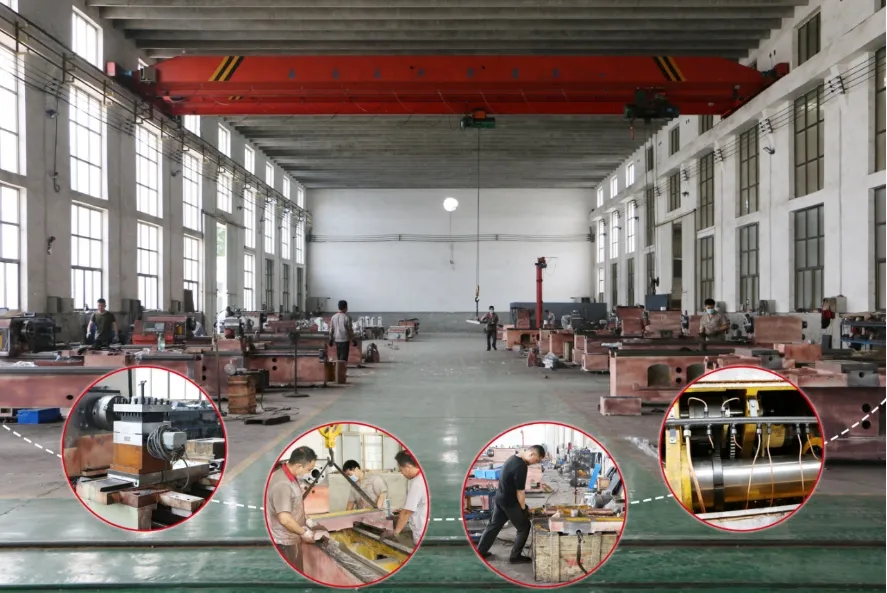

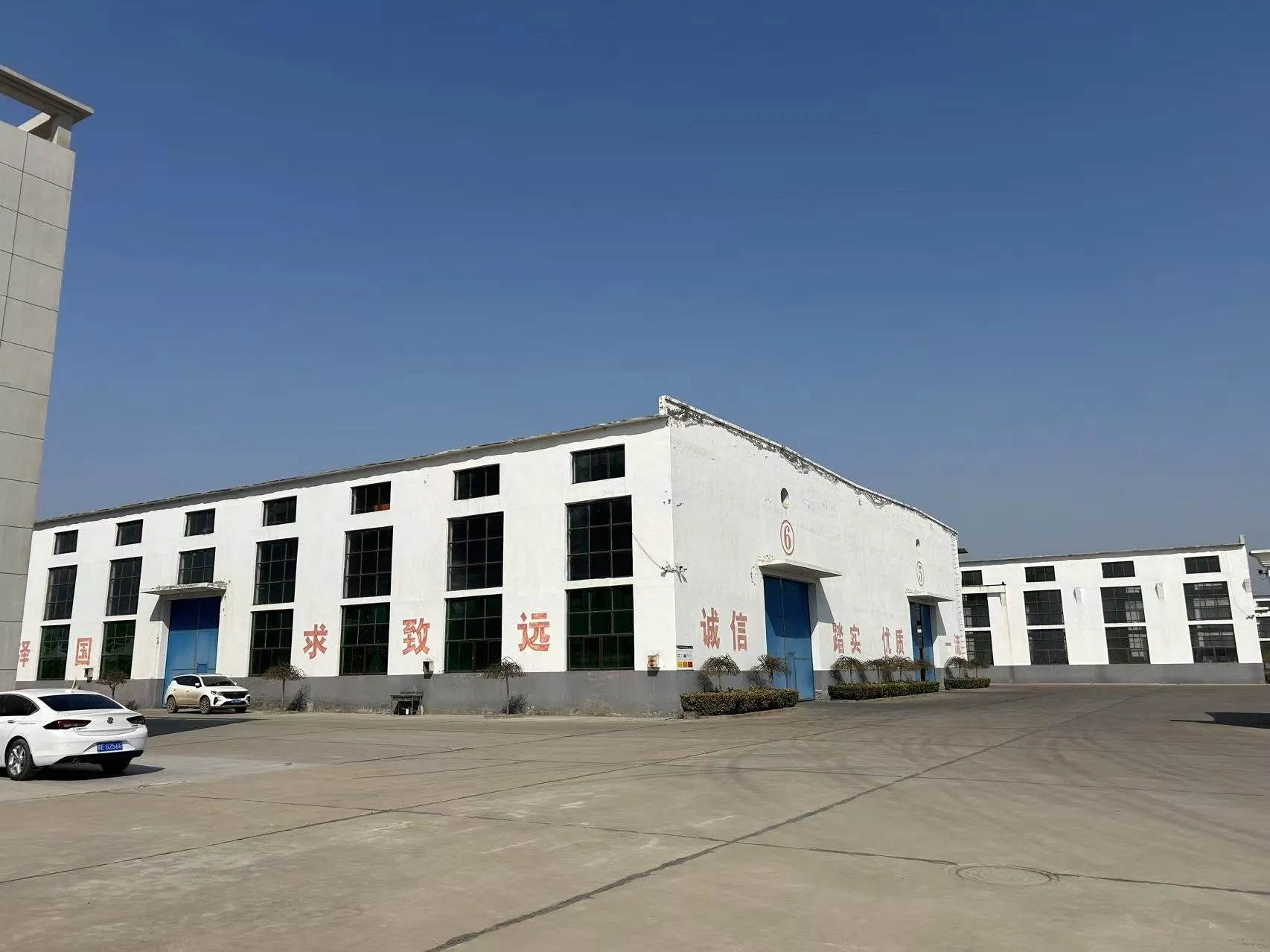

Full Machinery Showroom

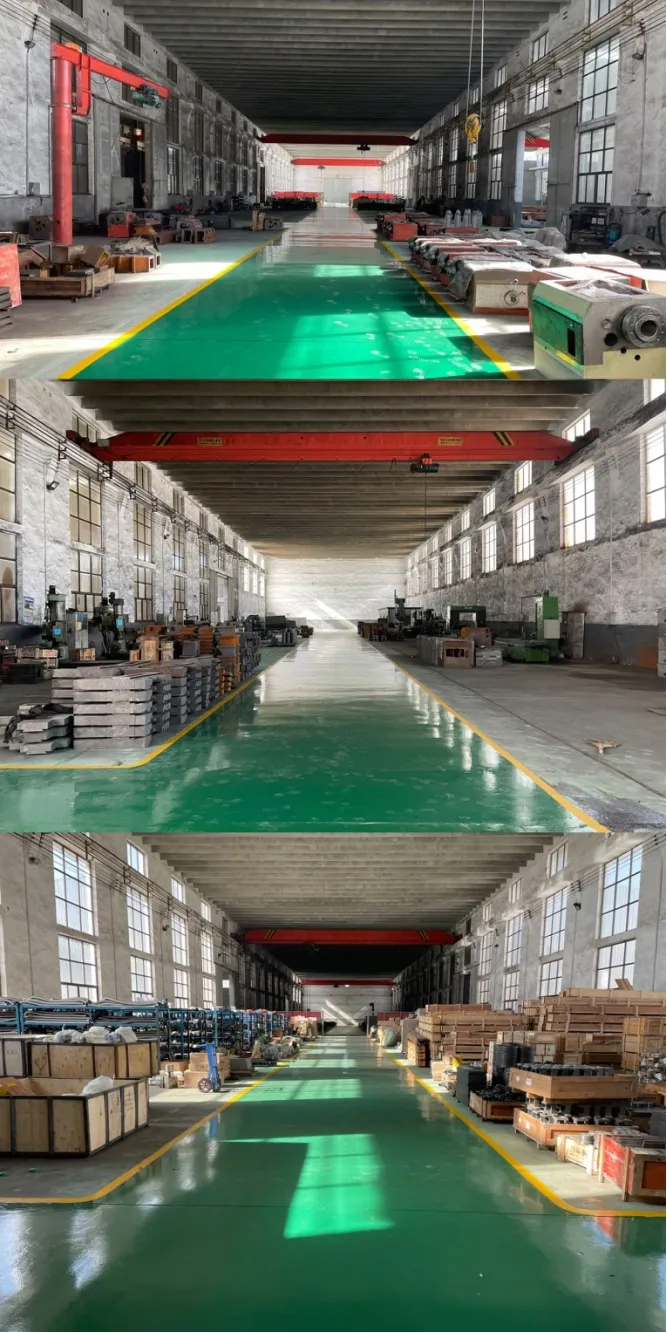

Heavy Duty Production Line

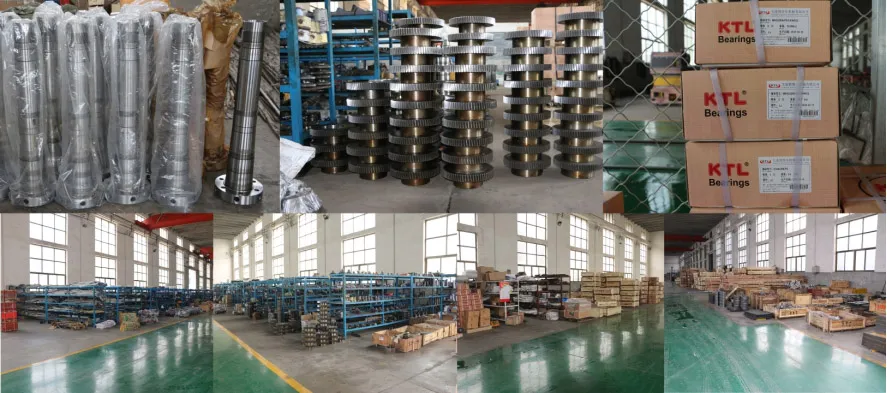

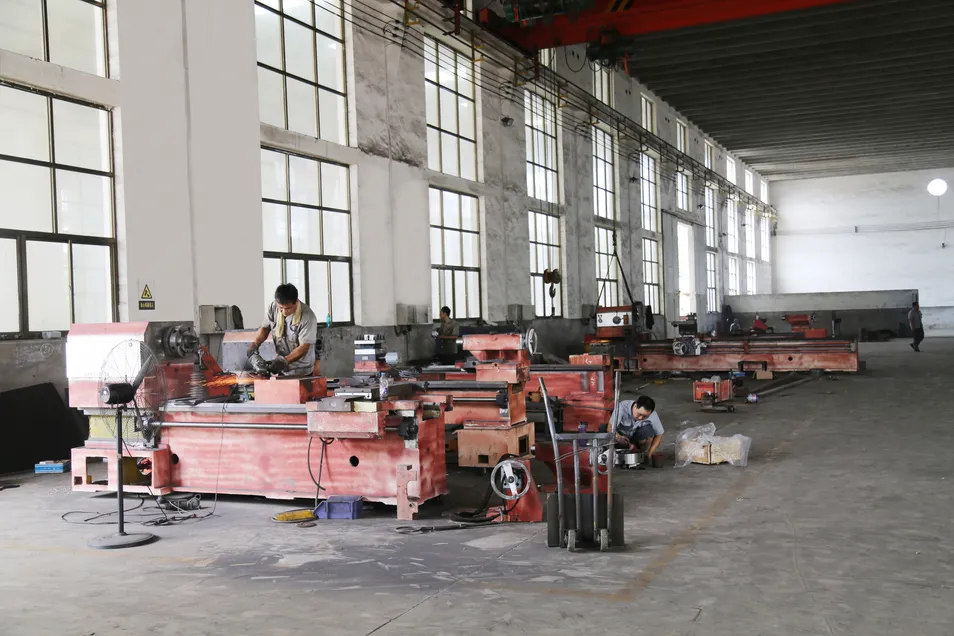

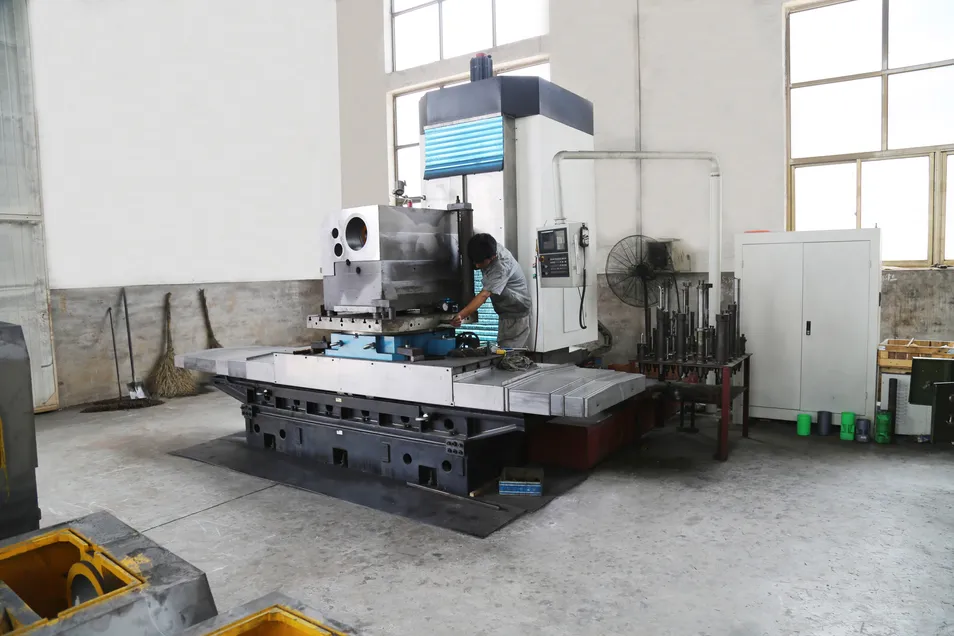

Factory Lathe Workshop Overview
Frequently Asked Questions (FAQ)
Q: What is the operational nature of our business?
We are an industrial manufacturer integrating production and trade. We not only design and produce high-performance machinery and equipment in our own factory but also handle domestic and international sales and customized product developments directly.
Q: Do you support on-site factory visits and inspections?
Yes, absolutely. We welcome all customers to visit our modernized production workshops and facility for an on-site inspection at any time to observe our manufacturing processes and strict quality control standards.
Q: What after-sales service and technical support do you provide?
We provide a comprehensive one-year after-sales service. If you require on-site machine commissioning, operational guidance, or specialized testing, we can deliver the corresponding technical services.
Q: What types of mortars and walls are suitable for this plastering machine?
The machine is highly versatile and works on brick and concrete walls, light body brick walls, and baking-free brick walls. It renders smoothly using standard cement mortar, ready-mix mortar, lime mortar, or gypsum mortar.
Q: Can the plastering thickness be adjusted, and is it easy to operate?
Yes, the plastering thickness can easily be adjusted between 5mm to 30mm. The machine features intuitive manual leveling and hydraulic fixing systems, making it highly simple to operate with just one or two workers.
Q: What makes your wall plastering machine superior to traditional rendering methods?
Our machine operates with extreme efficiency, reaching a plastering rate of 400 square meters per 8 hours. It successfully solves the height limitations of older models, enabling perfect vertical rendering all the way to the top of the wall in under a minute, resulting in an exceptionally smooth and glossy finish.
