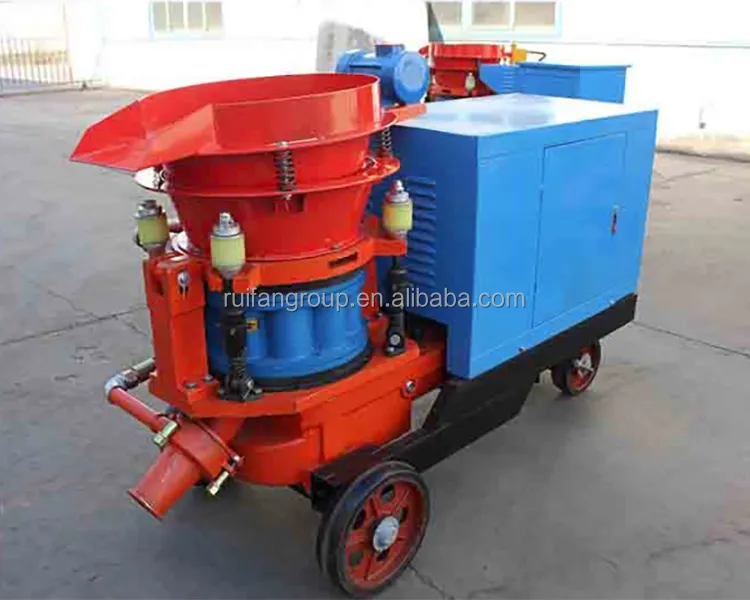

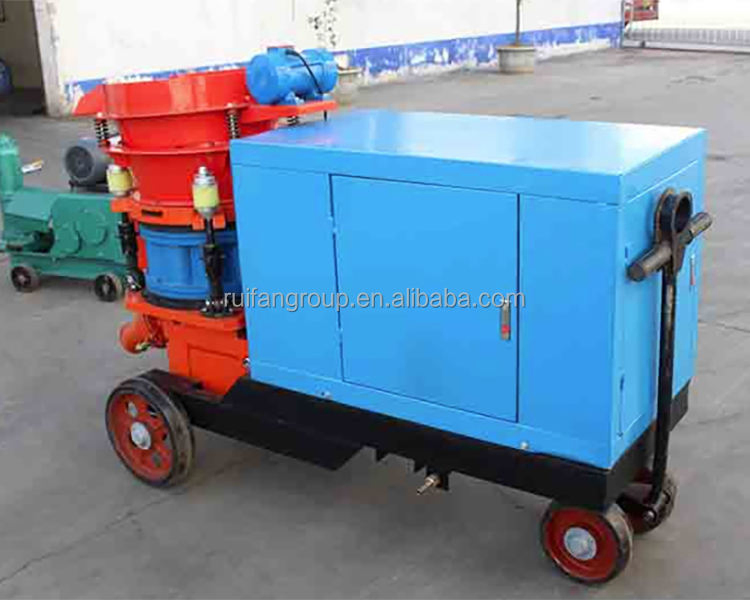

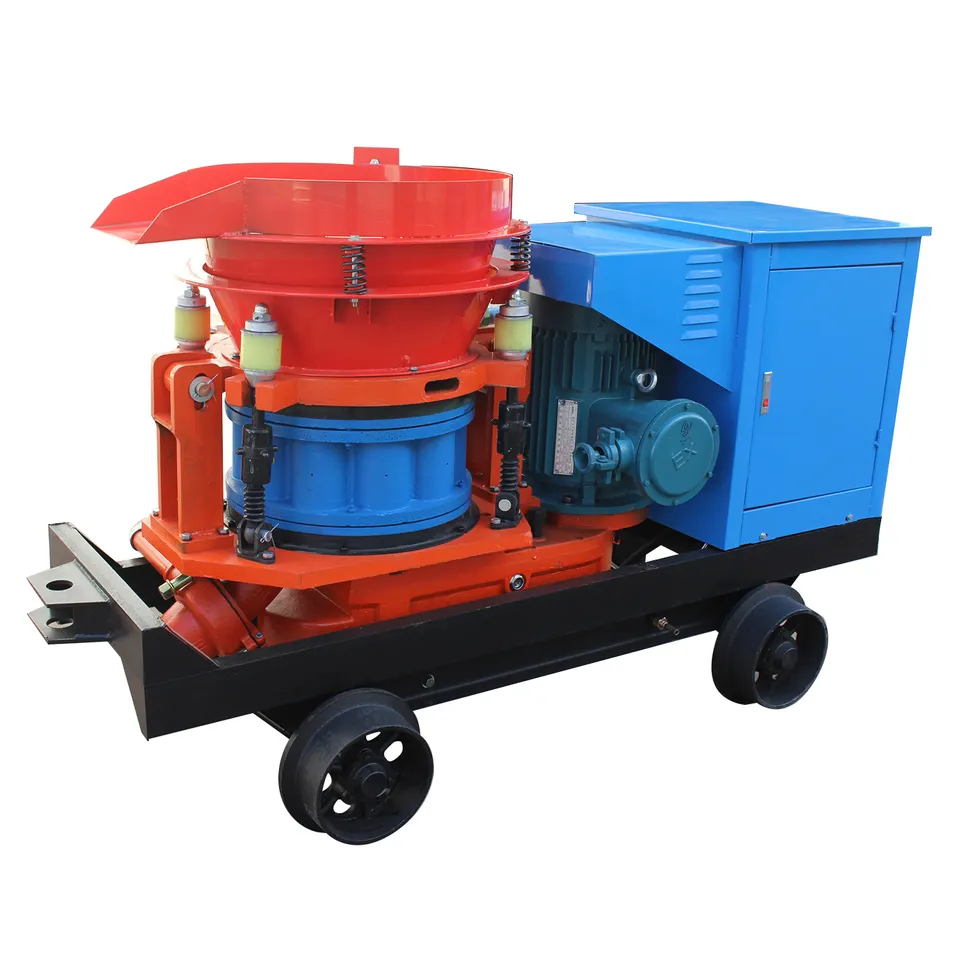

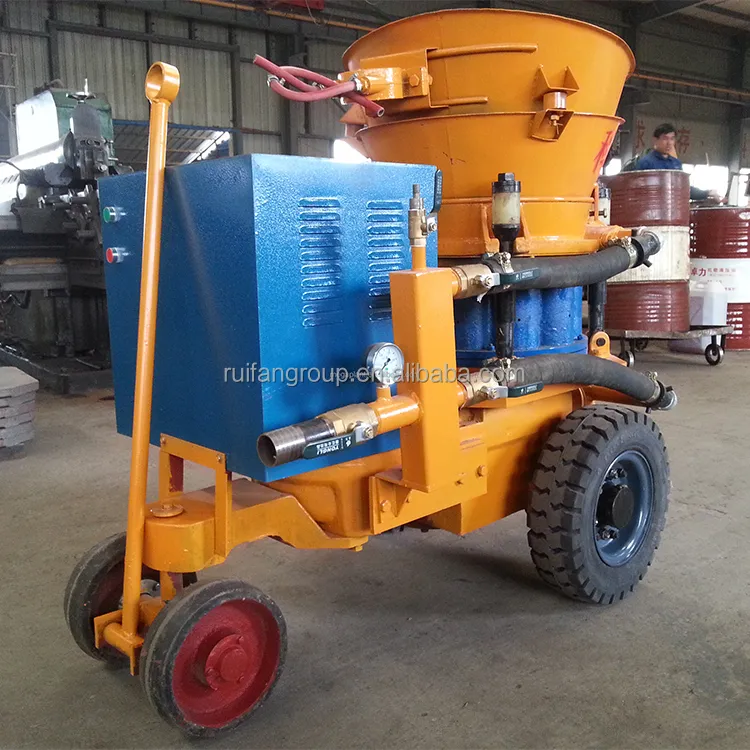

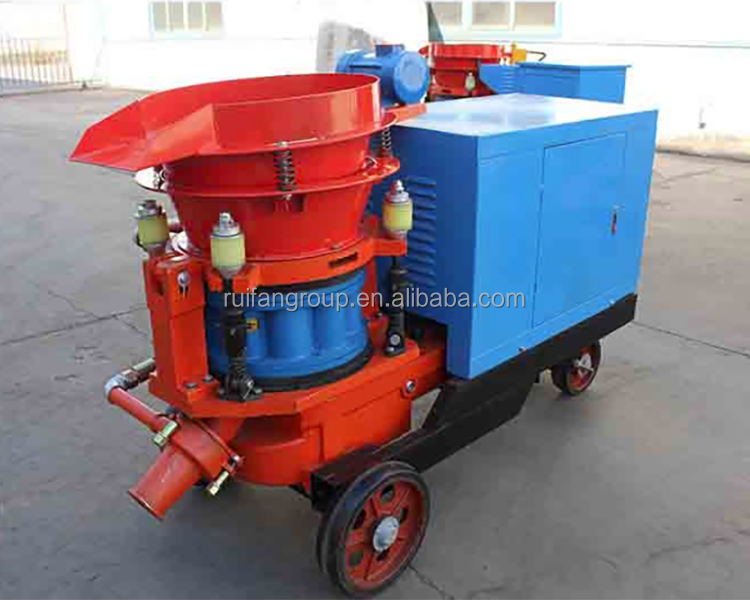

Products Description

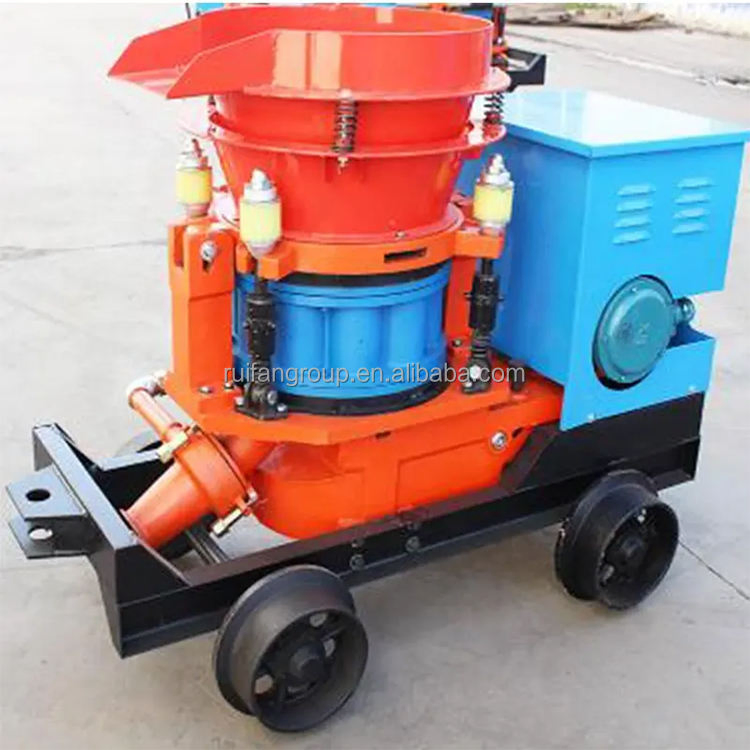

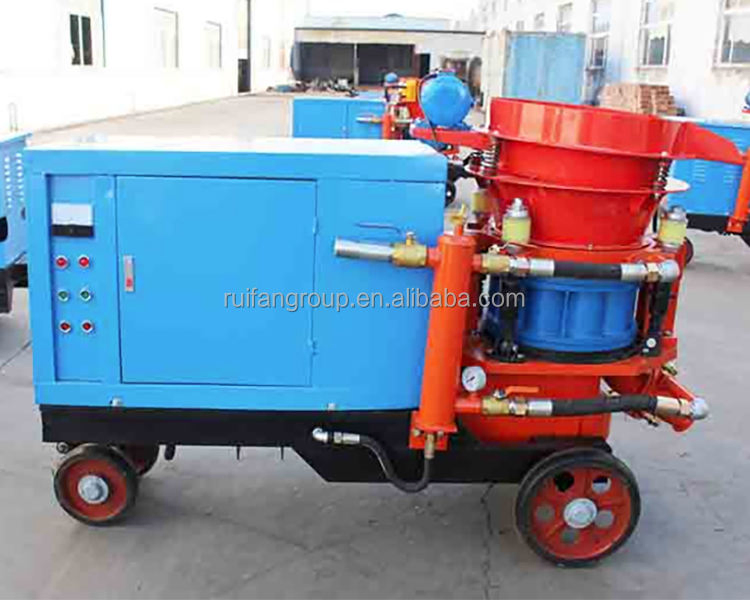

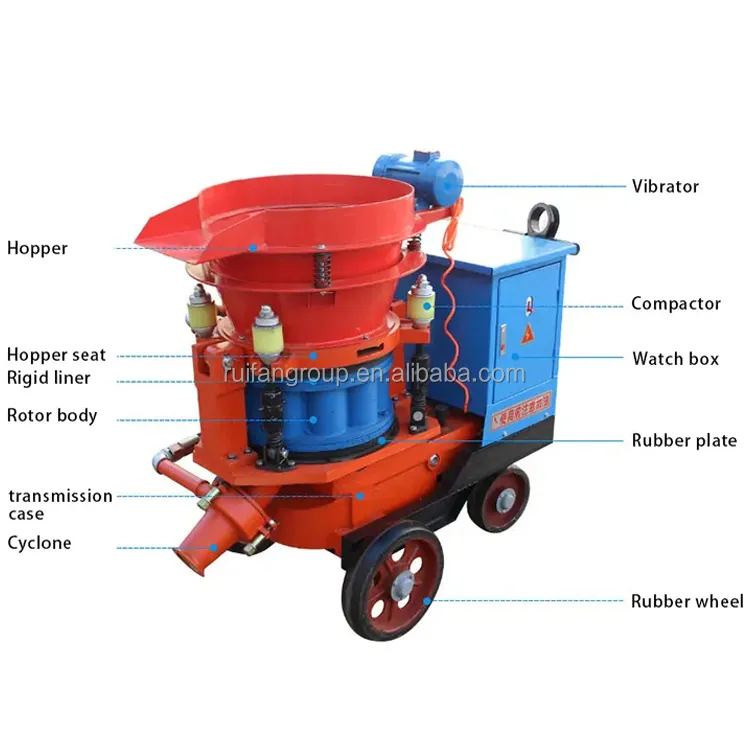

HSP series Gunite Machine for Construction uses a whole cup type elastic material, the elastic sticky discharges elbow, the overall clean boards. Rotor material cup and bend the material has a self-cleaning effect, non-adhesive, non-blocking, no cleaning, dust concentration 20mg/m3, the average rebound rate 15%, has the feature of simple structure, reliable, high efficiency, easy assembly and disassembly the nozzle discharge uniformity and long life of wearing parts and so on. Which is one of leading technology concrete injection machine in the domestic.
Features of Wet Shotcrete Machine
Mainly used for wet spraying of concrete with high efficiency.
Wet spraying allows the mixture to be evenly mixed before application.
Accurate water-cement ratio control, resulting in small dust and small rebound.
Ensures good homogeneity and high strength of the finished concrete.
Reasonable structure, stable performance, and convenient operation.
Economical and practical for various large-scale construction projects.
Product Parameter
| HSP model (wet-type) shotcrete machine |
| Model |
HSP-5 |
HSP-7 |
HSP-9 |
| Capacity (m3/h) |
4-5 |
5-7 |
6-9 |
| Max. Conveying Distance (H/V m) |
30/20 |
30/20 |
30/20 |
| Feeding pipe diameter (mm) |
51 |
51/64 |
51/64 |
| Max. Aggregate Diameter (mm) |
15 |
15 |
15 |
| Working pressure (MPa) |
0.3-0.6 |
0.4-0.6 |
0.4-0.6 |
| Air consumption (m3/min) |
10-15 |
10-15 |
10-15 |
| Springback (Average) |
≤10% |
≤10% |
≤10% |
| Motor Power |
5.5KW |
7.5KW |
7.5KW |
| Overall size (mm) |
1280*700*1280 |
2000*800*1300 |
2000*800*1300 |
| Weight (kg) |
700 |
800 |
900 |
Wide Application

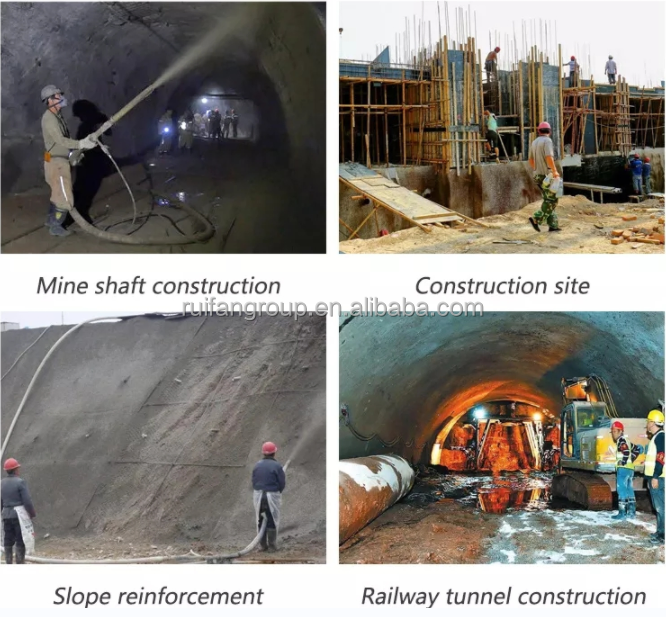

The concrete shotcrete machine is widely used in road slope protection, civil underground foundation, spray swimming pool, tunnel, mining operations, hydropower engineering, slurry walls, retaining walls and so on.

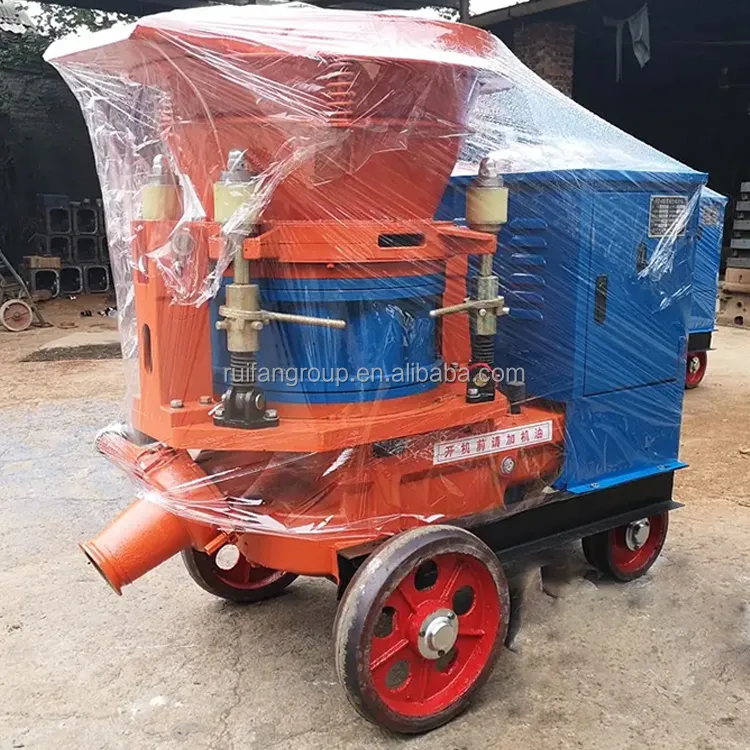

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided. We prioritize secure loading to prevent any damage during international transit.
Certifications
Frequently Asked Questions
Q1: Are you a manufacturing factory?
A1: Yes, we are a professional factory with our own specialized production lines and trading department to handle international requirements.
Q2: What are the warranty terms for the shotcrete machines?
A2: We provide a one-year warranty for the machine along with lifelong technical support to ensure your project runs smoothly.
Q3: Can the machine's voltage be customized for my country?
A3: Absolutely. The voltage and frequency can be customized (e.g., 380V/440V, 50Hz/60Hz) according to your local industrial standards.
Q4: How long is the production lead time?
A4: For standard 380V 50Hz units, delivery is typically within 7-15 days. Custom configurations or colors may take 20-30 days.

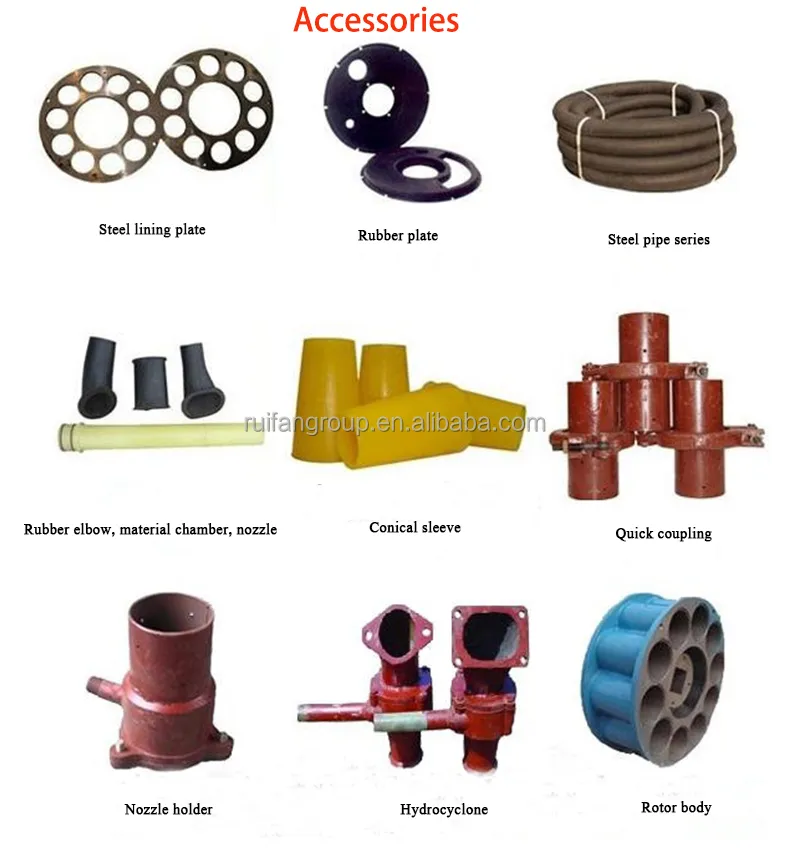

Q5: Do you provide spare parts for maintenance?
A5: Yes, we provide all necessary wearing parts and spare parts to ensure long-term operation and minimal downtime.
Q6: What trade terms do you support?
A6: We accept various international trade terms including FOB, CIF, CFR, EXW, and CPT to accommodate different shipping needs.
