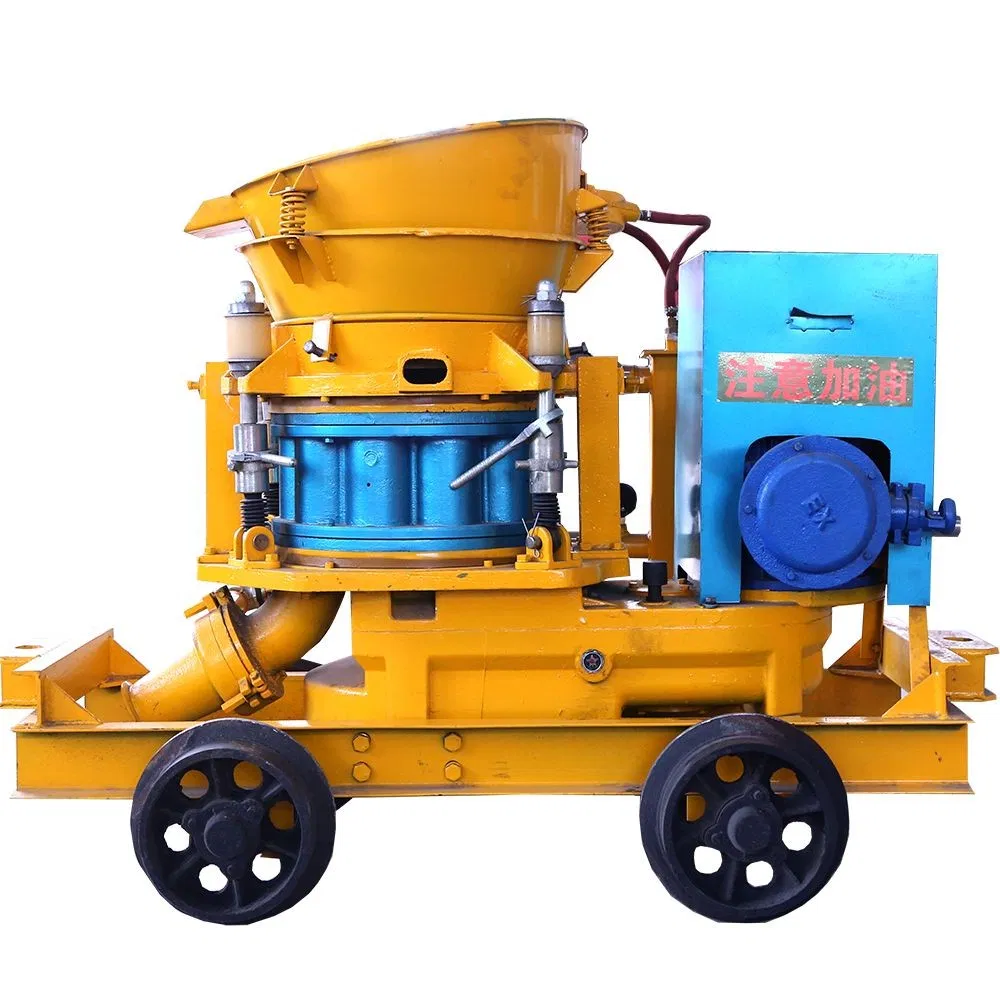

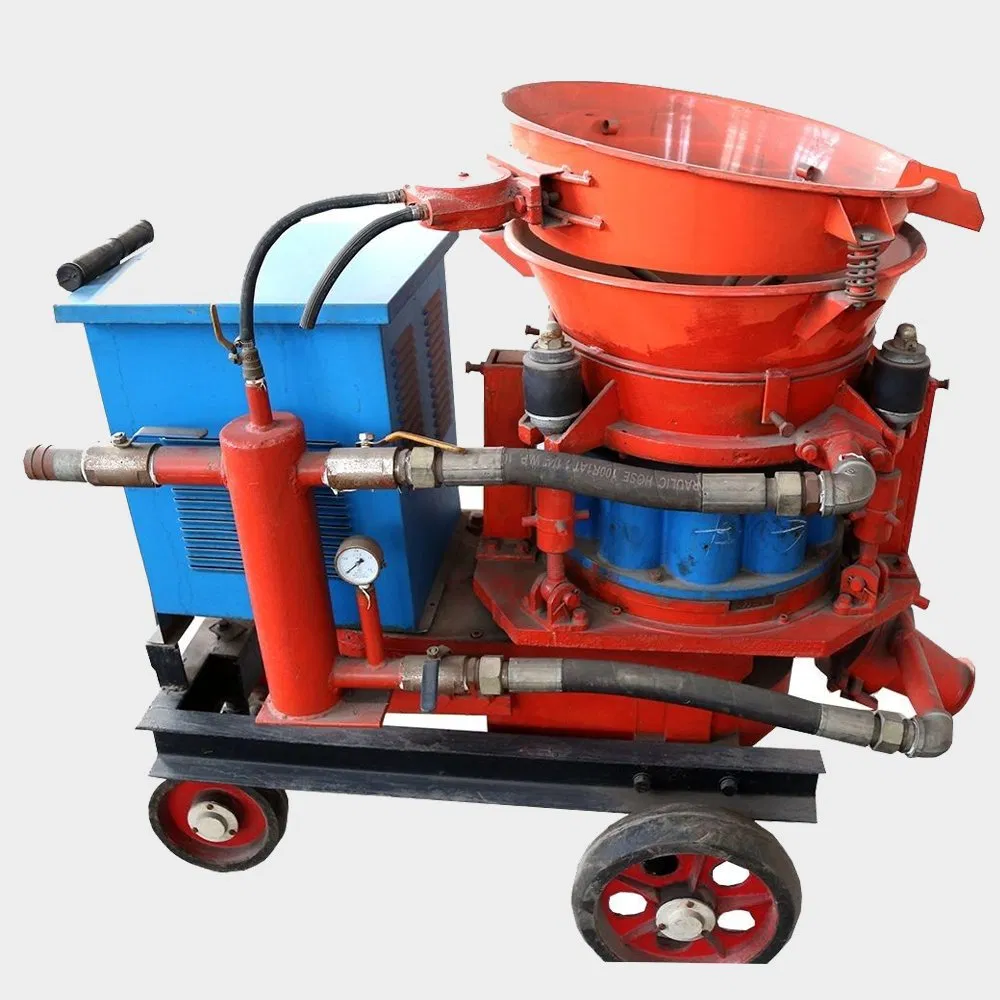

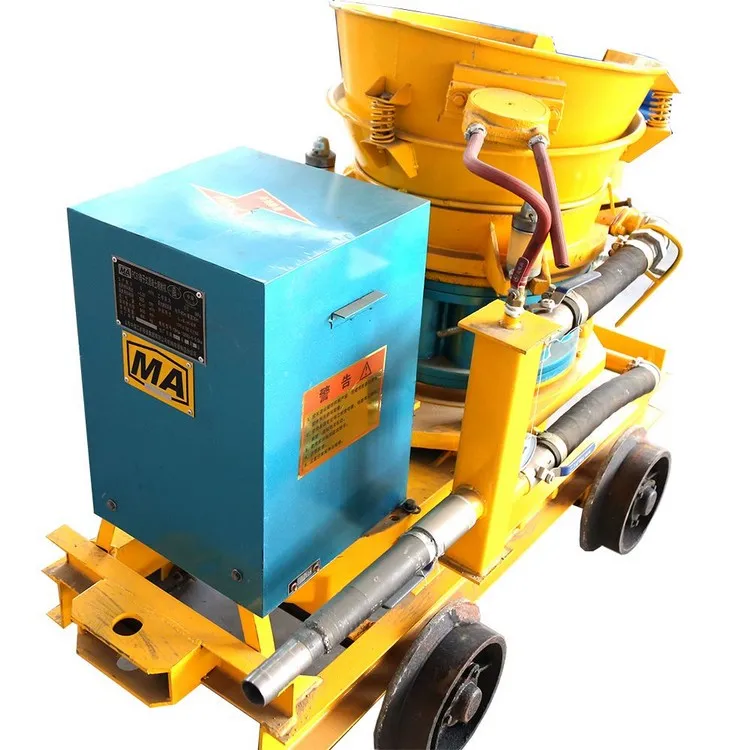

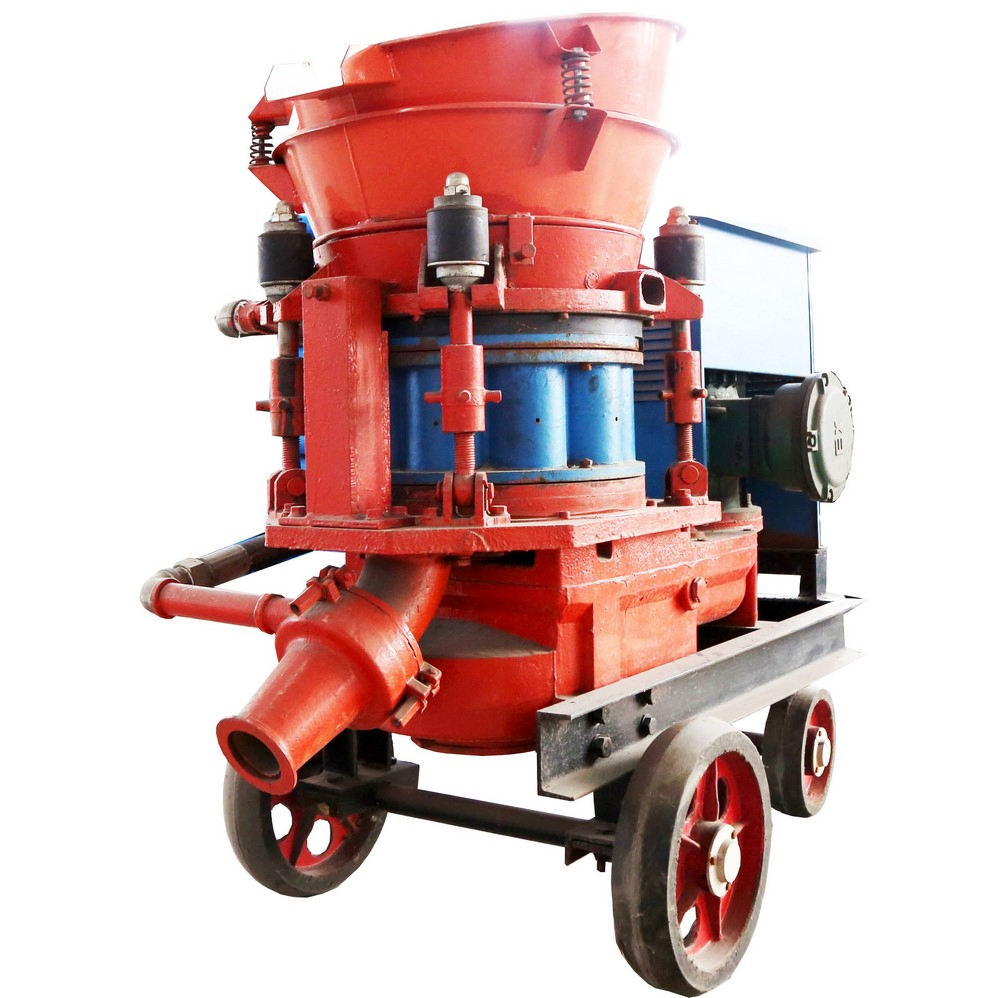

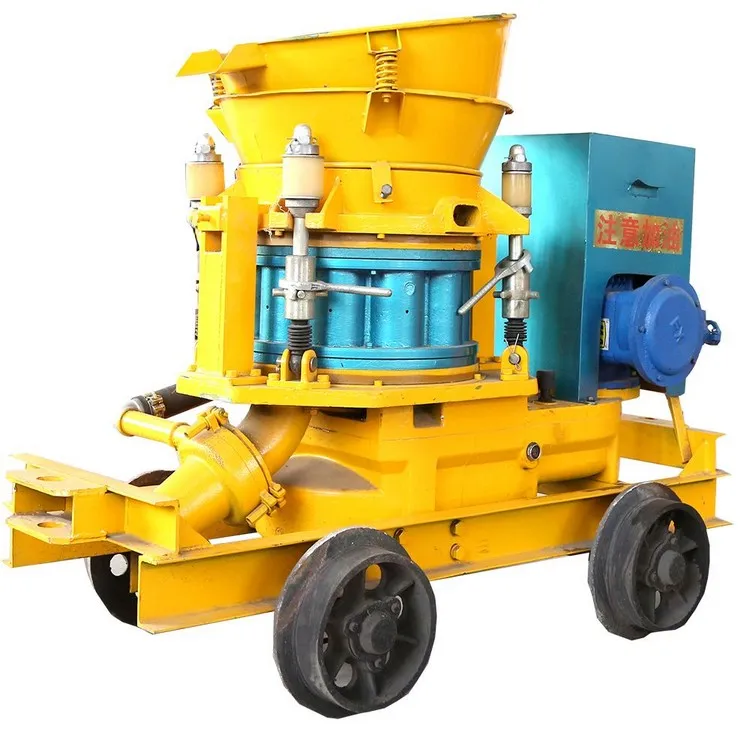

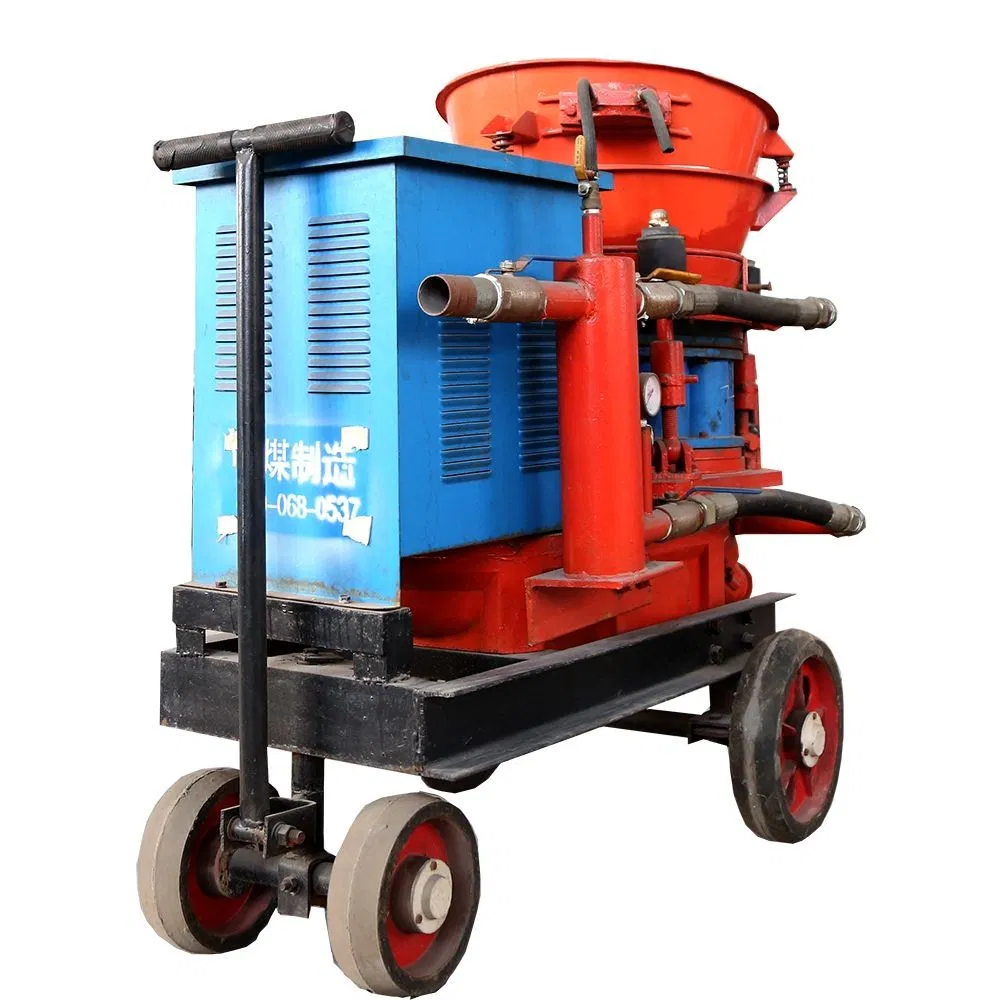

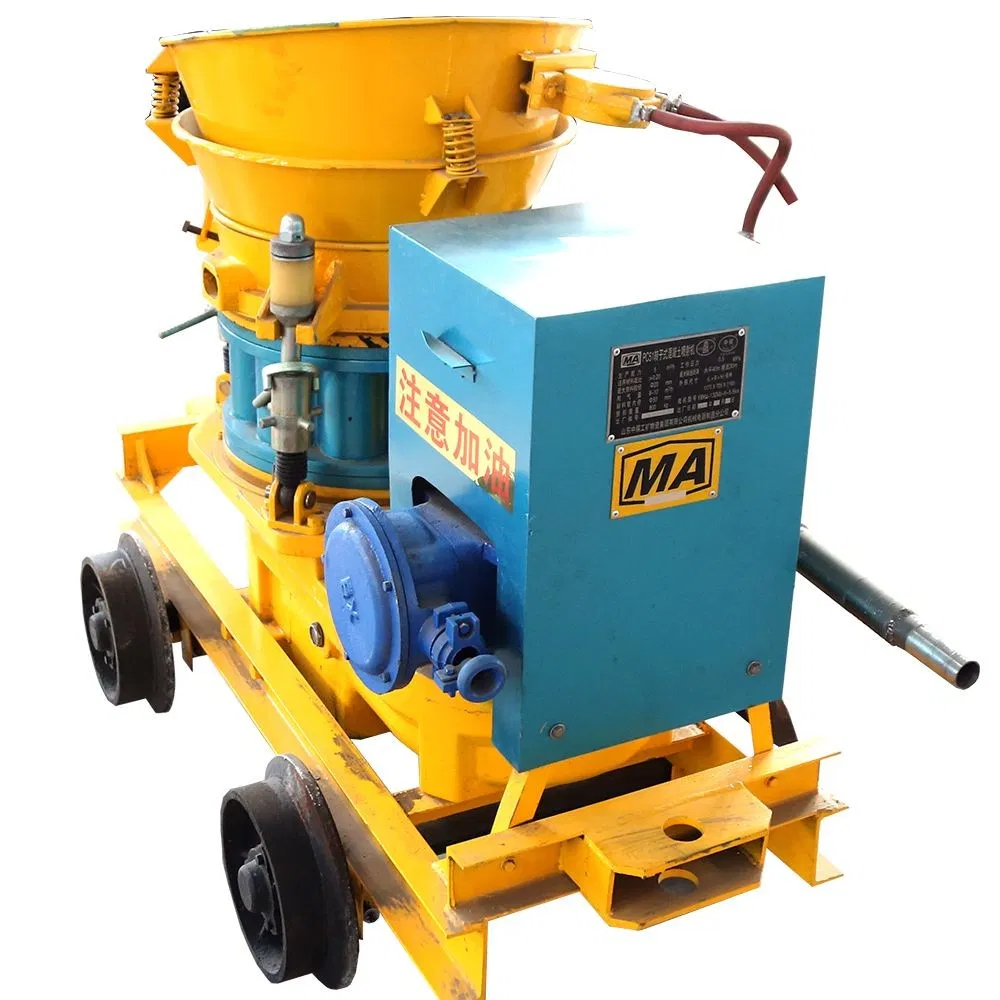

The concrete spraying machine is a specialized equipment designed for spraying concrete onto surfaces requiring reinforcement or repair through high-pressure delivery. This technology ensures fast spraying speeds, exceptional construction efficiency, and superior construction quality.
Widely utilized in construction engineering, tunnel projects, and mining operations, the machine comprises a robust spraying body, a high-performance conveying system, and an intuitive control system. The core components include a heavy-duty compressor, a concrete mixer, and a specialized spraying pump to ensure consistent delivery.
| Model | PZ-3 | PZ-5 | PZ-7 | HSP-5 | HSP-7 | HSP-9 |
|---|---|---|---|---|---|---|
| Output | 3.5m3/h | 5m3/h | 7m3/h | 4.0-5.0m3/h | 5.0-7.0m3/h | 6.0-9.0m3/h |
| Horizontal Distance | 200m | 200m | 200m | 30-50m | 30-50m | 30-50m |
| Vertical Distance | 20m | 20m | 20m | 20m | 20m | 20m |
| Max Aggregate Size | Φ20mm | Φ20mm | Φ20mm | Φ15mm | Φ15mm | Φ15mm |
| Air Pressure | 0.4-0.6MPa | 0.4-0.6MPa | 0.4-0.6MPa | 0.3-0.6Mpa | 0.3-0.6Mpa | 0.3-0.6Mpa |
