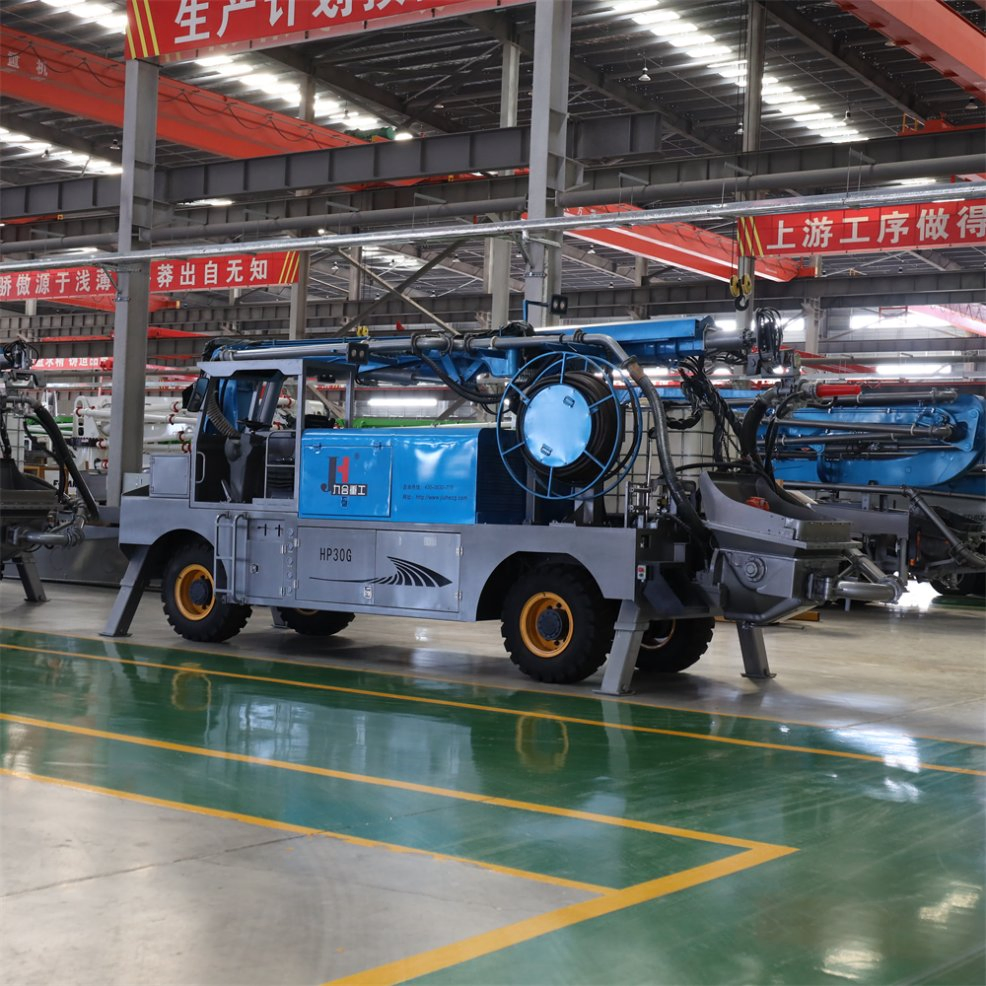

Concrete Sprayer Wet Mix Shotcrete Pump Machine with Robot Arm for Tunnel
Concrete Sprayer Wet Mix Shotcrete Pump Machine with Robot Arm for Tunnel
Concrete Sprayer Wet Mix Shotcrete Pump Machine with Robot Arm for Tunnel
Concrete Sprayer Wet Mix Shotcrete Pump Machine with Robot Arm for Tunnel
Concrete Sprayer Wet Mix Shotcrete Pump Machine with Robot Arm for Tunnel
1 / 5
Concrete Sprayer Wet Mix Shotcrete Pump Machine with Robot Arm for Tunnel
Concrete Sprayer Wet Mix Shotcrete Pump Machine with Robot Arm for Tunnel
Concrete Sprayer Wet Mix Shotcrete Pump Machine with Robot Arm for Tunnel
Concrete Sprayer Wet Mix Shotcrete Pump Machine with Robot Arm for Tunnel
Concrete Sprayer Wet Mix Shotcrete Pump Machine with Robot Arm for Tunnel

Concrete Sprayer Wet Mix Shotcrete Pump Machine with Robot Arm for Tunnel

Customization: Available
After-sales Service: Online Support
Warranty: 1 Year
Send Inquiry

Product Description

📋 Basic Information
Model NO.
JHGHP30
Type
Shotcrete
Shotcrete Type
Wet
Machining Process
Hydraulic
Productivity
30m³/H
Certification
CE, ISO9001
Driving Mode
4X4
Main Oil Pump
Rexroth
Multi-Way Valve
Hawe
Diesel Power
93kw
Motor Power
75kw
Max Aggregate Size
15mm
🏗️ Product Description

4x4 Drive Tunnel Construction Robotic Shotcrete Machine / Shotcrete Robot Arm / Concrete Shotcrete Pump

Category Item Unit Parameter
Whole Machine Dimension mm 7900*2580*3240
Weight Kg 17400
Working Driving Mode - Electromotor+Diesel
Diesel Power Kw 93
Spraying Boom
Range Spraying Vertical Height m 17.5
Spraying Horizontal Distance m 14.5
Max. Spraying Depth m 6.5
Head Rotation Angel ° 360
Pumping System
Performance Rated Output Capacity m³/h 30
Max. Output Pressure Mpa 7.5
Concrete Cylinder Stroke mm 1000
Distribution Valve Type - S Tube Valve

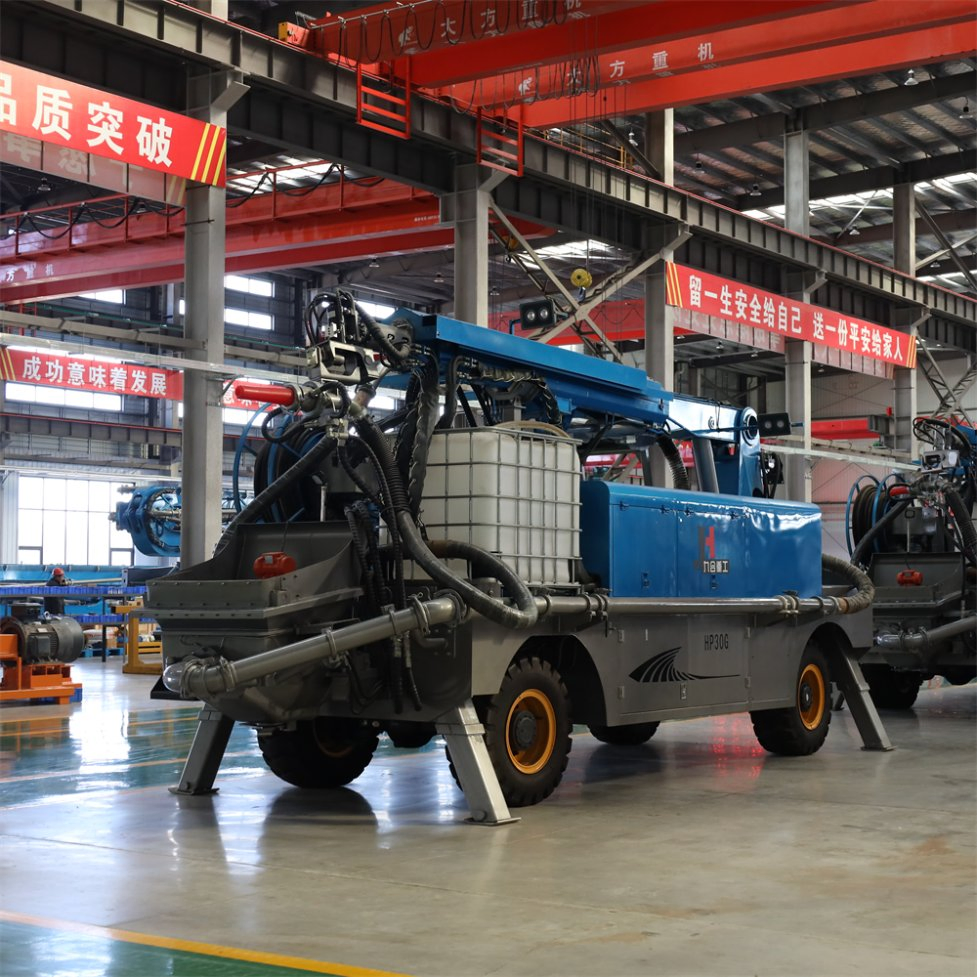

Shotcrete Machine View 1

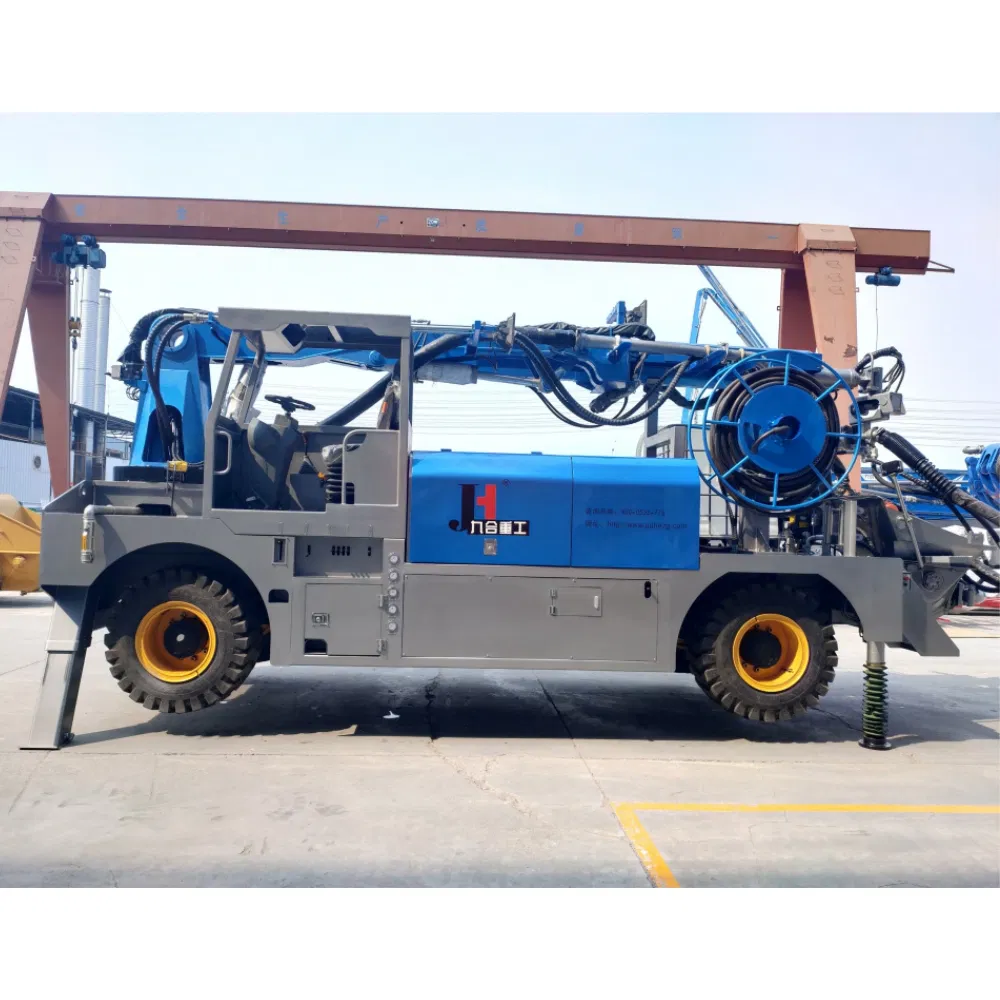

Shotcrete Machine View 2

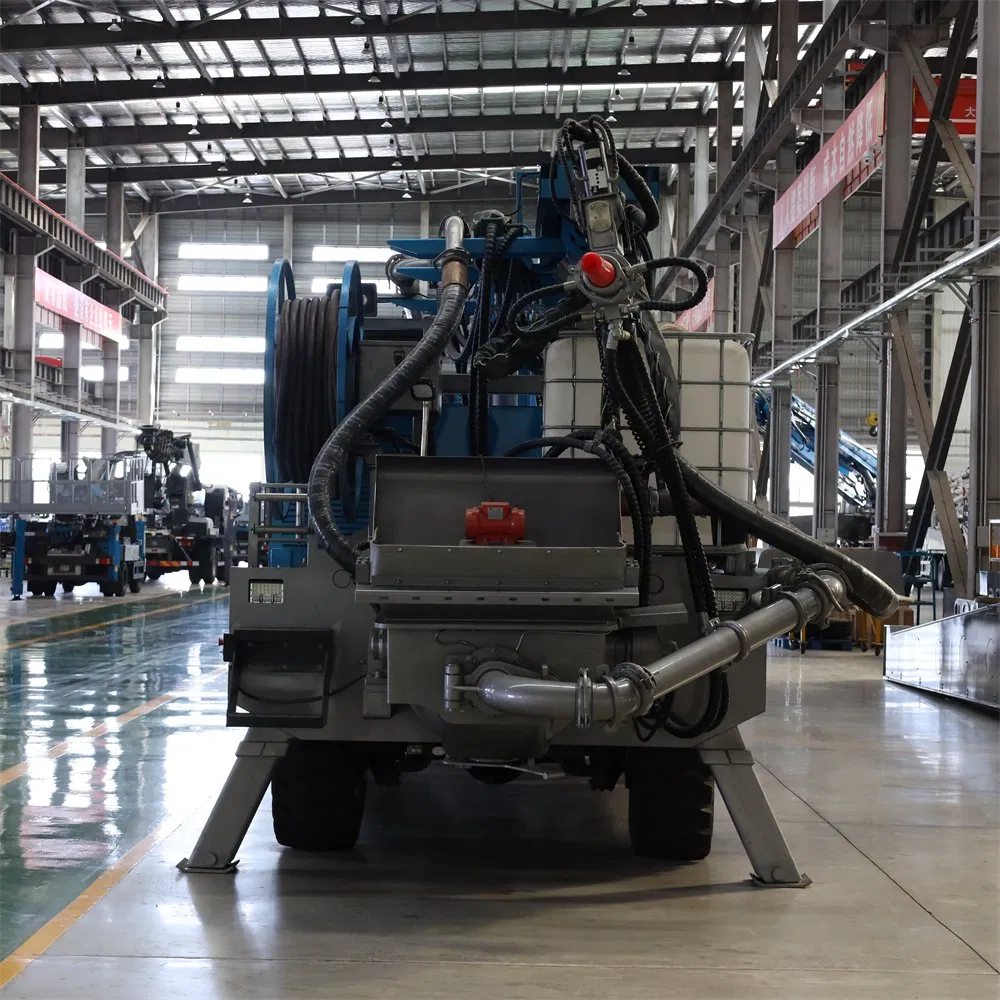

Shotcrete Machine View 3

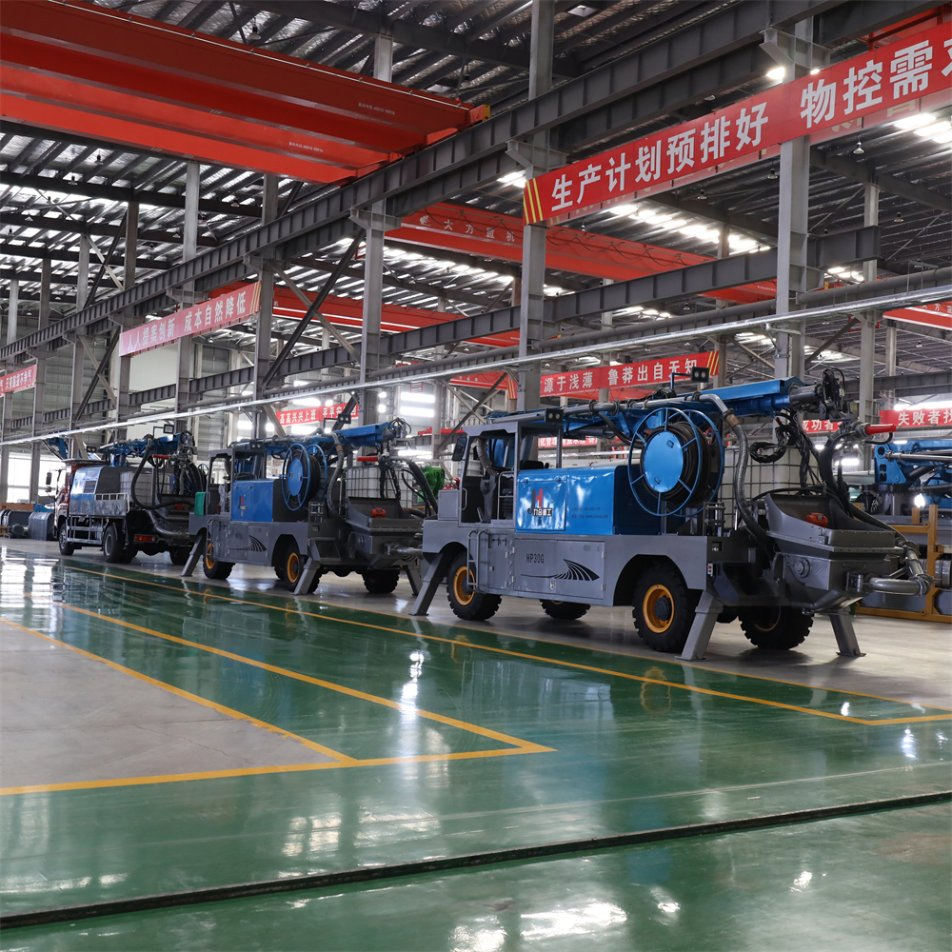

Shotcrete Machine View 4
⚙️ Configuration & Components

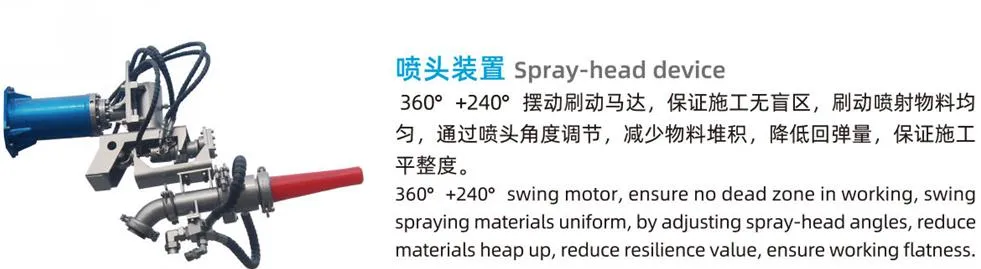

Configuration 1

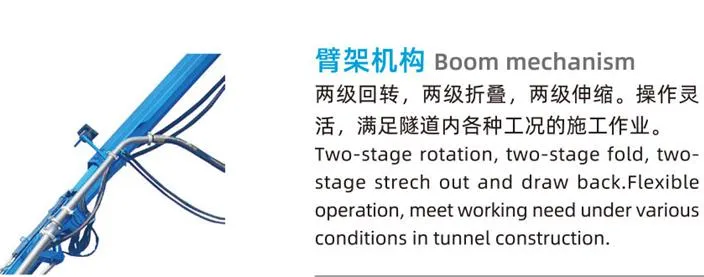

Configuration 2

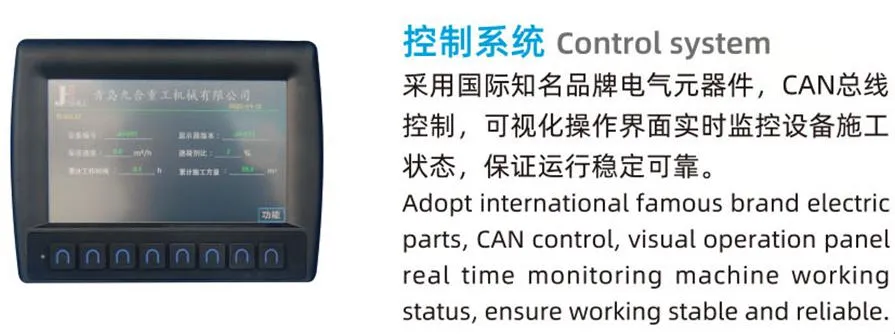

Configuration 3

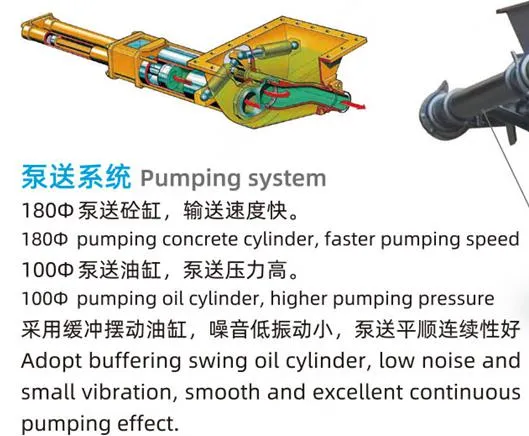

Component 1

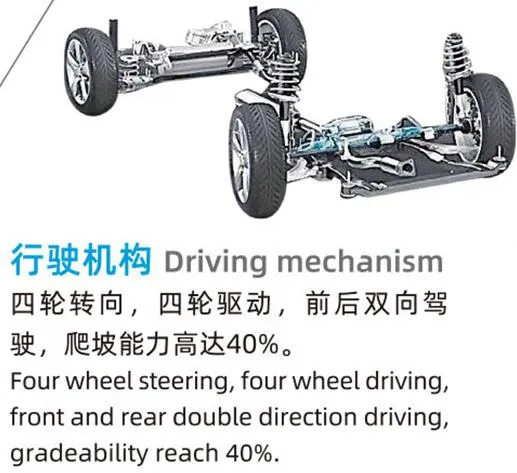

Component 2
🚚 Packaging & Shipping
Packaging
🔍 Other Products

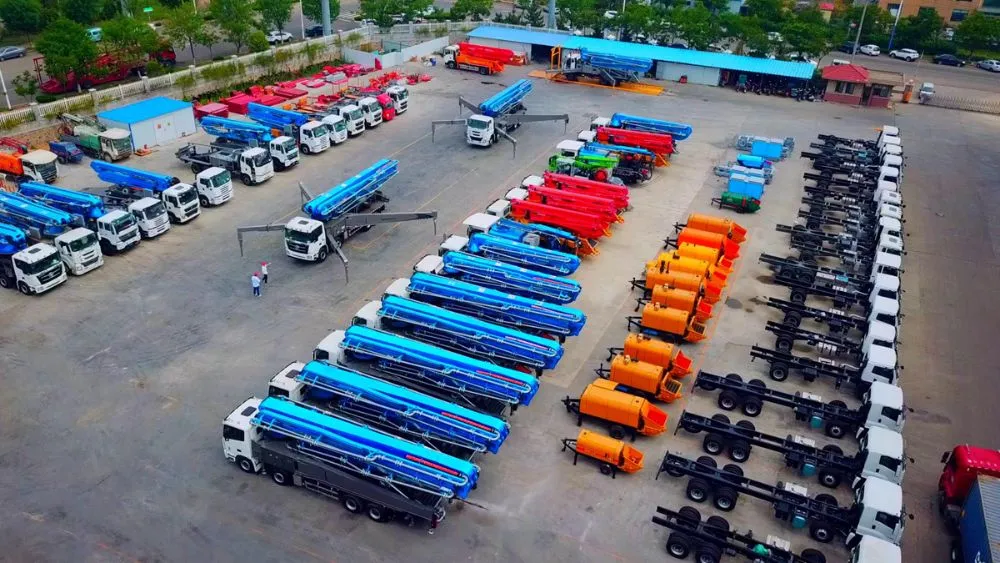

Other Machines
Product List
❓ Frequently Asked Questions
What is your Minimum Order Quantity (MOQ)?
One set is acceptable for your trial order.
How long is the delivery time?
Most orders are completed within 20 days, depending on the quantity and our current production schedule.
What is the warranty and after-sale service?
Normally, the warranty is 12 months after leaving the factory. Specific terms can be negotiated based on our cooperation.
Do you offer OEM or ODM services?
Yes, we can produce machines with your specific logo and requirements.
How can I get more detailed product information?
Please send an inquiry directly or consult online. Ensure you provide a correct email address so we can share detailed specifications.
What are the core hydraulic components used?
We use high-quality imported systems, including Rexroth main oil pumps and Hawe multi-way valves.
