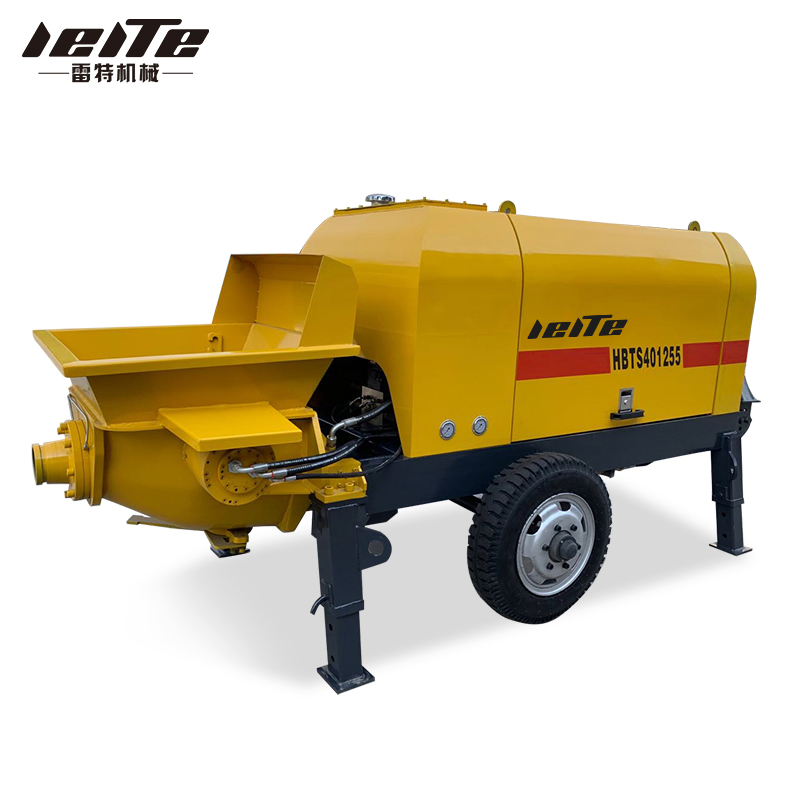

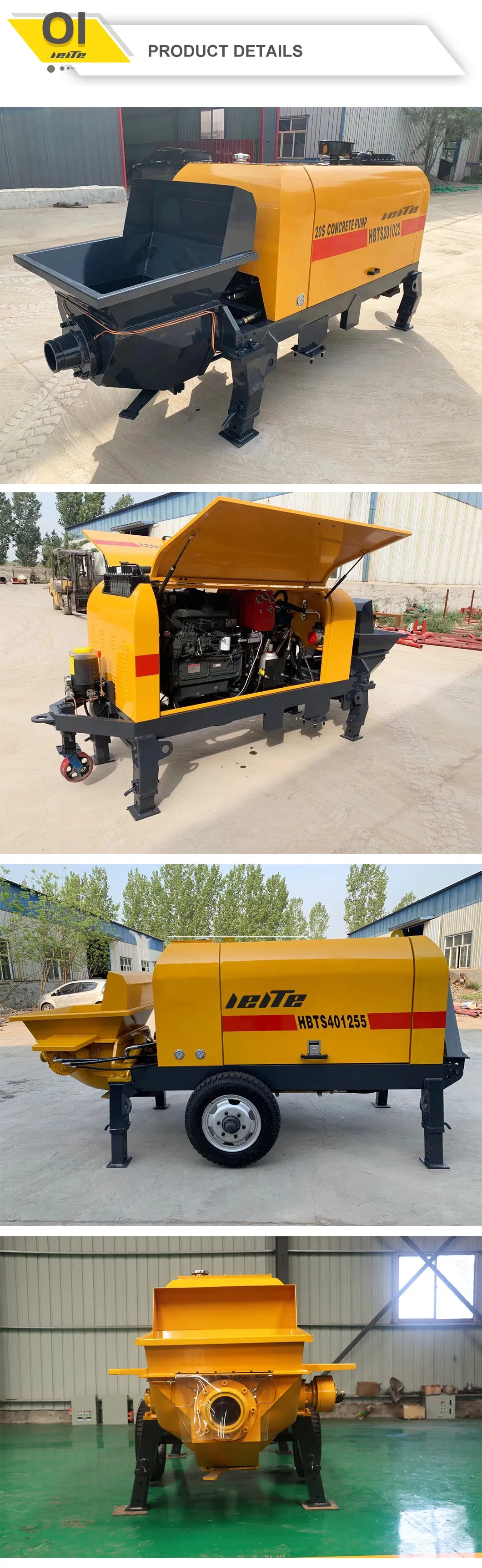

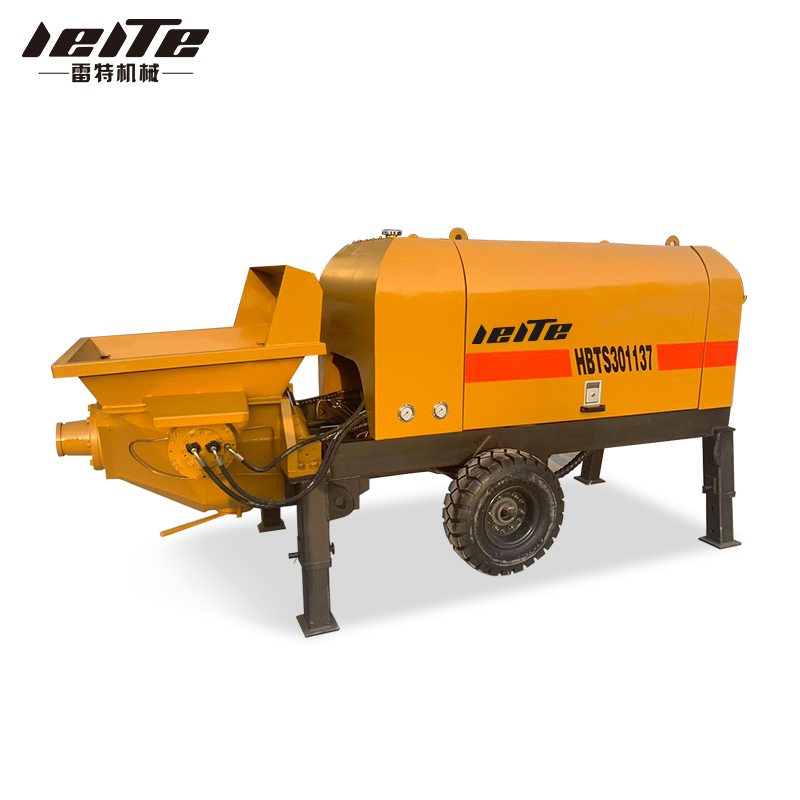

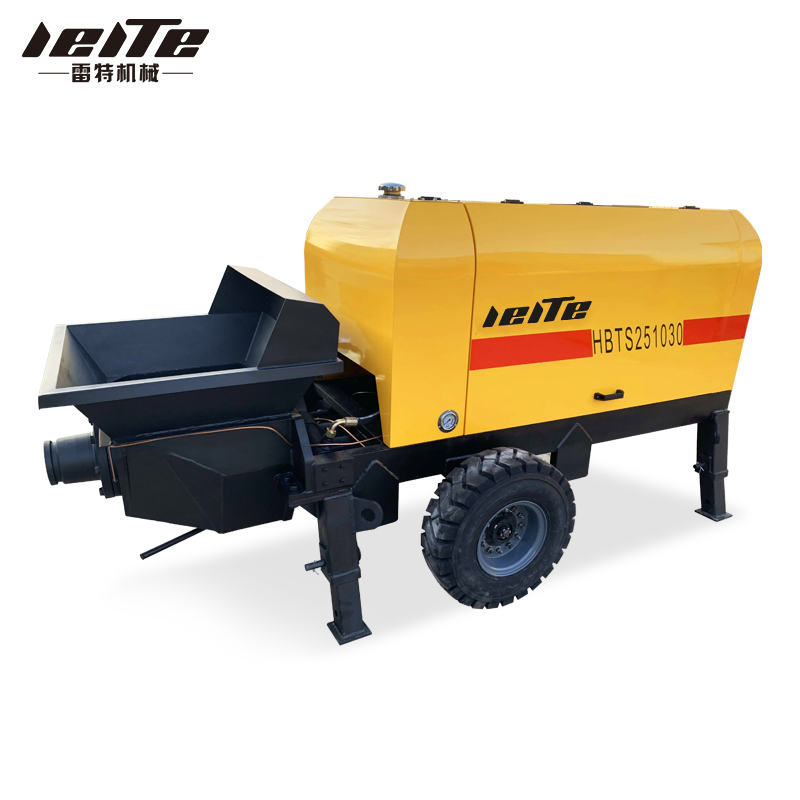

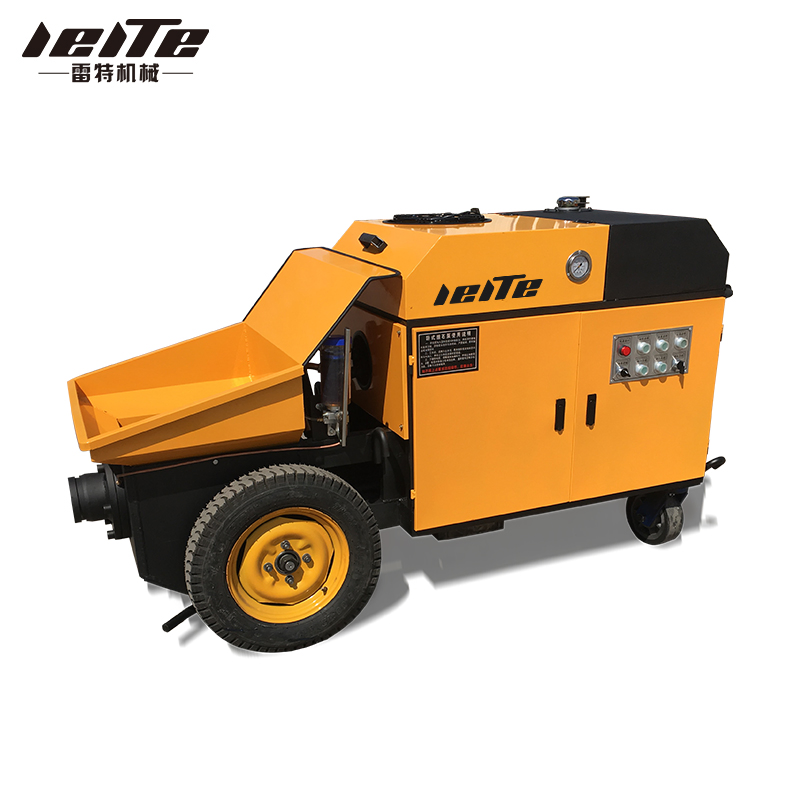

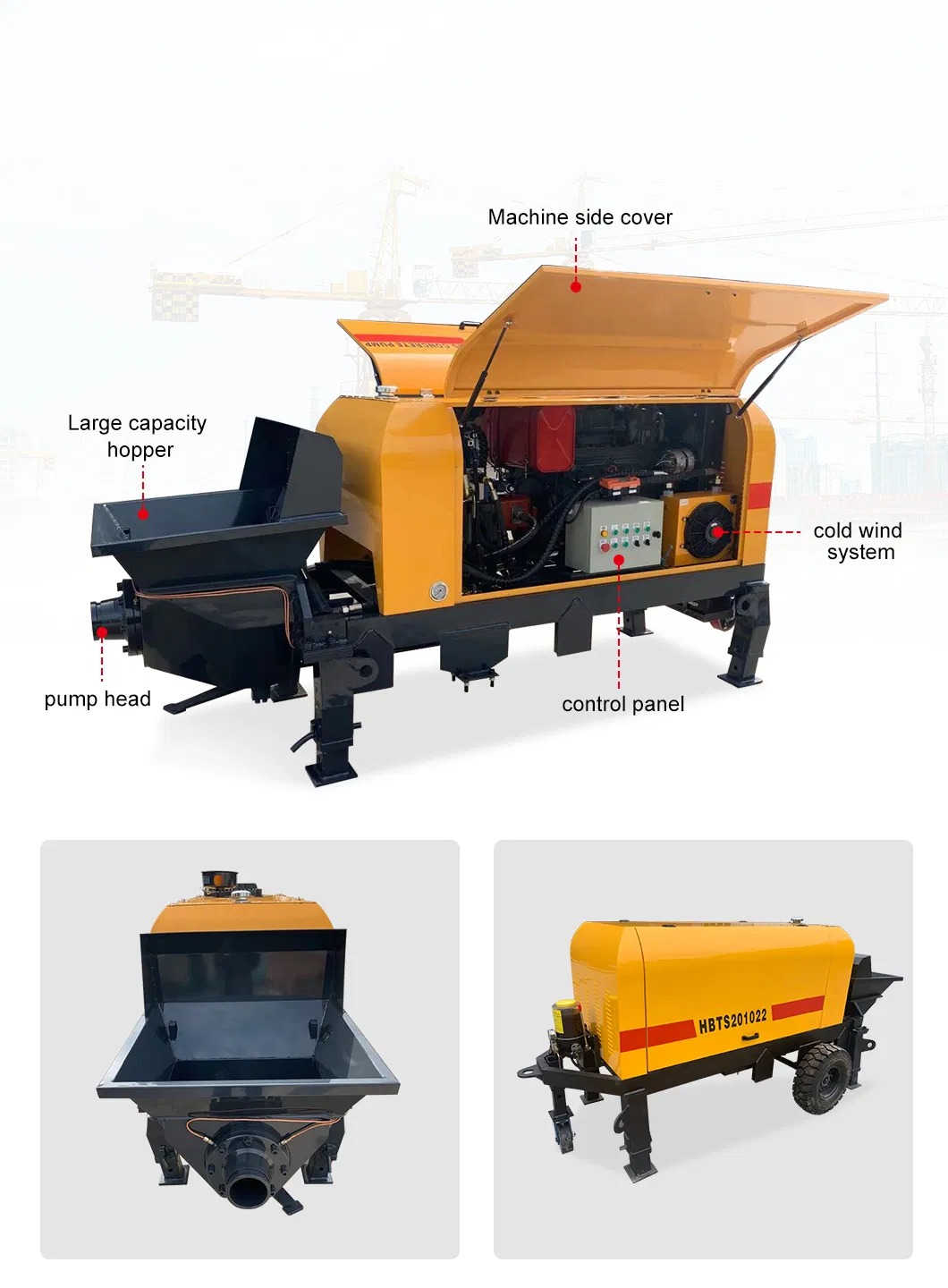

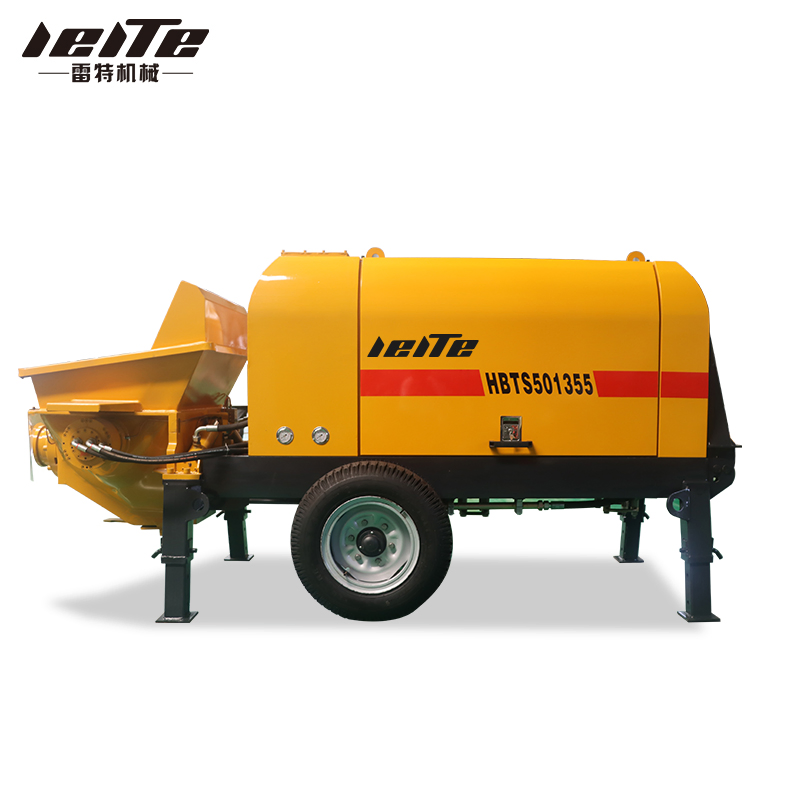

This concrete screw cement peristaltic mortar grout pump is designed for high-efficiency concrete transfer and mini beton line pumping applications. It features advanced technology for modern construction needs.
Special pouring pump for secondary structures, capable of long-distance high-rise transportation of fine stone concrete and mortar.

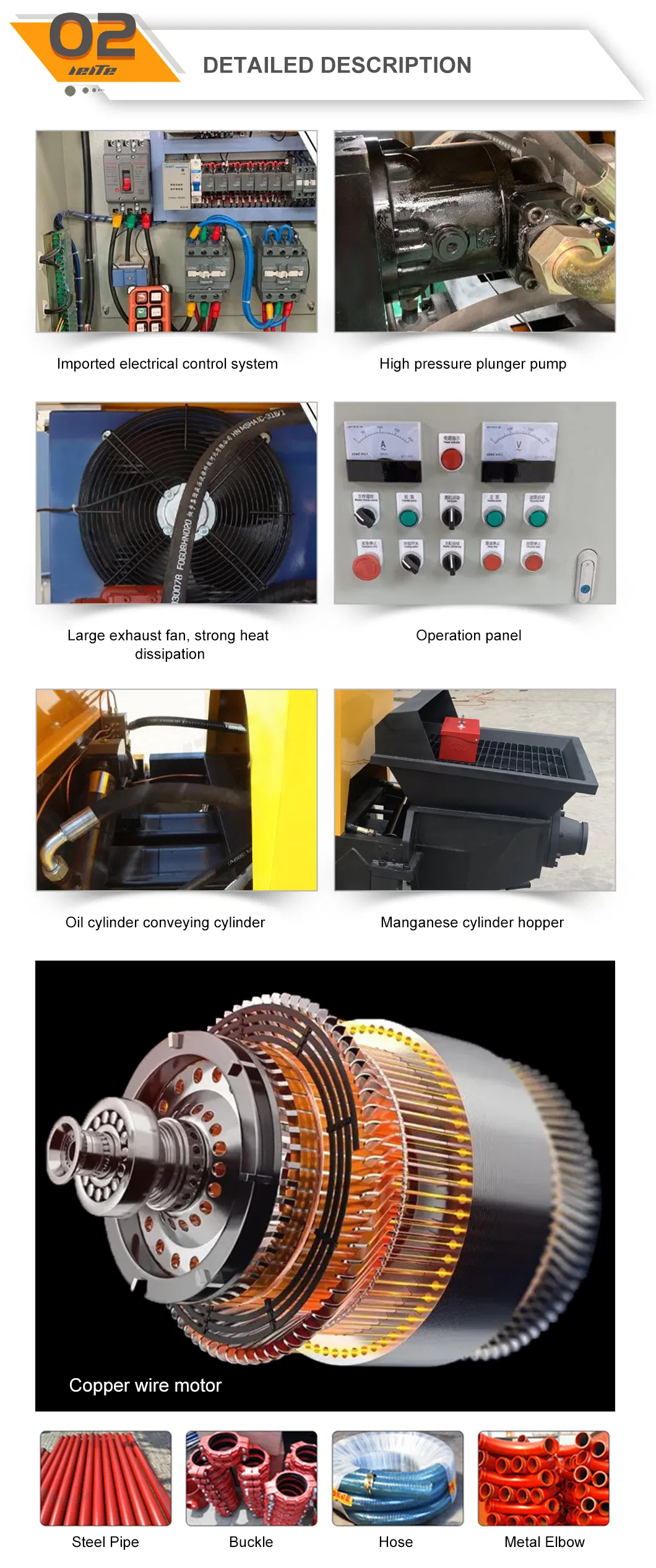

Distribution valve utilizes an advanced S-tube valve design for superior sealing performance and reliability.
Eye plate and floating cutting ring made of hard alloy, ensuring long service life and easy replacement with automatic gap compensation.
Electric-liquid control mode with overload protection and anti-pump function to easily eliminate blockages.
Centralized lubrication system controlled by program to extend the service life of rotating parts.
| Model | LTGZ-15 | LTGZ-20S | LTGZ-25S | LTGZ-30S |
|---|---|---|---|---|
| Driving Mode | Non-pushing | Non-pushing | Drag-and-drop | Drag-and-drop |
| Motor Power | 15KW | 47kw | 47kw | 70kw |
| Throughput | 6-7m³/h | 10-12m³/h | 12-15m³/h | 18-22m³/h |
| Max Aggregate | ≤20mm | ≤30mm | ≤20mm | <30mm |
| Bore/Stroke | 120/400mm | 120/500mm | 120/500mm | 160/800mm |
| Machine Weight | 950kg | 2300kg | 2400kg | 2700kg |
| Theoretical Dist. | V: 10-20m / H: 30-50m | V: 10-50m / H: 30-120m | V: 15-80m / H: 55-200m | V: 25-100m / H: 75-240m |

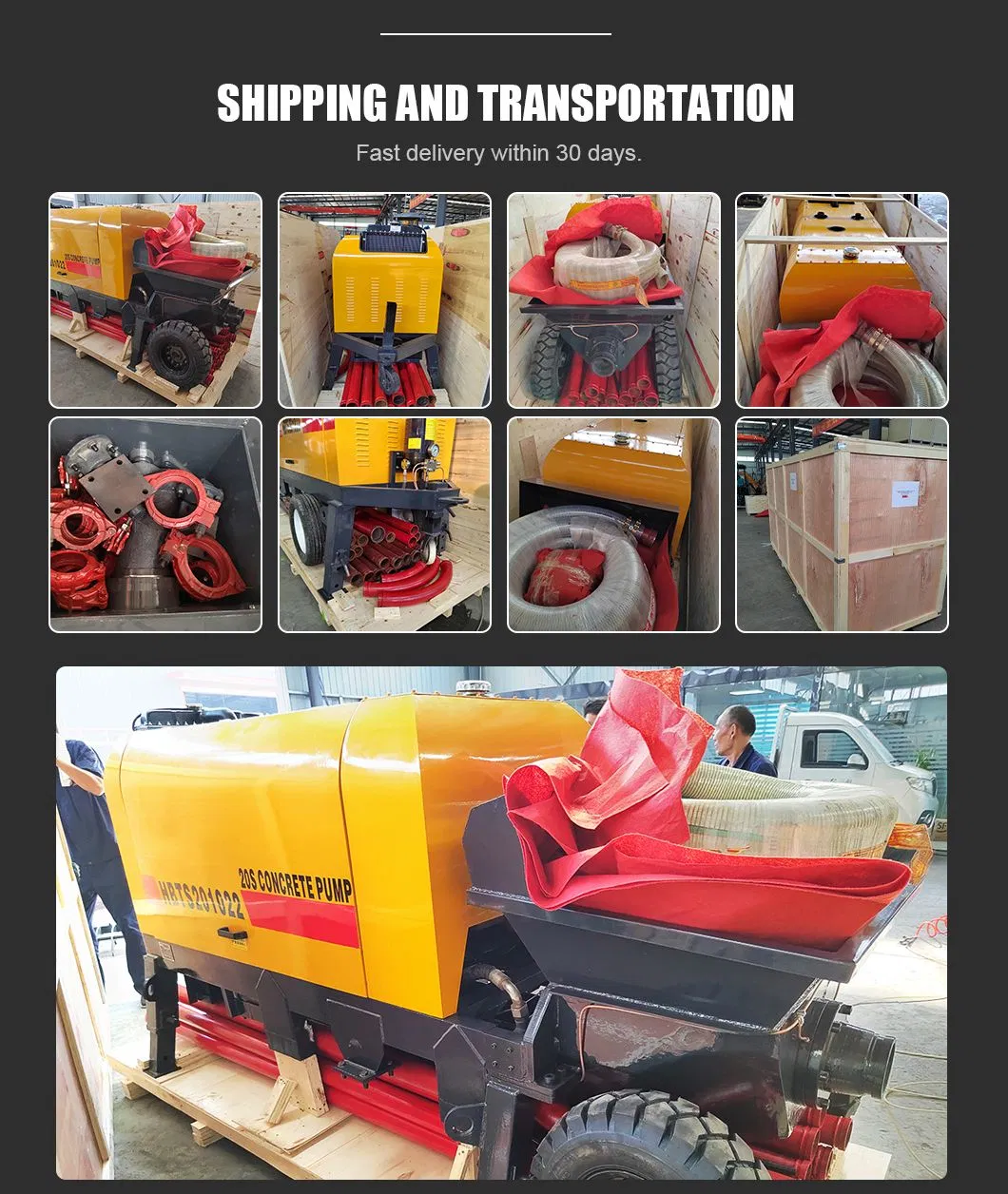

For transportation, we offer three methods: Sea, Air, and Land. We support multiple payment and transportation methods to ensure you receive your equipment at the port or your doorstep efficiently. We guarantee transparent pricing with no hidden intermediate fees.
