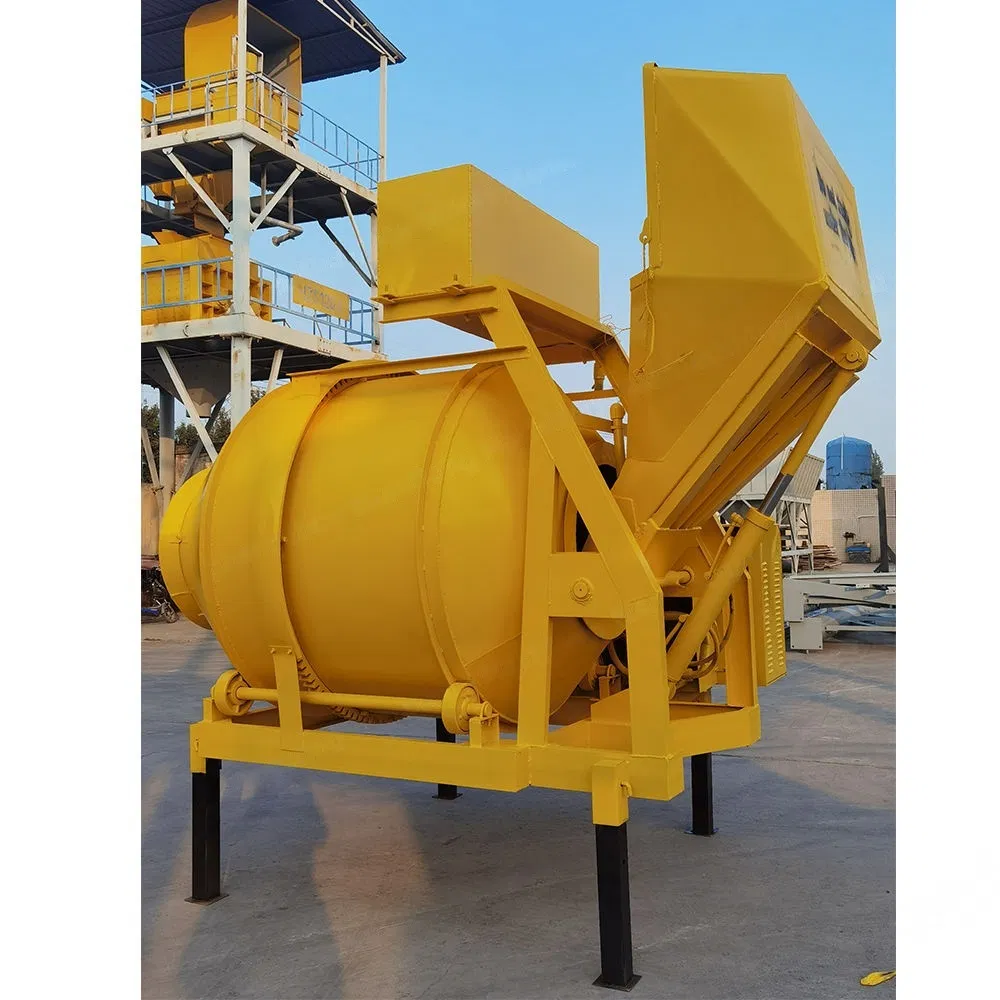

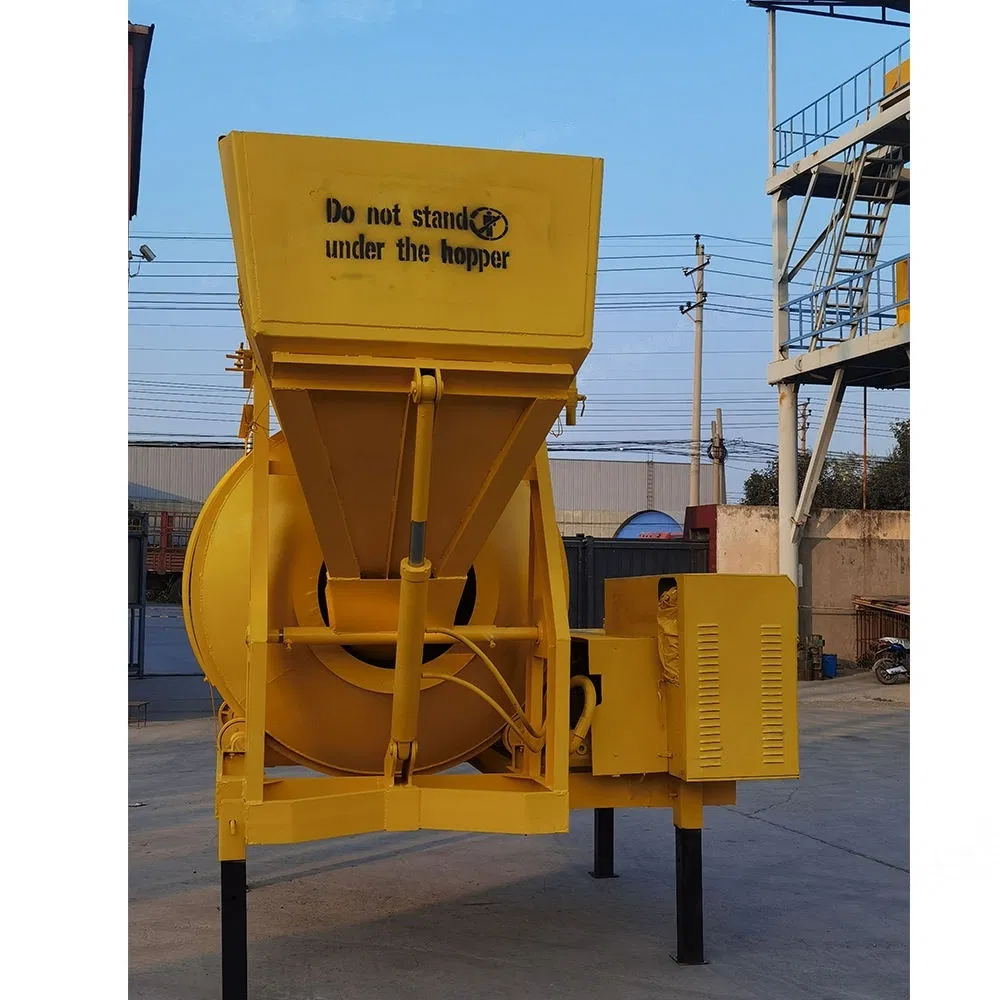

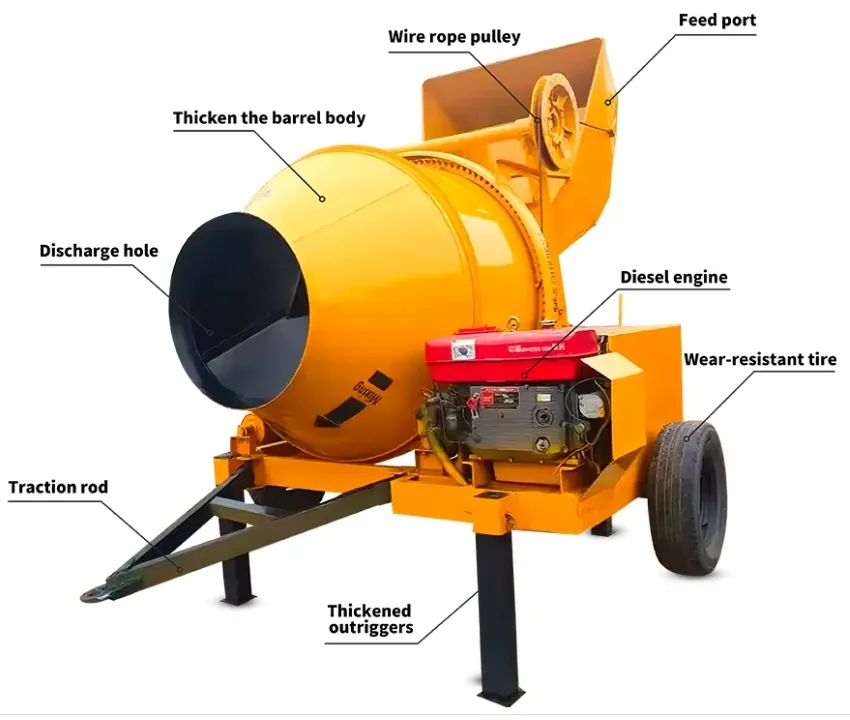

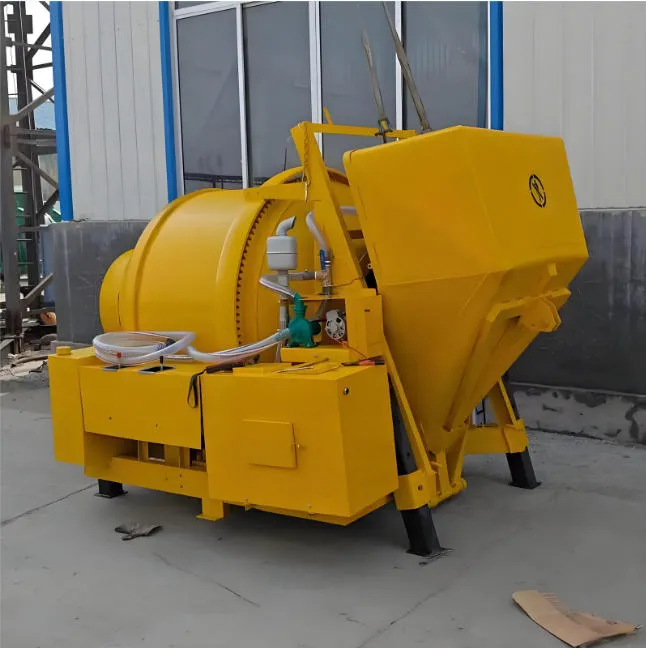

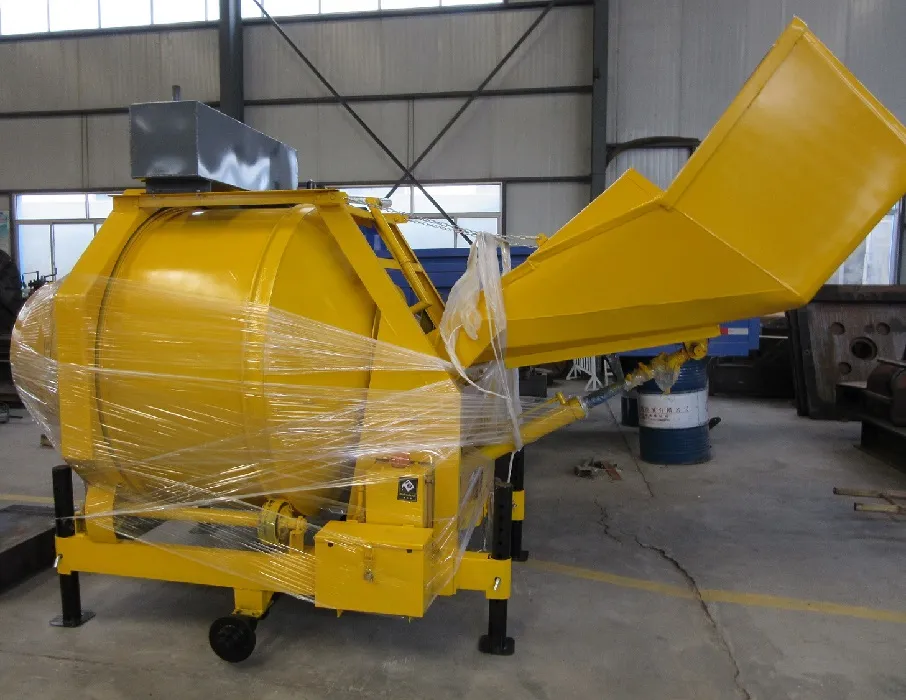

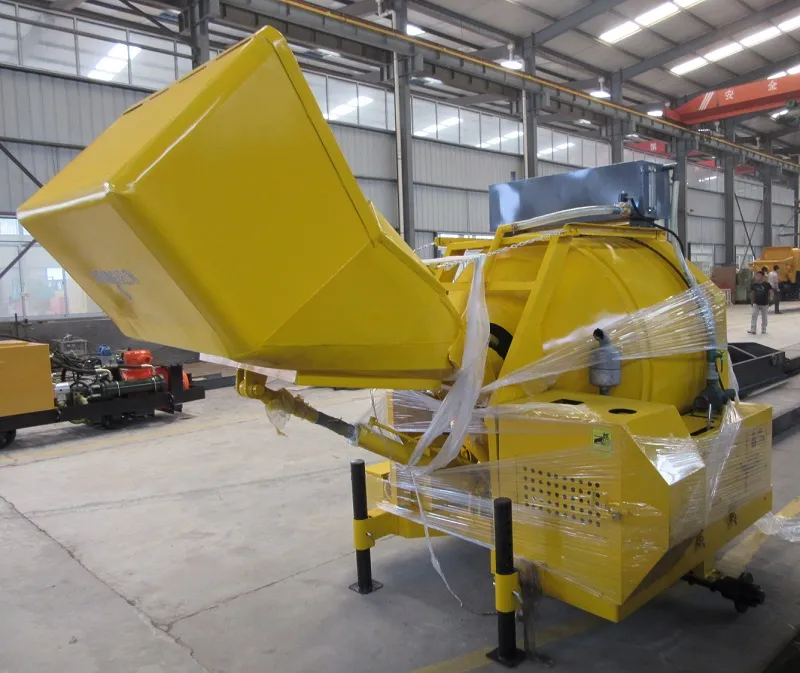

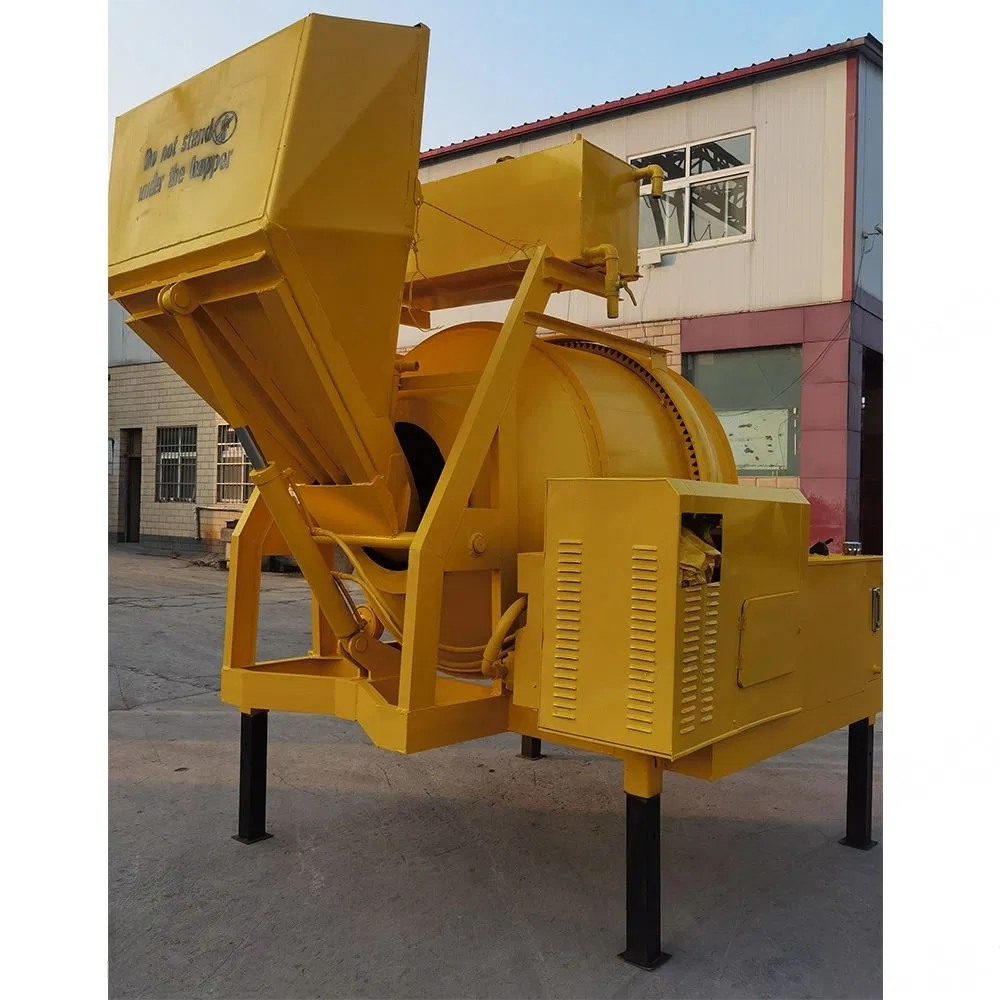

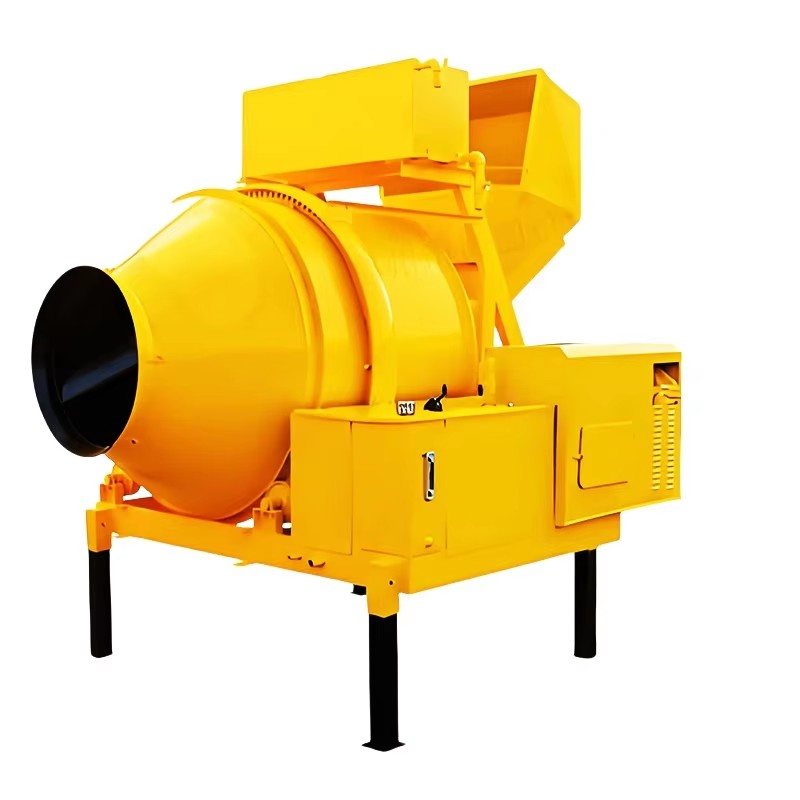

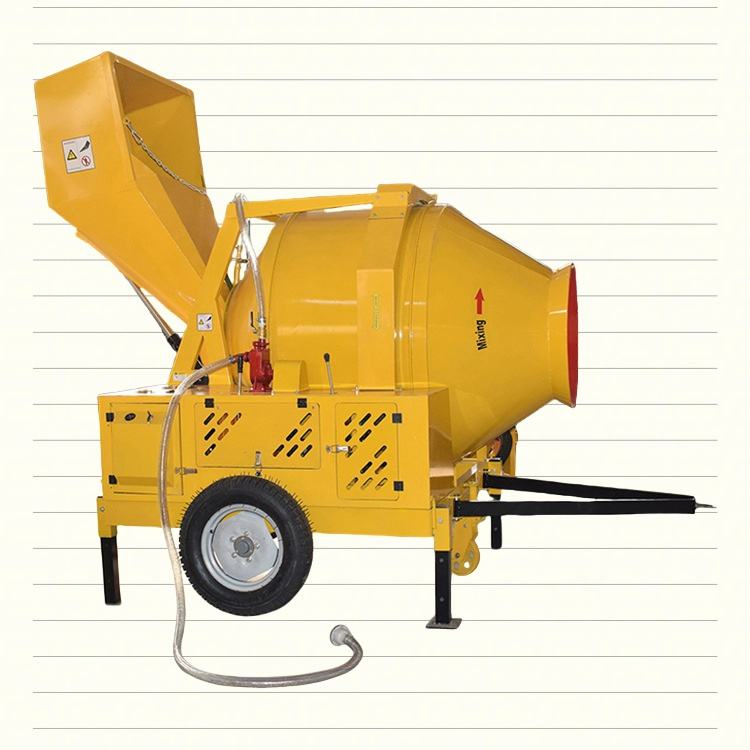

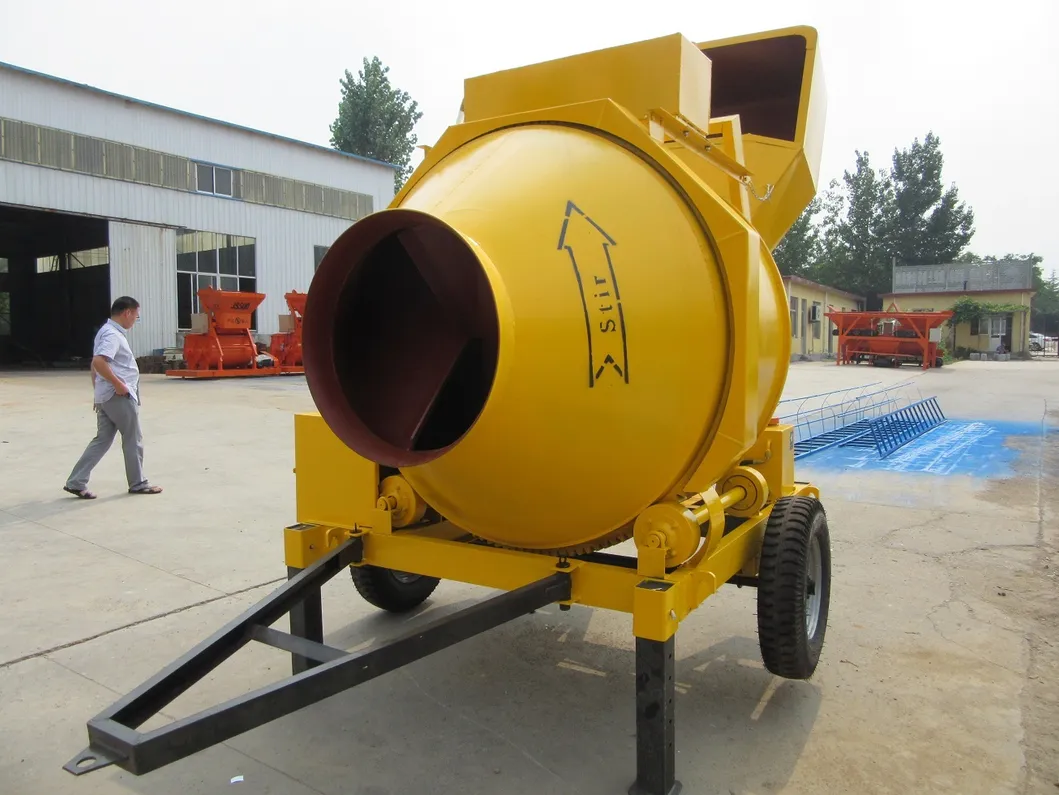

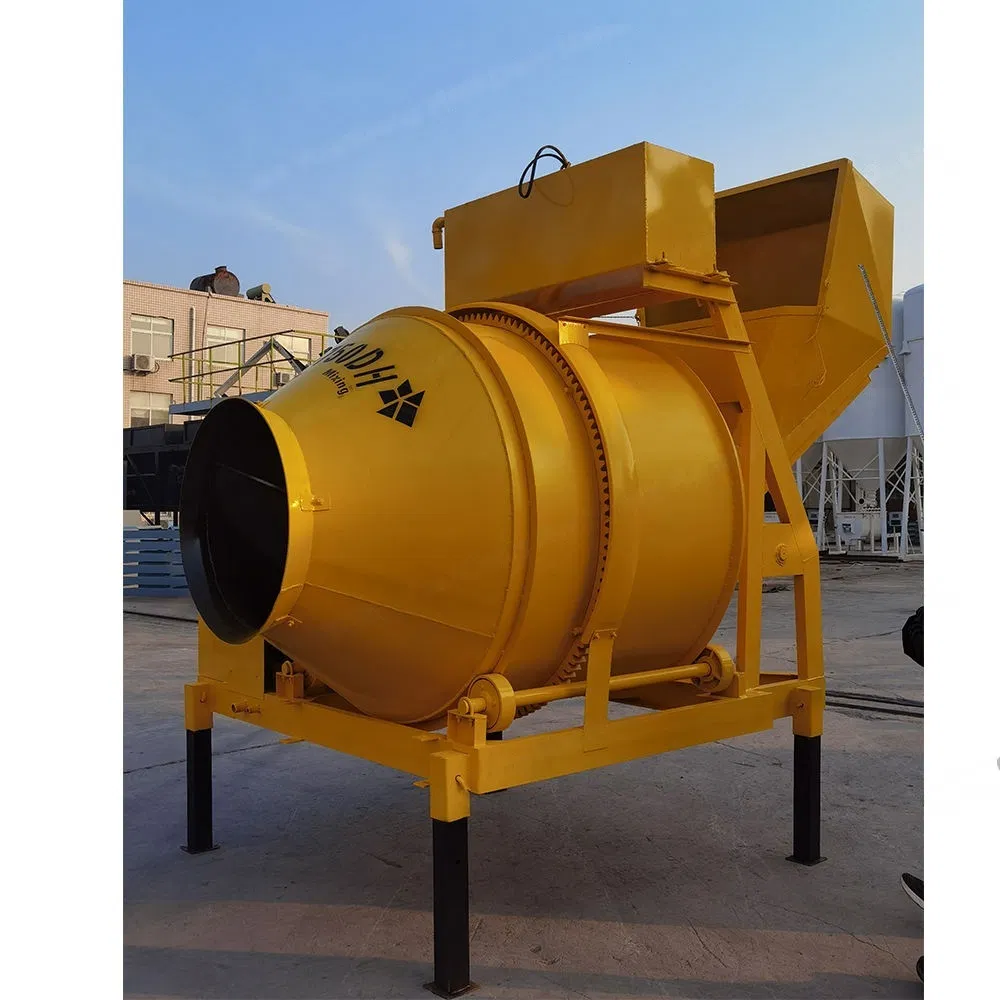

This diesel Concrete Mixer 700L is a wheeled mixer equipped with a hoist and hydraulic lifting system. It is extensively applied in road engineering, bridge construction, building hydropower engineering, and medium-sized precomponent factories.
Our diesel concrete mixers are specifically designed for areas where electricity is underdeveloped or inconvenient to access. The entire machine's power is provided solely by a diesel engine, ensuring high power conversion efficiency and stability without additional assistance.
Upgraded with a hydraulic oil cooling device, the equipment supports extended working hours and offers a prolonged service life. It is mobile, reliable, and easy to operate.
| Item | Unit | Specification |
|---|---|---|
| Discharging Capacity | L | 450 |
| Loading Capacity | L | 700 |
| Production Efficiency | m3/h | 25 |
| Max. Aggregate Size | mm | 60 |
| Diesel Engine Power | HP | 18 |
| Pressure of Hydraulic Pump | Mpa | 20 |
| Water Supply Accuracy | % | ≤ 2% |
| Max Trailing Speed | km/h | 20 |
| Tyre Size | - | 7.50-16 |
| Speed of Mixing Drum | r/min | 14 |
| Lifting Methods | - | Hydraulic Tipping Hopper |
| Dimensions | mm | 3250×1850×2450 |
| Overall Weight | kg | 1680 |
*Parameters can be customized according to specific requirements.

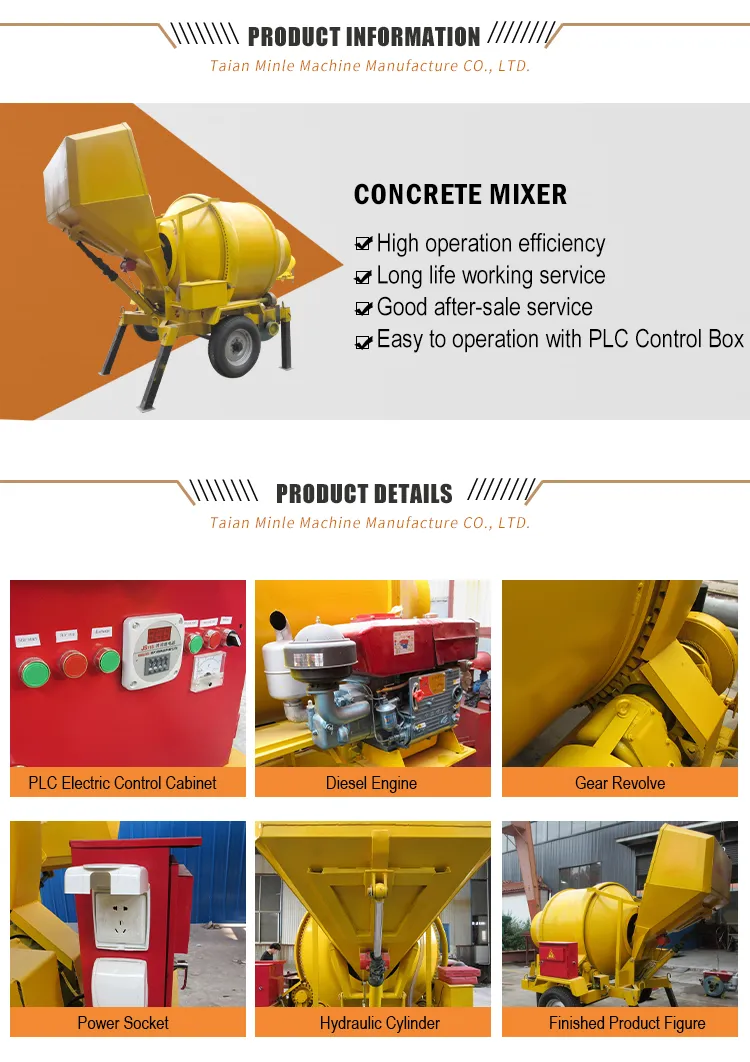

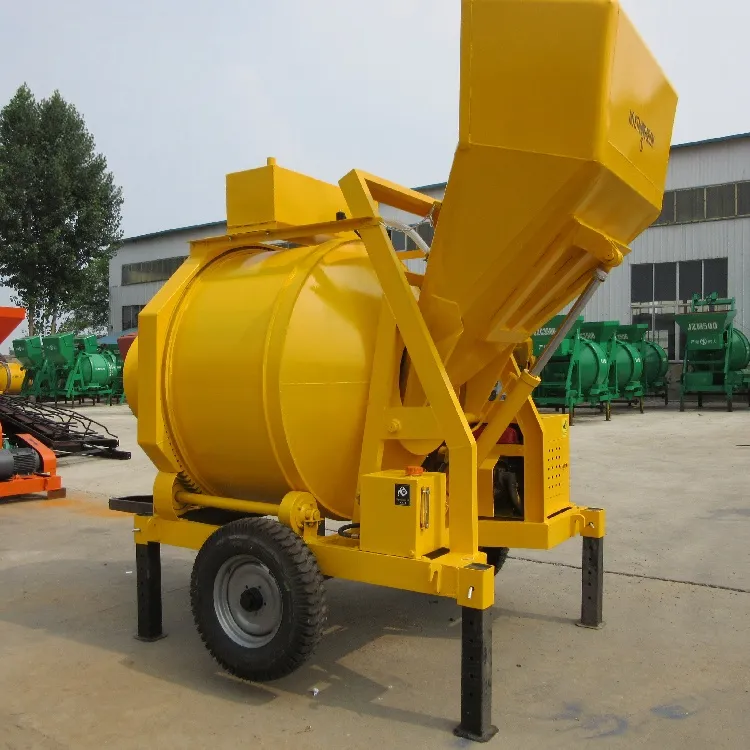

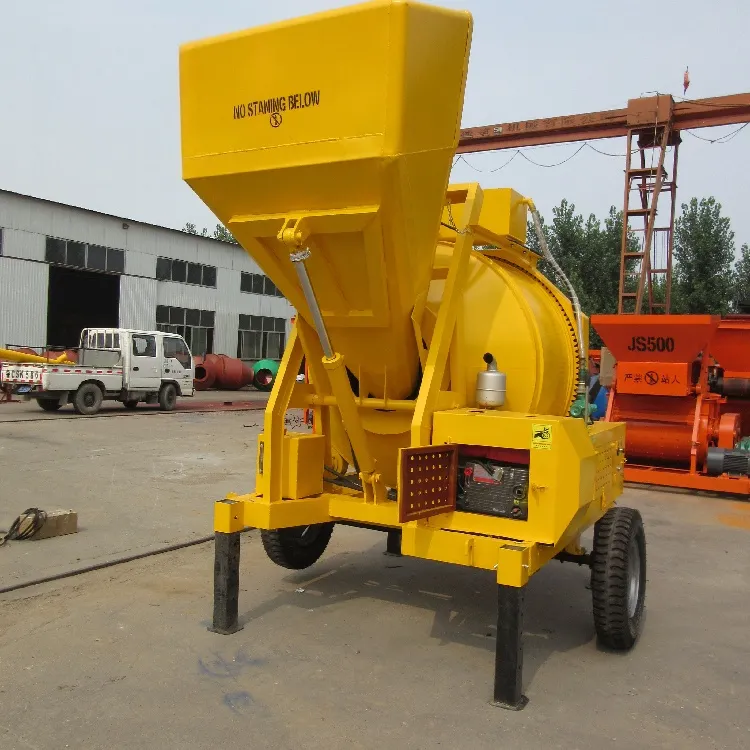

Diesel Engine Components:

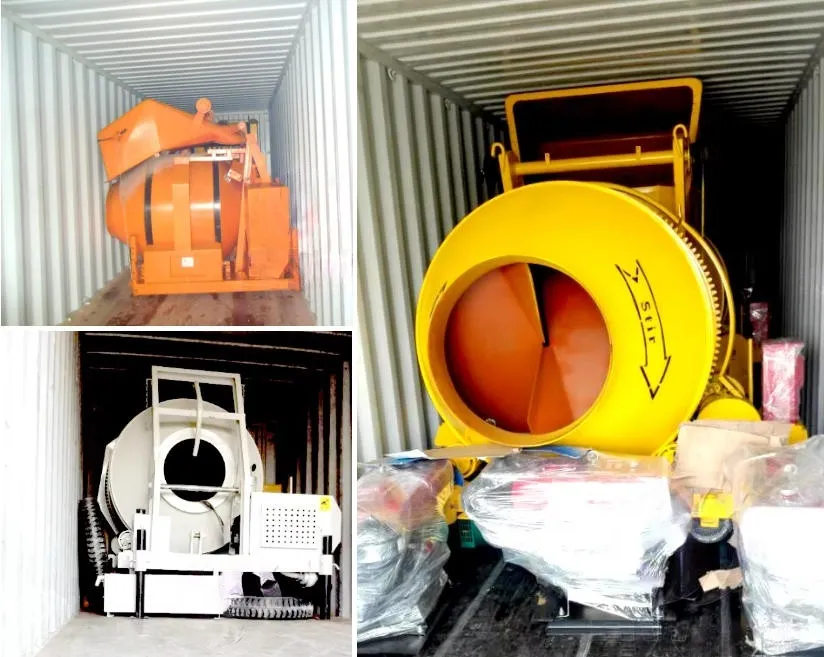

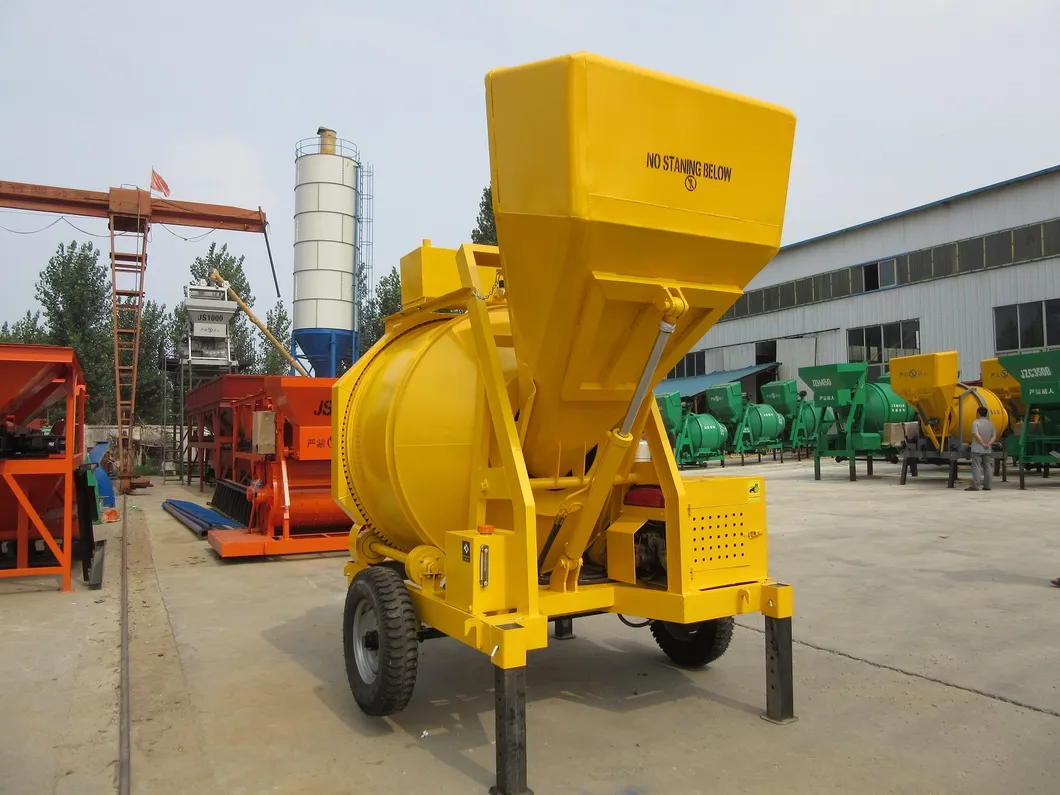

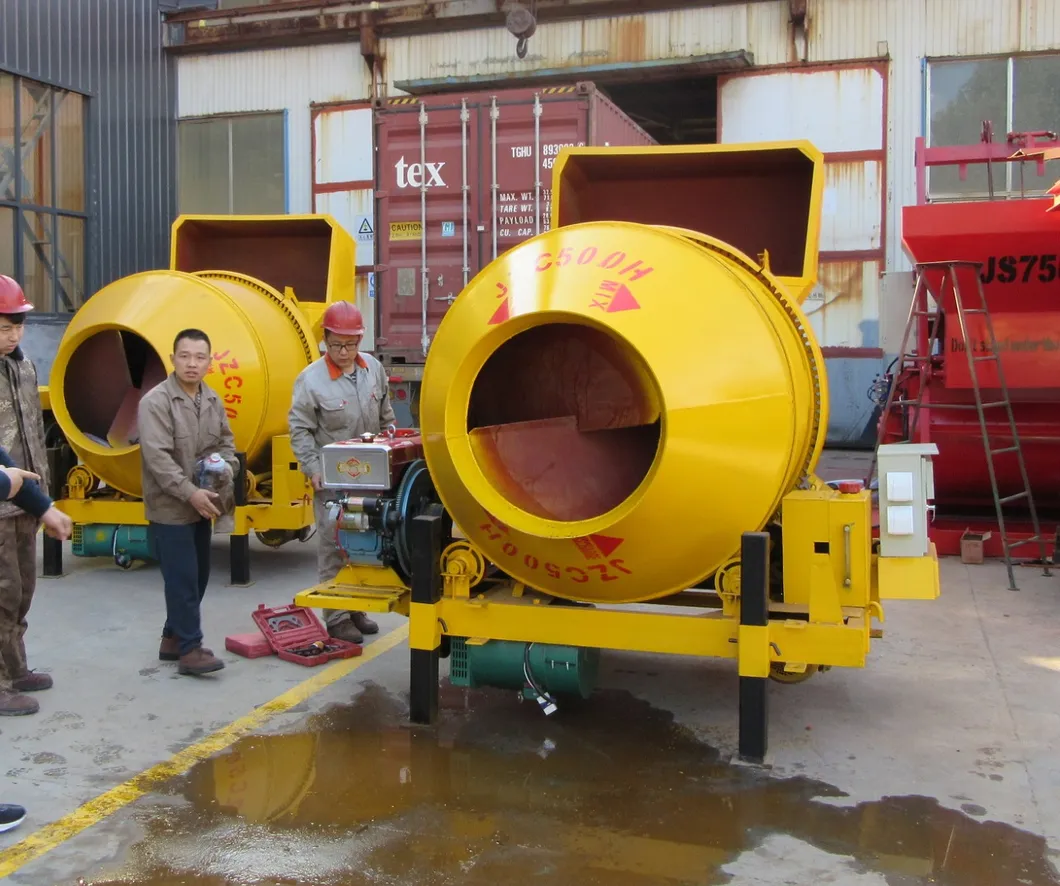

We utilize a professional loading team to maximize space efficiency, significantly reducing delivery costs. Typically, one 20ft container can accommodate 2 units, while a 40ft container can hold up to 4 units.

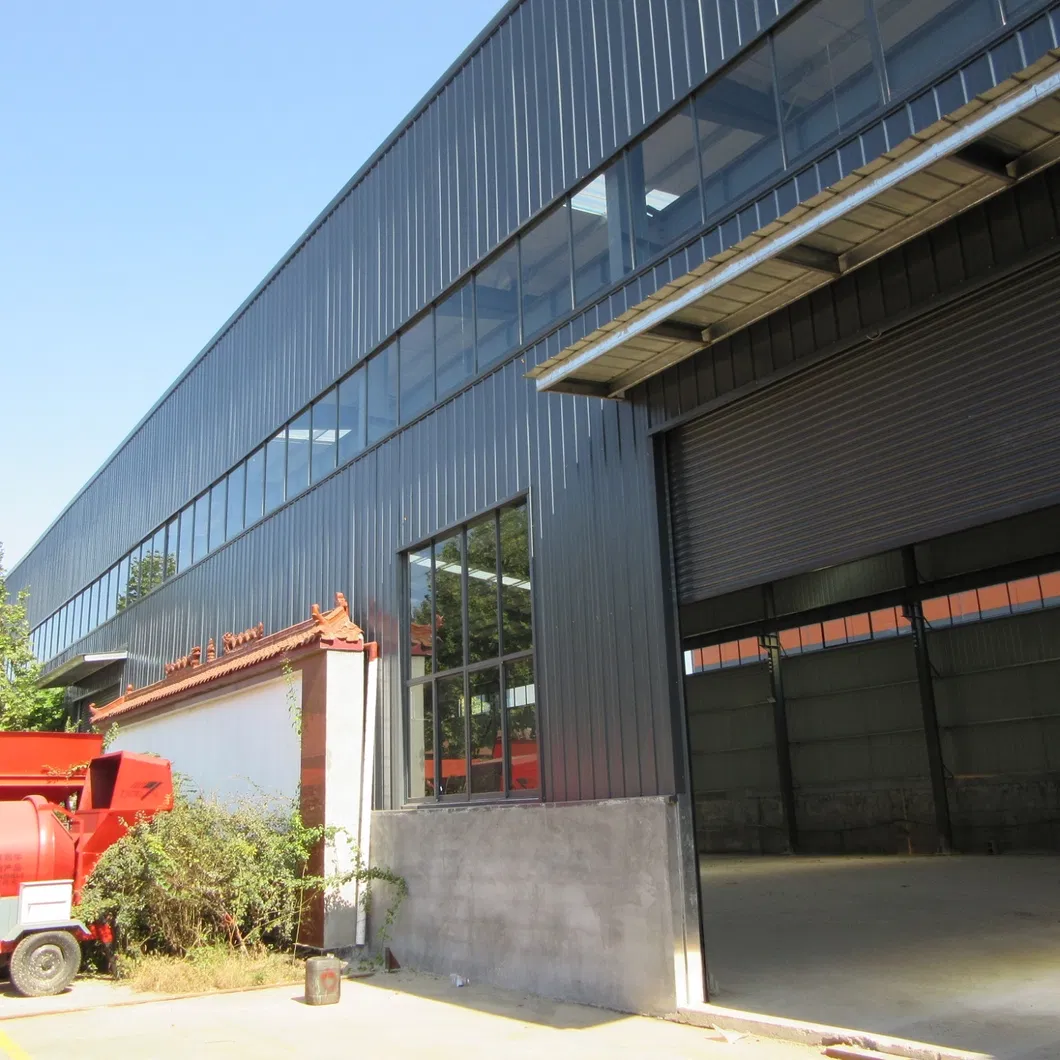

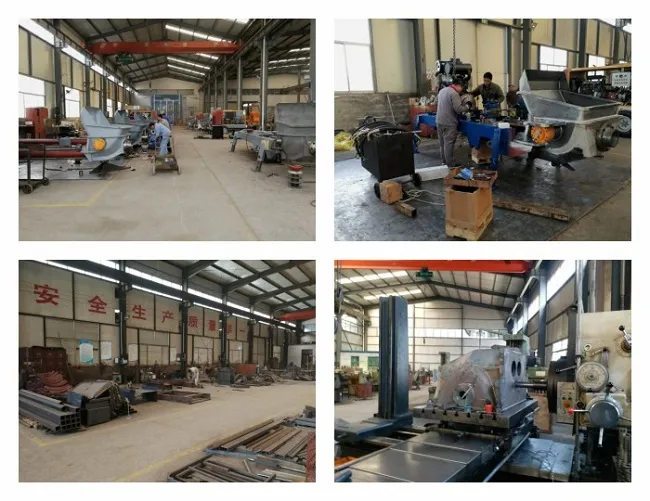

Founded in 2009, we are a professional manufacturer of construction and engineering machinery. Our product range includes concrete mixer trucks, trailer mixers, cutting machines, and pumps. With ISO9001 certification and CE approval for most products, we have exported to over 50 countries, including Australia, Thailand, Germany, and Brazil.
