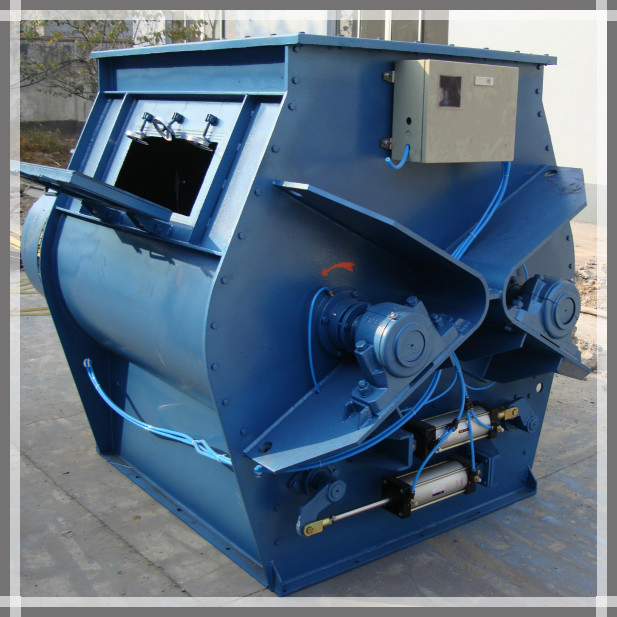

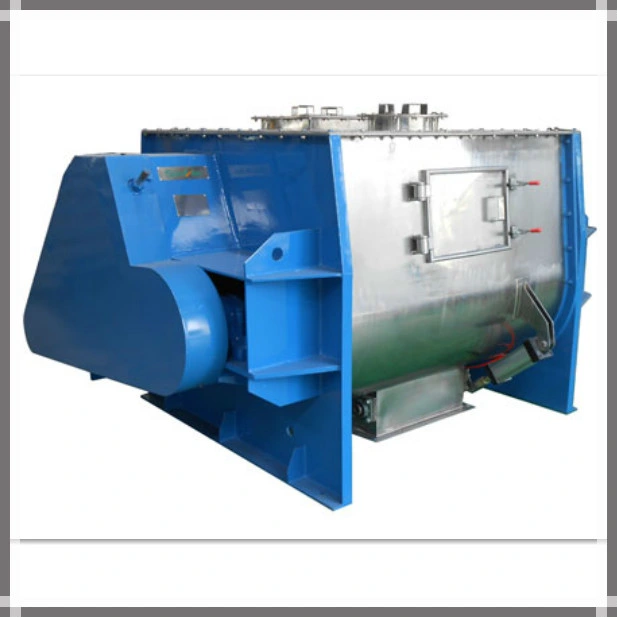

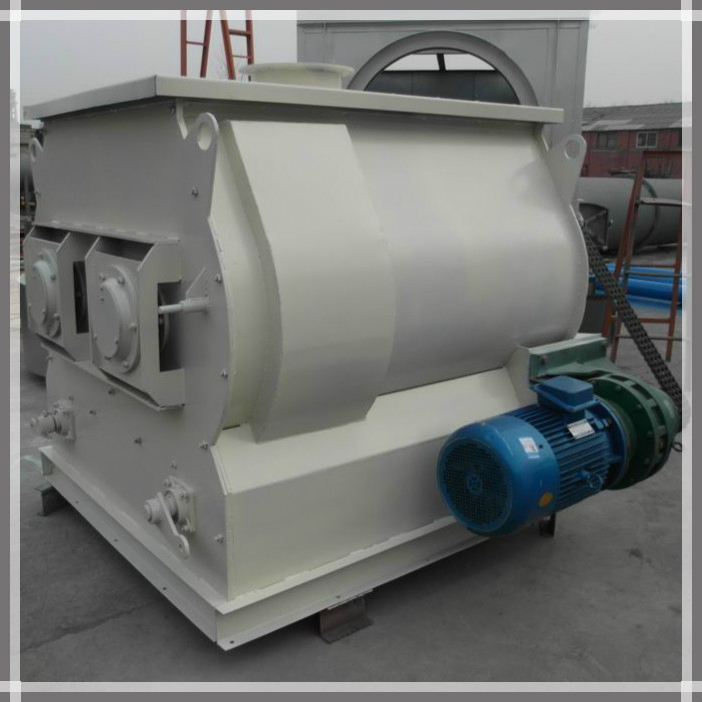

Double Shaft Paddle Type Concrete Powder Mixer Machine (CE Certified)

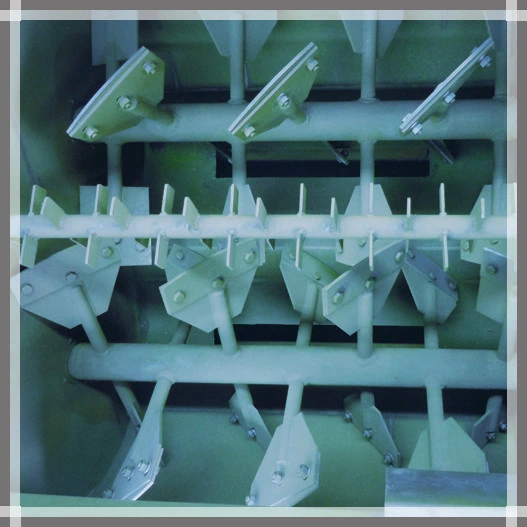

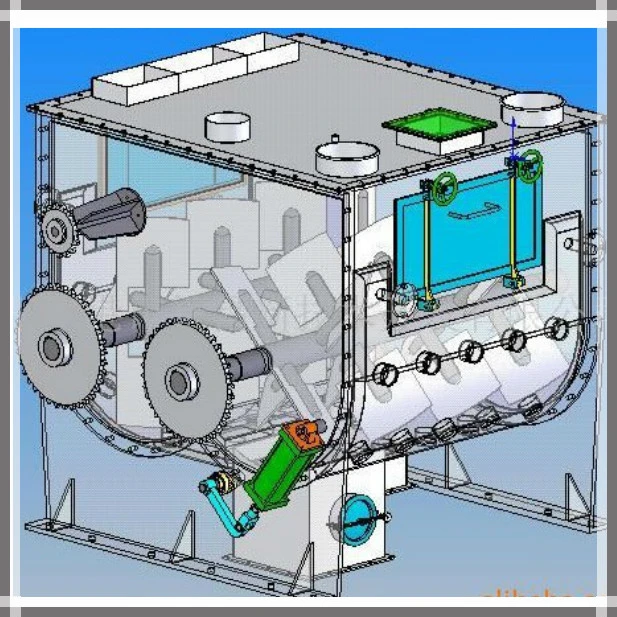

CMPP series horizontal double shaft paddle mixer consists of a W-shaped tank, top cover, and reverse rotation double shafts equipped with paddles. The double shafts rotate in opposite directions with specific angled paddles, causing materials to blend axially and radially. This movement forms a fluidized bed, creating instant weightlessness for homogeneous mixing, which is why it is also known as a weightlessness mixer.
Wear-resistant and anti-corrosion materials; continuous mixing capability; variable speed control; mechanical seals; customized openings; temperature and pressure control; heavy-duty configurations; liquid spraying devices; and explosion-proof electronic components.
| Mixer Model | Working Volume (L) | Rotation Speed (rpm) | Motor Power (kw) | Overall Dimension (mm) | Weight (kg) |
|---|---|---|---|---|---|
| CMPP-50 | 20-30 | 60 | 2.2 | 800×900×850 | 200 |
| CMPP-100 | 40-60 | 60 | 3 | 950×1100×900 | 300 |
| CMPP-300 | 120-180 | 60 | 4 | 1100×1300×1050 | 690 |
| CMPP-500 | 200-300 | 60 | 7.5 | 1400×1600×1200 | 950 |
| CMPP-1000 | 400-600 | 40 | 11 | 1700×1850×1550 | 1600 |
| CMPP-2000 | 800-1200 | 40 | 15 | 2100×2650×1900 | 2400 |
| CMPP-5000 | 2000-3000 | 40 | 30 | 2700×3000×2300 | 4500 |
| CMPP-10000 | 4000-6000 | 30 | 55 | 3000×3700×2700 | 8000 |
| CMPP-20000 | 8000-12000 | 20 | 90 | 3500×4600×3200 | 13000 |

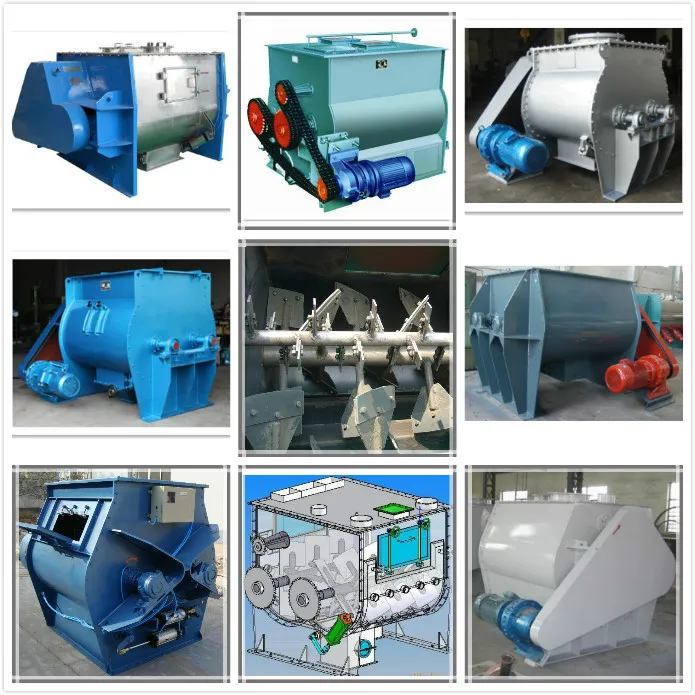

Mixers Album:
Application Industry:

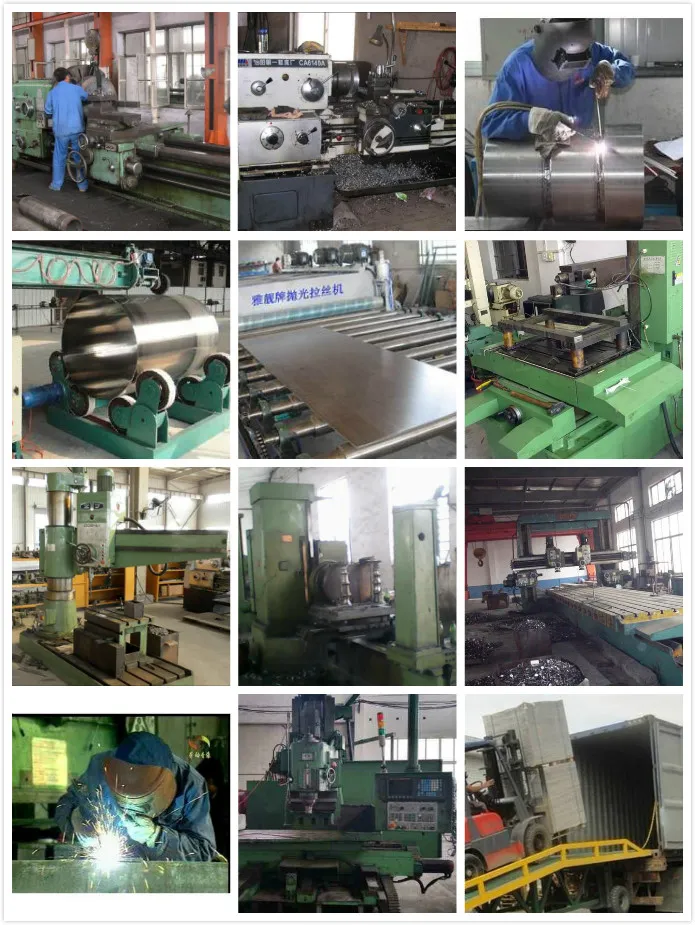

Factory Album:
