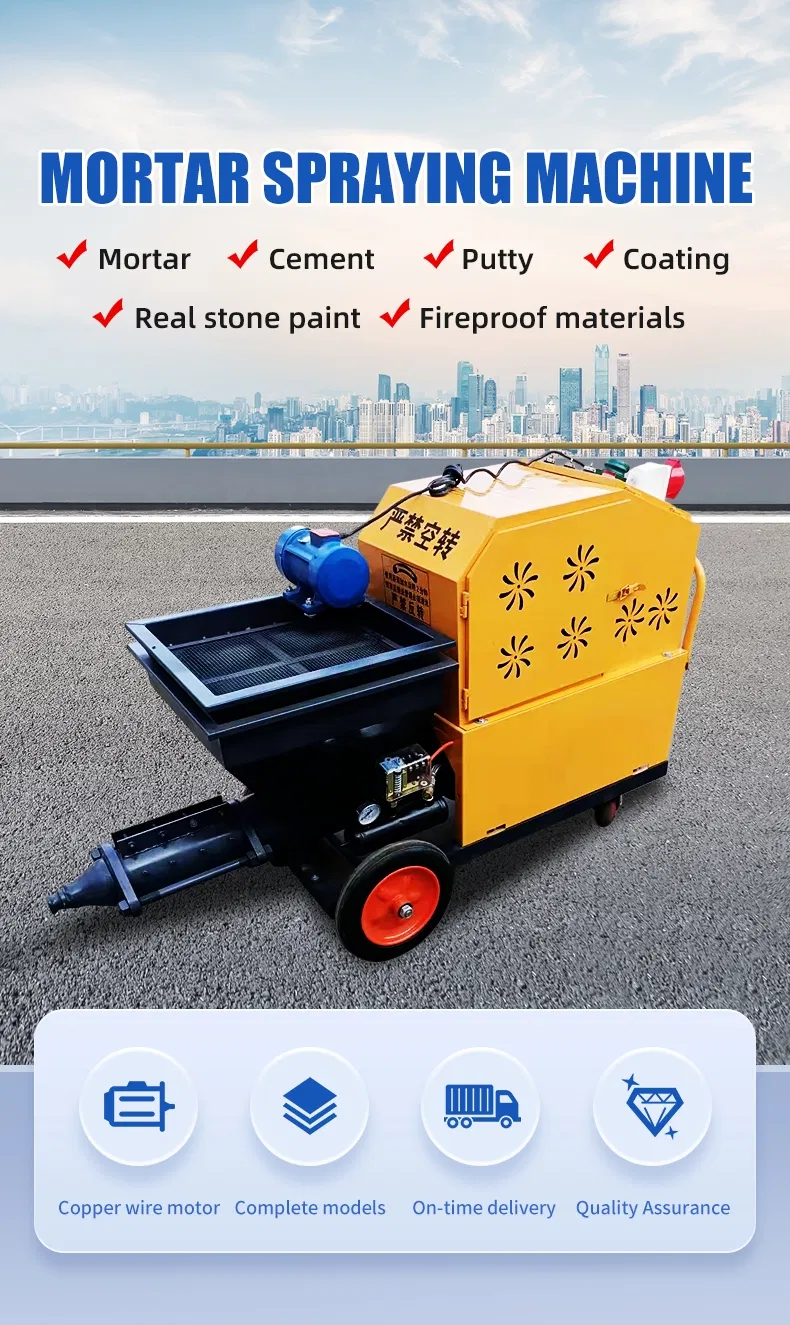

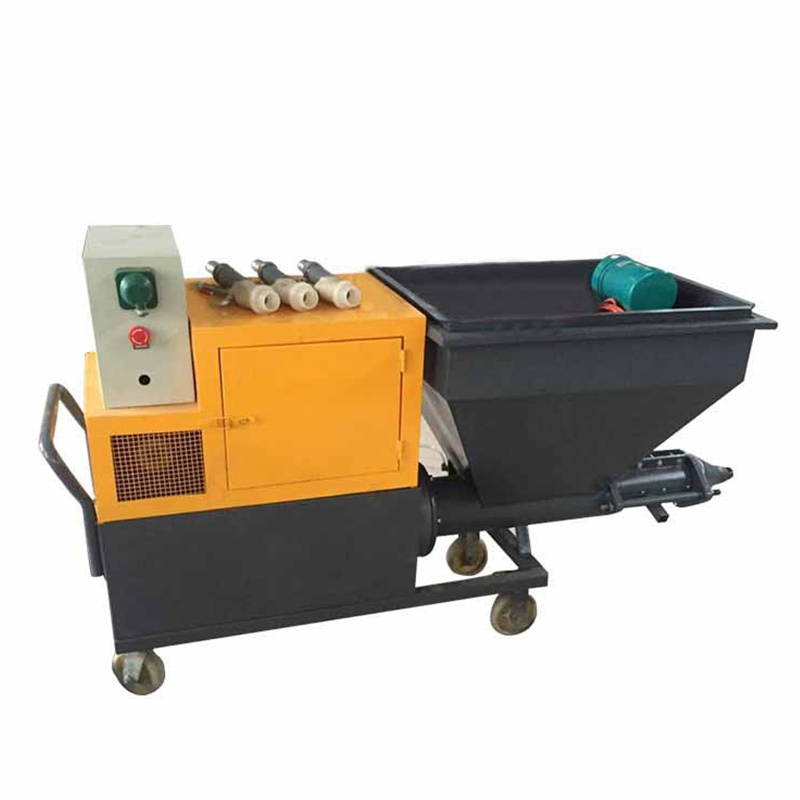

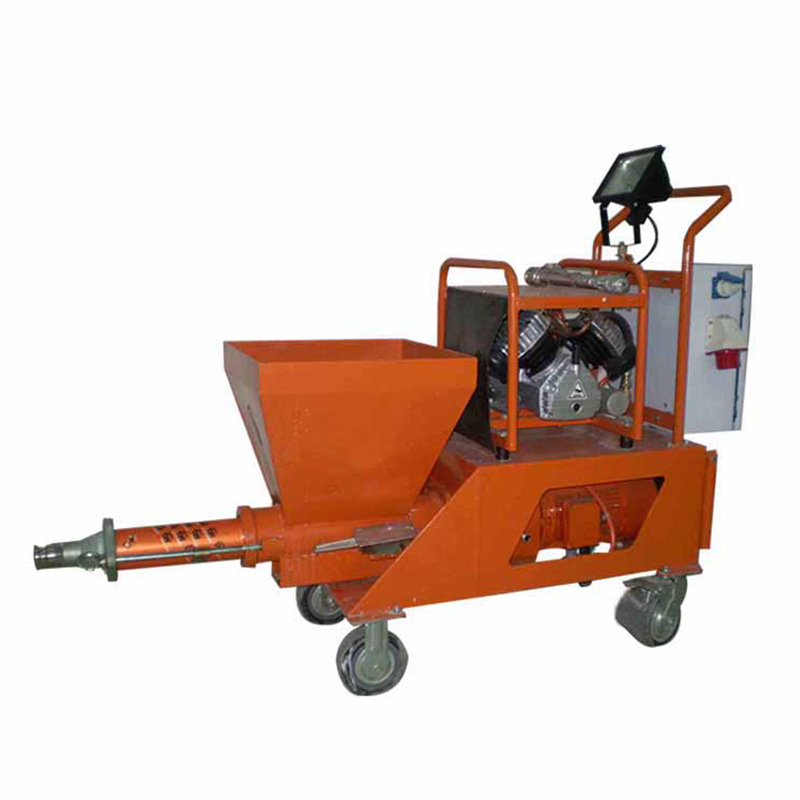

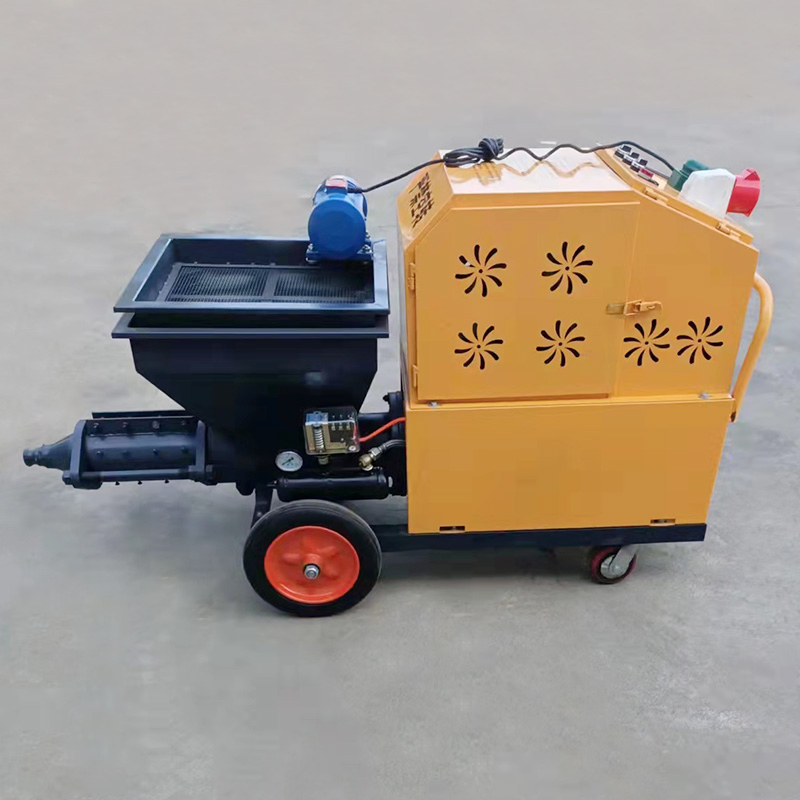

This multi-functional mortar spraying machine is specially designed for construction engineering, equipped with a pure copper core motor, featuring a sturdy body and stable operation. It is multi-purpose and compatible with cement mortar, putty, real stone paint, fireproof and waterproof materials, widely used in wall plastering and internal & external wall spraying. With uniform atomization and strong adhesion, its construction efficiency is far higher than traditional manual work, saving materials and labor while reducing high-altitude operation risks. We provide complete customizable models, source factory direct supply, with guaranteed quality and on-time delivery.
| Model | YG-311 | YG-318 | YG-711 |
| Capacity | 3m³/h | 3-5m³/h | 4-6m³/h |
| Pressure | 3 Mpa | 3 Mpa | 3 Mpa |
| Material Ratio | 0.7-1:1:3 (Water,Ash,Sand) | 0.7-1:1:3 (Water,Ash,Sand) | 0.7-1:1:3 (Water,Ash,Sand) |
| Voltage | 220V/380V ,50Hz | 380V three-phase 50Hz | 380V three-phase 50Hz |
| Main Motor Power | 4kw | 7.5kw | 7.5kw |
| Particle Size | Below 4mm | Below 8mm | Below 8mm |
| Convey Distance (Horizontal) | 30m | 50m | 50m |
| Convey Distance (Vertical) | 20m | 30m | 30m |
| Volume | 60L | 80L | 100L |
| Air Consumption | 0.3m³/min | 0.3m³/min | 0.3m³/min |
| Weight | 200kg | 320kg | 340kg |

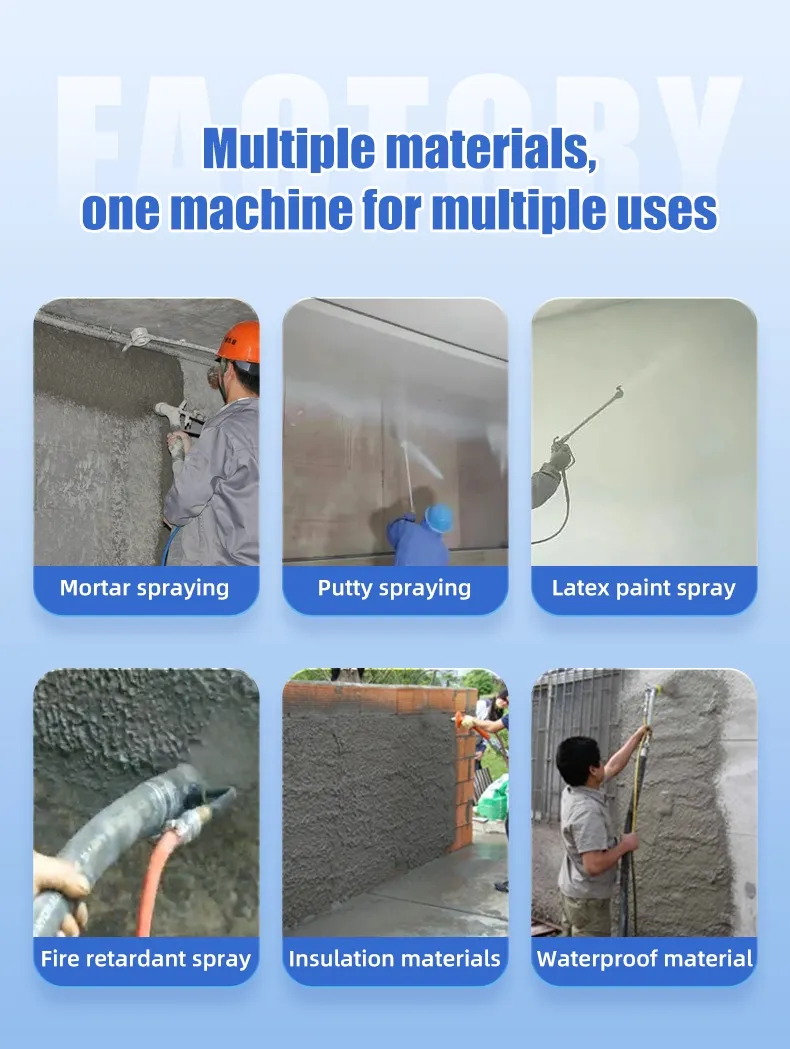

This multi-functional spraying machine is highly compatible with cement mortar, putty, real stone paint, as well as various fireproof and waterproof materials, making it suitable for a wide range of construction needs.
The machine features high-speed and uniform spraying, with the capability to cover up to 5000 to 6000 square meters per day. This significantly exceeds traditional manual plastering speeds, dramatically reducing labor time and costs.
The YG-311 model supports dual voltage configurations of 220V/380V at 50Hz with a 4kw motor. The larger YG-318 and YG-711 models operate on 380V three-phase 50Hz power with 7.5kw motors to handle high-capacity requirements.
For the YG-311, the conveying range is 30m horizontally and 20m vertically. For both YG-318 and YG-711 models, it reaches up to 50m horizontally and 30m vertically, which easily fulfills high-altitude construction needs.

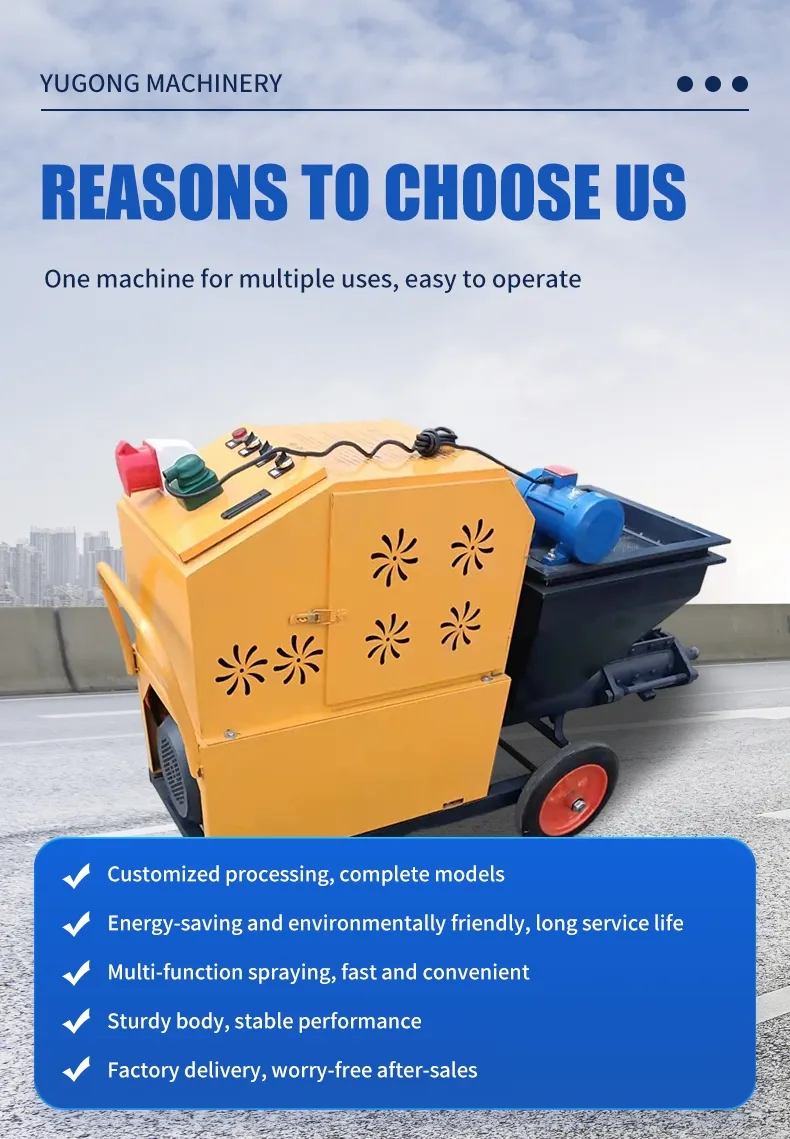

Yes, we provide complete customizable models and support custom processing to fit various application environments. As a source factory direct supplier, we ensure quality control and customized solutions.

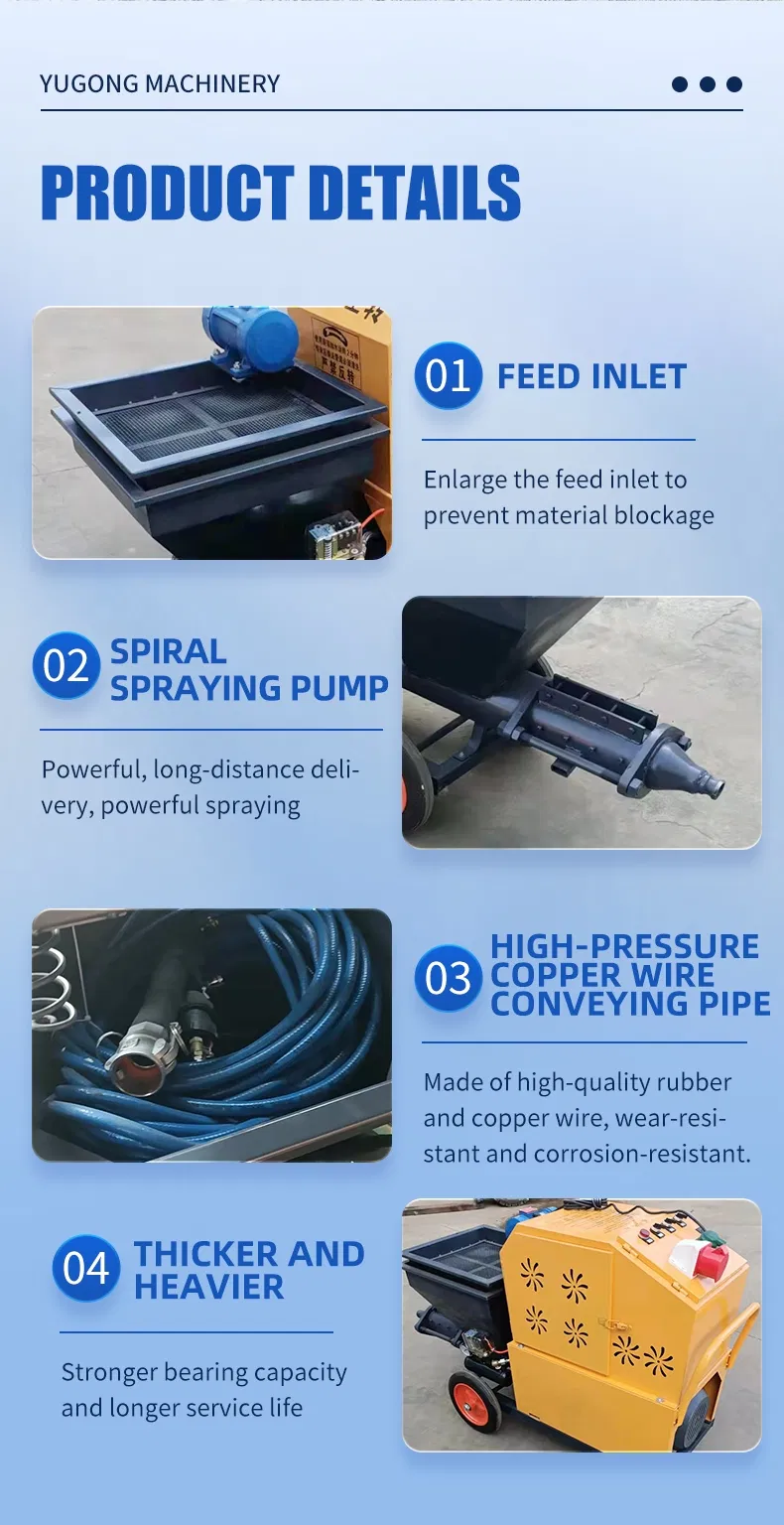

The machine is built with a high-durability copper wire motor and an anti-block inlet system. Combined with fan-shaped atomization, it offers stable, even spraying and high adhesion, minimizing material fallback and waste.
