We are a first-class supplier of CNPC and Sinopec, qualified supplier of CHINA AEROSPACE, CHINESE ACADEMY OF SCIENCES, and Yanchang Petroleum group. Our expertise contributes to the compilation of relevant standards in the China volume pump reciprocating pump industry.
As a professional high-pressure reciprocating pump designer and manufacturer, we export to global markets including the USA, Japan, South America, Canada, South Africa, Middle East, Central Asia, Russia, and Southeast Asia.
Core Competencies:
Available Series: T Series Triplex Pump, Q Series Quintuplex Pump; Series Triplex Piston Pump; Series Quintuple Piston Pump; High Pressure Steam Boiler Feedwater Pump; High Pressure Cleaning Pump; Reciprocating Crude Oil Transportation Pump; CO2 Injection Pump, and Supercritical CO2 Pumps.
| Model | Plunger Dia. (mm) | Max. Pressure (Mpa) | Flow (L/min) | Flow (m3/h) | Power (Kw) |
|---|---|---|---|---|---|
| 3RC60 | 23 | 50 | 22 | 1.3 | 22 |
| 3RC60 | 26 | 40 | 29 | 1.7 | 22 |
| 3RC60 | 30 | 30 | 38 | 2.3 | 22 |
| 3RC75 | 27 | 50 | 40 | 2.4 | 45 |
| 3RC75 | 35 | 30 | 67 | 4.0 | 45 |
| 3RC80A | 22 | 80 | 27 | 1.6 | 45 |
| 3RC80A | 31 | 40 | 54 | 3.3 | 45 |
| 3RCZ80 | 31 | 70 | 53 | 3.2 | 75 |
| 3RCZ80 | 34 | 60 | 64 | 3.9 | 75 |

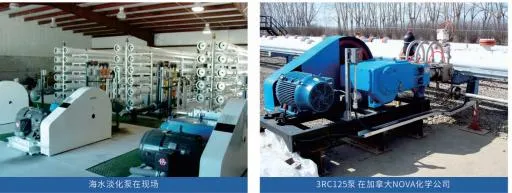

3RC125 PUMP - Canada
Q550 PLUNGER PUMP - USA

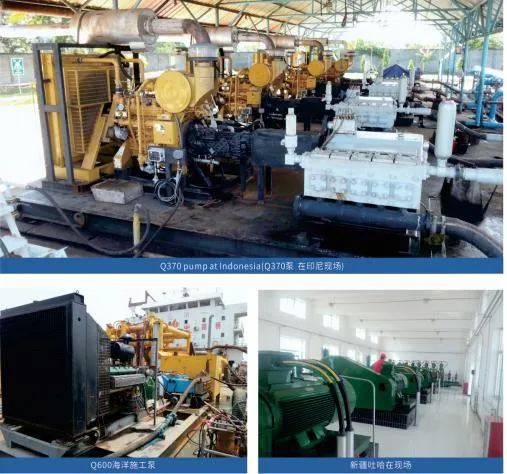

Q370 PUMP - Indonesia
