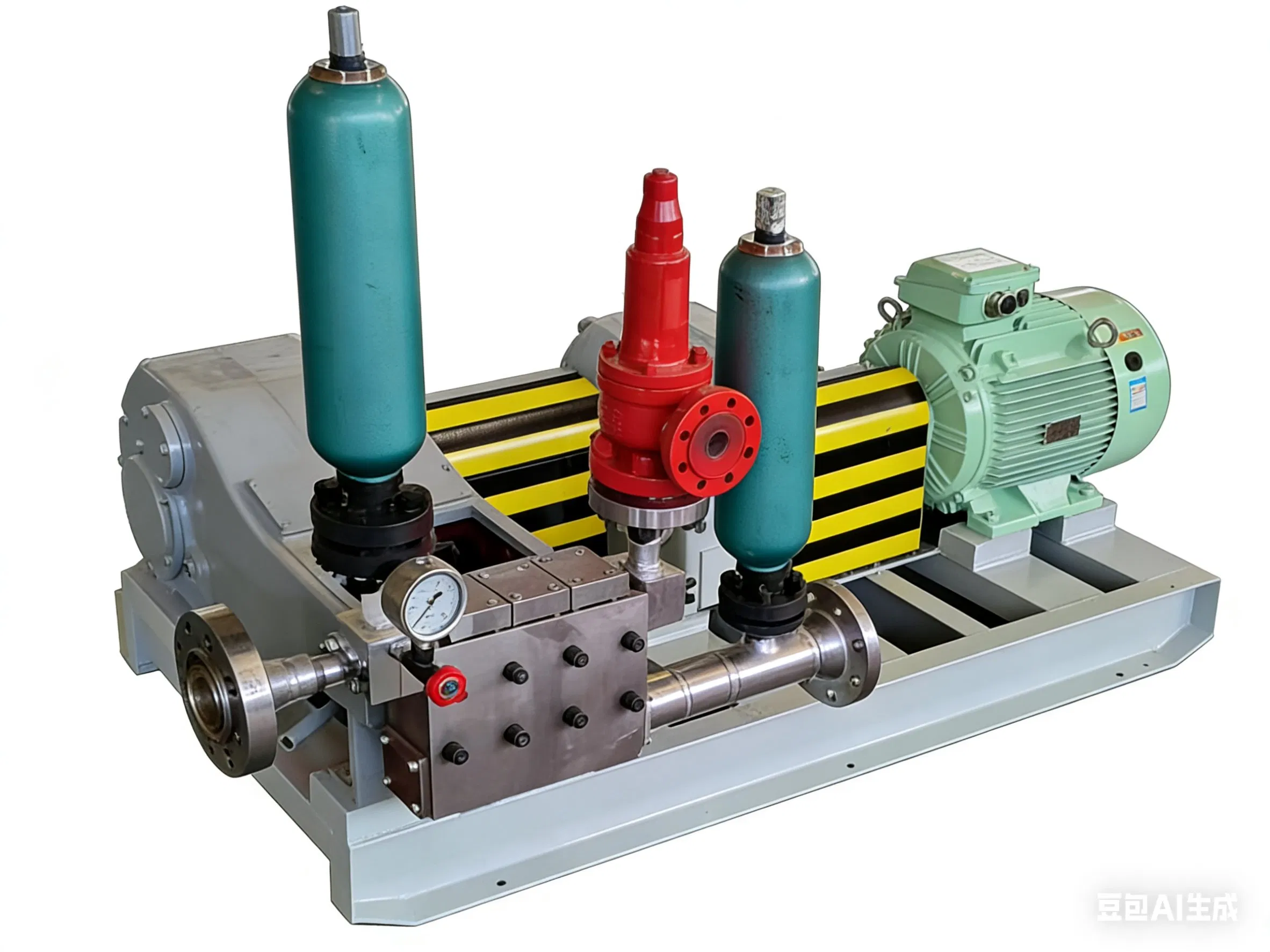

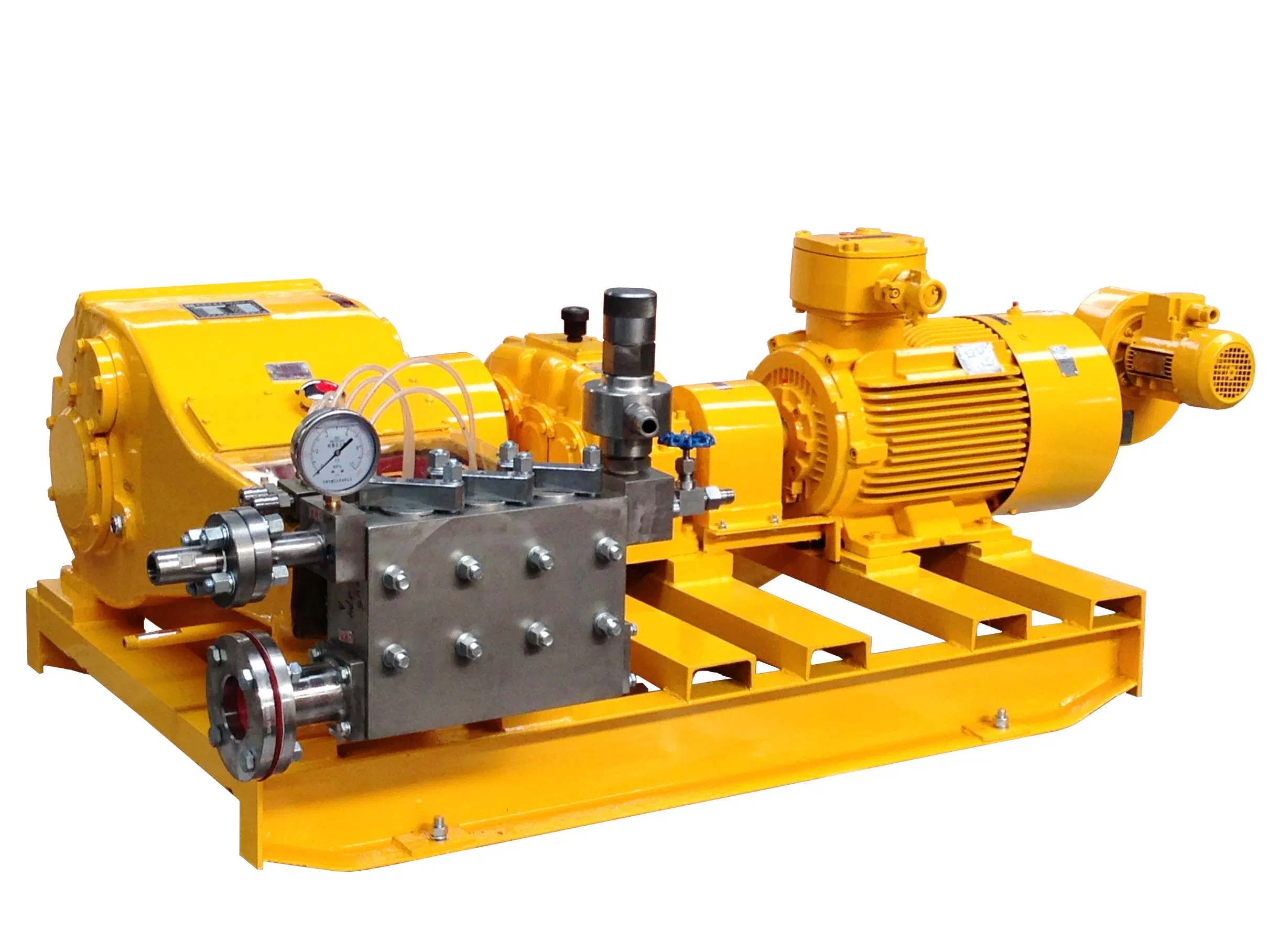

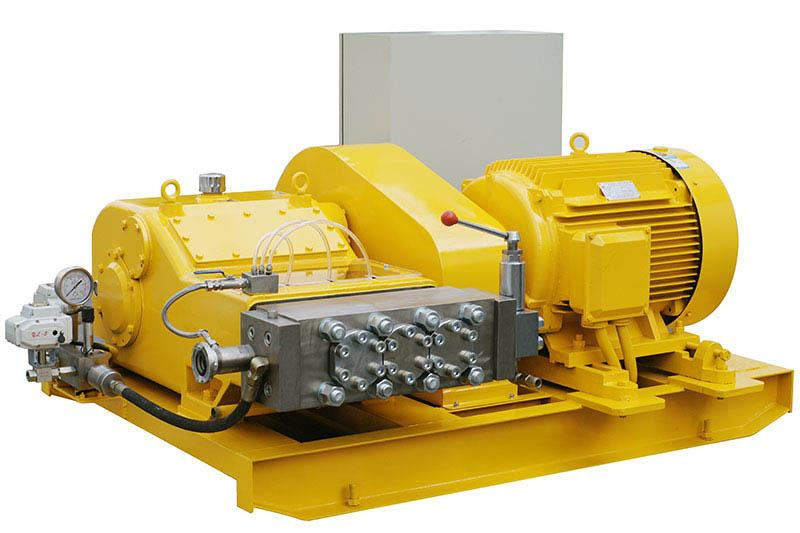

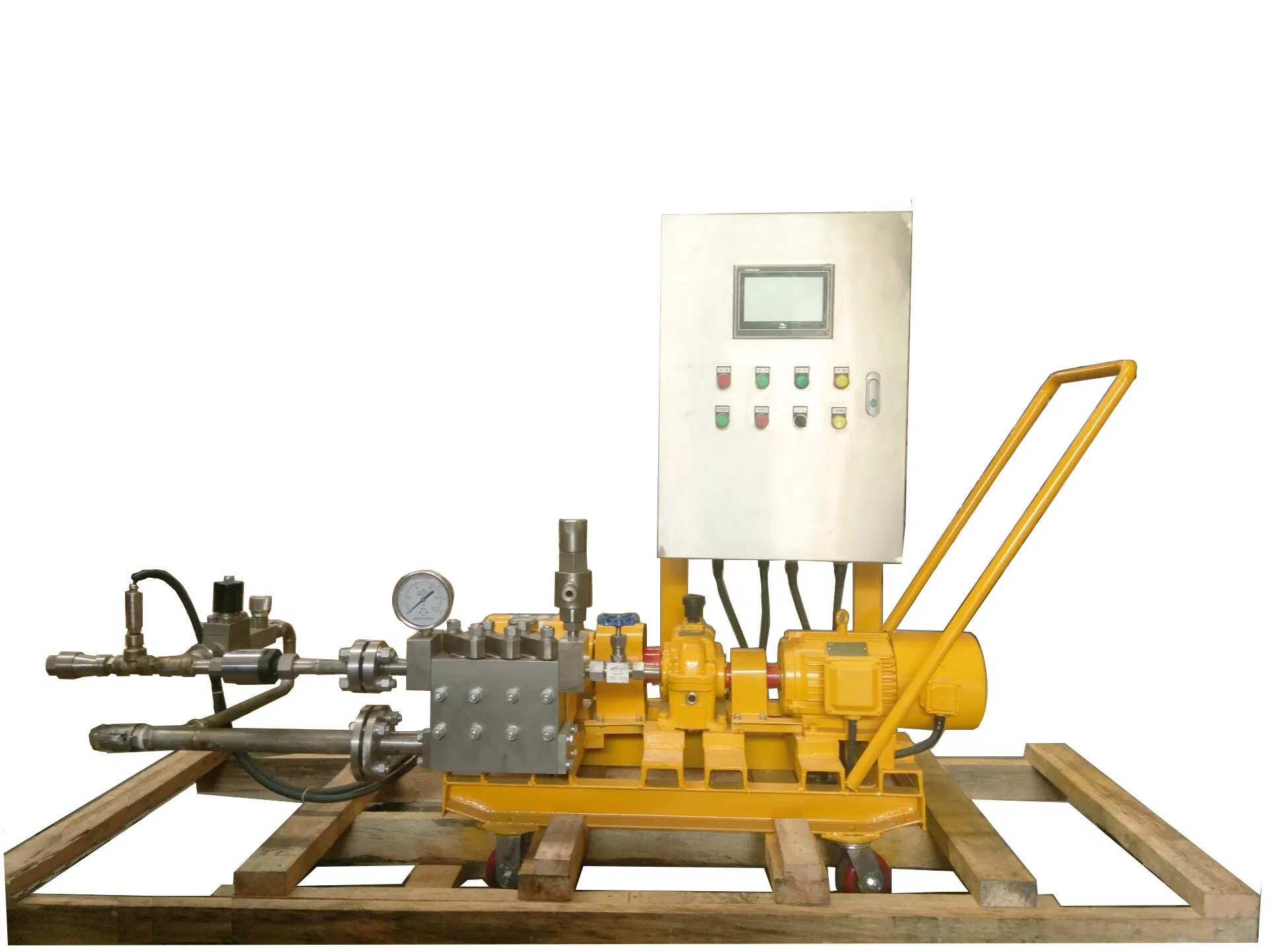

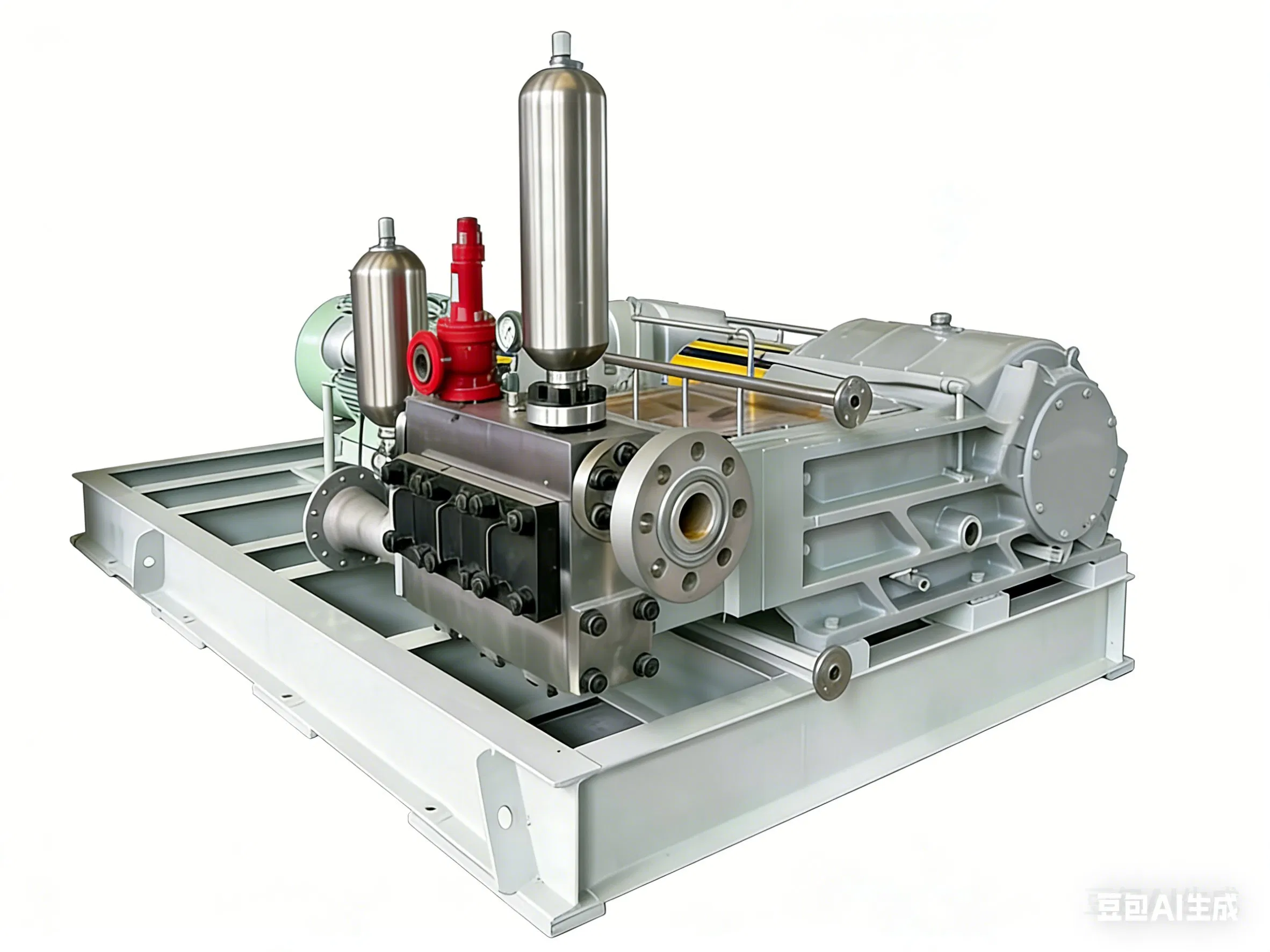

Horizontal Triplex High Pressure Plunger Pump for Water Injection and Chemicals

Basic Specifications

Model NO.

3SHP

Structure

Axial Plunger Pump

Cylinder Number

Multi Cylinder

Drive Mode

Hydraulic Driven Reciprocating

Shaft Position

Horizontal

Power

Electric

Max Capacity

345 M3/H

Driver

Motor, Engine, etc

Origin

China

HS Code

84135000

Packaging & Delivery

Package Size

260.00cm * 120.00cm * 150.00cm

Gross Weight

300.000kg

Package Type

Standard Export Package

Product Description

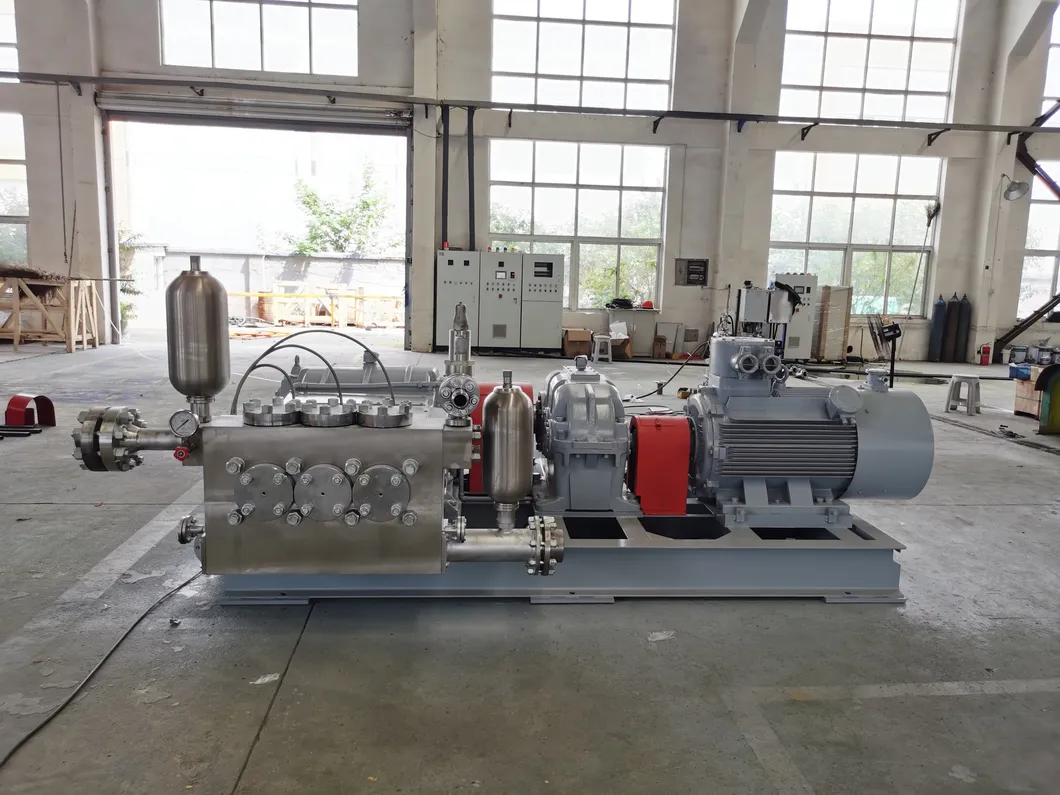

High Pressure Triplex Plunger Reciprocating Pump

Our reciprocating pumps are leading in the industry, designed according to the international API674 standard. These products meet extremely strict working conditions and can accurately and reliably transport materials. The reciprocating pump features a compact structure, safe and reliable operation, and is widely favored in various application fields.

Main Parameters

Models:	SHP20, SHP35, SHP40, SHP60, SHP75N, SHP75N-100, SHP80, SHP120, SHP160, SHP150A, SHP170A, SHP200A, SHP270A, SHP90N, SHP120N, SHP130N
Maximum Flow Rate:	130m³/h
Max Discharge Pressure:	200MPa
Assembly Types:	Horizontal, Vertical, Fixed, and Mobile types
Transmission Types:	Electric motor, diesel engine, gearbox, pulley, electromagnetic speed regulation, frequency conversion.
Medium Temperature:	Can reach over 350 ºC

Application Areas

🛢️

Oil and Gas: Used for high-pressure water injection and gas injection to improve oil recovery.

⚗️

Chemical Industry: Transporting corrosive or high-temperature liquids like acid-base solutions.

💊

Pharmaceutical: Meeting strict cleanliness requirements for drug manufacturing sterile environments.

🍎

Food Industry: High-pressure treatment for milk and juice to extend shelf life.

💧

Water Treatment: Ideal for pressurized water delivery and reverse osmosis treatment.

⛏️

Mining: Handles slurry transportation and tailings treatment efficiently.

🧼

High Pressure Cleaning: Suitable for building exterior walls and vehicle cleaning.

Frequently Asked Questions (FAQ)

What international standards do these pumps follow?

Our triplex plunger reciprocating pumps are designed in accordance with the international API674 standard, ensuring high performance and safety in demanding environments.

What is the maximum pressure and flow rate available?

The series can achieve a maximum discharge pressure of up to 200MPa and a maximum flow rate of 130m³/h, depending on the specific model selected.

Can these pumps handle high-temperature fluids?

Yes, our pumps are engineered to handle conveying media with temperatures reaching over 350 ºC, making them suitable for extreme industrial processes.

What types of drive modes are supported?

We offer various transmission options including electric motors, diesel engines, gearboxes, and frequency conversion speed regulation to suit different operational needs.

Are there different assembly configurations available?

Yes, the pumps can be configured as horizontal, vertical, fixed, or mobile types to accommodate specific site requirements and space constraints.

Which industries benefit most from triplex plunger pumps?

These pumps are essential in the oil and gas, chemical, pharmaceutical, food processing, water treatment, mining, and high-pressure cleaning industries.
