Multi-Functional Small Inside and Outside Wall Rendering Spray Automatic Type Cement Wall Mortar Plastering Cement Spraying Machine
Multi-Functional Small Inside and Outside Wall Rendering Spray Automatic Type Cement Wall Mortar Plastering Cement Spraying Machine
Multi-Functional Small Inside and Outside Wall Rendering Spray Automatic Type Cement Wall Mortar Plastering Cement Spraying Machine
Multi-Functional Small Inside and Outside Wall Rendering Spray Automatic Type Cement Wall Mortar Plastering Cement Spraying Machine
Multi-Functional Small Inside and Outside Wall Rendering Spray Automatic Type Cement Wall Mortar Plastering Cement Spraying Machine
1 / 5
Multi-Functional Small Inside and Outside Wall Rendering Spray Automatic Type Cement Wall Mortar Plastering Cement Spraying Machine
Multi-Functional Small Inside and Outside Wall Rendering Spray Automatic Type Cement Wall Mortar Plastering Cement Spraying Machine
Multi-Functional Small Inside and Outside Wall Rendering Spray Automatic Type Cement Wall Mortar Plastering Cement Spraying Machine
Multi-Functional Small Inside and Outside Wall Rendering Spray Automatic Type Cement Wall Mortar Plastering Cement Spraying Machine
Multi-Functional Small Inside and Outside Wall Rendering Spray Automatic Type Cement Wall Mortar Plastering Cement Spraying Machine

Multi-Functional Small Inside and Outside Wall Rendering Spray Automatic Type Cement Wall Mortar Plastering Cement Spraying Machine

Send Inquiry

Product Description

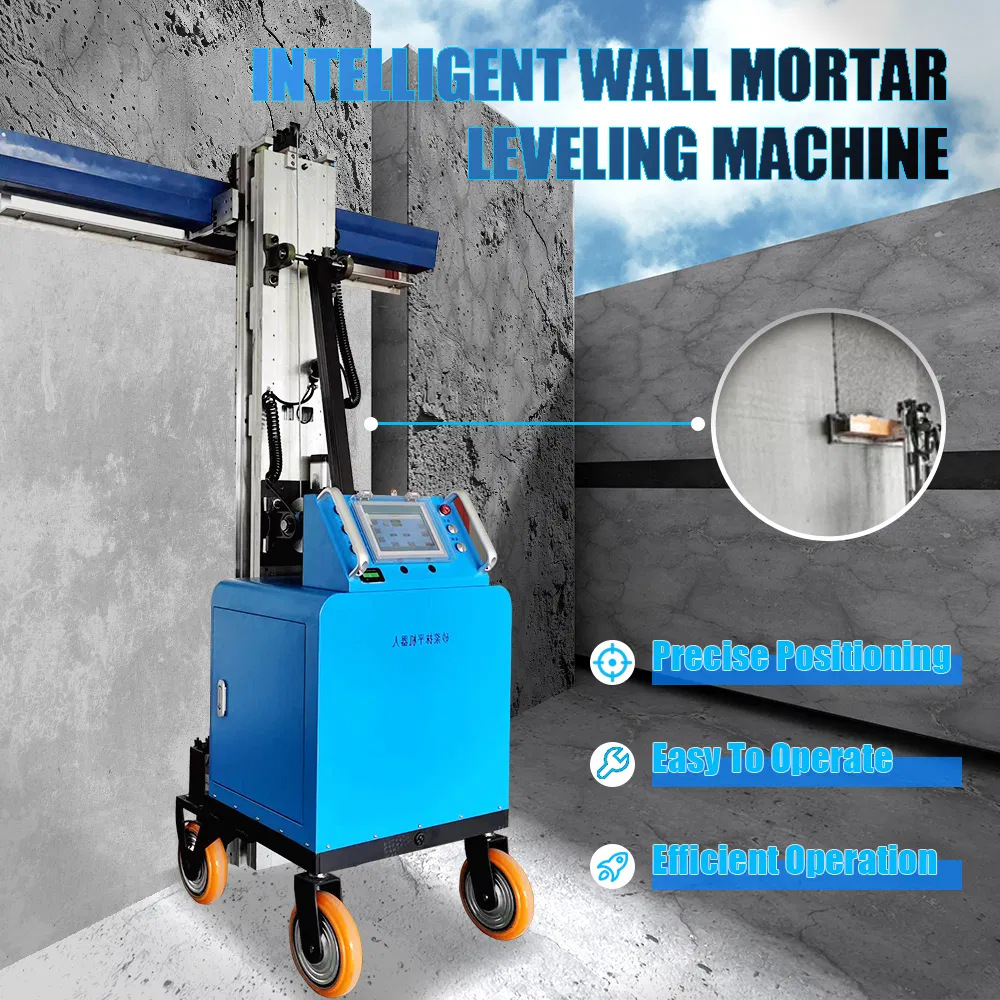

Wall Plastering Machine
1
Introduction Of Wall Plastering Machine

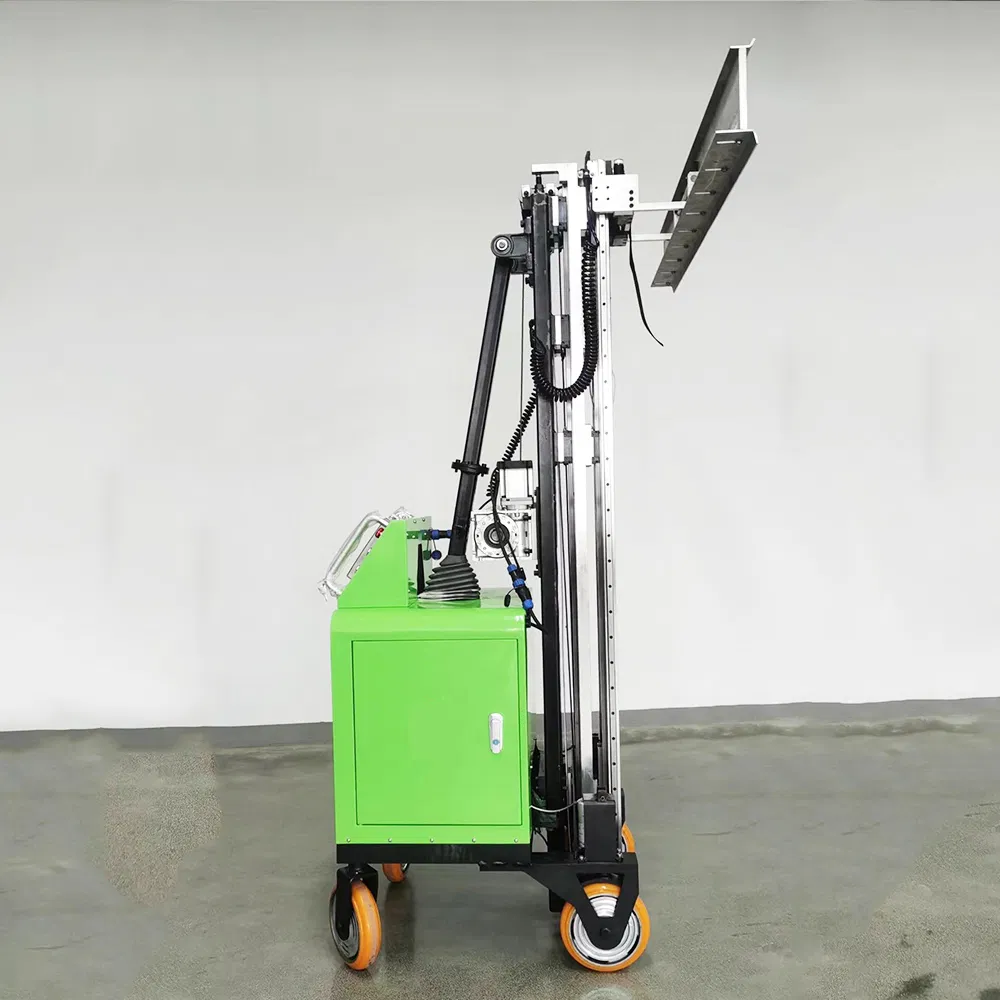

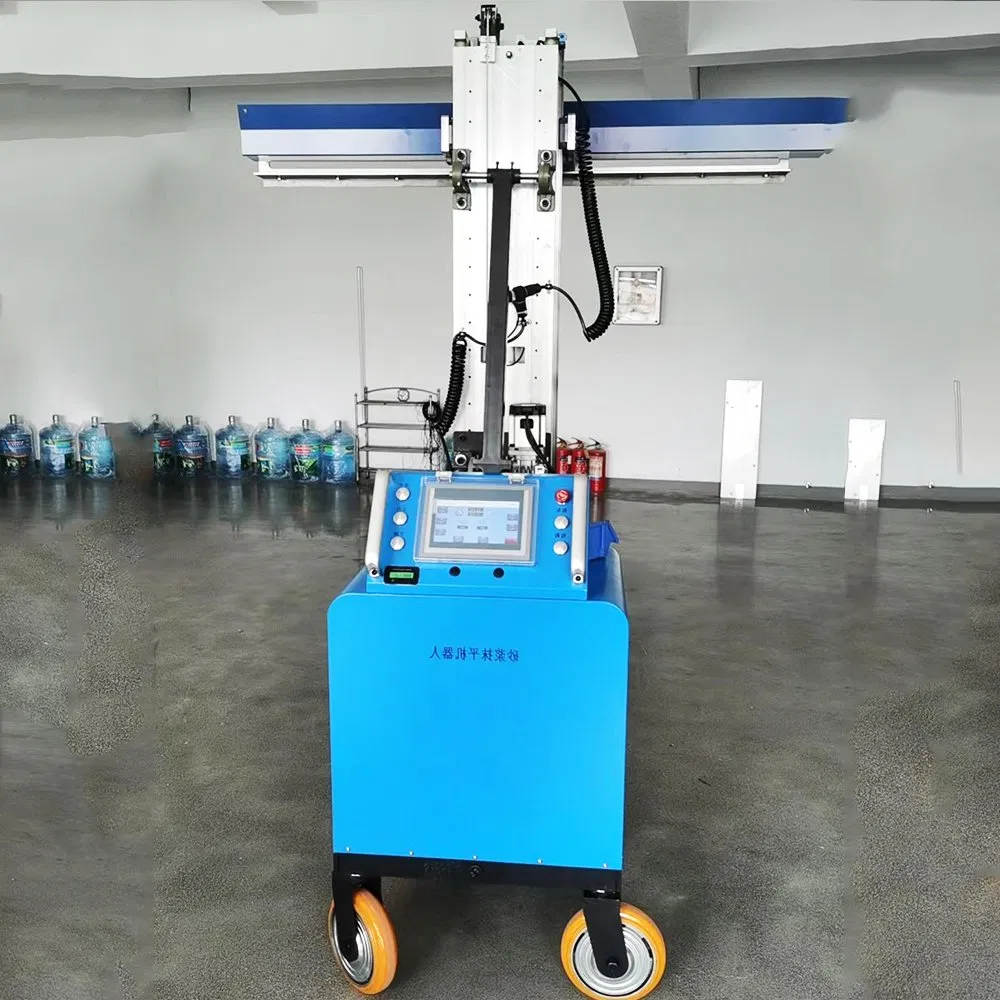

Wall mortar intelligent scraping robot, by the sensor, logic programmer, servo system, attitude adjustment mechanism, plastering robot arm and spatula and other components, 48V battery-powered, wheeled mobile, automatic correction of vertical and leveling, knife width of 1.3 meters, smoothing height of 3 meters, 4 meters, etc., with the use of mortar sprayer, you can quickly scrape the cement mortar on the wall, high efficiency, easy to operate.
2
Product Parameters
Parameters Header
Name Parameters
ColorYellow, green, blue, white
VoltageDC48V
Power supply methodlithium iron phosphate battery
Standard battery capacity35AH
Angle adjustment methodSensor with electric cylinder
Parameter display and setting methodTouch Screen Monitor
Elevate the motorDC48V0.75kw brushless servo motor
Braking methodElectric brake
Robot arm dimensions mm242*120*18500
Host dimensions (L*W*H) mm700*550*1050
Overall dimensions (L*W*H) mm850*550*1920/895*550*192
Spatula length m1.3 meters
Leveling height m3m/4m
Total weight Kg187/210
Package size and weight /3m1050mm*660mm*2090mm/236kg
Package size and weight /4m1100mm*660mm*2090mm/266kg
3
Detailed Analysis
Detailed Photos Header

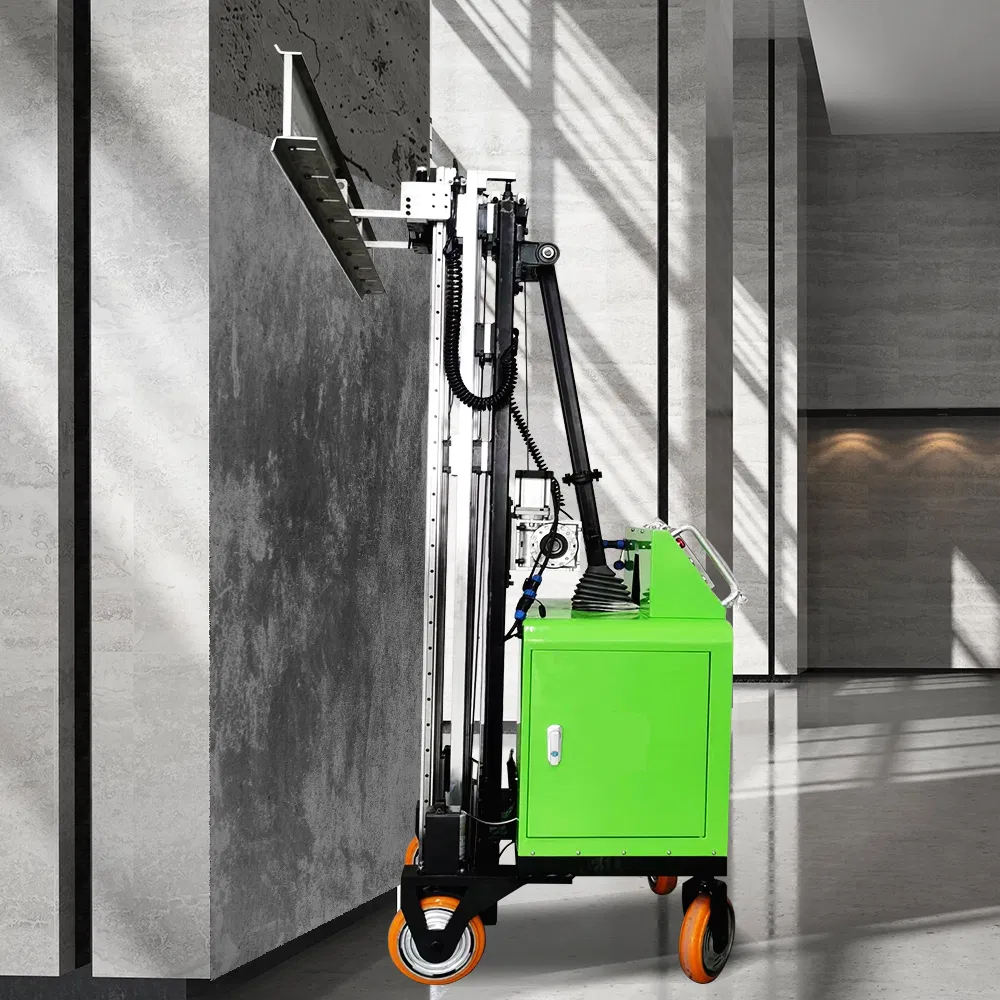

Fields of application
Fields of application

Construction engineering: widely used in residential, commercial and industrial building interior and exterior wall plastering.

Decoration market: used for new house decoration, old house wall renovation, often used for base treatment and waterproofing projects.

Waterproofing project: It should be used in toilets, kitchens, exterior walls and other areas that need to be waterproof to ensure water tightness.

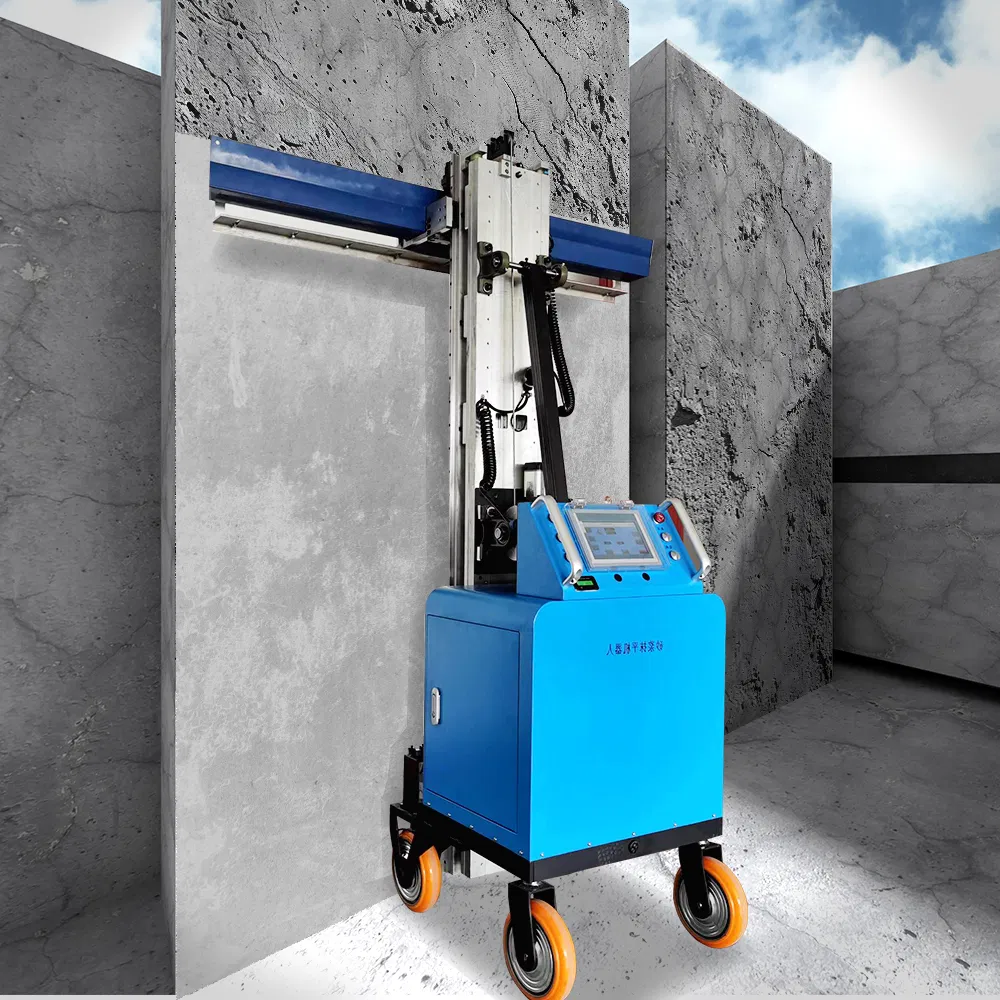

How it works
How it works

Feeding system: conveys the mortar from the hopper to the nozzle or plastering knife.

Applicator mechanism: Usually composed of a vibrating or rolling blade, the applicator is evenly applied to the wall by rotating or reciprocating motion.

Control system: control the walking speed, coating thickness and other parameters of the plastering machine to ensure the consistency of the application effect.

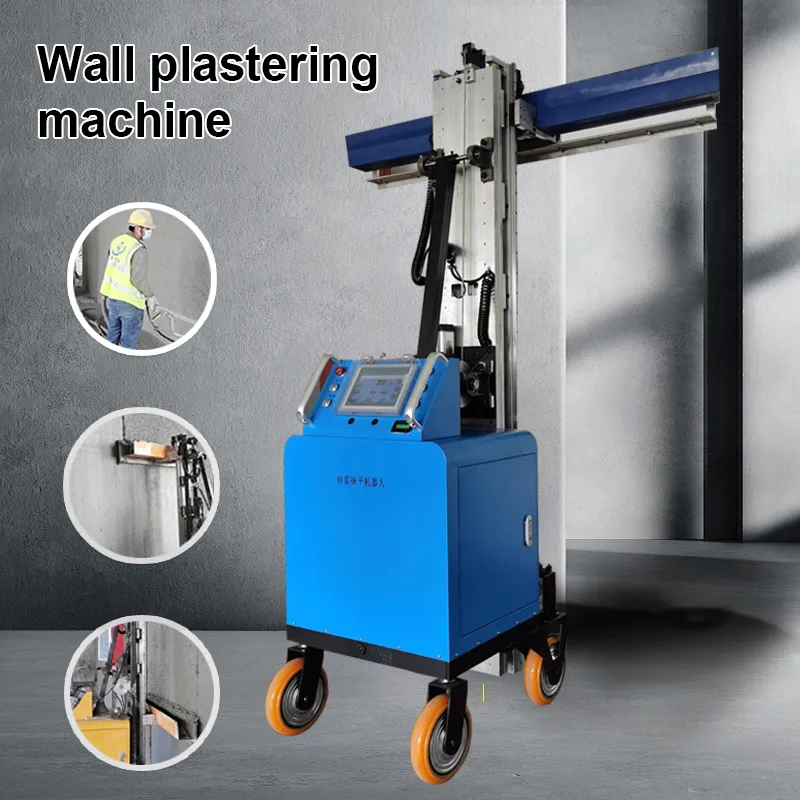

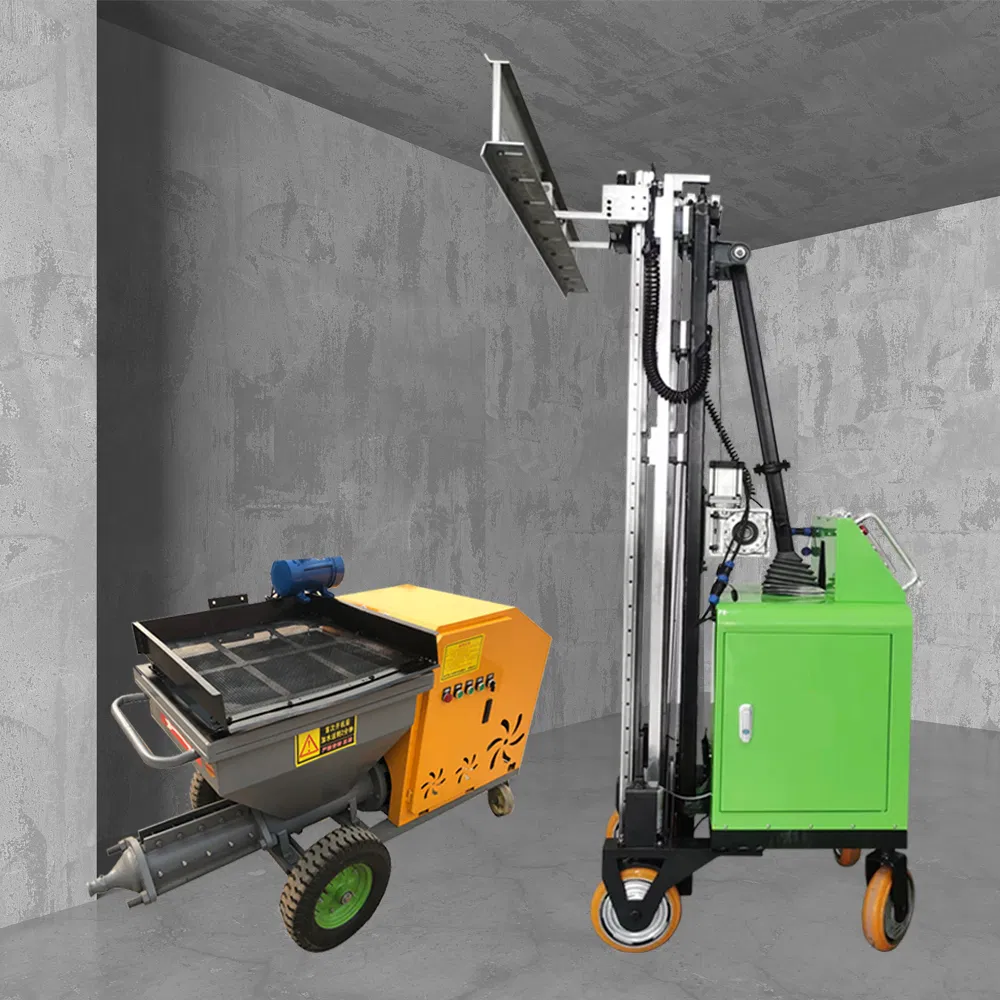

Machine View 1 Machine View 2

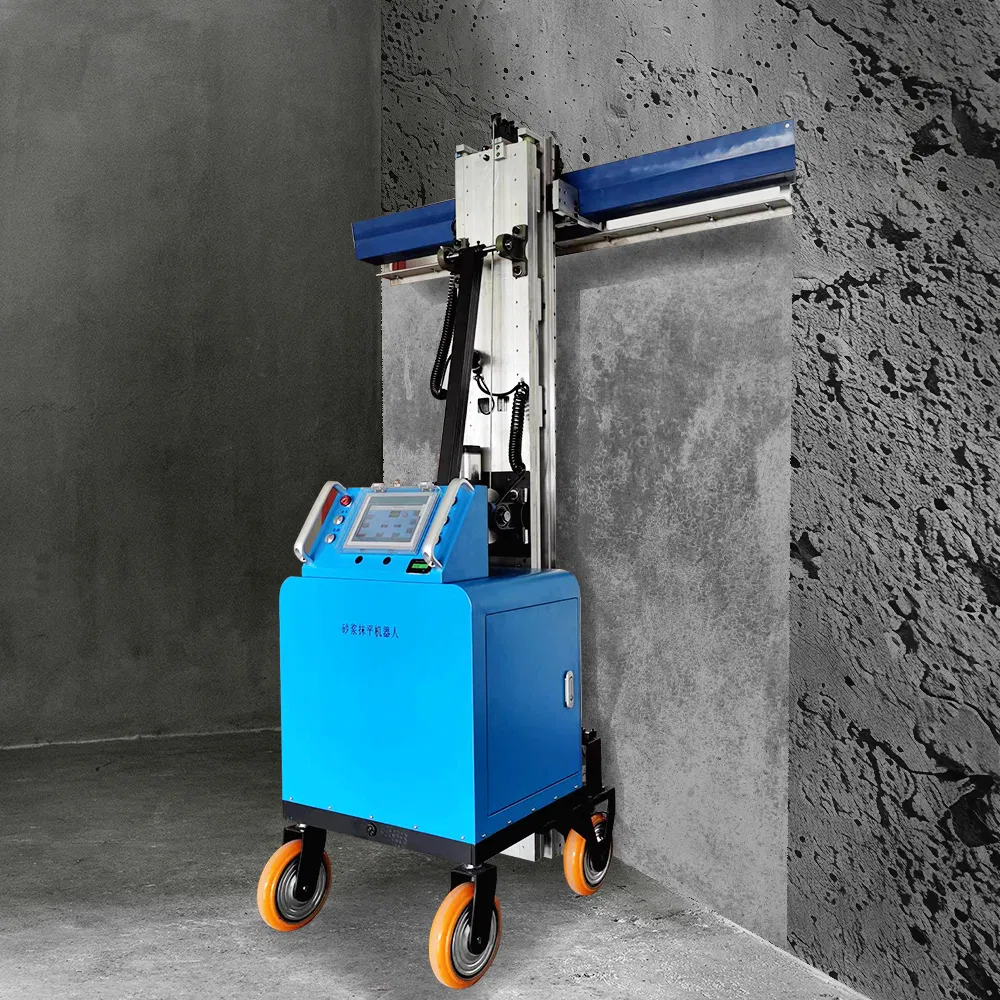

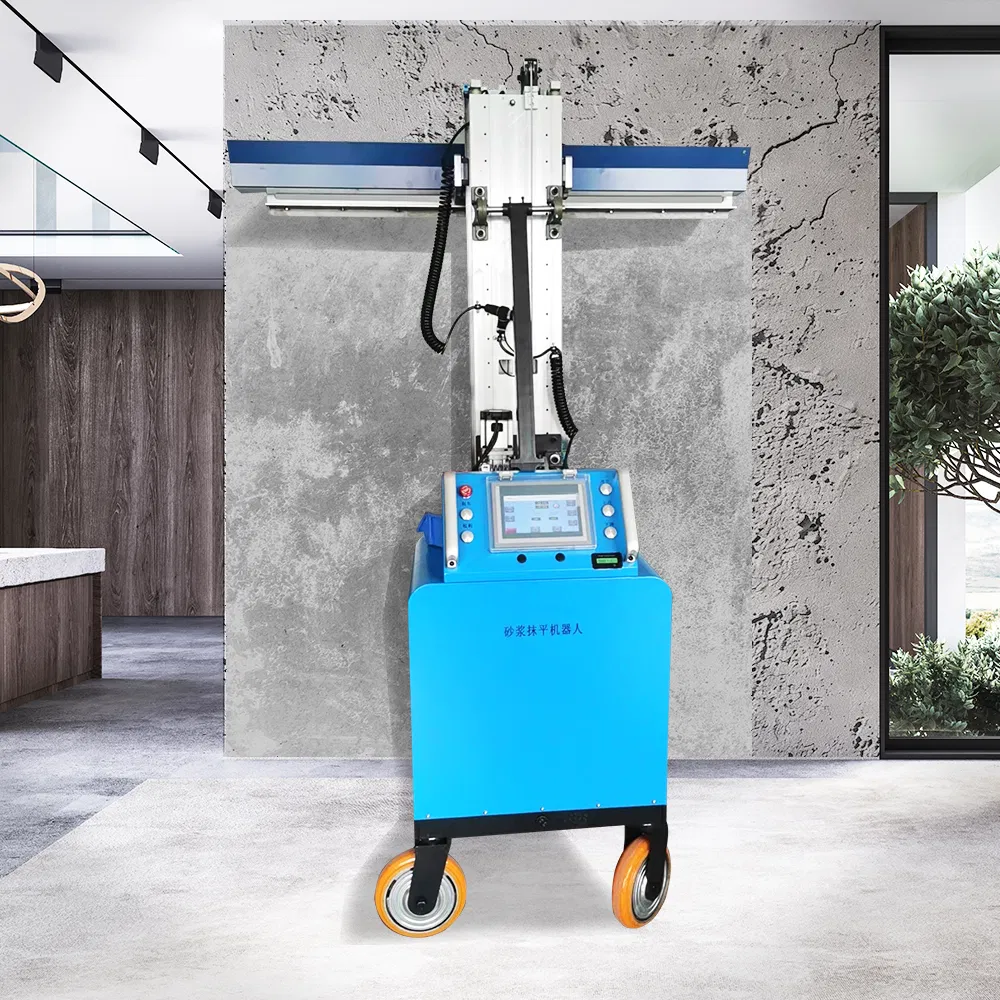

Machine View 3 Machine View 4 Machine View 5
4
Certifications & Advantages
Certifications
Advantage 1 Advantage 2
Advantage Detail 1 Advantage Detail 2
Frequently Asked Questions
What is the primary function of the Wall Plastering Machine?
The machine is an intelligent robot designed to automatically scrape and smooth cement mortar on walls with high precision and efficiency.
What kind of power source does the robot use?
It is powered by a 48V lithium iron phosphate battery, making it mobile and independent of direct cable connections during operation.
What is the maximum height the machine can reach for plastering?
The machine supports leveling heights of 3 meters and 4 meters, depending on the specific configuration.
Is the machine capable of automatic leveling?
Yes, it features a sensor-driven attitude adjustment mechanism and logic programmer for automatic correction of verticality and leveling.
What is the width of the scraping spatula?
The standard spatula length is 1.3 meters, allowing for a wide coverage area in a single pass.
Can it be used for exterior wall waterproofing?
Yes, it is widely used for base treatments in waterproofing projects for kitchens, toilets, and exterior walls to ensure water tightness.
