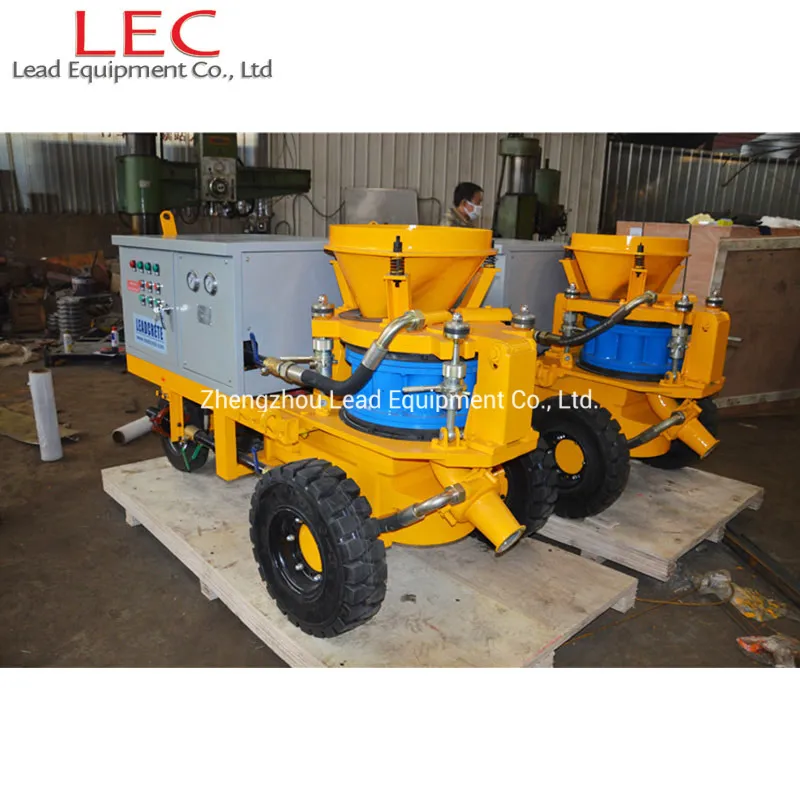

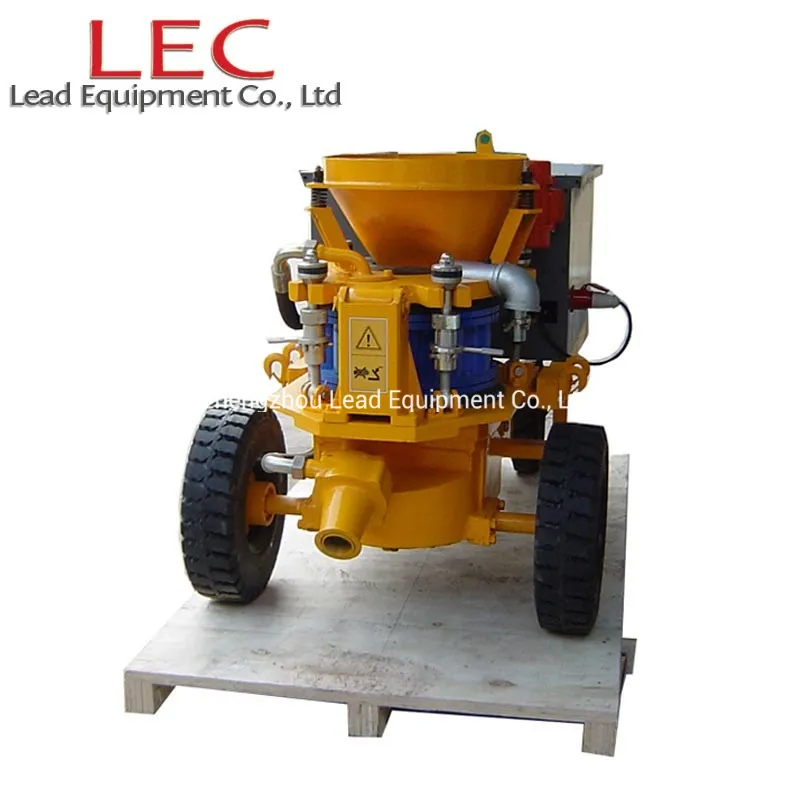

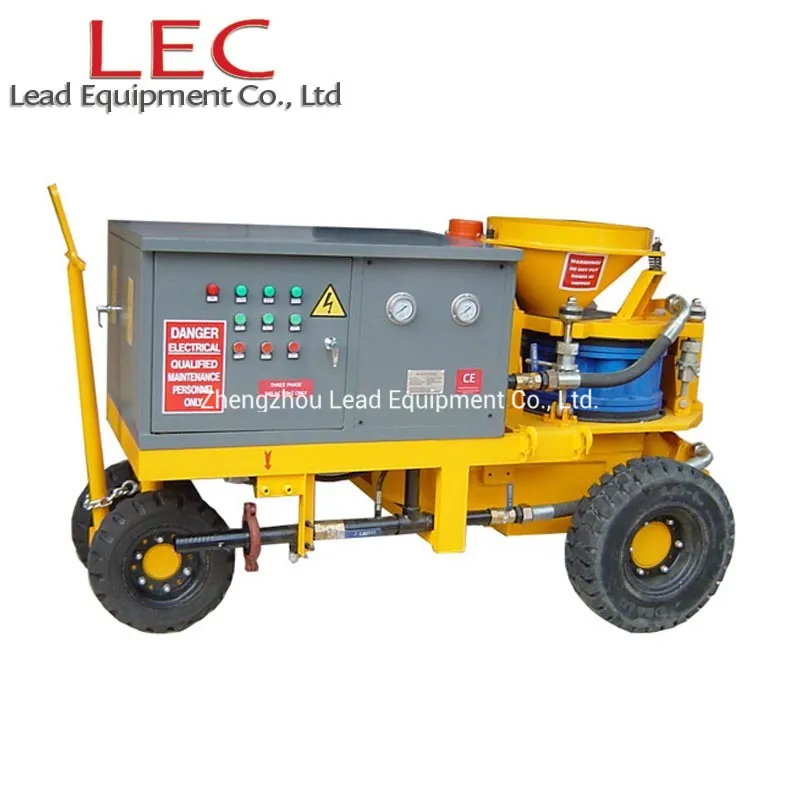

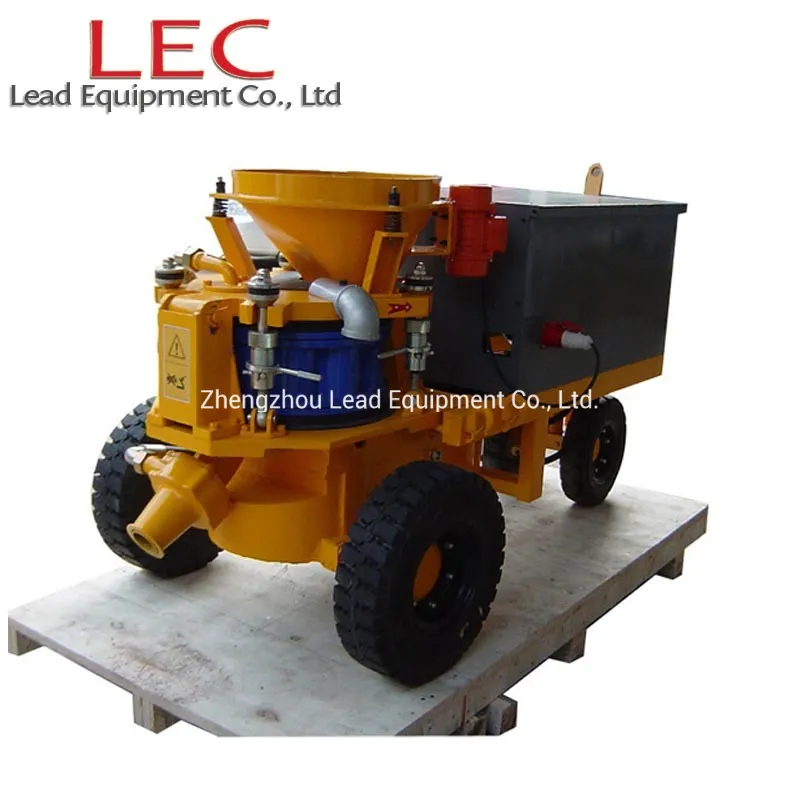

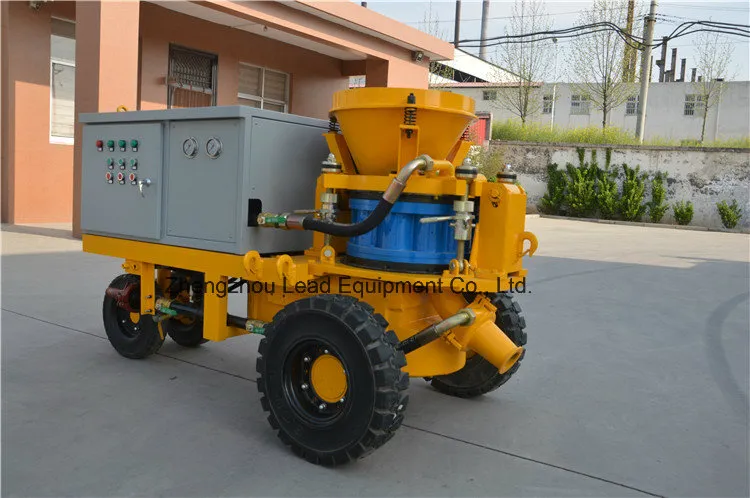

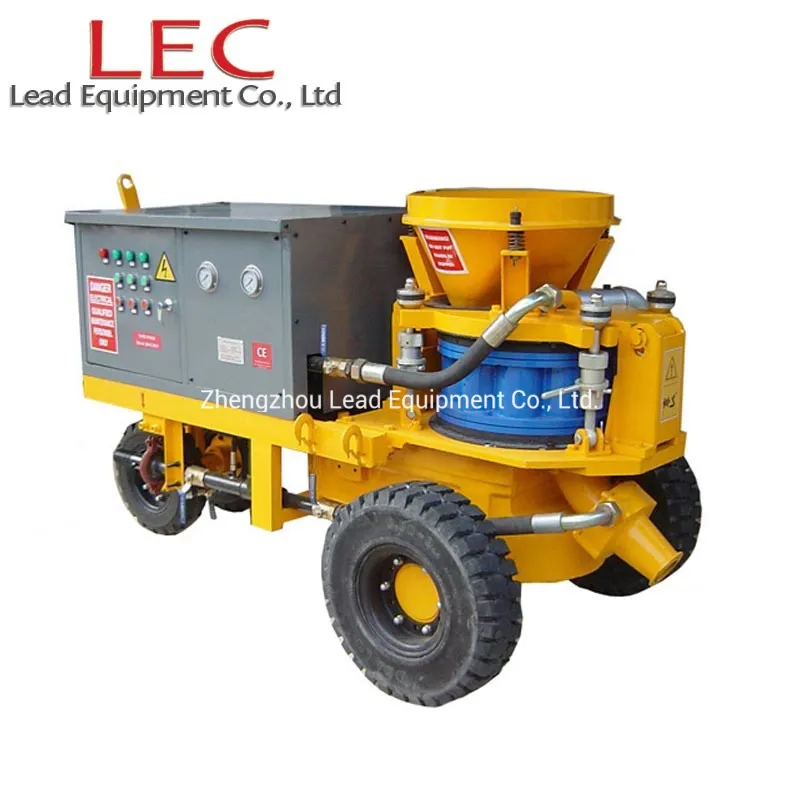

LSZ3000 shotcrete machine is a universal concrete spraying machine for the processing of wet or dry mix. LSZ3000A due to its full pneumatic driven unit, for the required anti-explosion applications, such as coal mining, tunnel and underground engineering, this unit is perfect and specific one.
The machine is suitable either for manual spraying or by means of a robotic arm.
Basic: Electric drive can be combined with tyre chassis.
Extended (optional): Air motor drive or diesel drive combined with Skid or Rail-wheel
LSZ3000 is developed for the application of shotcrete in tunnel building, mines and slopes. This machine has been designed especially for fibre spraying. And the dosing unit is combined with this machine.
It can both for dry and shotcrete concrete spraying.
| Drive type | electric motor drive |
| Rated Output | 5m3 /h |
| Max. Horizontal Conveying Distance | 35m |
| Max. Aggregate Size | 15mm |
| Concrete Slump | 8 -15cm |
| Conveying Hose Inner Diameter | 51/ 64mm |
| Operating air Pressure | 0.3-0.6MPa (43-86PSI) |
| Air Consumption | 10~ 12m3 /min(357-430CFM) |
| Main Motor Power | 7.5kW(10hp) |
| Dosing Pump | LH-15 |
| Dosing Pump Rated Pressure | 0.6MPa(86PSI) |
| Dosing Pump Output | 17.5 -88L /h |
| Voltage | 220V, 380V, 440V, 660V, 50Hz/60Hz |
| Material Charging Height | 1.17m |
| Rotor Speed | 11r/min |
| Overall Dimension(L × W × H) | 2.05× 0.95× 1.18m |
| Net Weight | 1200kg |
