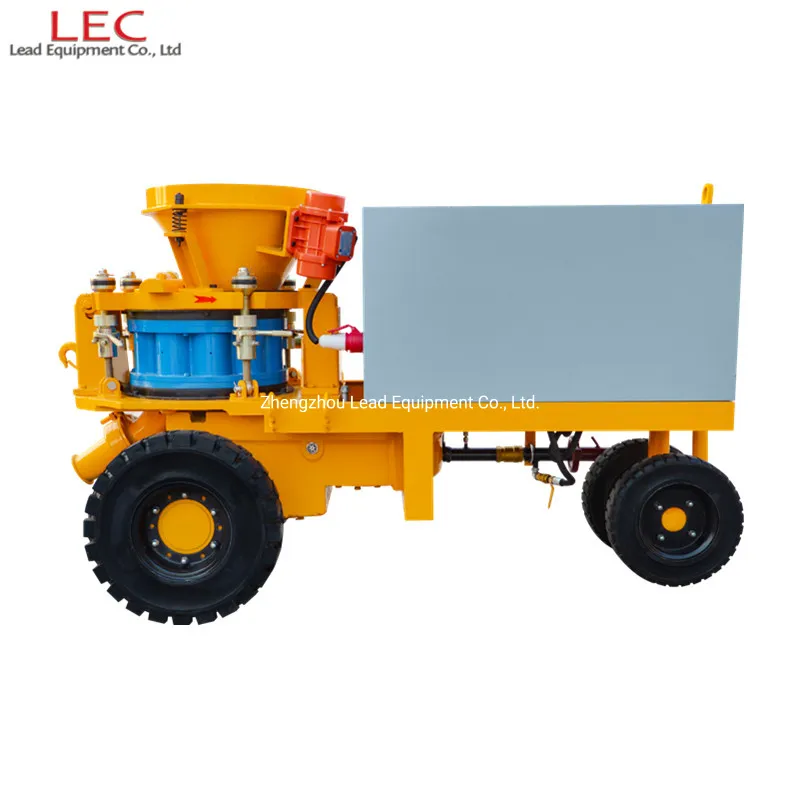

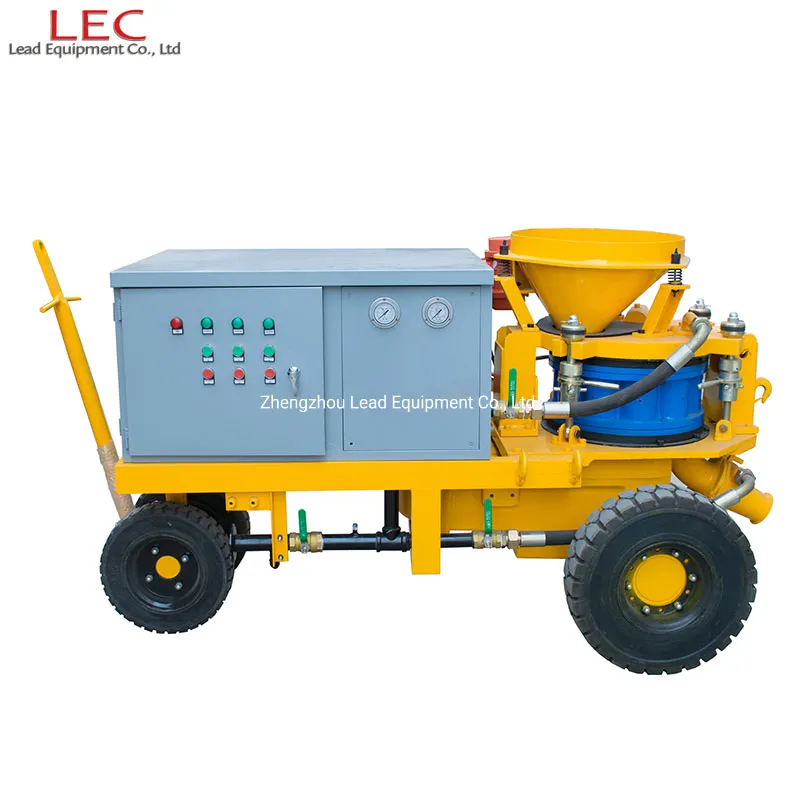

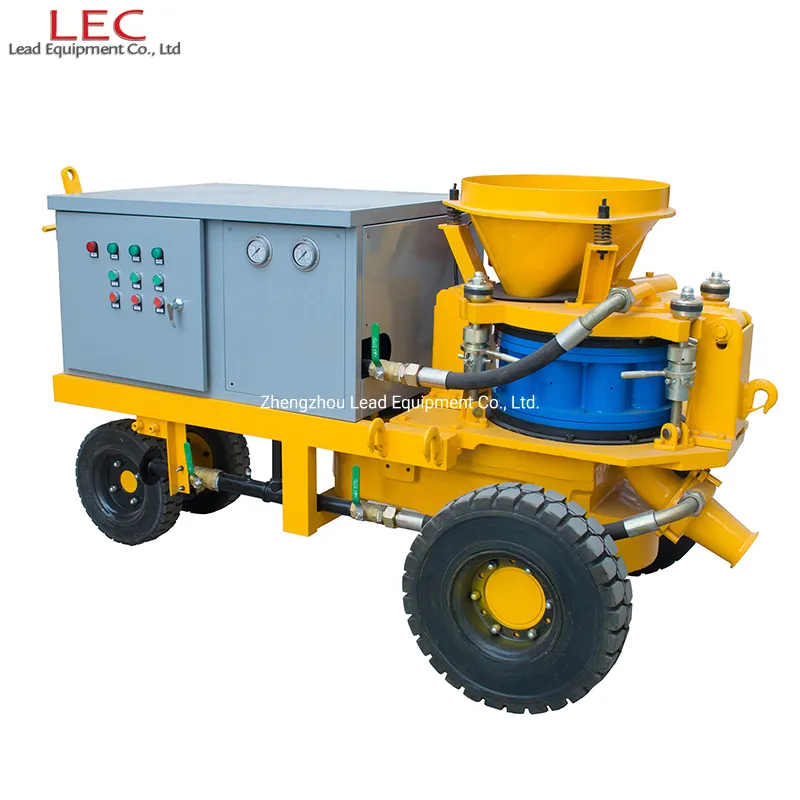

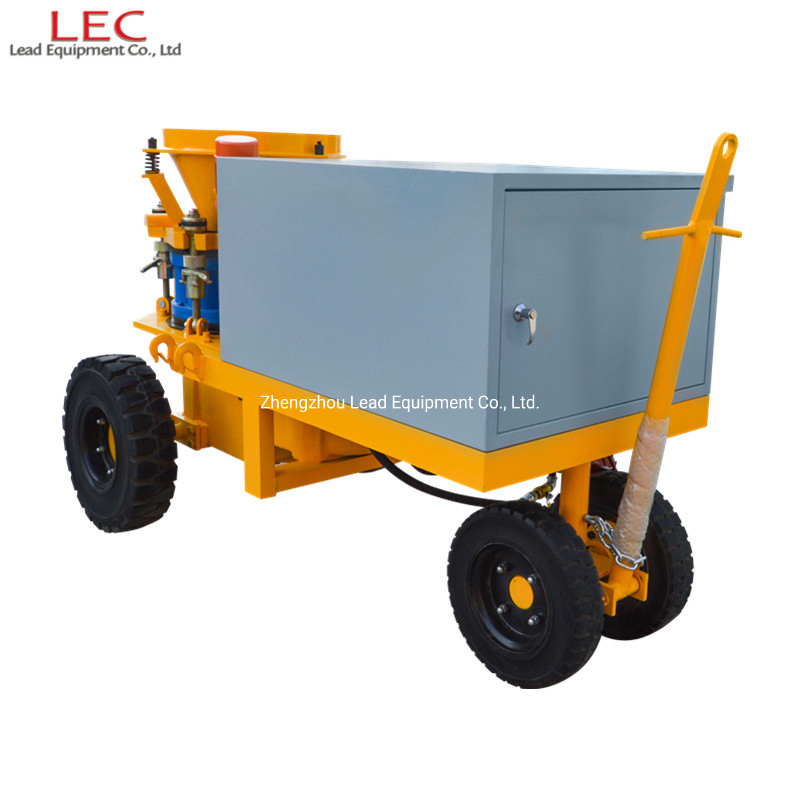

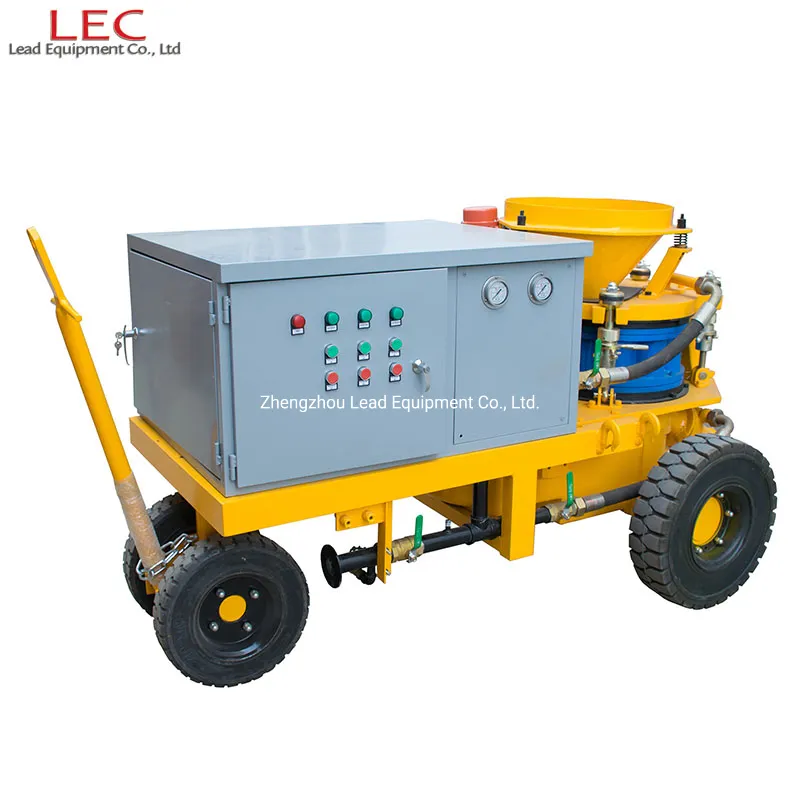

Wet Mix Shotcrete Machine for Sale for Tunnel From Chinese Suppliers
Wet Mix Shotcrete Machine for Sale for Tunnel From Chinese Suppliers
Wet Mix Shotcrete Machine for Sale for Tunnel From Chinese Suppliers
Wet Mix Shotcrete Machine for Sale for Tunnel From Chinese Suppliers
Wet Mix Shotcrete Machine for Sale for Tunnel From Chinese Suppliers
1 / 5
Wet Mix Shotcrete Machine for Sale for Tunnel From Chinese Suppliers
Wet Mix Shotcrete Machine for Sale for Tunnel From Chinese Suppliers
Wet Mix Shotcrete Machine for Sale for Tunnel From Chinese Suppliers
Wet Mix Shotcrete Machine for Sale for Tunnel From Chinese Suppliers
Wet Mix Shotcrete Machine for Sale for Tunnel From Chinese Suppliers

Wet Mix Shotcrete Machine for Sale for Tunnel From Chinese Suppliers

Customization: Available
Type: Shotcrete
Shotcrete Type: Wet
Send Inquiry

Product Description

Basic Info.

Model NO.:LSZ3000E
Machining Process:Welded Molding Machine
Structure:Rotor Type
Productivity:5m3 /H
Feeding Height:1.17m
Certification:ISO9001: 2000, CE, SGS
Condition:New
Color:Yellow
Product Name:Shotcrete Machine
Drive Mode:Electric, Pneumatic, Diesel
Transport Package:Plastic Wrap, Plywood Case
Origin:China
HS Code:84743100
Capacity:5000 Sets/Year

Product Description

LSZ3000 Shotcrete Machine is a professional-grade solution designed for high-efficiency concrete spraying.

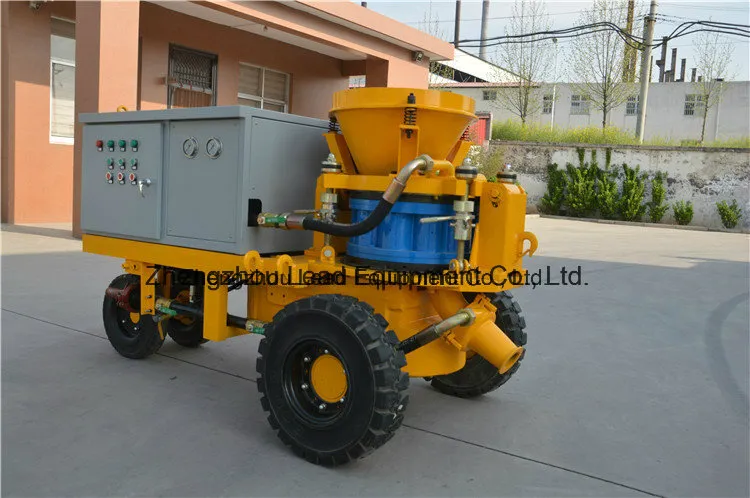

Shotcrete Machine Gallery 1

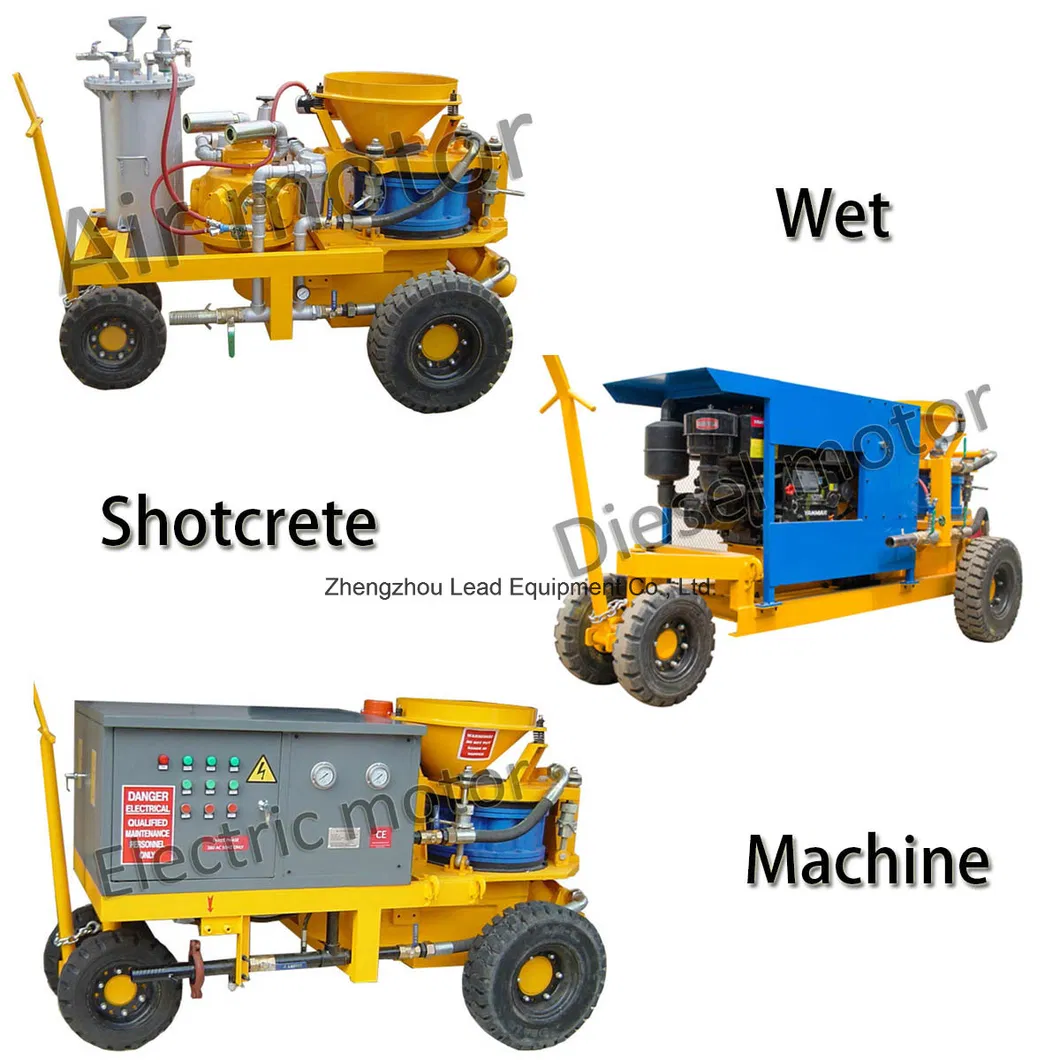

Shotcrete Machine Gallery 2
●
Description: LSZ3000 is a universal concrete spraying machine for processing wet or dry mix. The full pneumatic driven version is specifically designed for anti-explosion applications like coal mining and underground engineering.
●
Versatile Operation: Suitable for manual spraying or robotic arm integration. Supports electric, air motor, or diesel drives with various chassis options (tyre, skid, or rail-wheel).

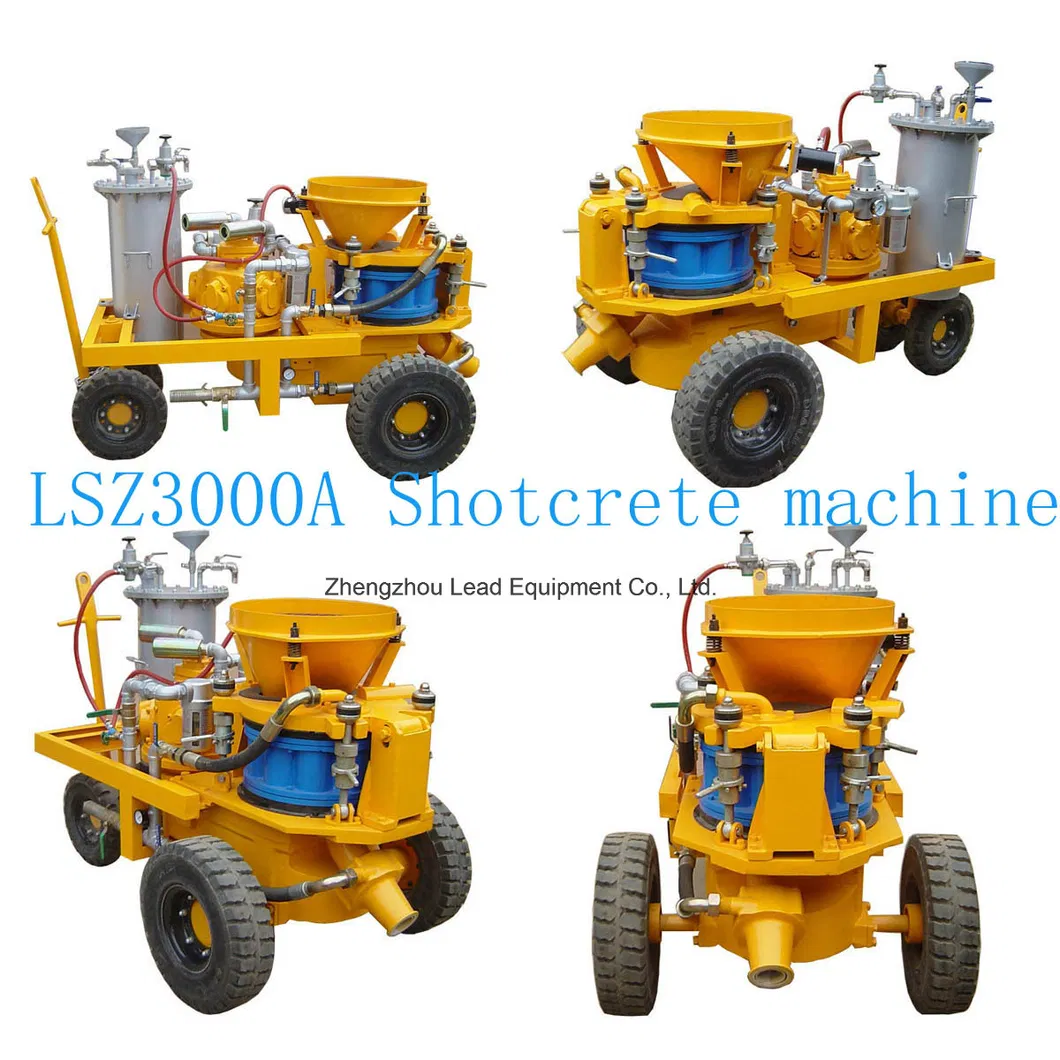

Shotcrete Machine Gallery 3
●
Application: Developed specifically for tunnel building, mines, slopes, and fibre spraying. Includes a combined dosing unit for precision.

Technical Specifications

Drive typeElectric motor / Pneumatic / Diesel
Rated Output5m3 /h
Max. Horizontal Conveying Distance35m
Max. Aggregate Size15mm
Concrete Slump8 -15cm
Conveying Hose Inner Diameter51/ 64mm
Operating air Pressure0.3-0.6MPa (43-86PSI)
Air Consumption10~ 12m3 /min(357-430CFM)
Main Motor Power7.5kW(10hp)
Dosing PumpBRJ15
Dosing Pump Output17.5 - 88L /h
Voltage Options220V, 380V, 440V, 660V (50Hz/60Hz)
Material Charging Height1.17m
Net Weight1200kg
Overall Dimension2.05 × 0.95 × 1.18m

Frequently Asked Questions

Q1: Can the LSZ3000 handle both wet and dry mix? A: Yes, the LSZ3000 is a universal machine designed to process both wet and dry concrete mixes effectively.
Q2: What drive options are available for this machine? A: It supports three types of drives: Electric motor drive, Pneumatic (air motor) drive, and Diesel drive.
Q3: Is this machine suitable for underground mining? A: Absolutely. The pneumatic driven version is specifically designed for anti-explosion requirements in coal mining and underground engineering.
Q4: What is the maximum conveying distance and aggregate size? A: The machine can convey horizontally up to 35 meters and handle aggregate sizes up to 15mm.
Q5: Does the machine support robotic operation? A: Yes, it is suitable for both manual spraying and integration with a robotic arm.
Q6: What certifications does the LSZ3000 hold? A: The machine is certified under ISO9001: 2000, CE, and SGS standards.
