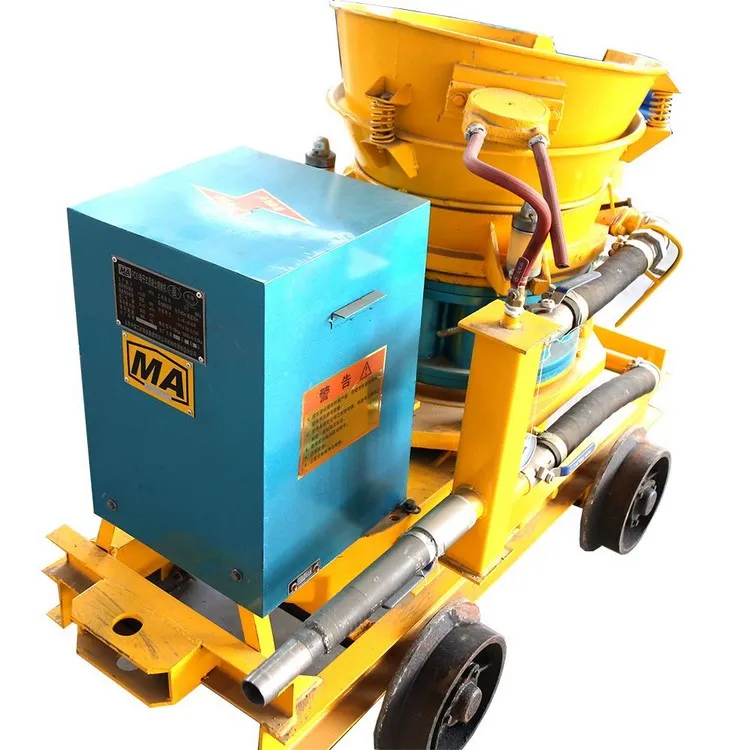

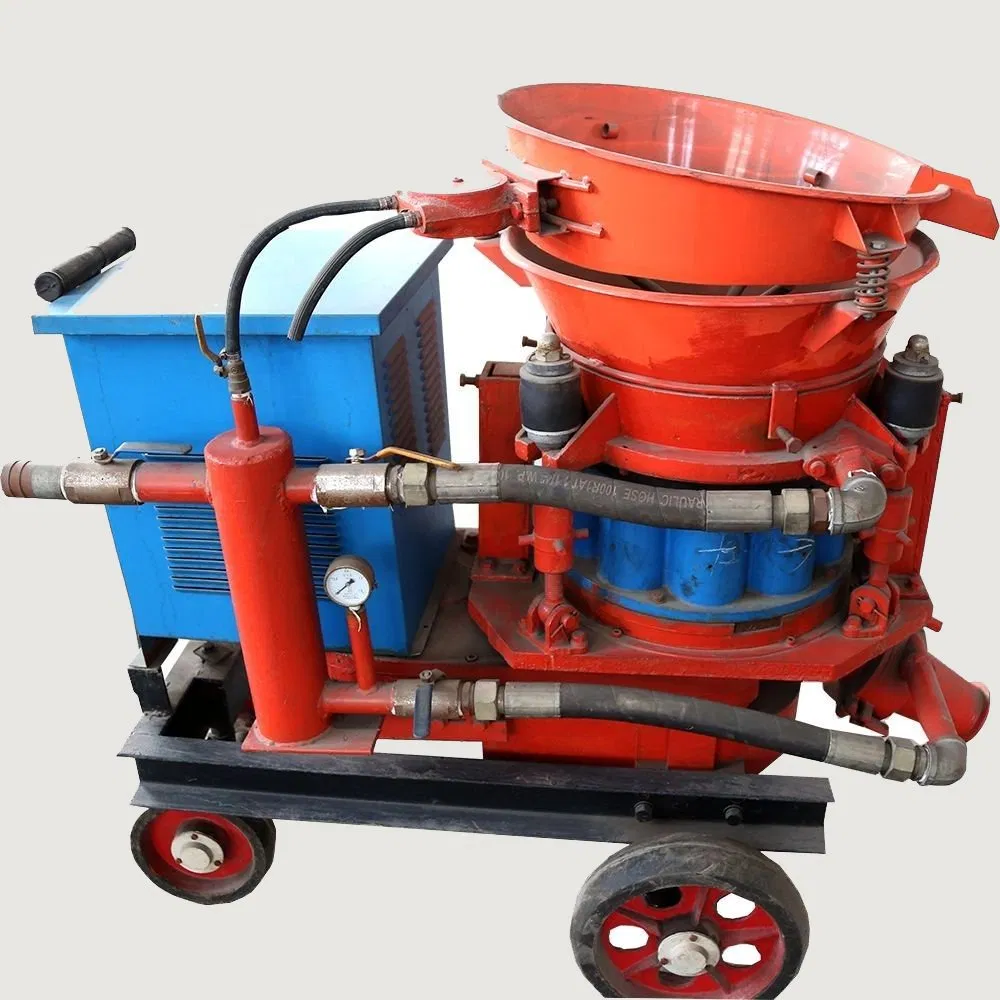

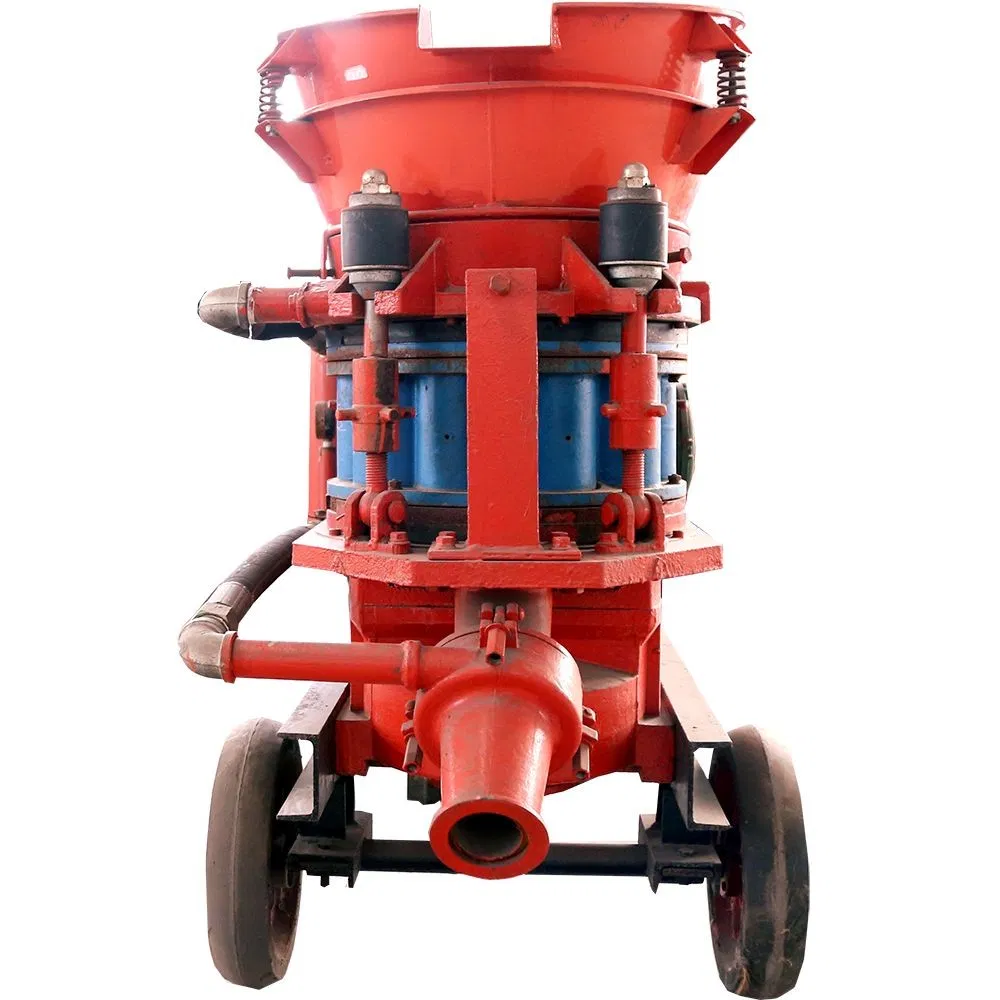

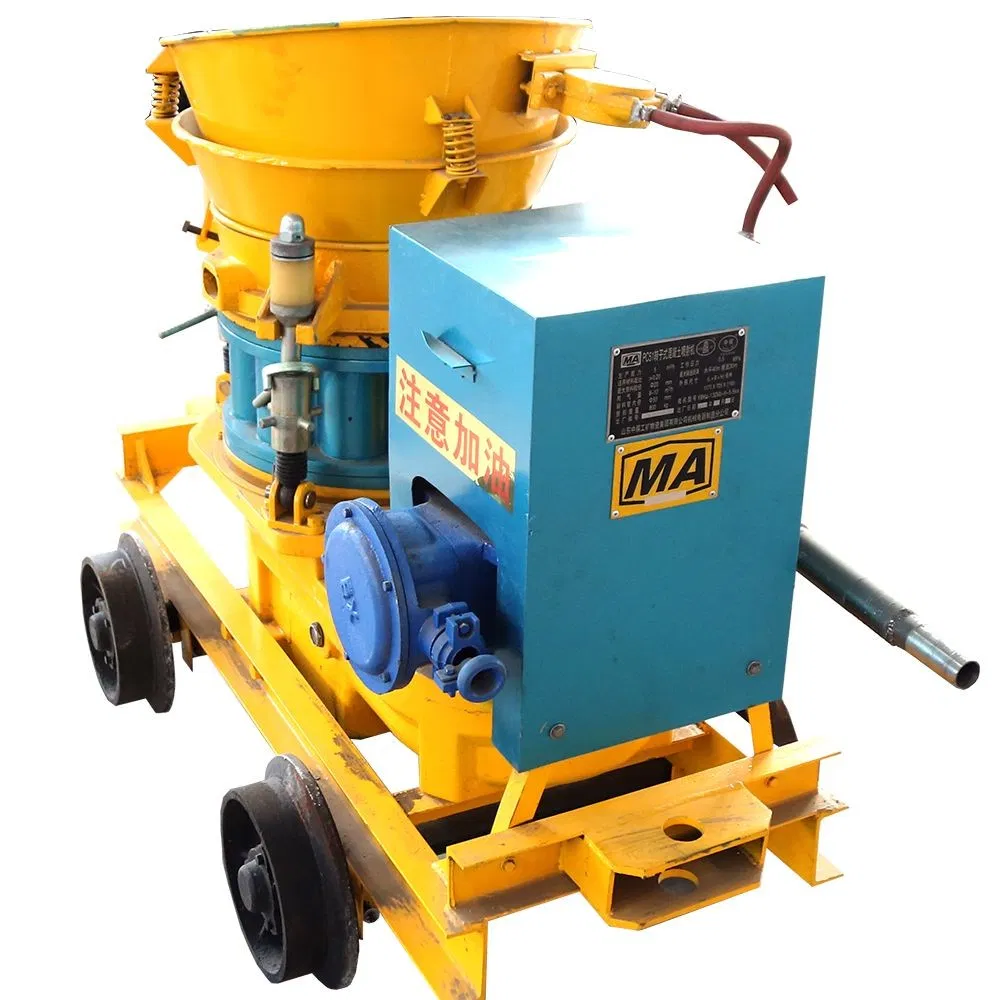

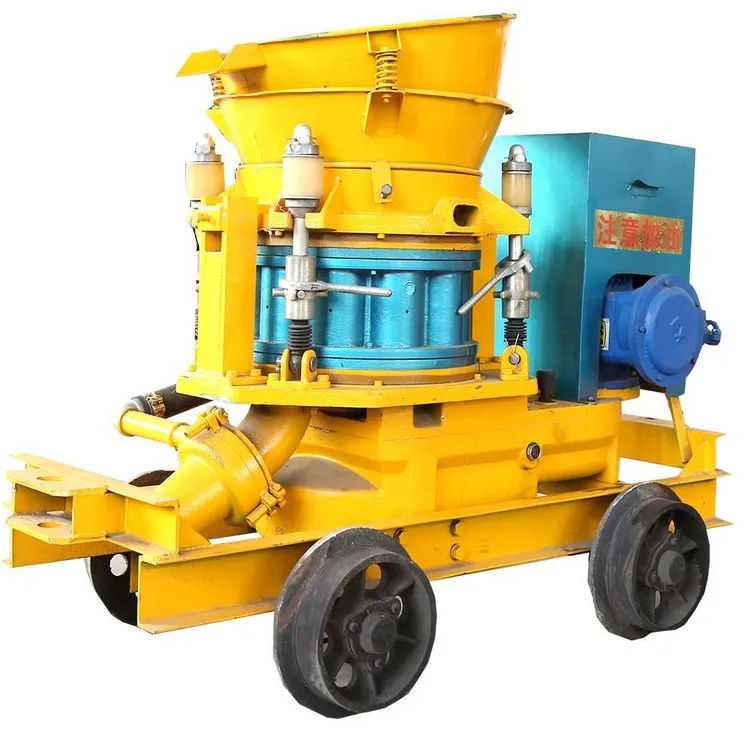

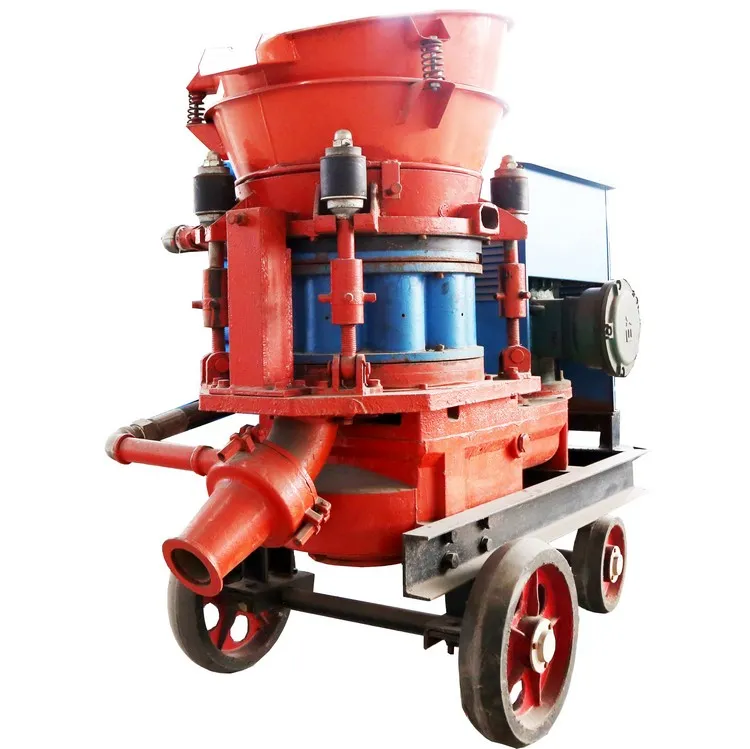

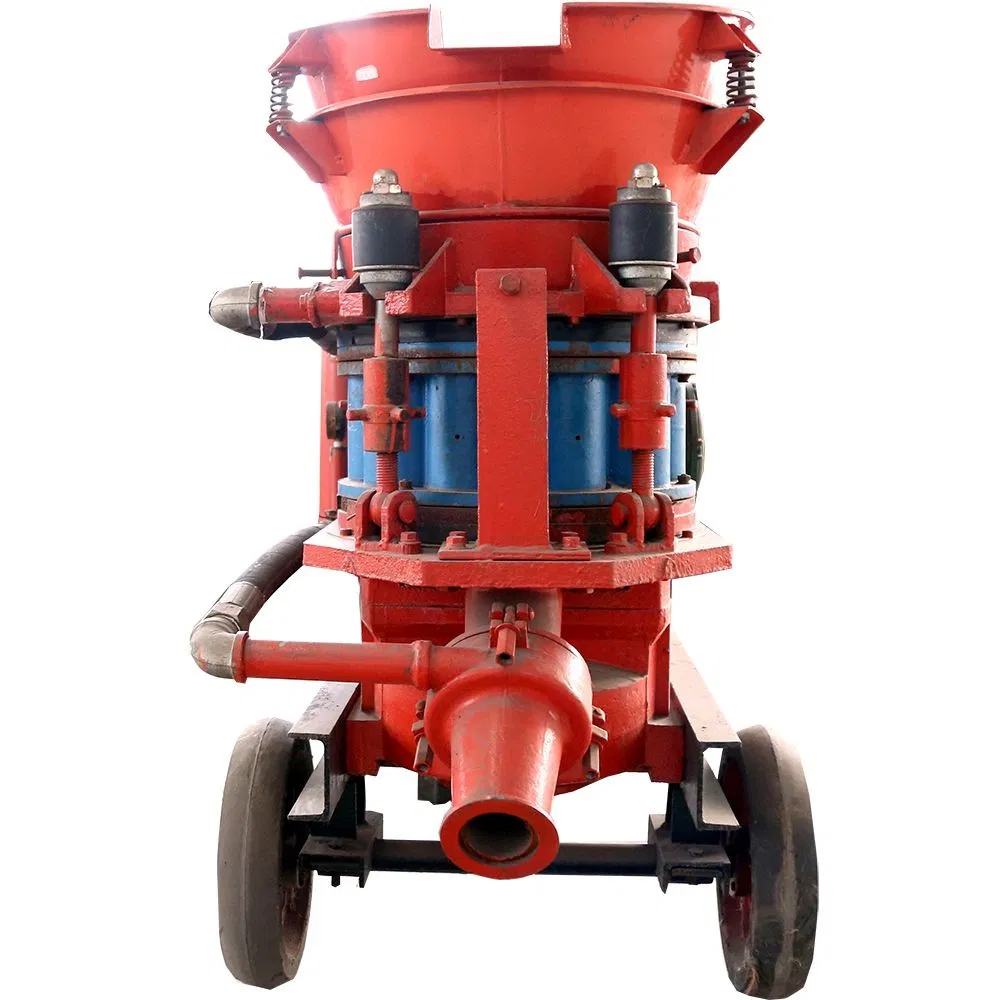

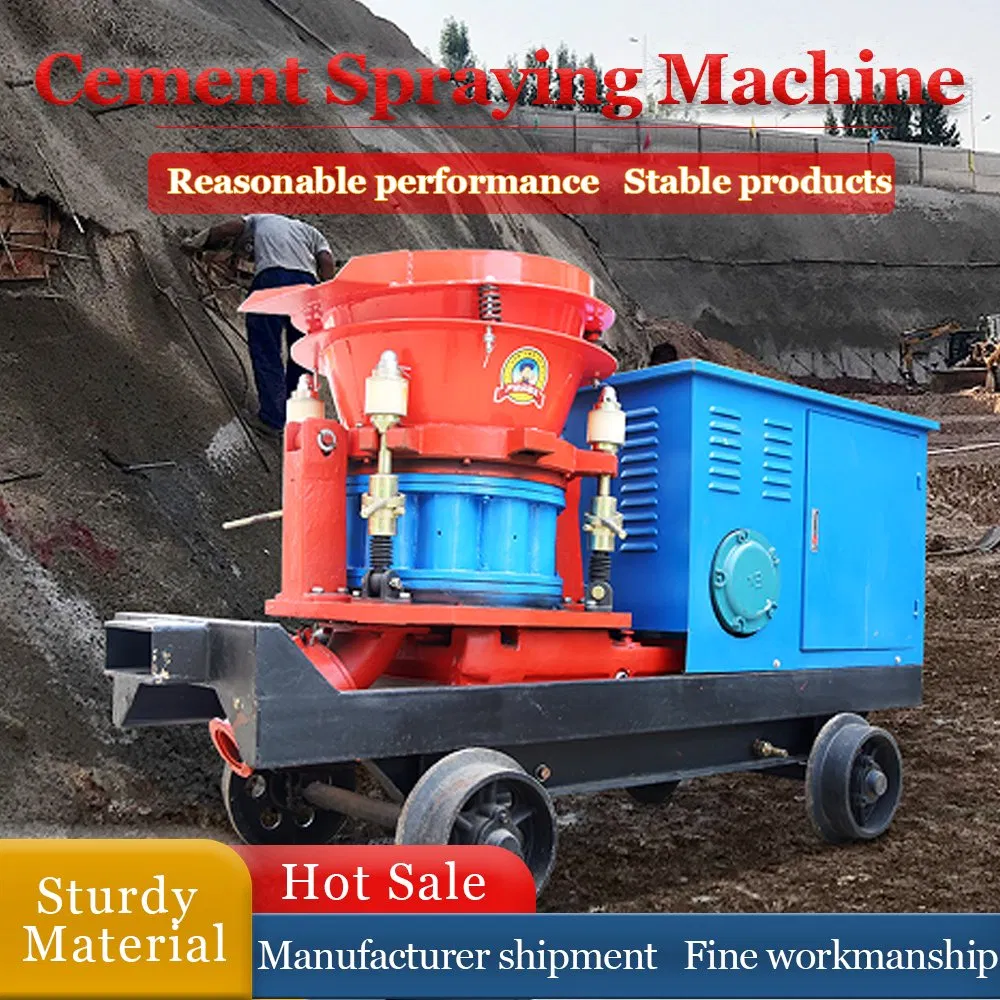

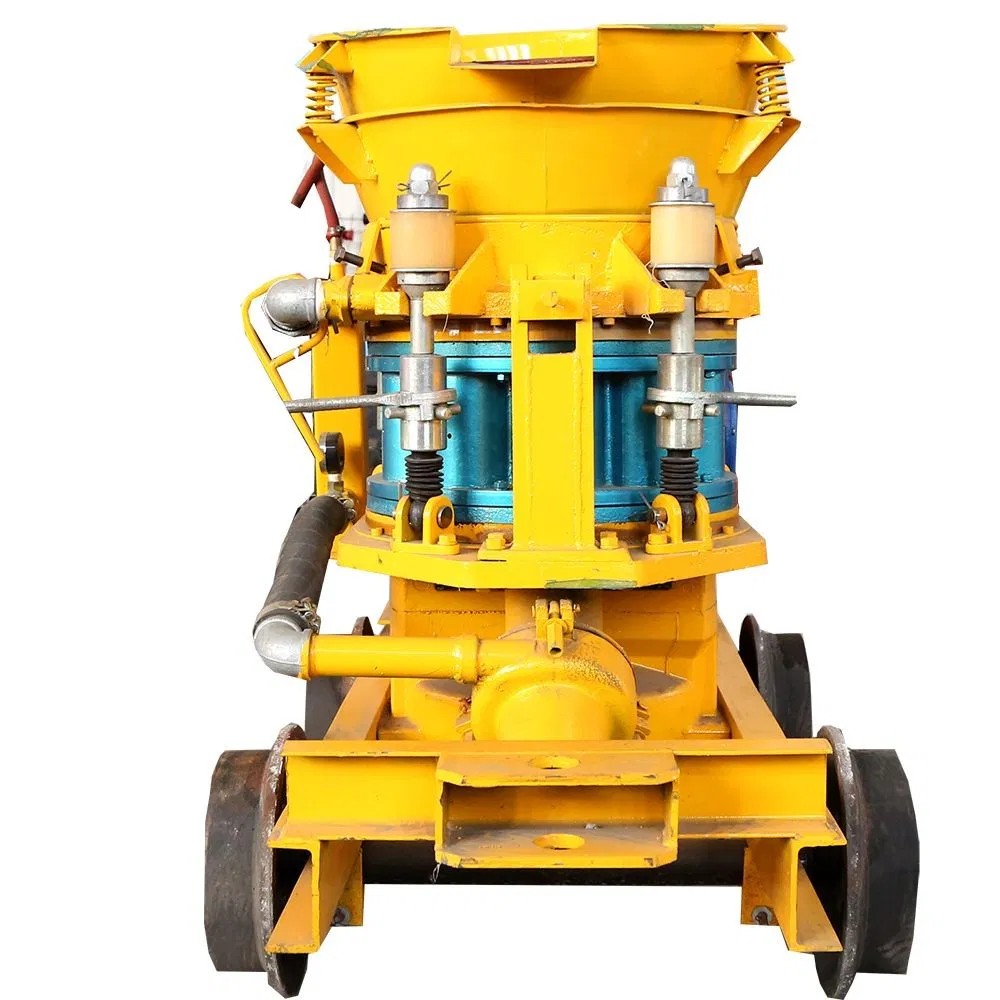

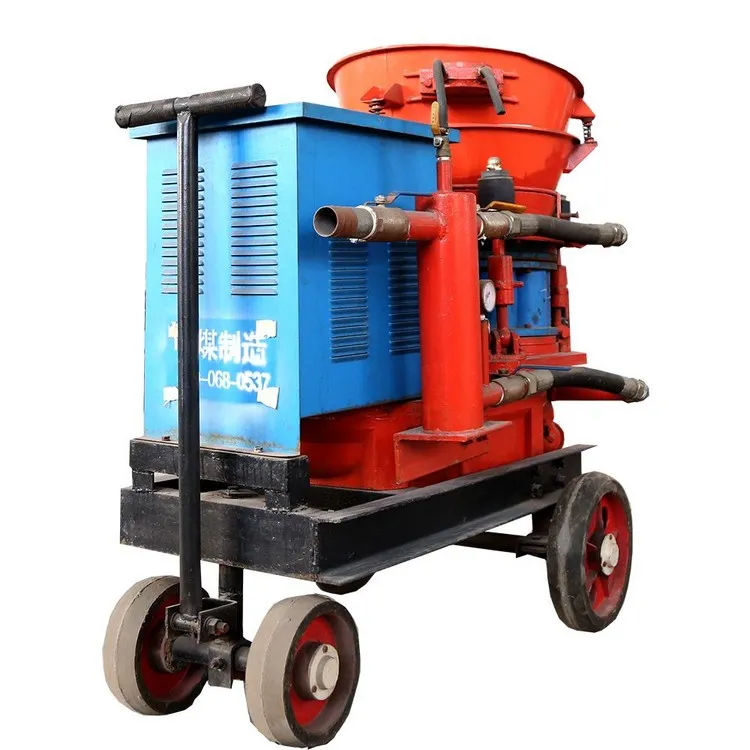

The concrete spraying machine is a specialized equipment designed for reinforcement and repair. By using high-pressure spraying, it effectively applies concrete to building surfaces. It is widely recognized for its fast spraying speed, exceptional construction efficiency, and high-quality finish.
This equipment is an essential tool in construction engineering, tunnel development, and mining operations. It consists of a robust machine body, an efficient conveying system, and an intuitive control system.
| Model | PZ-3 | PZ-5 | PZ-7 | HSP-5 | HSP-7 | HSP-9 |
|---|---|---|---|---|---|---|
| Output | 3.5m3/h | 5m3/h | 7m3/h | 4.0-5.0m3/h | 5.0-7.0m3/h | 6.0-9.0m3/h |
| Max. Horizontal Distance | 200m | 200m | 200m | 30-50m | 30-50m | 30-50m |
| Max. Vertical Distance | 20m | 20m | 20m | 20m | 20m | 20m |
| Water Cement Ratio | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 |
| Max. Aggregate Size | Φ20mm | Φ20mm | Φ20mm | Φ15mm | Φ15mm | Φ15mm |
| Voltage | 380V or as requirement | |||||
| Whole Weight | 550kgs | 600kgs | 900kgs | 700kg | 800kg | 900kg |
