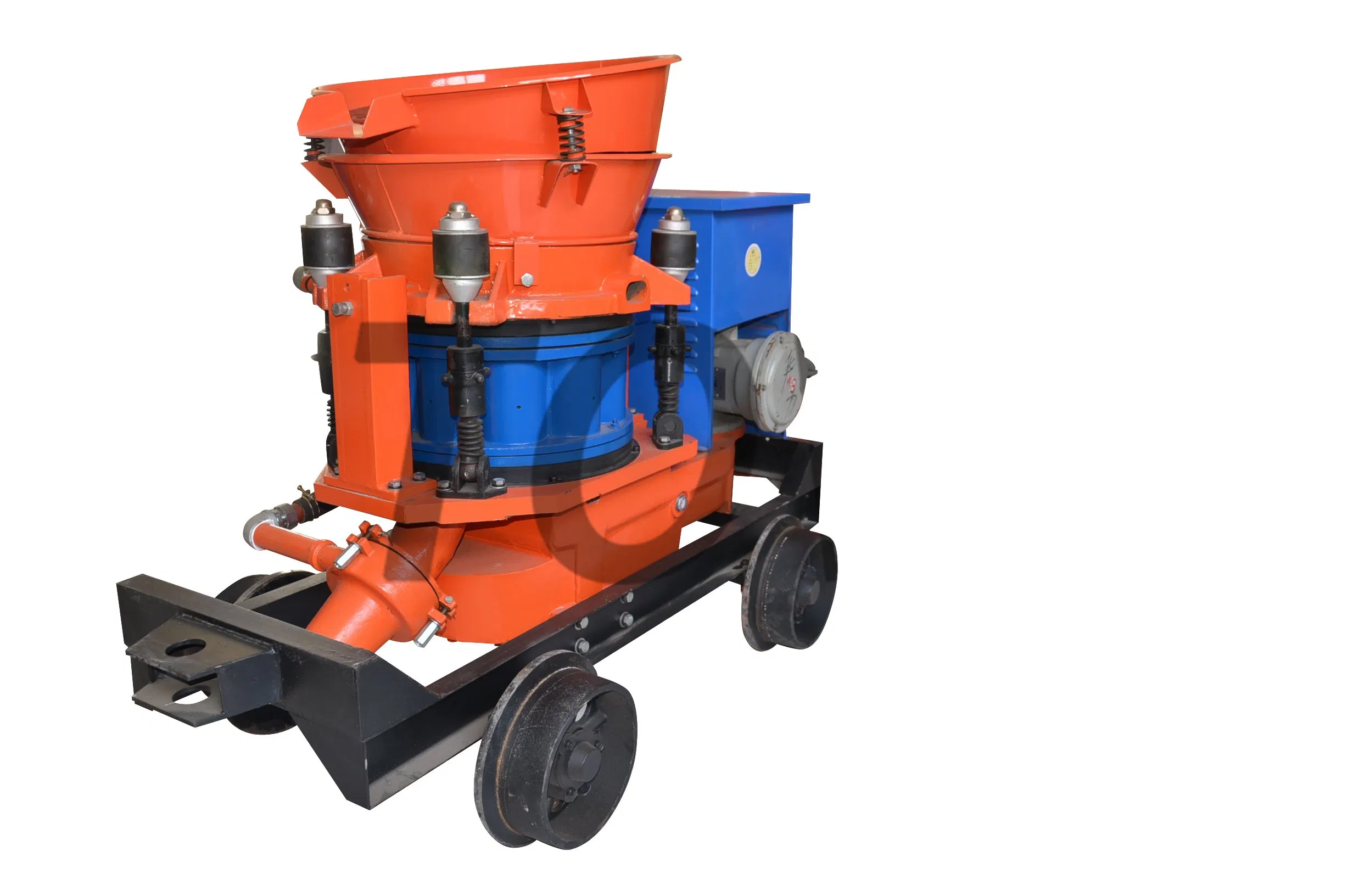

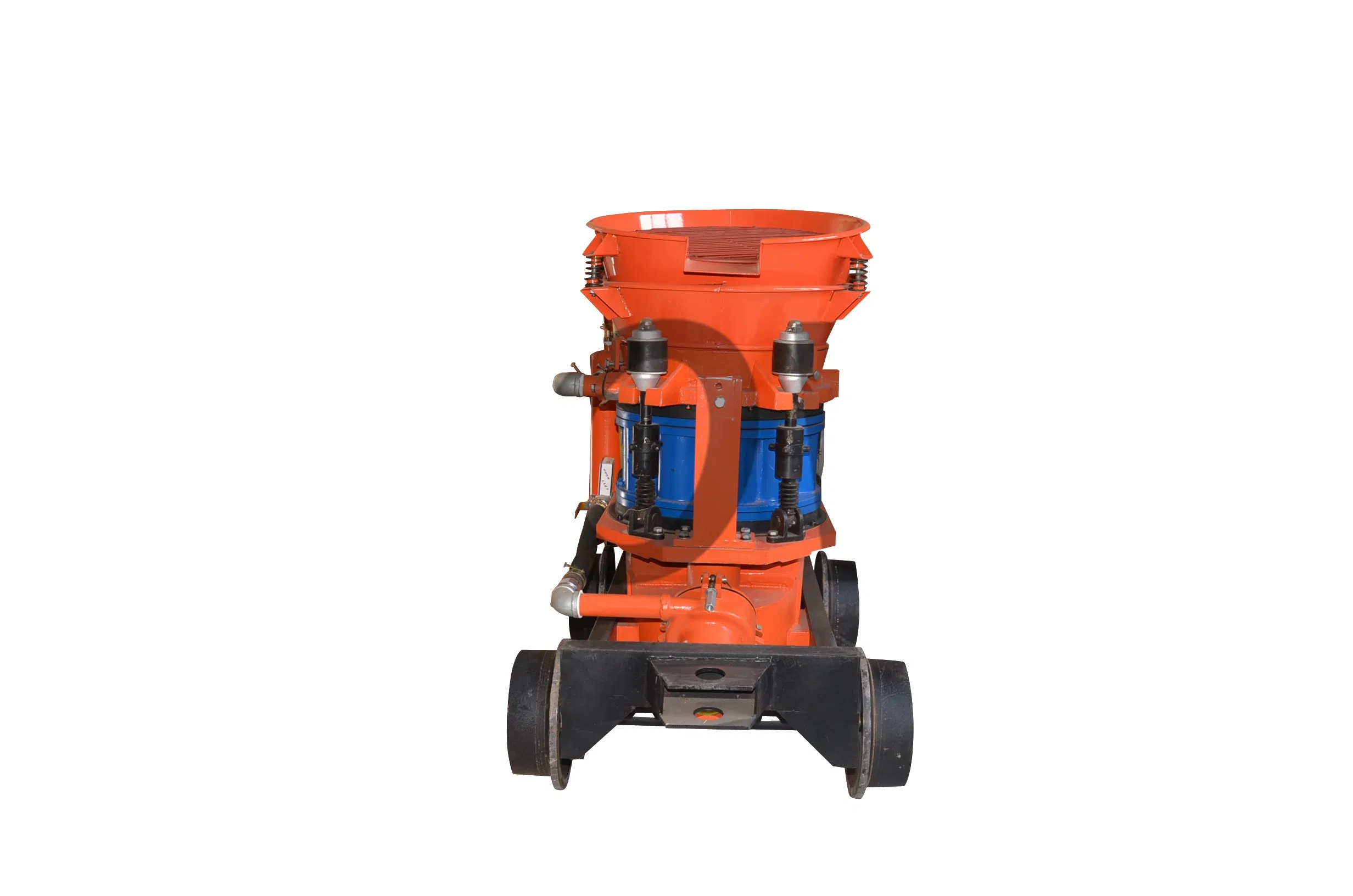

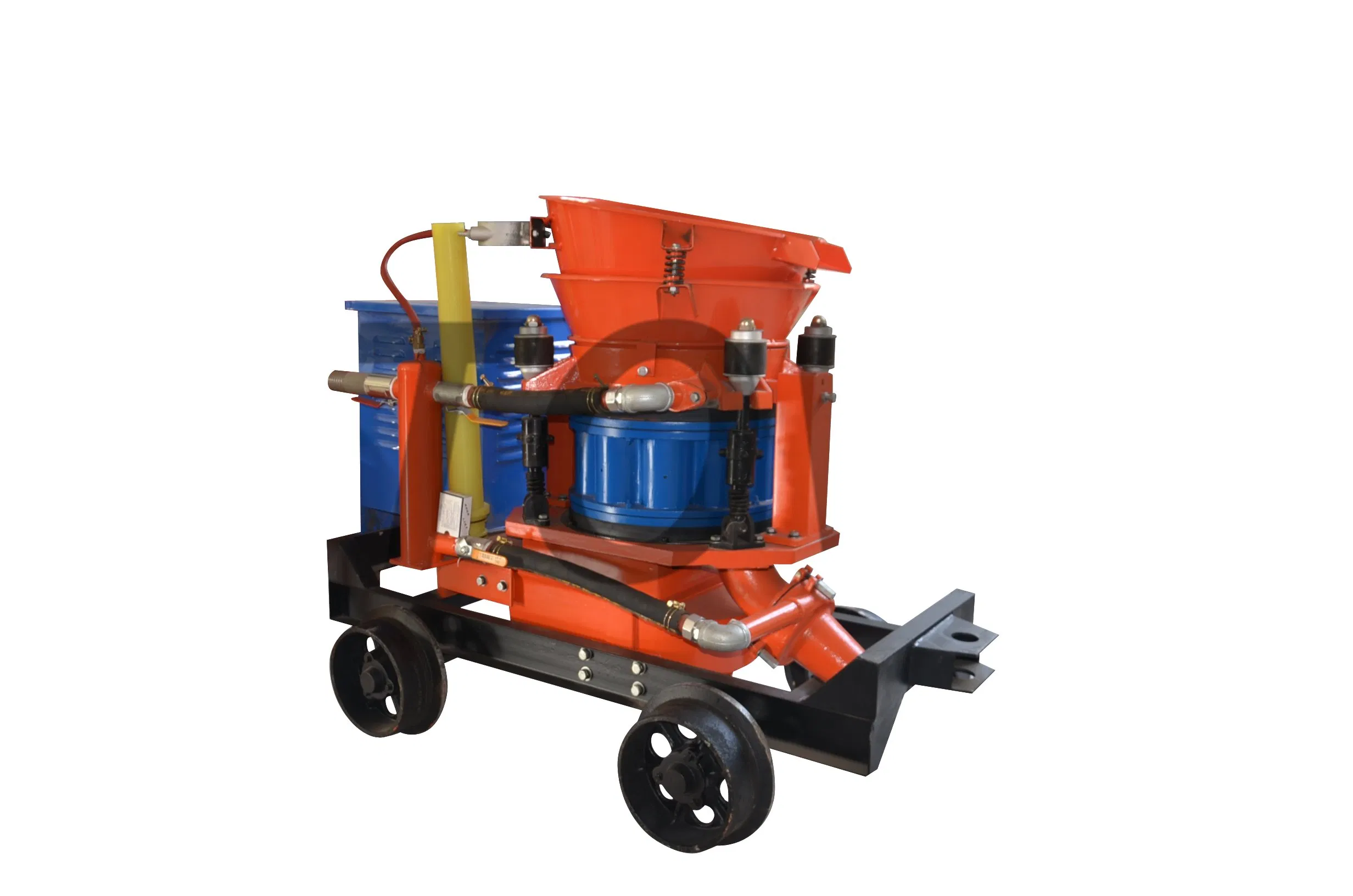

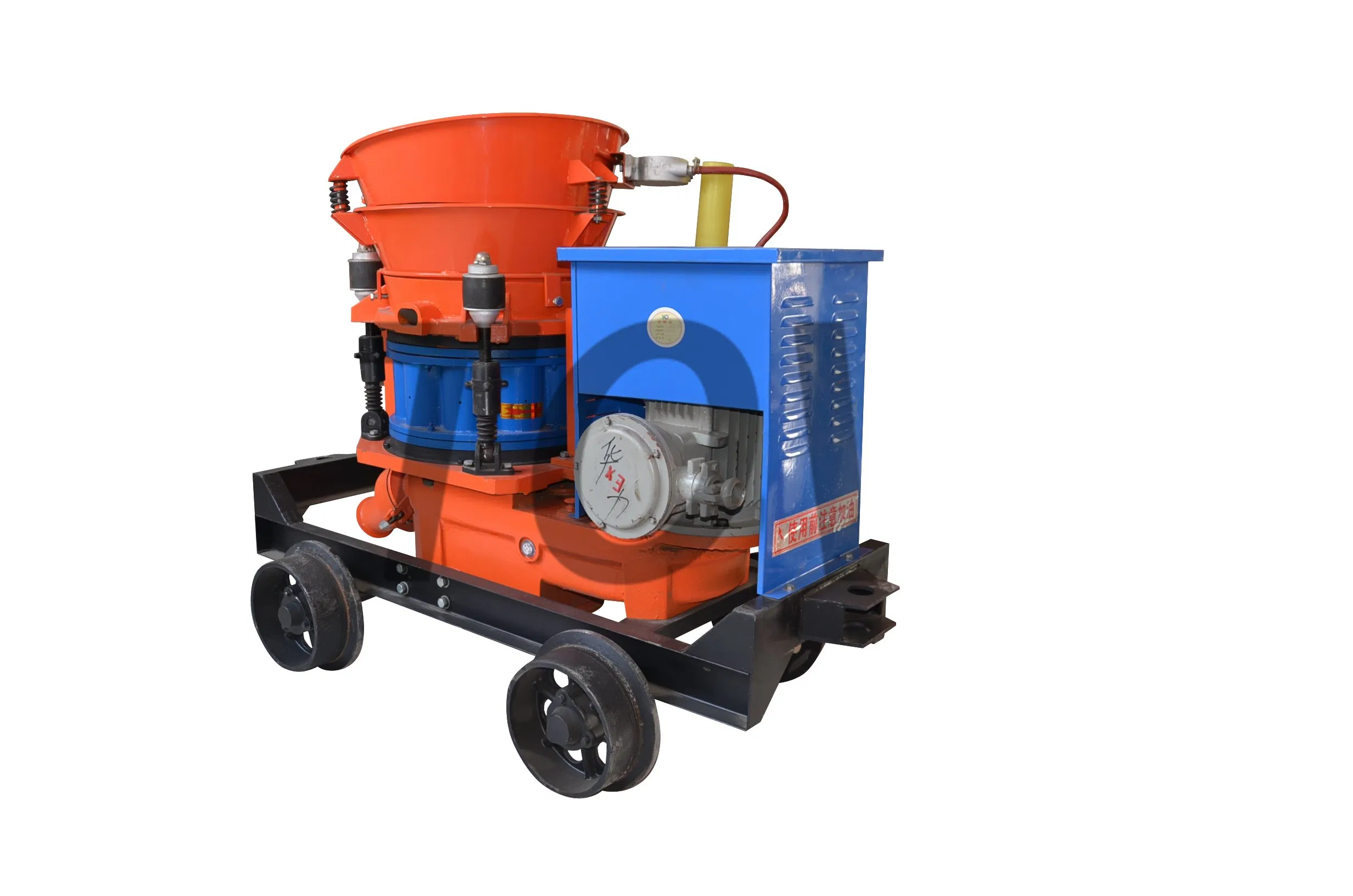

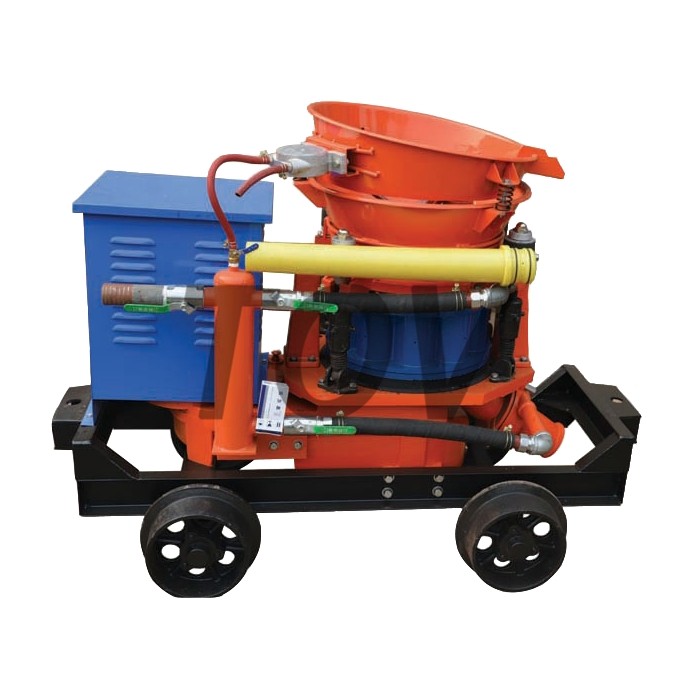

Underground Mining Tunnel Construction Auto Dry Wet Mix Concrete Electric Refractory Reinforcement Gunite Explosion Proof Mortar Shotcrete Machine
Underground Mining Tunnel Construction Auto Dry Wet Mix Concrete Electric Refractory Reinforcement Gunite Explosion Proof Mortar Shotcrete Machine
Underground Mining Tunnel Construction Auto Dry Wet Mix Concrete Electric Refractory Reinforcement Gunite Explosion Proof Mortar Shotcrete Machine
Underground Mining Tunnel Construction Auto Dry Wet Mix Concrete Electric Refractory Reinforcement Gunite Explosion Proof Mortar Shotcrete Machine
Underground Mining Tunnel Construction Auto Dry Wet Mix Concrete Electric Refractory Reinforcement Gunite Explosion Proof Mortar Shotcrete Machine
1 / 5
Underground Mining Tunnel Construction Auto Dry Wet Mix Concrete Electric Refractory Reinforcement Gunite Explosion Proof Mortar Shotcrete Machine
Underground Mining Tunnel Construction Auto Dry Wet Mix Concrete Electric Refractory Reinforcement Gunite Explosion Proof Mortar Shotcrete Machine
Underground Mining Tunnel Construction Auto Dry Wet Mix Concrete Electric Refractory Reinforcement Gunite Explosion Proof Mortar Shotcrete Machine
Underground Mining Tunnel Construction Auto Dry Wet Mix Concrete Electric Refractory Reinforcement Gunite Explosion Proof Mortar Shotcrete Machine
Underground Mining Tunnel Construction Auto Dry Wet Mix Concrete Electric Refractory Reinforcement Gunite Explosion Proof Mortar Shotcrete Machine

Underground Mining Tunnel Construction Auto Dry Wet Mix Concrete Electric Refractory Reinforcement Gunite Explosion Proof Mortar Shotcrete Machine

Customization: Available
After-sales Service: Online
Warranty: 1 Year
Send Inquiry

Product Description

⚙️ Basic Information
Model NO.
PZ-5M
Power Supply
Electric
Voltage
380V
Output
3.5m3 - 7m3
Operating Pressure
0.4~0.6MPa
Motor Power
3-7.5kw
Delivery Distance
Horizontal: 200m / Vertical: 20m
Origin
China
📄 Product Description
Dry electrical shotcrete machine is a device used for dry concrete shooting. It features advanced technology, stable performance, long service life, and convenient maintenance.

This equipment is widely utilized in various construction fields, including mines, tunnels, culverts, subways, underground engineering, and coal mine drainage tunnel construction projects.

📊 Product Parameters
Item PZ-3 PZ-5 PZ-7
Output 3.5m3/h 5m3/h 7m3/h
Max. Convey Dist Horizontal: 200m / Vertical: 20m
Water Cement Ratio ≤0.4 ≤0.4 ≤0.4
Max. Aggregate Size 20mm 20mm 20mm
Hose Inner Size 38mm 51mm 64mm
Operating Pressure 0.4~0.6MPa 0.4~0.6MPa 0.4~0.6MPa
Motor Power 3KW 5.5KW 7.5KW
Weight 260kgs 600kgs 700kgs
Wheel Options Nylon wheel; Rubber wheel; Skid wheel; Rail wheel
📸 Detailed Photos

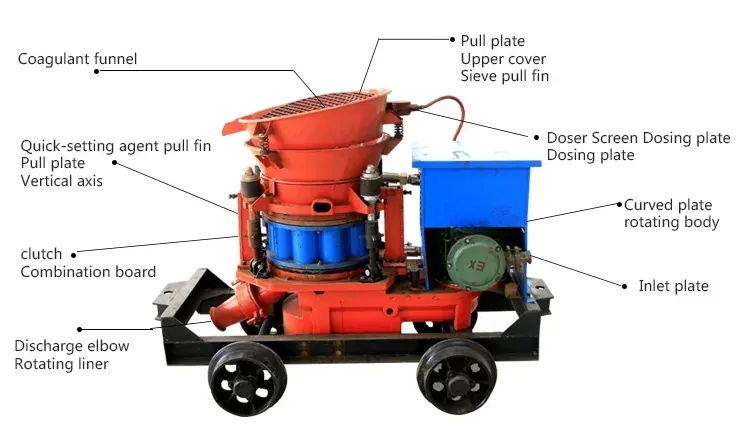

Shotcrete Machine Detail 1

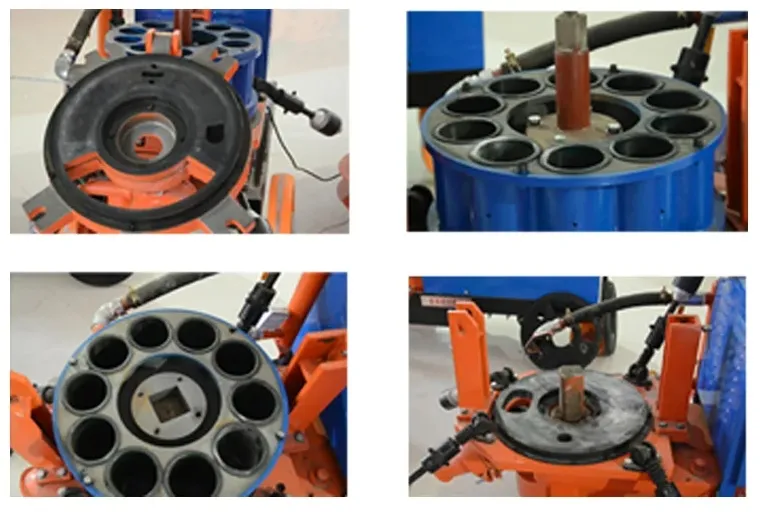

Shotcrete Machine Detail 2

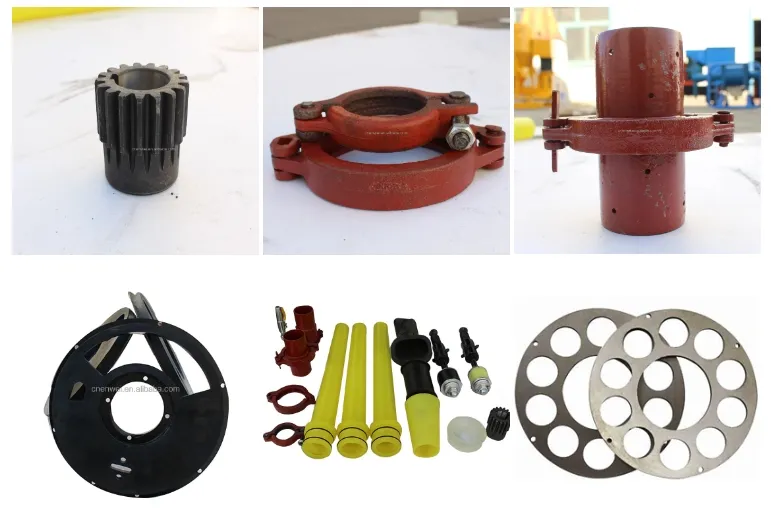

Shotcrete Machine Detail 3
🏗️ Application

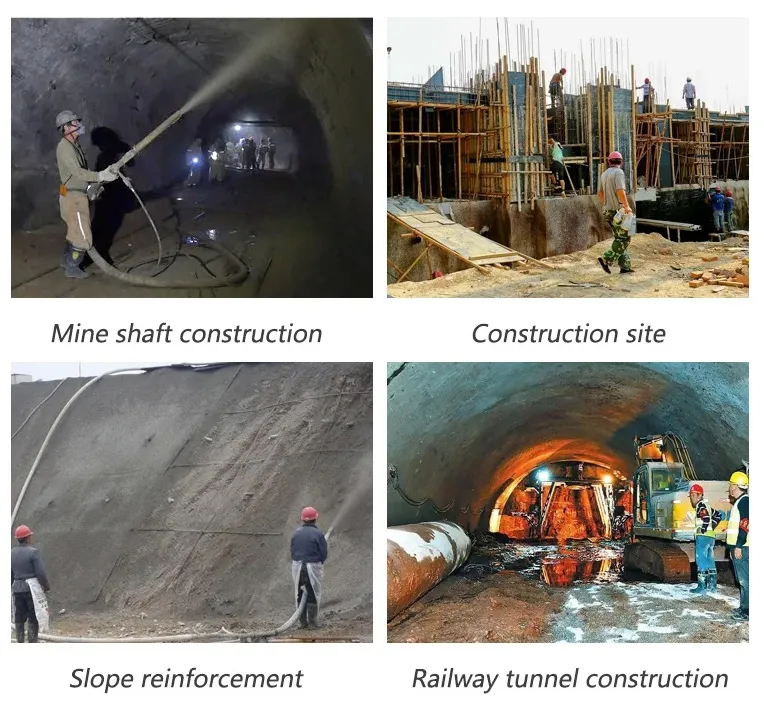

Shotcrete Machine Application
📦 Packaging & Shipping
Packaging and Shipping
❓ Frequently Asked Questions
Can you provide a preferential price?
We welcome every customer and offer competitive pricing based on your specific project requirements. Please contact us for a detailed quotation.
How do you manage quality control?
Quality is controlled throughout the entire process, starting from detailed drawings and agreed standards. We conduct pre-production sample checks and a final inspection before shipment.
What kind of after-sale service do you offer?
We provide production updates, shipping tracking, and comprehensive instructions for usage and maintenance. Our team offers timely solutions for any operational problems.
Why should we choose your machines?
We are an experienced manufacturer with a strong reputation for high-quality, stable pricing, and excellent service, maintaining long-term customer relationships globally.
What is the maximum aggregate size for this machine?
The PZ series shotcrete machines are designed to handle a maximum aggregate size of up to 20mm.
Is the voltage customizable?
The standard voltage is 380V, but we can customize the power configuration to meet your specific regional or project requirements.
