Wet Mixer Shotcrete Machine Feature:

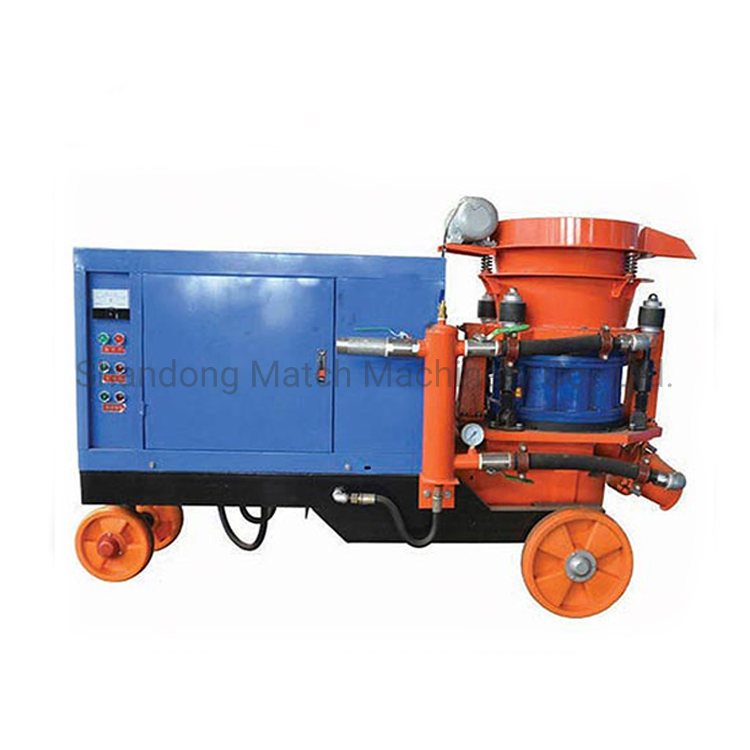

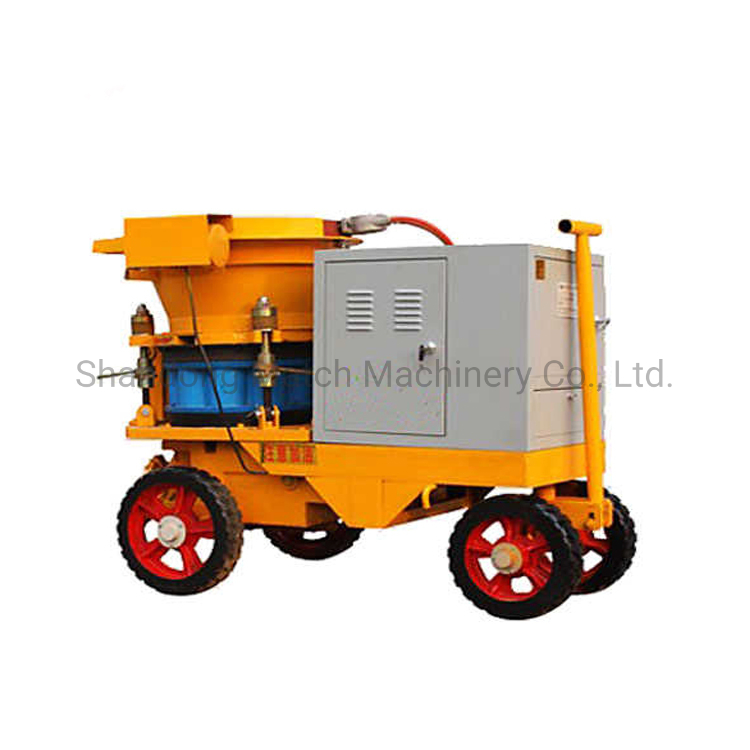

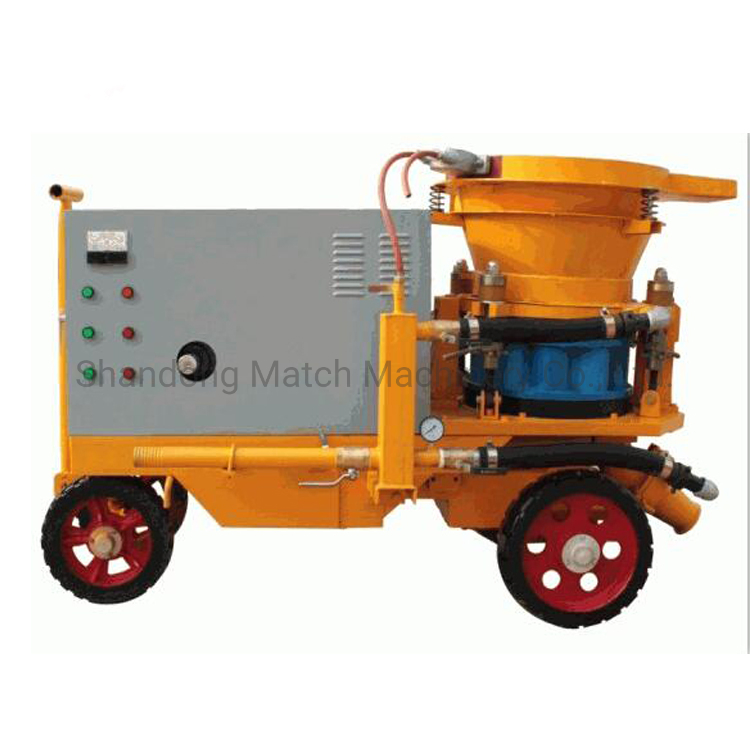

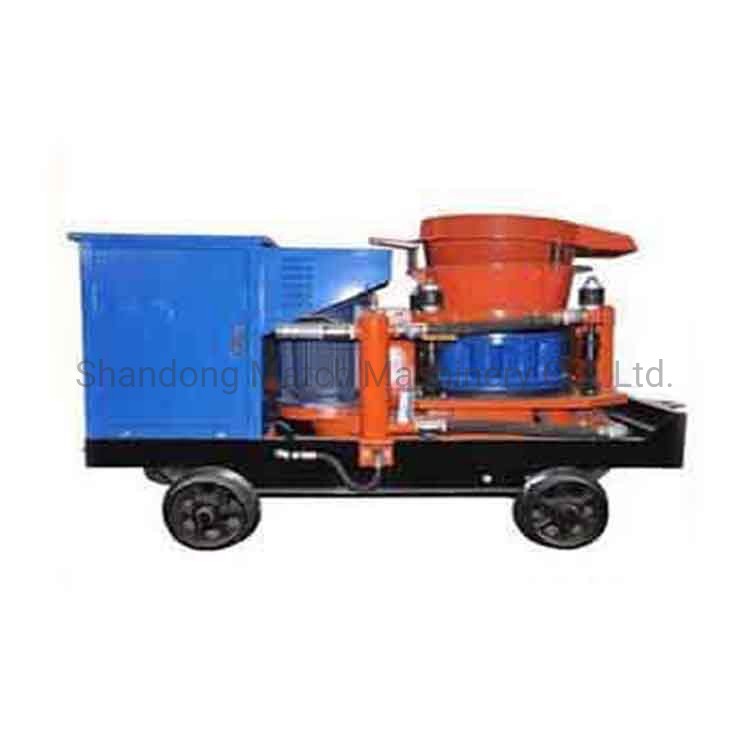

Widely used for Construction Engineering, Mining, Tunnel, Culvert, Hydroelectric Project. HSP-series wet shotcrete machine is an advanced and high efficient concrete spraying machine, designed especially for spraying of concrete. It features low dust, low rebound, high-strength concrete, simple operation, and convenient maintenance.
The machine, combined with a dosing unit, is suitable for manual spraying or by means of a robotic arm. It is used for the application of shotcrete in rail and road tunnels, subway engineering, hydro-power engineering, underground engineering, and mine galleries.
Common Uses:
| Item | HSP-5 | HSP-7 | HSP-9 |
|---|---|---|---|
| Capacity (m3/h) | 4-5 | 5-7 | 6-9 |
| Max. Conveying Distance (H,V m) | 30,20 | 30,20 | 30,20 |
| Max. Aggregate Diameters (mm) | 15 | 15 | 15 |
| Working pressure (MPa) | 0.3-0.6 | 0.4-0.6 | 0.4-0.6 |
| Motor Power (KW) | 0.37 | 0.37 | 0.37 |
| Overall Weight (kg) | 700 | 800 | 900 |
