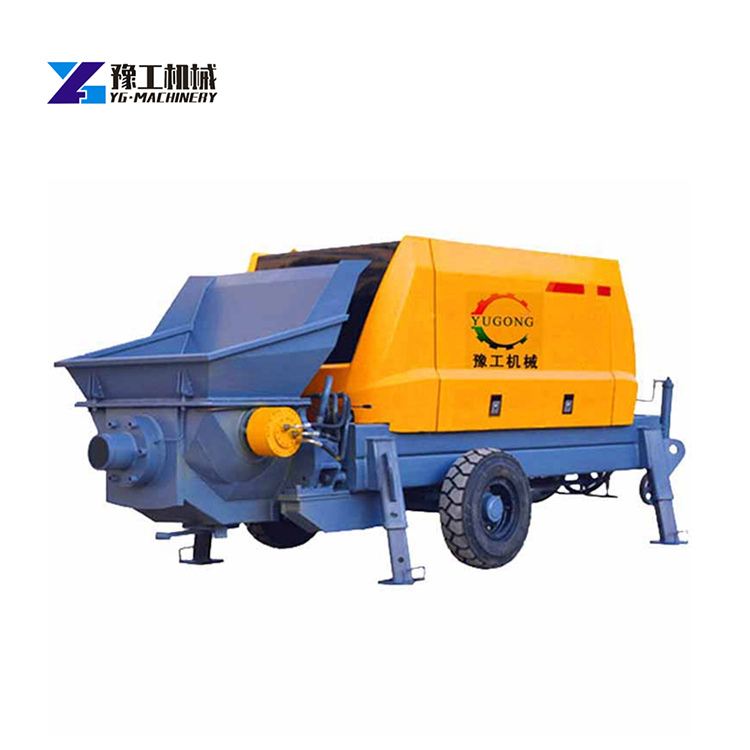

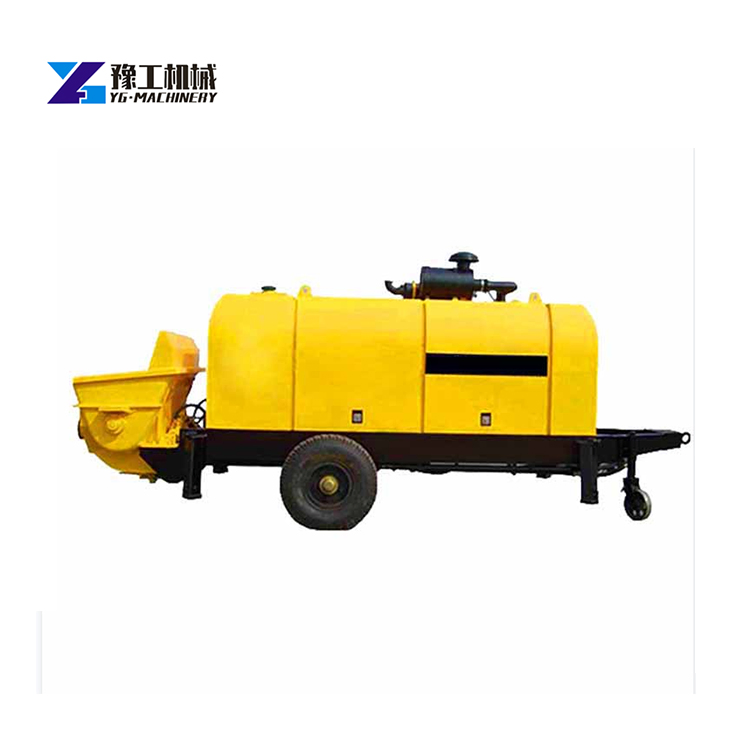

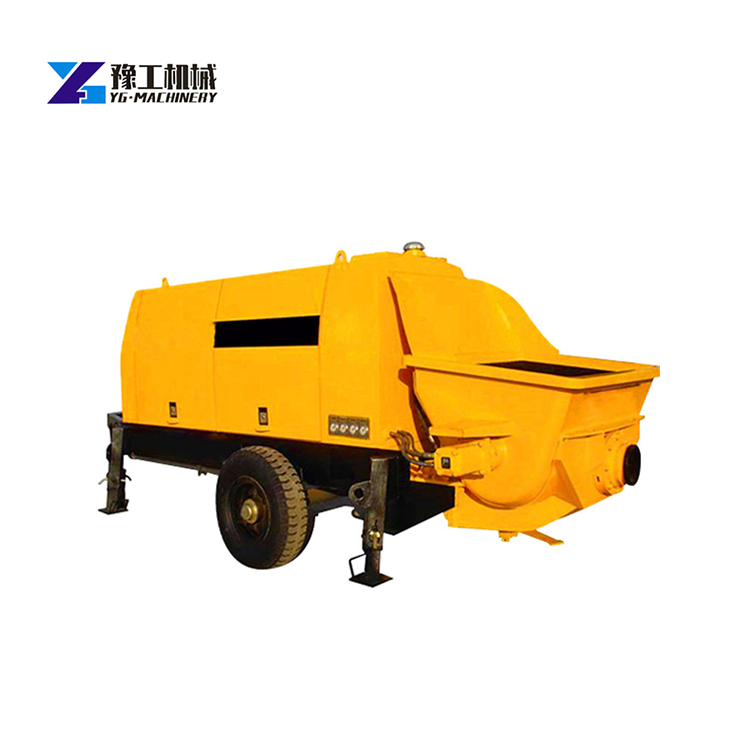

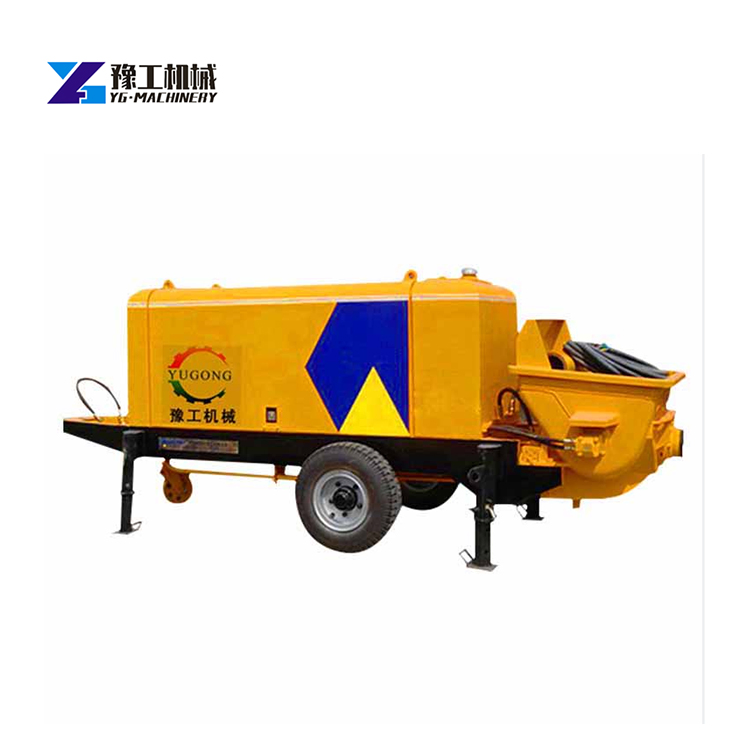

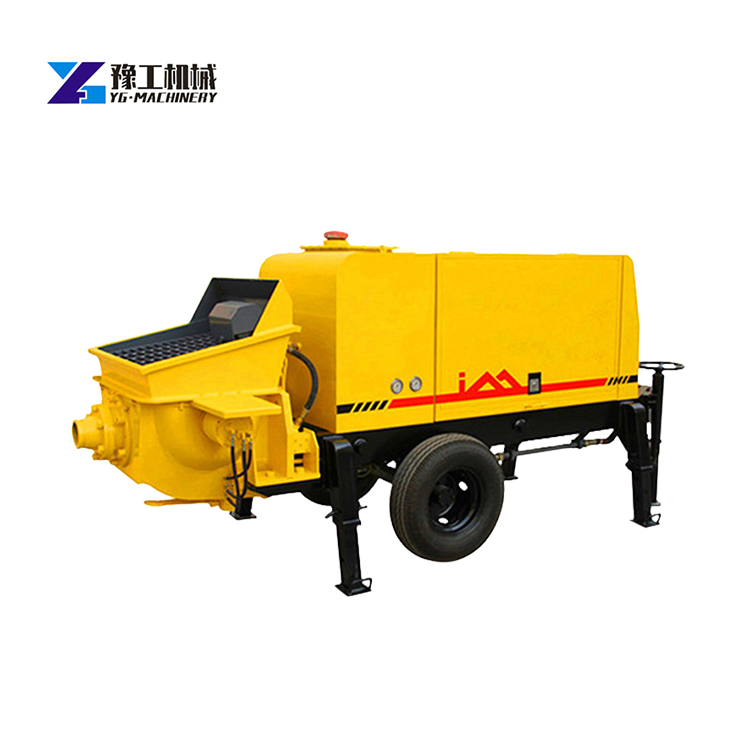

Small Mini Cement Mortar Piston Mortar Grouting Machine Concrete Pump
Small Mini Cement Mortar Piston Mortar Grouting Machine Concrete Pump
Small Mini Cement Mortar Piston Mortar Grouting Machine Concrete Pump
Small Mini Cement Mortar Piston Mortar Grouting Machine Concrete Pump
Small Mini Cement Mortar Piston Mortar Grouting Machine Concrete Pump
1 / 5
Small Mini Cement Mortar Piston Mortar Grouting Machine Concrete Pump
Small Mini Cement Mortar Piston Mortar Grouting Machine Concrete Pump
Small Mini Cement Mortar Piston Mortar Grouting Machine Concrete Pump
Small Mini Cement Mortar Piston Mortar Grouting Machine Concrete Pump
Small Mini Cement Mortar Piston Mortar Grouting Machine Concrete Pump

Small Mini Cement Mortar Piston Mortar Grouting Machine Concrete Pump

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Technical Specification

Model NO.
YG-200
Type
Concrete Pump
Shotcrete Type
Dry
Machining Process
Hydraulic
Productivity
240m²/h
Condition
New
Capacity
6-8m3/H
Max.Aggregate Size
20mm
Conveying Distance
Ver. 20m / Hor. 50m
Electric Power
11kw
Working Principle
S Pipe Valve
Dimensions
2400*1400*2600mm

Product Features

  • Specialized pouring pump for secondary structure fine stone mortar, designed for long-distance and high-rise building transportation.
  • Advanced S-tube distribution valve ensures excellent sealing performance with a simple and reliable structure.
  • High-durability wear plates and floating cutting rings made of hard alloy for extended service life and easy replacement.
  • Electric-liquid control mode featuring electro-hydraulic overload protection and an intuitive instrument display system.
  • Anti-pump function included to easily eliminate blockage faults; pumping speed is adjustable for various conditions.
  • Automated centralized lubrication system controls running time via program to protect rotating parts.
  • High-quality main seals utilized to effectively prevent internal and external hydraulic system leakage.

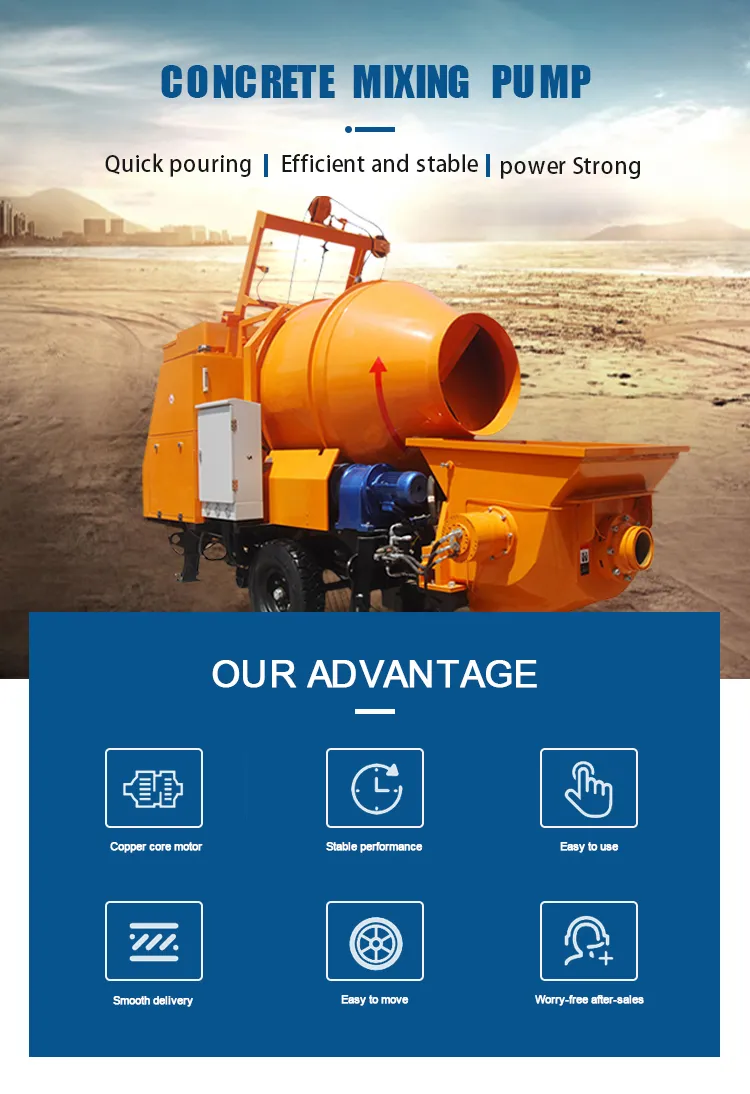

Fine Stone Mortar Concrete Pump

Technical Parameters Comparison

Model YG-10B YG-20 YG-40
Driving mode Self-propelled (electric) Drag-and-drop Drag-and-drop
Motor Power 15KW 22KW 55KW
Working form Hydraulic piston Hydraulic piston Hydraulic piston
Throughput 10m³/h 20m³/h 40m³/h
Max Aggregate Size <15mm A:<15mm, B:<30mm <30mm
Duct diameter 75/80mm 75/80mm 75/80mm
Weight 720kg 1050kg 2700kg
Vertical Distance 30m 50m 240m
Parallel Distance 60m 80m 550m

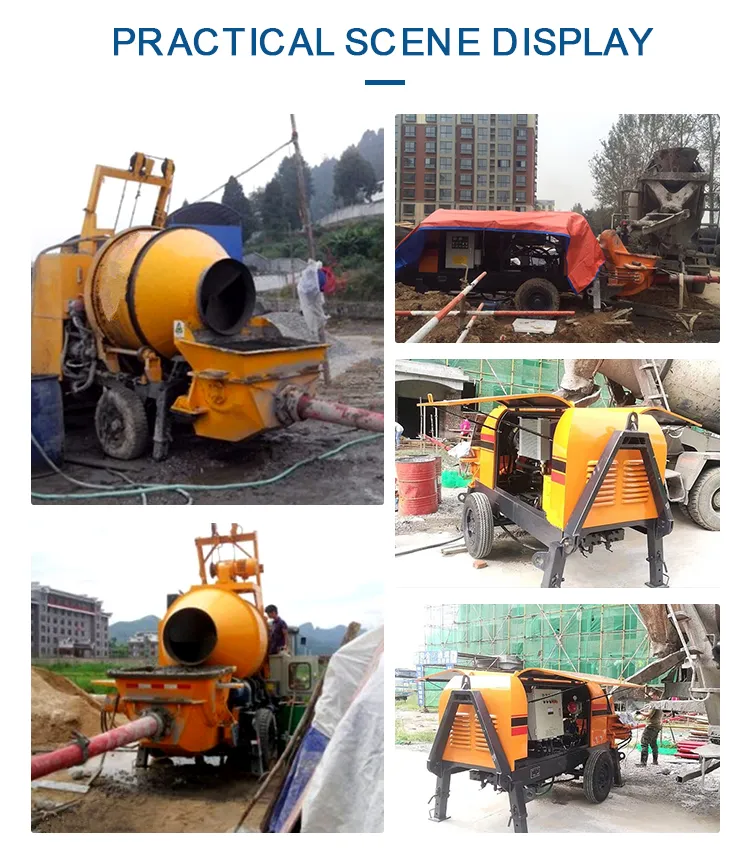

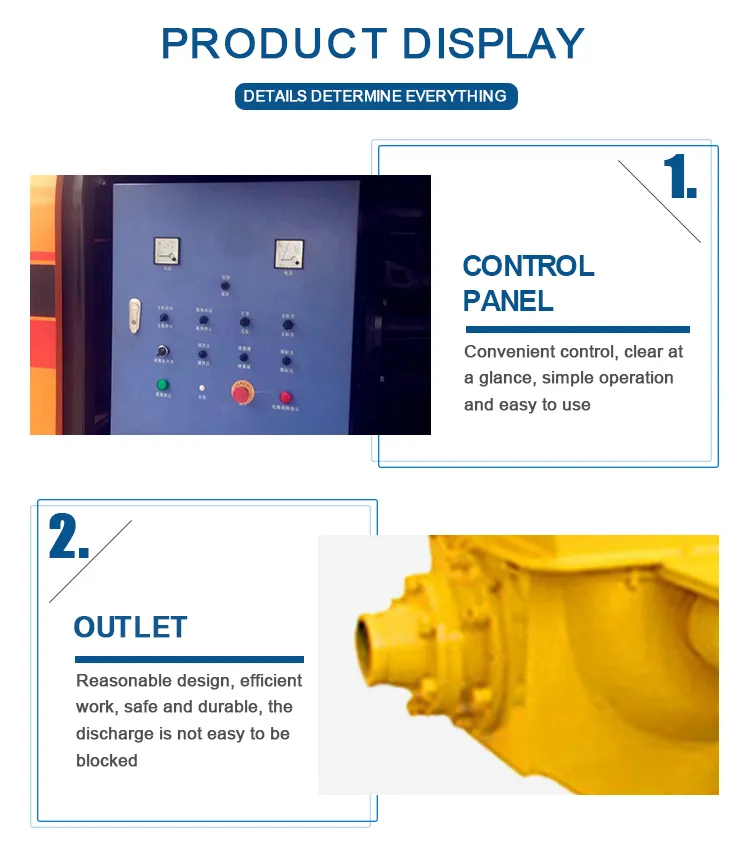

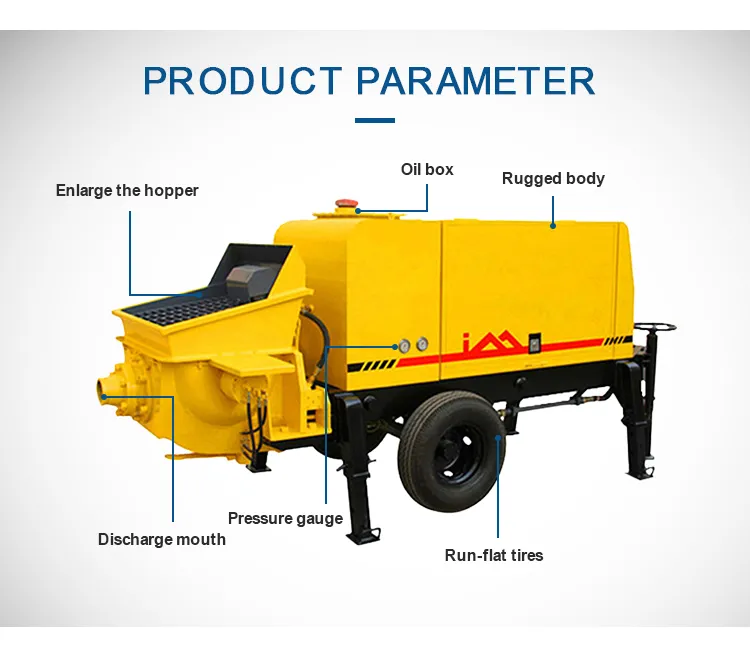

Concrete Pump Detail 1 Concrete Pump Detail 2 Concrete Pump Detail 3

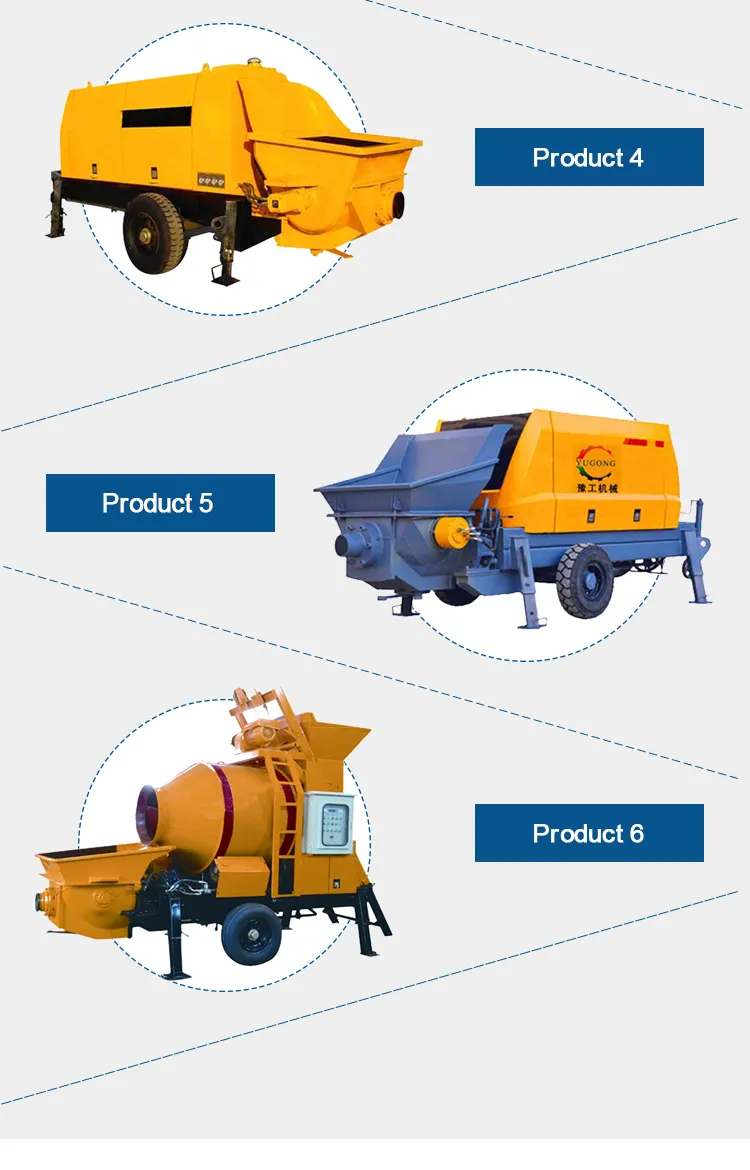

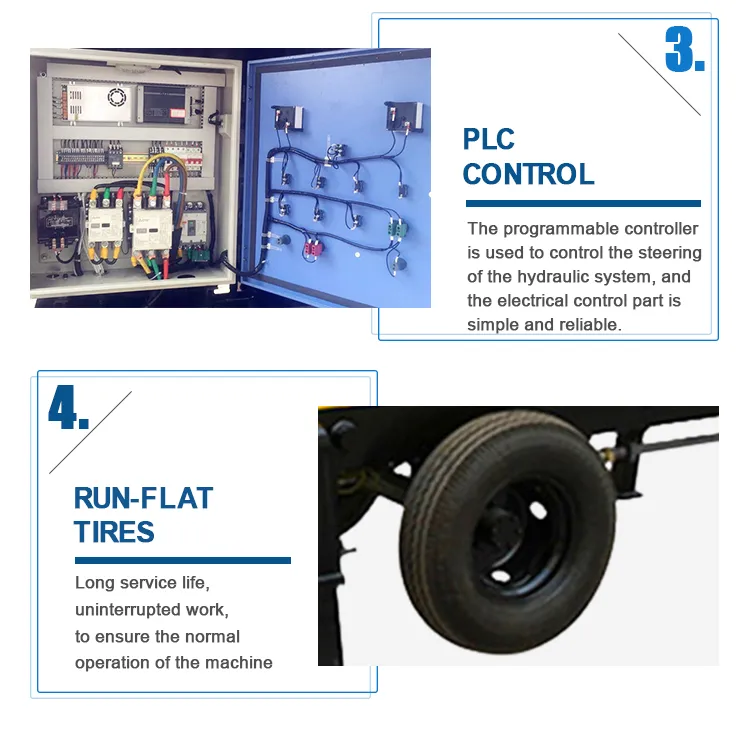

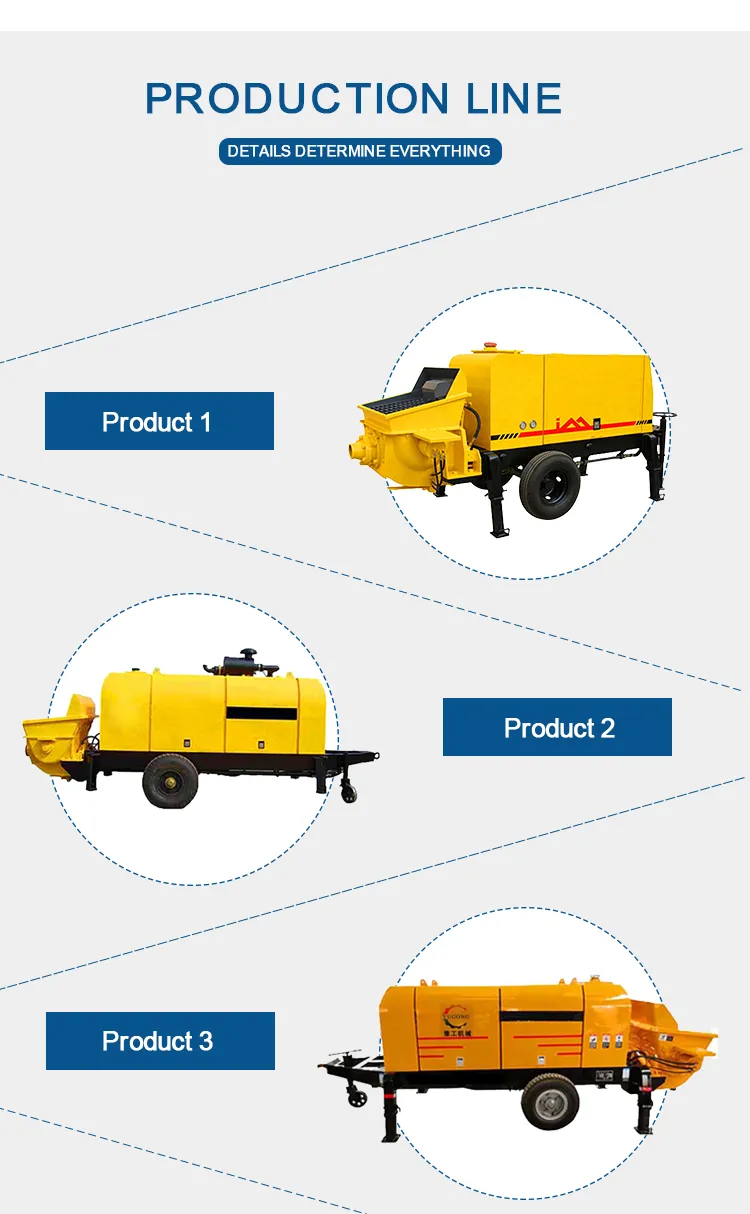

Concrete Pump Detail 4 Concrete Pump Detail 5 Concrete Pump Detail 6

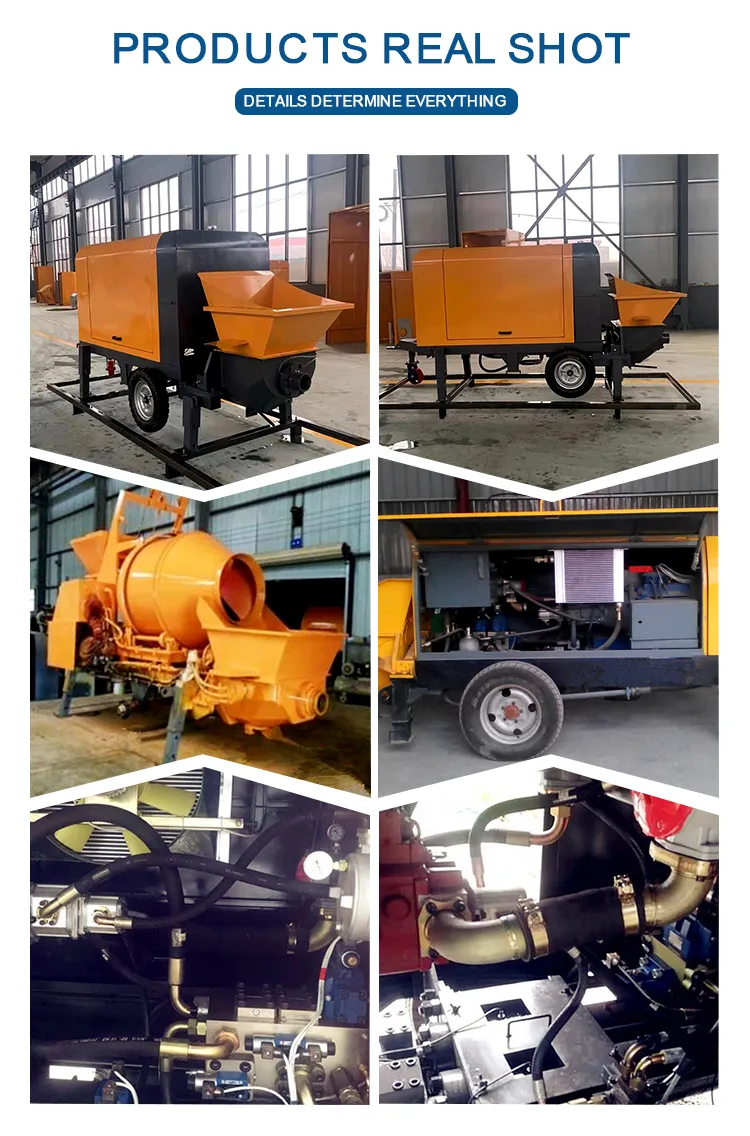

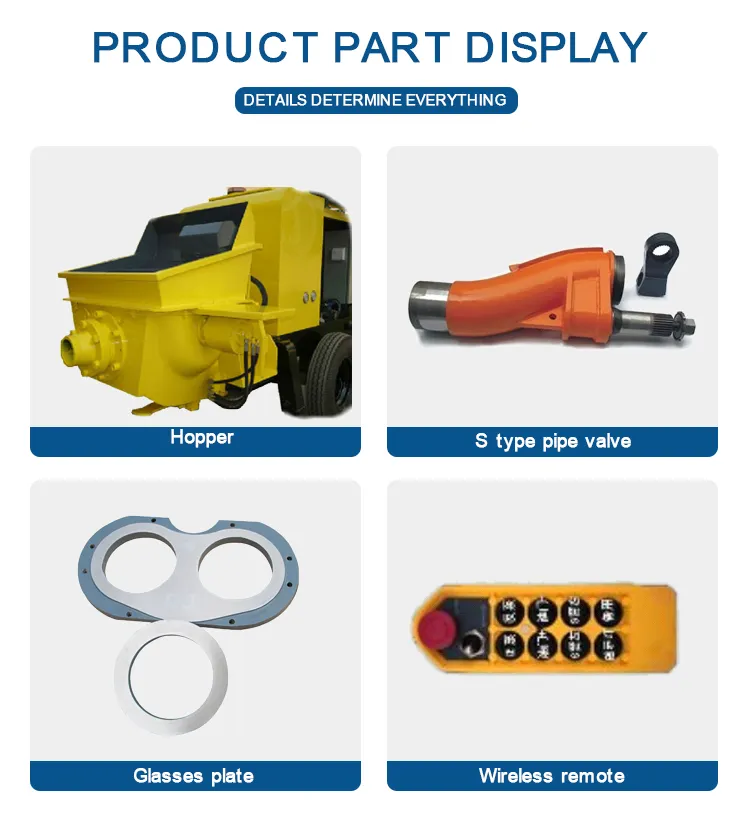

Concrete Pump Detail 7 Concrete Pump Detail 8 Factory Overview
Equipment Maintenance Final Product

Frequently Asked Questions

What materials are suitable for these concrete pumps?
These pumps are specifically designed for fine stone concrete, mortar, and secondary structure pouring in high-rise buildings.
What is the maximum conveying distance?
The distance varies by model. The high-performance YG-40 model can reach a vertical height of 240m and a parallel distance of up to 550m.
How does the machine prevent blockages?
The system includes an anti-pump operation function and adjustable pumping speeds to effectively clear and prevent duct blockages.
Are the wear parts replaceable?
Yes, the eye plate and floating cutting ring are made of hard alloy for long life and are designed for convenient replacement when necessary.
What kind of maintenance system does it have?
It features a program-controlled centralized lubrication system that automatically manages lubrication timing for all rotating parts.
Is the operation safe for electrical systems?
Yes, the machine is equipped with perfect electro-hydraulic overload protection and high-quality reliable electrical components.
