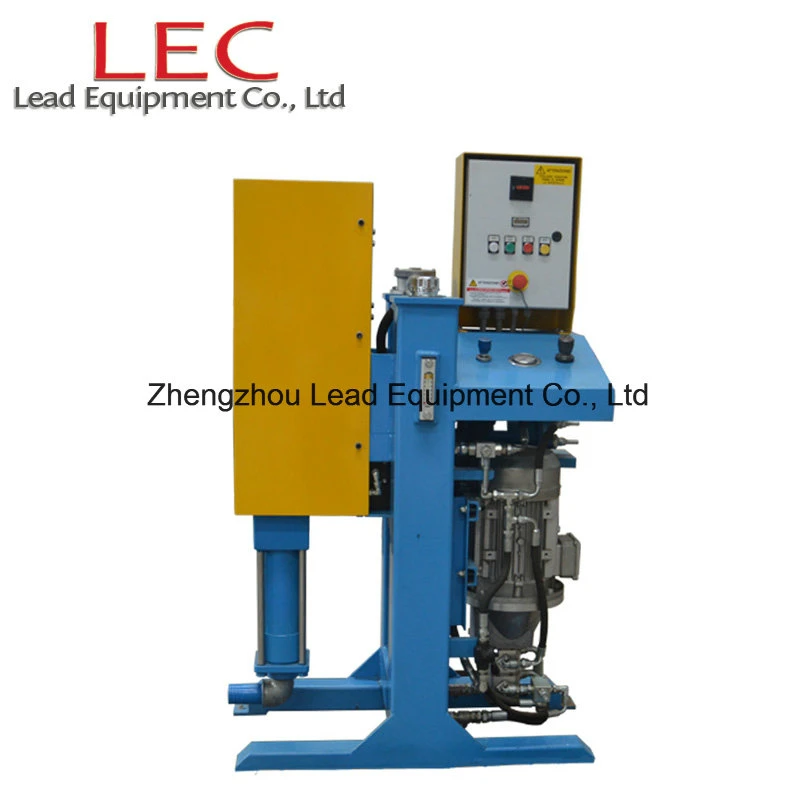

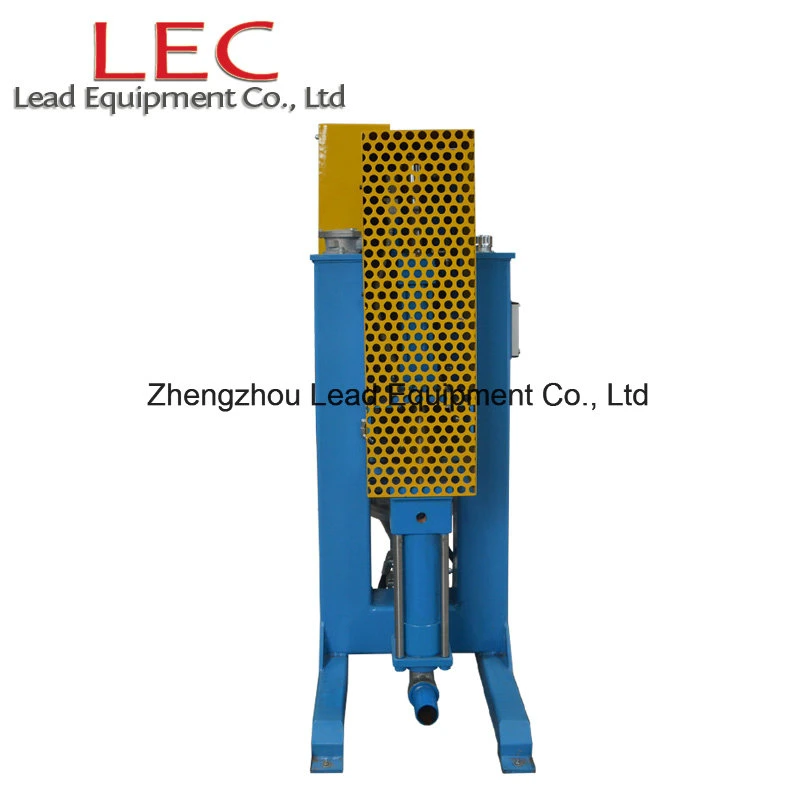

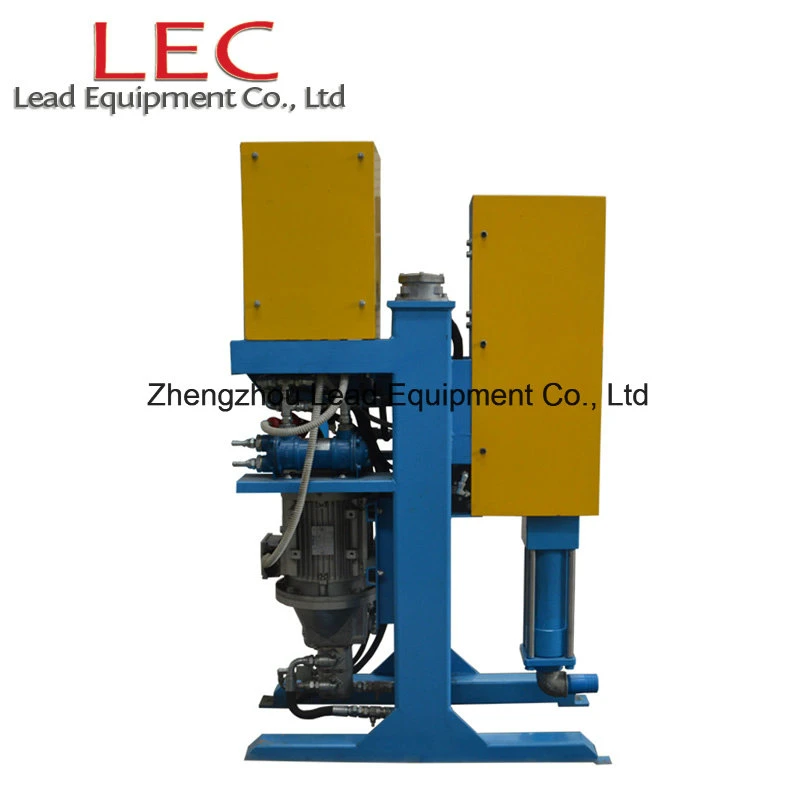

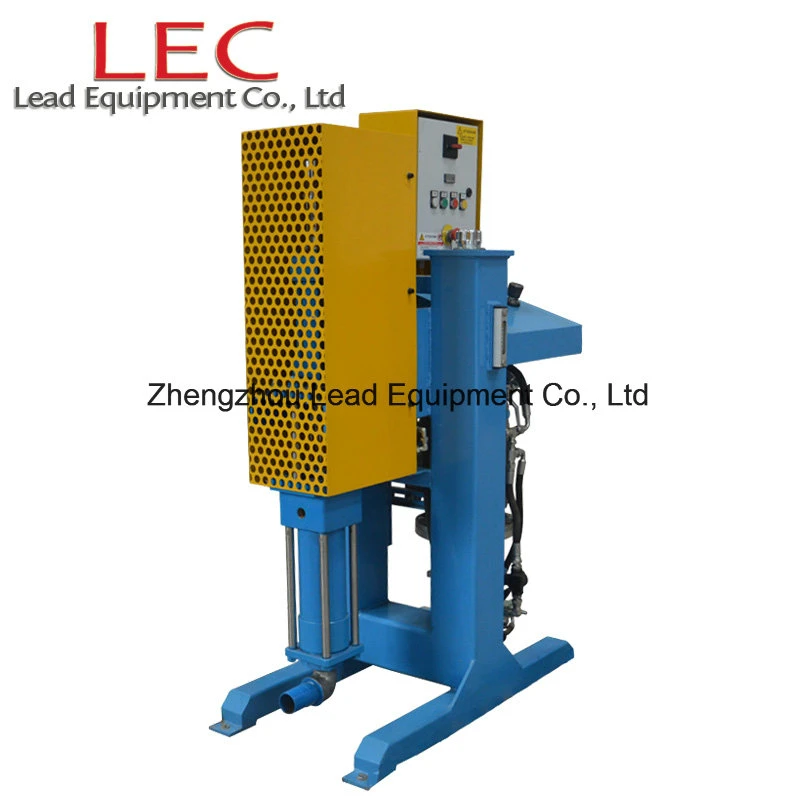

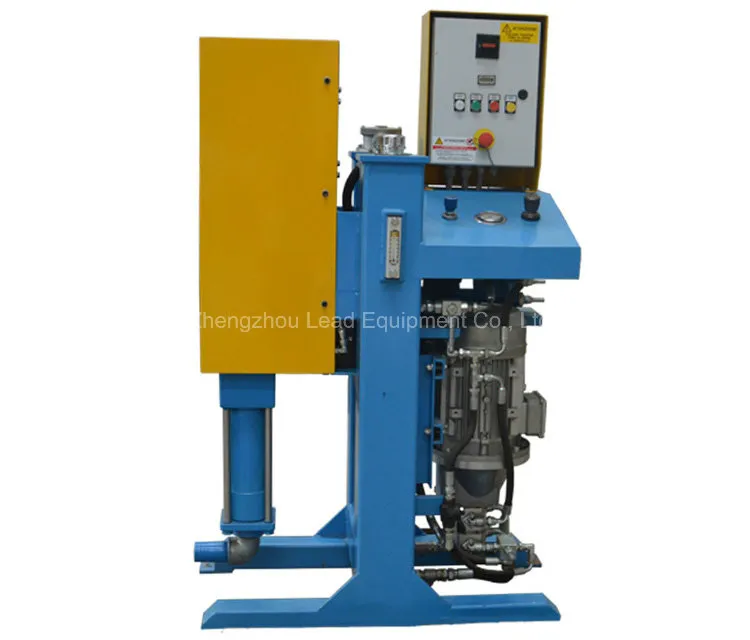

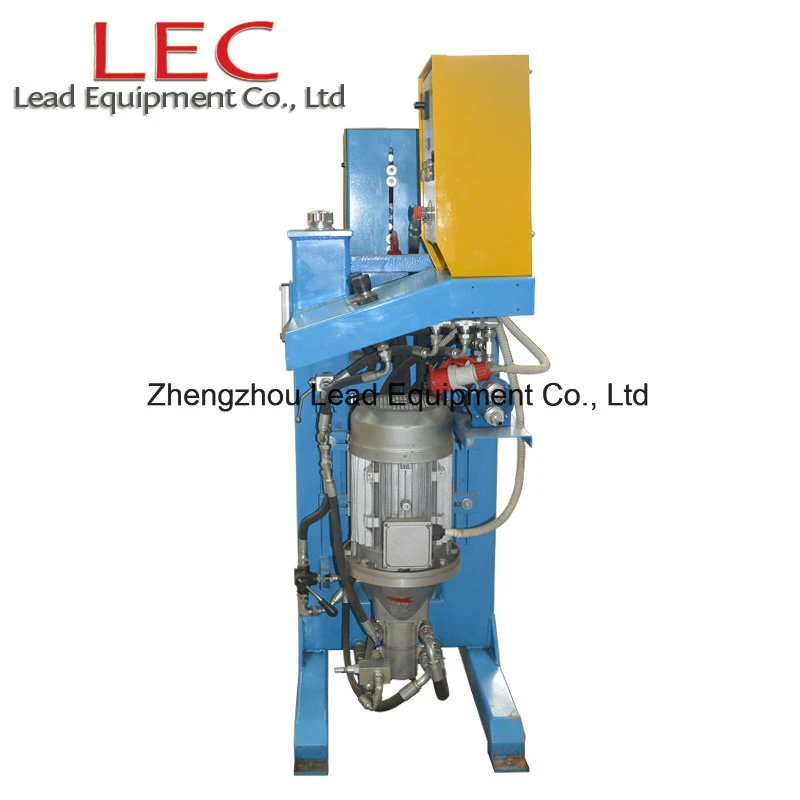

Lgh75/100 Pi-E ISO Piston Electric Compaction Grouting Pump

Customization: Available
Pressure Medium: Cement Mixture, Mortar/Plaster, Bentonite and Othe
Type: High Pressure Vertical

Product Description

i

Basic Specifications

Model NO.
LGH75/100 PI-E
Certification
CE, ISO, SGS
Piston Diameter
100mm
Piston Stroke
150mm
Low Pressure Range
0-50bar / 725psi
Low Pressure Flow
0-75L/Min
High Pressure Range
0-100bar / 1450psi
High Pressure Flow
0-40L/Min
Power Unit
7.5kw
Weight
390kg
Dimensions
1040*550*1650mm
Chassis
Skid

Product Overview

The LGH75/100 PI-E high pressure vertical grouting pump is engineered for professional applications including permeation grouting, compaction grouting, backfilling, curtain grouting, and high pressure split grouting.

Compatible Grouting Materials:
  • Cement mixture
  • Mortar/Plaster
  • Bentonite and other additives
📋

Technical Parameters

ItemLGH75/100 PI-E grout pump
Piston diameter100mm
Piston stroke150mm
Adjustable pressure (low)0-50Bar/725psi
Adjustable flow rate (low)0-75L/min
Adjustable pressure (high)0-100Bar/1450psi
Adjustable flow rate (high)0-40L/min
Discharge pipe sizeM27x2
Inlet pipe sizeG2''
Power Unit7.5kW
Chassis OptionsSkid or Tyre (Customizable)

Key Features

Advanced Control

Equipped with a digital display counter to track real-time and accumulated work times. Flow and pressure offer stepless adjustment.

Safety & Reliability

Features an emergency unloading valve for instant load-off and a full-hydraulic shaft device for stable operation.

Dual-Pump Logic

Efficient performance: Low pressure uses two pumps for high flow, while high pressure switches to a single pump for powerful output.

Versatile Cooling

Available in both water-cooling and air-cooling types, making it suitable for both hot and cold climates.

Wide Applications

Civil & Structural

Dam foundations, tunnels, mining, soil nails, tiebacks, bridge restoration, and foundation stabilization.

Marine & Geotechnical

Underwater foundations, piers, shoreline work, deep well casing, and well sealing.

?

Frequently Asked Questions

What are the primary uses for the LGH75/100 PI-E pump?
It is primarily used for high-pressure grouting projects such as tunnel lining, dam foundations, soil compaction, and curtain grouting.
Can the flow rate and pressure be adjusted?
Yes, both flow rate and pressure are step-less adjustable, allowing for precise control depending on the specific project requirements.
What materials is this pump compatible with?
The pump is designed to handle cement mixtures, mortar, plaster, and bentonite.
Does the machine come with any safety features?
Yes, it is equipped with an emergency unloading valve that allows for instant pressure release in case of emergencies.
Is this equipment suitable for extreme temperatures?
Yes, with both water-cooling and air-cooling options available, it is designed to operate reliably in both hot and cold environments.
What is the standard warranty period?
The equipment comes with a 12-month warranty period starting from the date of installation and commissioning.
